Motherboard - Gigabyte B760 Gaming X DDR4 ATX Intel LGA 1700 2.5 GbE
Product reference:
14-4719331873448
ATX motherboard for "Intel" LGA 1700 processors, supporting up to 128 GB DDR4 memory with a frequency of up to 5,333 MHz (OC). Equipped with three PCIe 4.0 M.2 slots, a PCIe 5.0 x16 slot, a 2.5 GbE LAN connector, HDMI, DisplayPort and USB connectors.
Motherboard - Gigabyte B760 Gaming X DDR4 ATX Intel LGA 1700 2.5 GbE
Product reference:
14-4719331873448
ATX motherboard for "Intel" LGA 1700 processors, supporting up to 128 GB DDR4 memory with a frequency of up to 5,333 MHz (OC). Equipped with three PCIe 4.0 M.2 slots, a PCIe 5.0 x16 slot, a 2.5 GbE LAN connector, HDMI, DisplayPort and USB connectors.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Gigabyte B760 Gaming X DDR4 Gen5 motherboard
ATX motherboard for "Intel" LGA 1700 processors. Supports up to 128 GB of DDR4 memory with a frequency of up to 5,333 MHz (OC). Equipped with three PCIe 4.0 M.2 slots, a PCIe 5.0 x16 slot, 2.5 GbE LAN, HDMI, DisplayPort and USB connectors.
- ATX motherboard with "Intel B760" chipset and LGA 1700 socket, supporting 12-osios, 13-osios and 14-osios generation "Intel Core" processors
- Supports up to 128 GB of DDR4 memory via four DIMM slots and dual-channel mode
- PCIe 5.0 x16 slot for graphics card and three PCIe 4.0 M.2 slots for fast storage

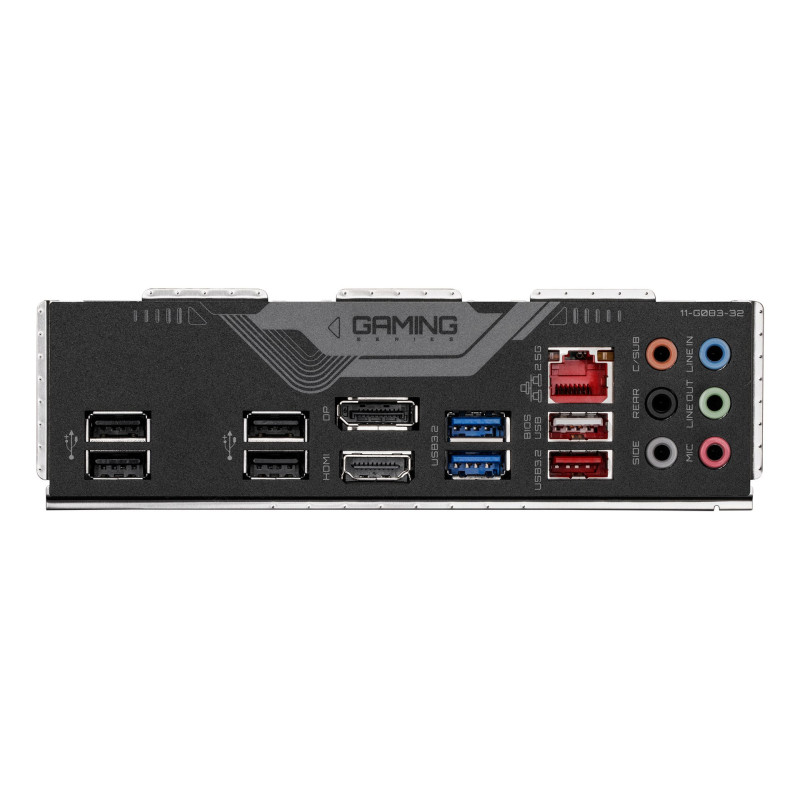

- 2.5Gb Ethernet, HDMI 2.1, DisplayPort 1.2, USB ports, and 7.1 channel audio
Product overview | |
|---|---|
| Product type | ATX desktop computer motherboard |
| Brand | GIGABYTE |
| Model | B760 GAMING X DDR4 |
| Chipset | Intel B760 |
| Processor socket | Intel LGA 1700 |
| Compatible processors | 12-osios, 13-osios and 14-osios generation "Intel Core", "Pentium" and "Celeron" processors |
| Supported operating systems | Windows 10 x64 and Windows 11 x64 |
Memory | |
| Memory type | DDR4-SDRAM, unbuffered |
| Memory slots | 4 DIMM slots |
| Memory architecture | Two-channel |
| Maximum memory capacity per slot | 32GB |
| ECC support | ECC and non-ECC memory |
Development and data storage | |
| Video card slot | 1 × PCIe 5.0 x16 slot |
| Additional expansion slots | 2 × PCIe 3.0 x16 slots |
| M.2 sockets | 3 × M.2 slots supporting PCIe 4.0 drives up to 22110 length |
| SATA connectors | 4 × SATA III |
| Supported storage devices | HDD and SSD |
| Maximum number of storage devices | Up to 7 storage devices |
| RAID support | RAID 0, 1, 5, and 10 |
Connections | |
| Wired network | 1 × 2.5 Gigabit Ethernet connector via Realtek RTL8125 controller |
| Wireless network | None |
| Rear USB ports | 5 × USB 2.0, 2 × USB 3.2 Gen 1 Type-A and 1 × USB 3.2 Gen 2 Type-A |
| Internal USB ports | 2 × USB 2.0 and 1 × USB 3.2 Gen 1 |
| Video outputs | 1 × HDMI 2.1 and 1 × DisplayPort 1.2 |
| Maximum resolution | 4,096 × 2,304 pixels |
| HDCP | Supported |
Sound and internal connections | |
| Audio codec | Realtek ALC897 |
| Audio output | 7.1 channel sound |
| Audio connections | Headphone output, line input and S/PDIF output |
| Cooling connections | 2 CPU fan connectors, 4 case fan connectors, and 2 water pump connectors |
| Lighting connectors | 4 RGB LED connectors |
| Other connections | 24-pin ATX power, 8-pin EPS power, front panel audio, front panel, TPM, and serial port connectors |
Firmware and physical characteristics | |
| BIOS | UEFI AMI |
| BIOS features | CMOS clear jumper and voltage, temperature, fan and water cooling monitoring |
| Cooling design | Passive motherboard cooling |
| Dimensions | 305 × 244 × 35 mm (width × depth × height) |
| Weight | 1.59 kg |
| Color | Dark brown |
Safety warning | |
| Important | For installation only in a compatible ATX computer case. Before installing or touching the product, disconnect the power source and use a ATX power supply of the appropriate wattage. Be careful of static electricity and install the processor, memory, storage, and cooling components according to the manufacturer's instructions. |
| Height | 80mm |
| Length | 270mm |
| Weight | 1800g |
| Width | 335 mm |
