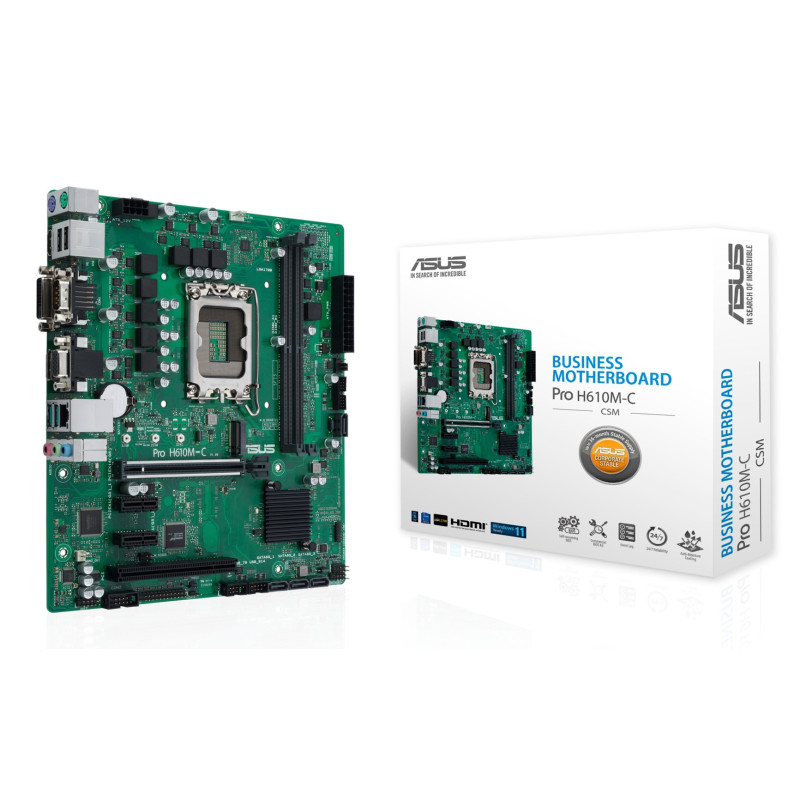

Motherboard - ASUS Pro H610M-C-CSM Intel H610 LGA 1700 Micro ATX
Product reference:
14-4711081655152
ASUS micro ATX motherboard with Intel H610 chipset and LGA 1700 socket for compatible Intel processors. Supports up to 64 GB DDR5 memory, one M.2 and four SATA drives, Gigabit Ethernet, and multiple video outputs.
Motherboard - ASUS Pro H610M-C-CSM Intel H610 LGA 1700 Micro ATX
Product reference:
14-4711081655152
ASUS micro ATX motherboard with Intel H610 chipset and LGA 1700 socket for compatible Intel processors. Supports up to 64 GB DDR5 memory, one M.2 and four SATA drives, Gigabit Ethernet, and multiple video outputs.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

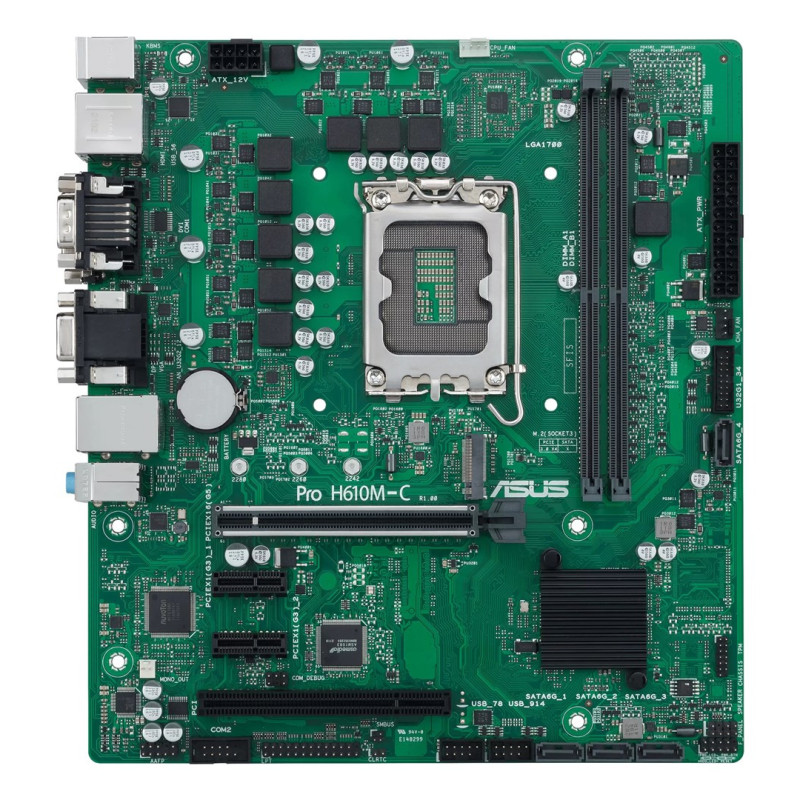

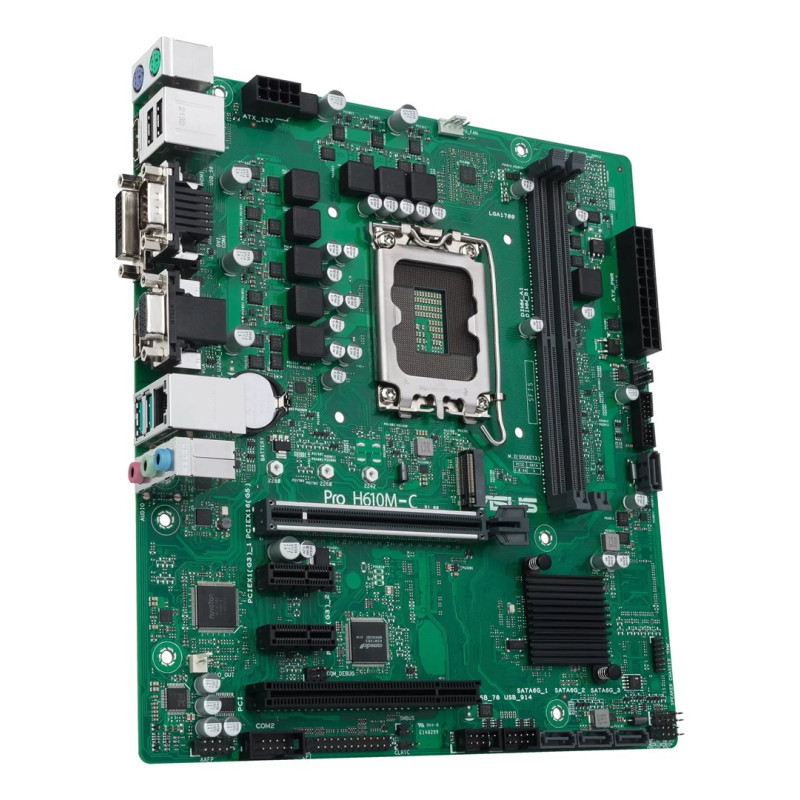

ASUS Pro H610M-C-CSM motherboard - Intel H610, LGA 1700, Micro ATX
ASUS Micro ATX motherboard with Intel H610 chipset and LGA 1700 socket for compatible Intel processors. Supports up to 64 GB DDR5 memory, one M.2 drive, four SATA drives, Gigabit Ethernet and multiple video outputs.
- Micro ATX motherboard for Intel LGA 1700 desktop processors, including Core, Pentium and Celeron models
- Supports up to 64 GB of DDR5 memory via two DIMM slots
- One PCIe 5.0 x16 slot and M.2 slot for modern expansion and data storage
- Gigabit Ethernet, HDMI, DisplayPort, DVI-D and VGA outputs for flexible connectivity
Product identification | |
|---|---|
| Product type | Micro ATX motherboard for desktop computer |
| Brand | ASUS |
| Model | About H610M-C-CSM |
| Chipset | Intel H610 |
| Form factor | Micro ATX |
Processor support | |
| Processor socket | Intel LGA 1700 |
| Compatible processors | Intel Core i3, i5, i7 and i9; Intel Pentium; Intel Celeron |
| Maximum number of supported processors | 1 |
Memory | |
| Memory type | DDR5 SDRAM |
| Memory slots | 2 DIMM slots |
| Maximum memory frequency | 4800MHz |
| ECC support | Not ECC |
Development and data collection | |
| PCI Express slots | 1 × PCIe 5.0 x16; 1 × PCIe x1 |
| M.2 sockets | 1 |
| SATA connectors | 4 × SATA III |
| Supported storage devices | HDD and SSD |
| Maximum number of storage devices | Total 5 |
Rear panel and connectors | |
| USB ports | 2 × USB 3.2 Gen 2 Type-A; 2 × USB 2.0 |
| Network interface | 1 × RJ-45 Gigabit Ethernet |
| Wireless connection | None |
| PS/2 ports | 2 |
| Serial port | 1 × COM |
| Video outputs | 1 × HDMI 2.1, 1 × DisplayPort 1.4, 1 × DVI-D and 1 × VGA |
| Maximum number of monitors | 3 |
| Audio output | 7.1 channel sound |
Internal connections and functions | |
| Power connections | 24-pin ATX and 12 V power connectors |
| Internal USB ports | 1 × USB 3.2 Gen 1 and 2 × USB 2.0 |
| Fan connection | Processor fan connector |
| Safety and system connections | TPM connector and intrusion detection connector |
| Supported operating systems | Windows 10 64-bit and Windows 11 64-bit |
Dimensions and included accessories | |
| Dimensions | 244 × 244 × 58 mm (width × depth × height) |
| Included accessories | SATA cable and driver media |
Safety warning | |
| Warning | Install and use the motherboard only in a compatible computer case with a suitable power supply. Before installation or maintenance, disconnect the power supply and take appropriate precautions against electrostatic discharge. Before use, ensure that all processors, memory modules, and expansion cards are compatible. |
| Height | 100mm |
| Length | 300mm |
| Weight | 500g |
| Width | 300mm |
