NZXT N7 B850

NZXT N7 B850. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Memory slots type: DIMM, Memory channels: Dual-channel. Supported storage drive interfaces: SATA. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
AMD® B850 ATX Gaming Wi-Fi Motherboard with Full Cover
The N7 B850 pairs advanced gaming performance with a sleek, refined design. Built for AMD® Ryzen™ processors, it features robust power delivery, optimized thermals, and high-speed connectivity with DDR5 and PCIe 5.0. A full PCB cover enhances aesthetics, creating a clean and modern foundation for any build.
- AMD® AM5 Socket: Ready for AMD® Ryzen™ 9000, 8000, and 7000 series desktop processors.

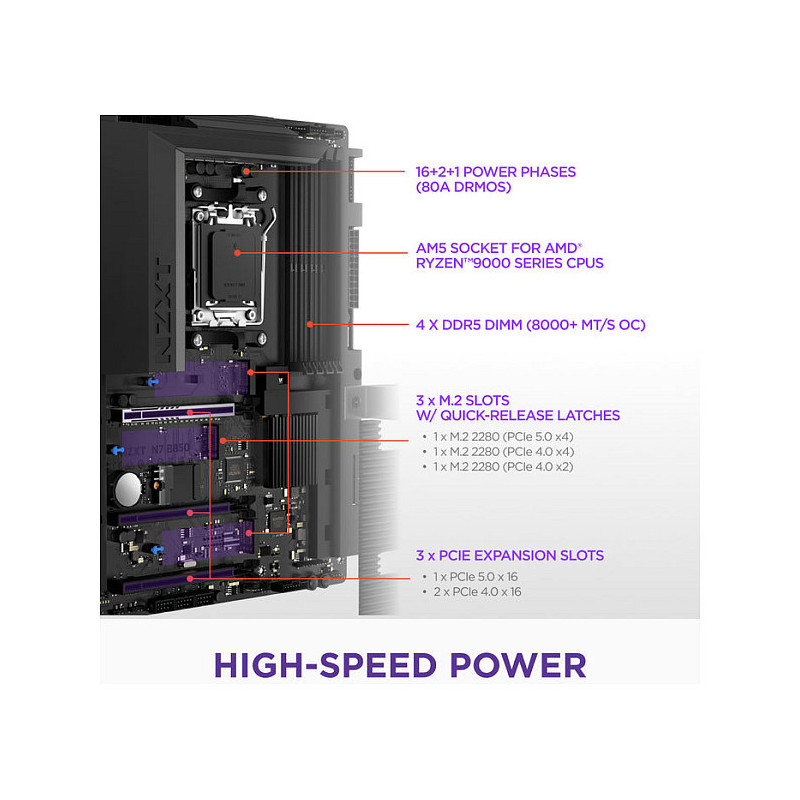

- Optimal Power: 16+2+1 power phase design with 80A DrMOS and an eight-layer 2-ounce copper PCB ensure stable power delivery.

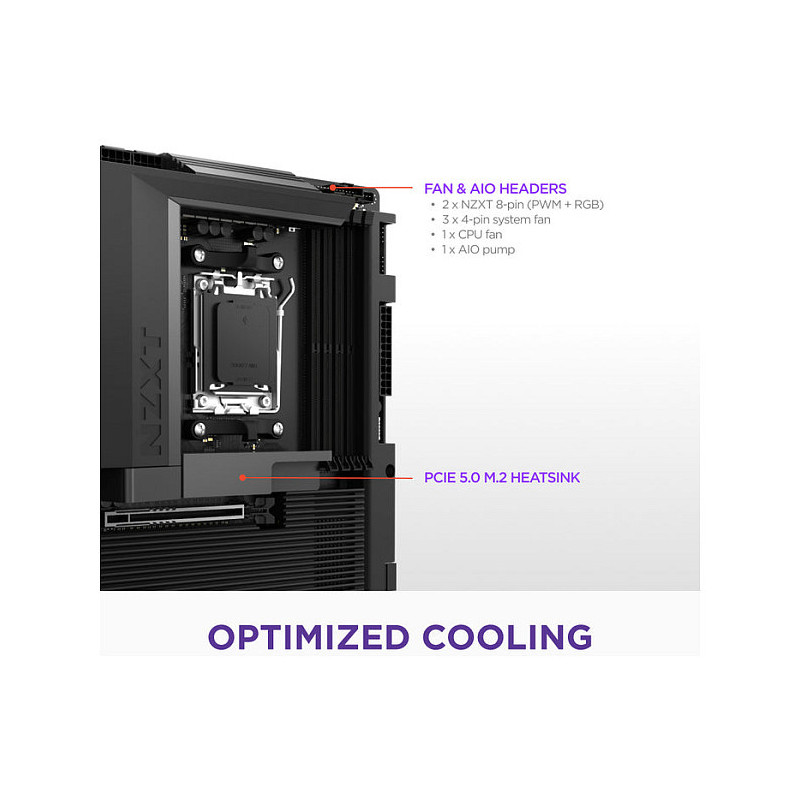

- M.2 Heatsink: An aluminum heatsink on the top-most PCIe 5.0 M.2 slot keeps temperatures low.
- PCIe® 5.0 Expansion: One PCIe® 5.0 x16 slot for next-gen GPUs and two PCIe® 4.0 x16 slots for high-speed expansion.
- High-Speed Storage: Three M.2 slots, including one PCIe® 5.0 with a quick-release latch and two PCIe® 4.0 provide ultra-fast storage speeds and quick load times.
- DDR5 Memory: Four dual-channel DIMM slots support DDR5 RAM speeds of 8000+ MT/s, delivering faster multitasking and improved system responsiveness.
- Fast Connectivity: Wi-Fi 6E and 2.5GbE enable high-speed data transfers and low-latency networking.

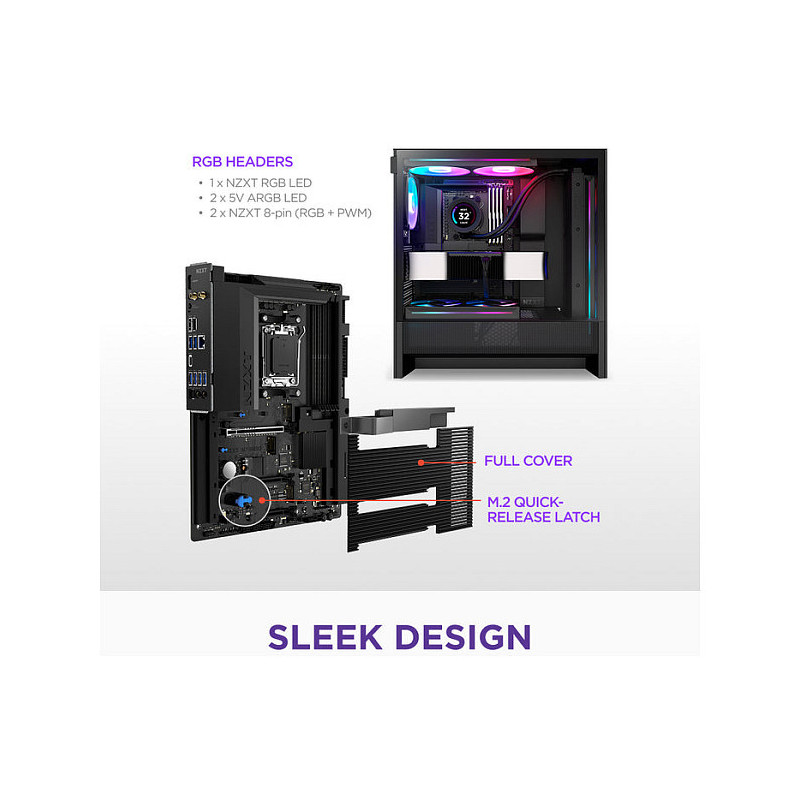

- Sleek, Minimal Design: A full PCB cover provides a clean, modern aesthetic that integrates seamlessly into any build.
IMPORTANT: BIOS Driver Updates Required
Update your BIOS and drivers for the best compatibility, stability, and performance.
- BIOS: Version 3.20 or later is required for the AMD® Ryzen™ 7 9800X3D. While your system will boot, update immediately to prevent memory-related issues. You can check your BIOS version in NZXT CAM.
- Drivers: Keep your chipset and system drivers updated for optimal performance and stability.
- Find the latest BIOS and drivers at the bottom of this page, below the FAQs. Need help? NZXT Support is here for you!
Refined and Ready
The N7 B850 pairs advanced gaming performance with a sleek, refined design. Built for AMD® Ryzen™ processors, it features robust power delivery, optimized thermals, and high-speed connectivity with DDR5 and PCIe 5.0. A full PCB cover enhances aesthetics, creating a clean and modern foundation for any build.

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel

Storage controllers

Supported storage drive interfaces: SATA

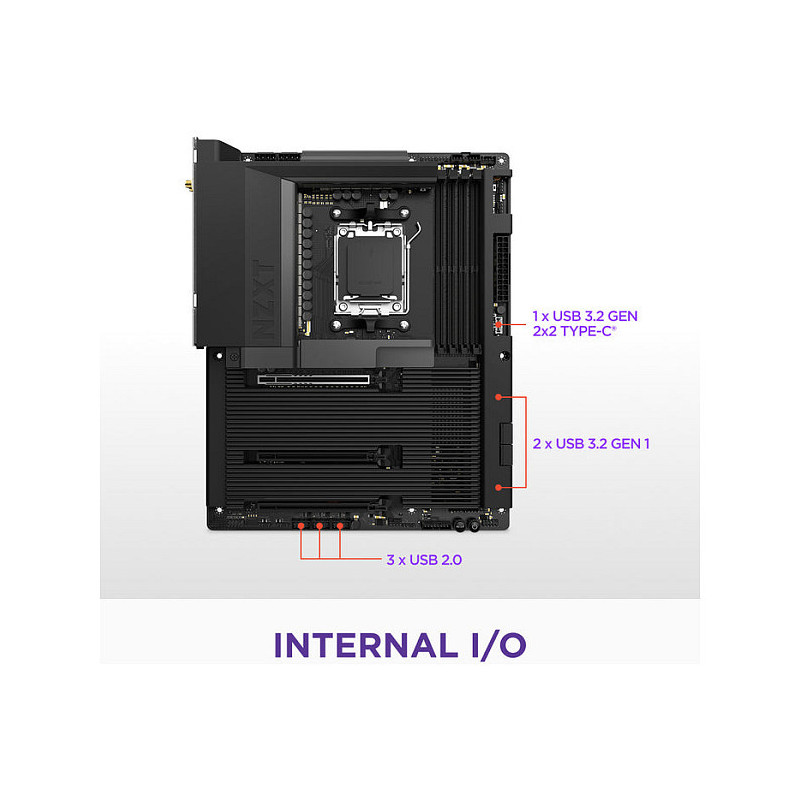

Internal I/O

USB 2.0 connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2x2 connectors: 1
Number of SATA connectors: 4
Feature: Front panel audio connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of CPU fan connectors: 1
Number of water pump connectors: 1
Feature: RGB LED pin header
Number of RGB LED pin headers: 1

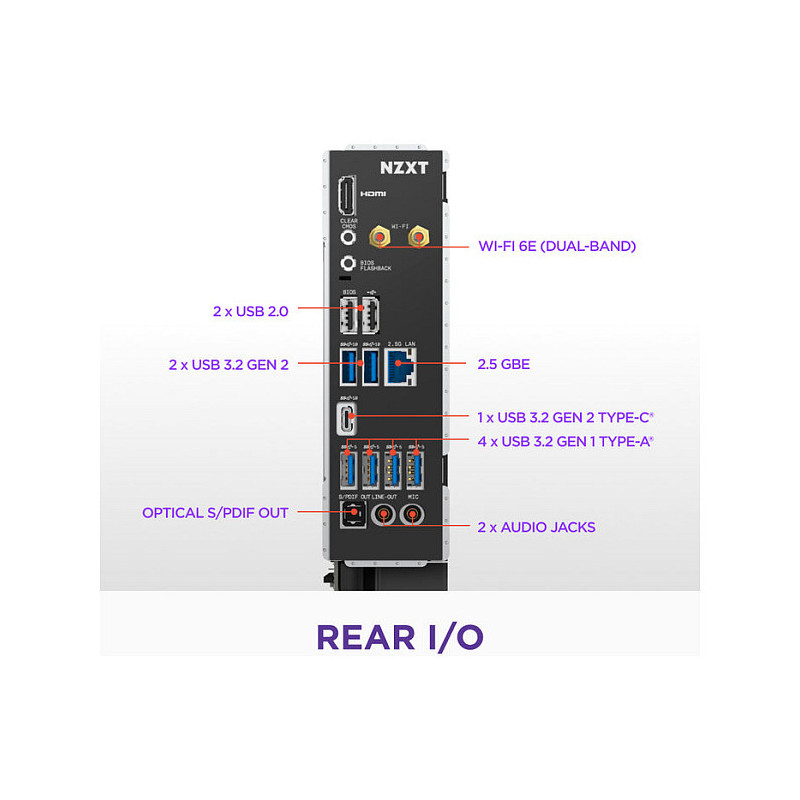

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Headphone outputs: 2
Feature: S/PDIF out port

Network

Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Feature: Bluetooth
Bluetooth version: 5.2

Features

Motherboard chipset: AMD B850
Audio chip: Realtek ALC1220
Product colour: Black
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11, Windows 11 x64

Expansion slots

PCI Express x16 (Gen 4.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 1
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0
4th M.2 largest key size: 2280

BIOS

Feature: Clear CMOS button
