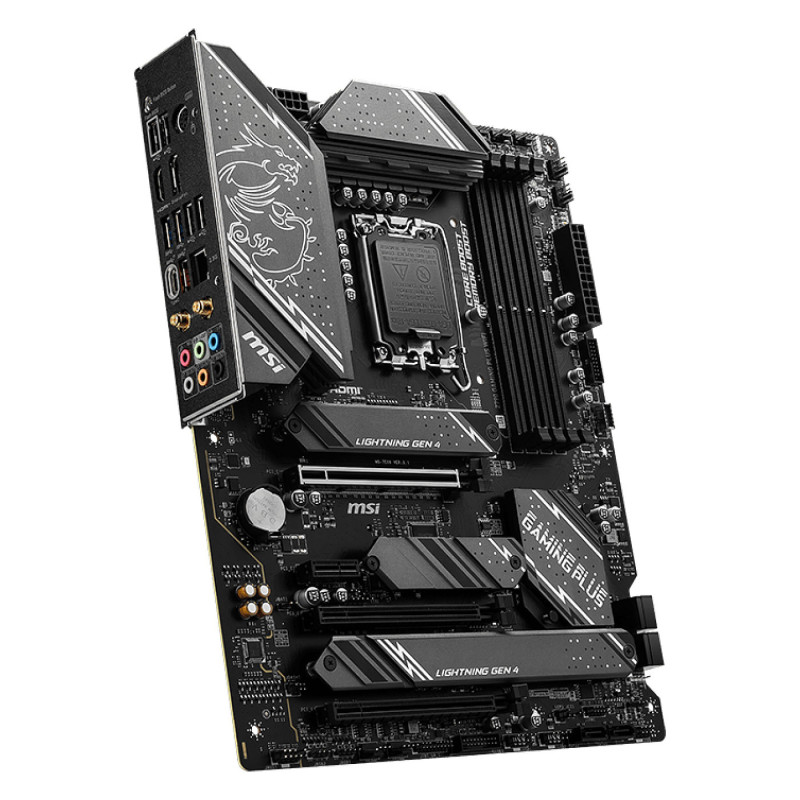

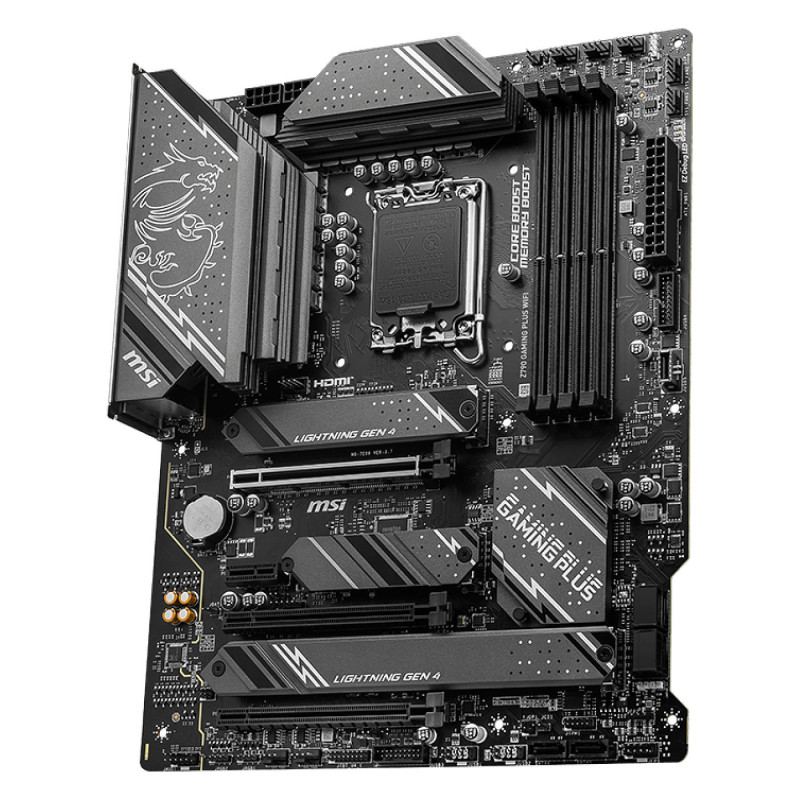

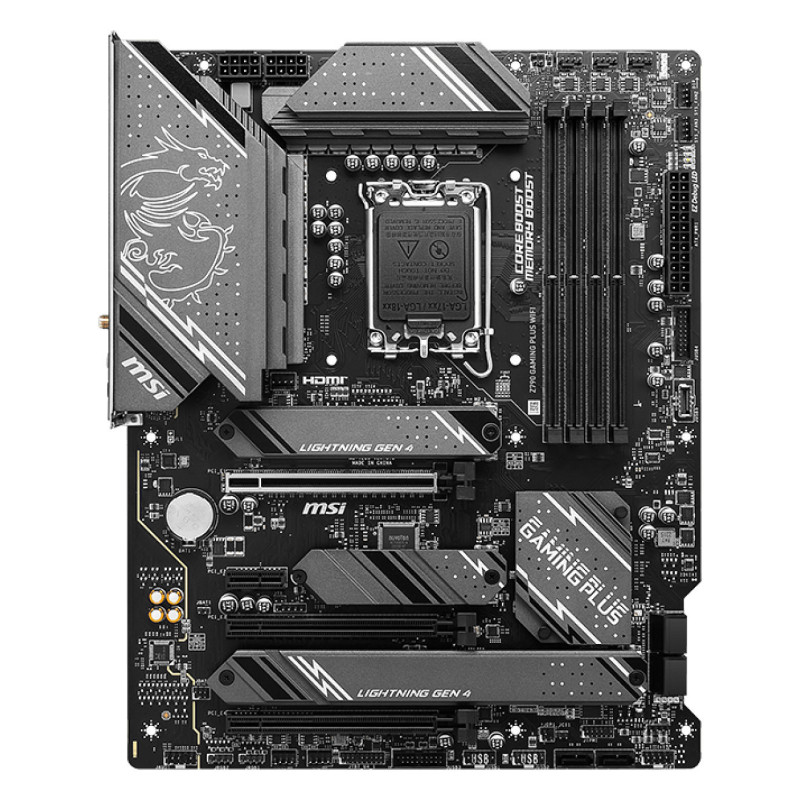

MSI Z790 GAMING PLUS WIFI motherboard

MSI Z790 GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, ECC сompatibility: Non-ECC. Supported storage drive interfaces: M.2, PCI Express, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Z790 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

Processor

Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold
Supported processor sockets: LGA 1700

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
ECC сompatibility: Non-ECC
Supported memory clock speeds: 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Supported memory clock speed (max): 7200 MHz
Maximum internal memory: 192 GB

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express
Number of storage drives supported: 10
Feature: RAID support
RAID levels: 0, 1, 5, 10

Graphics

Parallel processing technology support: Not supported

Internal I/O

USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 6
Feature: Front panel audio connector
Feature: Front panel connector
Feature: TPM connector
Feature: RGB LED pin header

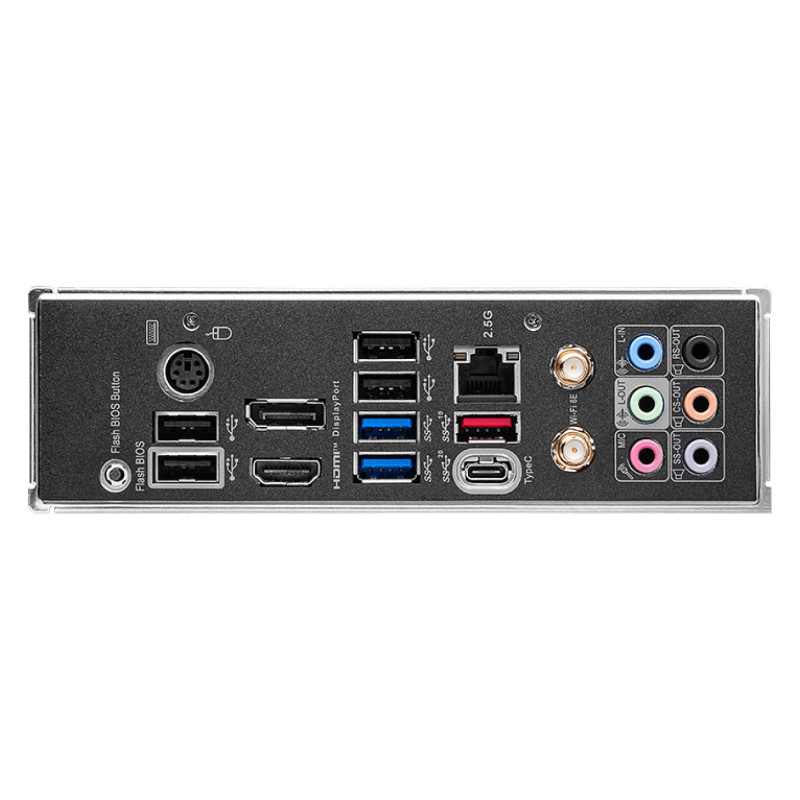

Rear panel I/O ports

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Feature: S/PDIF out port

Network

Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Feature: Bluetooth
Bluetooth version: 5.3

Features

Motherboard chipset: Intel Z790
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
PCI slots: 4
Number of M.2 (M) slots: 4

Weight & dimensions

Width: 243.8 mm
Depth: 304.8 mm

Packaging content

Cables included: SATA
