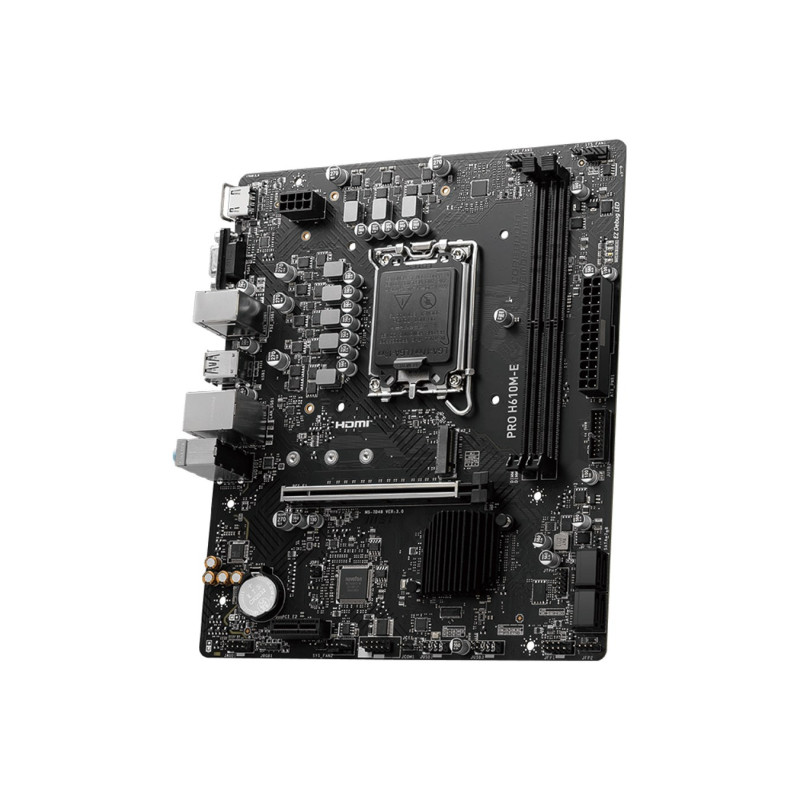

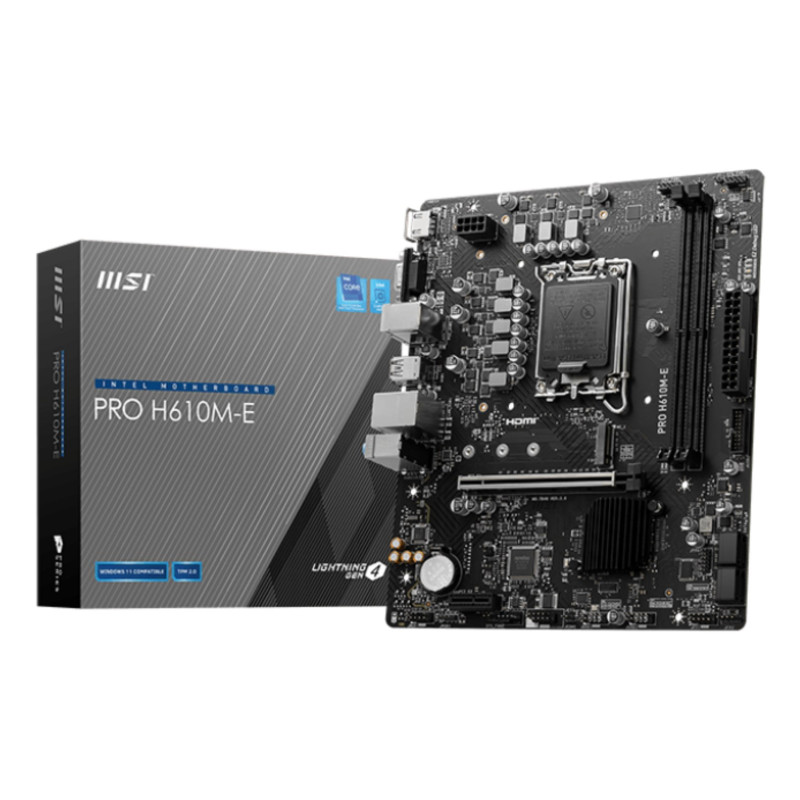

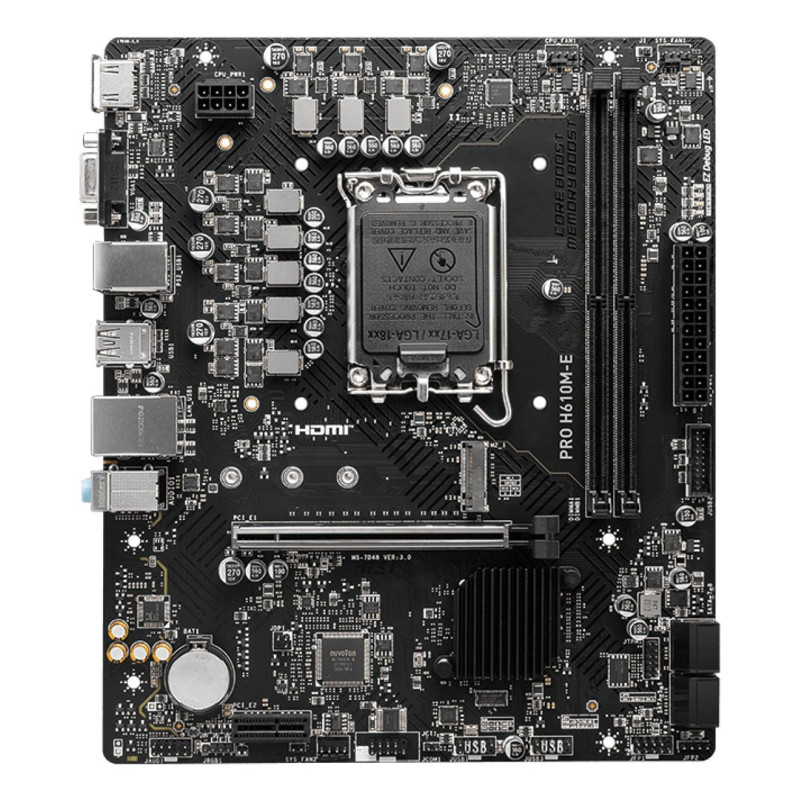

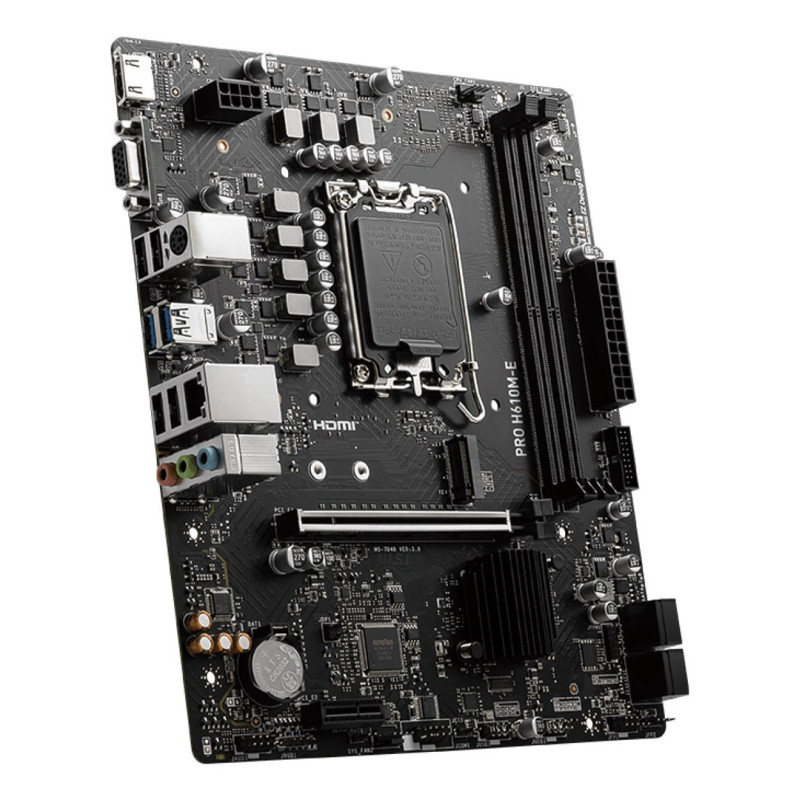

MSI PRO H610M-E motherboard Intel H610 LGA 1700 micro ATX
Product reference:
6-7D48-019R
MSI PRO H610M-E motherboard Intel H610 LGA 1700 micro ATX
MSI PRO H610M-E motherboard Intel H610 LGA 1700 micro ATX
Product reference:
6-7D48-019R
MSI PRO H610M-E motherboard Intel H610 LGA 1700 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G, Intel® Core™ i3 |
| Processor manufacturer | Intel |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 11, Windows 10 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel H610 |
| Power source type | ATX |
| Cooling type | Active |
| Supported memory types | DDR5-SDRAM |
| Supported memory module capacities | 4GB, 8GB, 32GB, 16GB |
| Memory channels | Dual-channel |
| Maximum internal memory | 96 GB |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 5600 |
| Width | 200 mm |
| Depth | 236.2 mm |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Thunderbolt headers | 2 |
| USB 2.0 connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| Audio connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| BIOS type | UEFI AMI |
| Drivers included | Yes |
| Cables included | SATA |
| RAID levels | 1, 5, 10 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4 |
| Headphone outputs | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| USB 2.0 ports quantity | 4 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Warnings | Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
