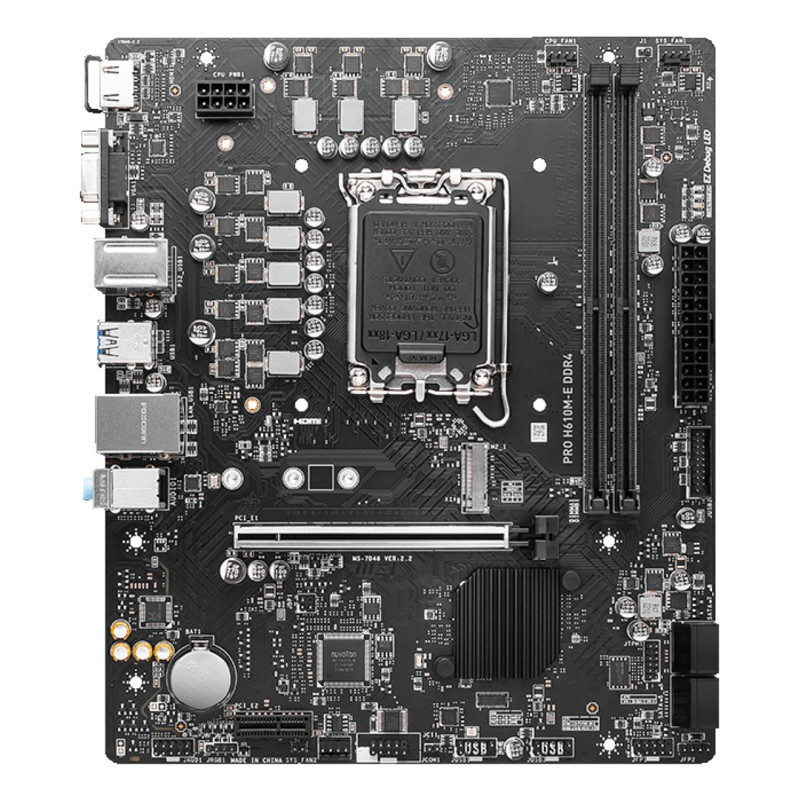

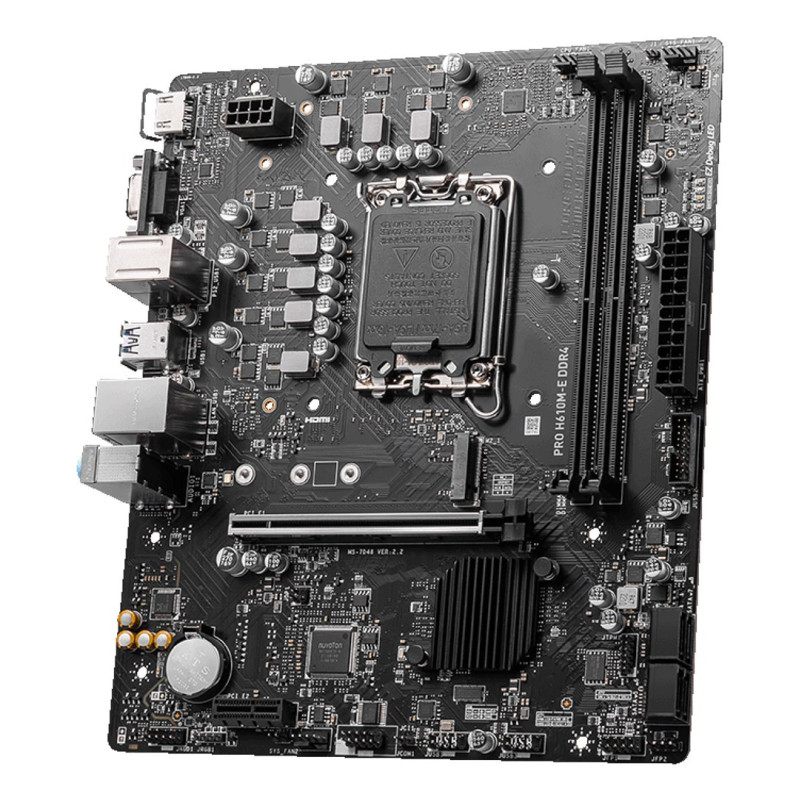

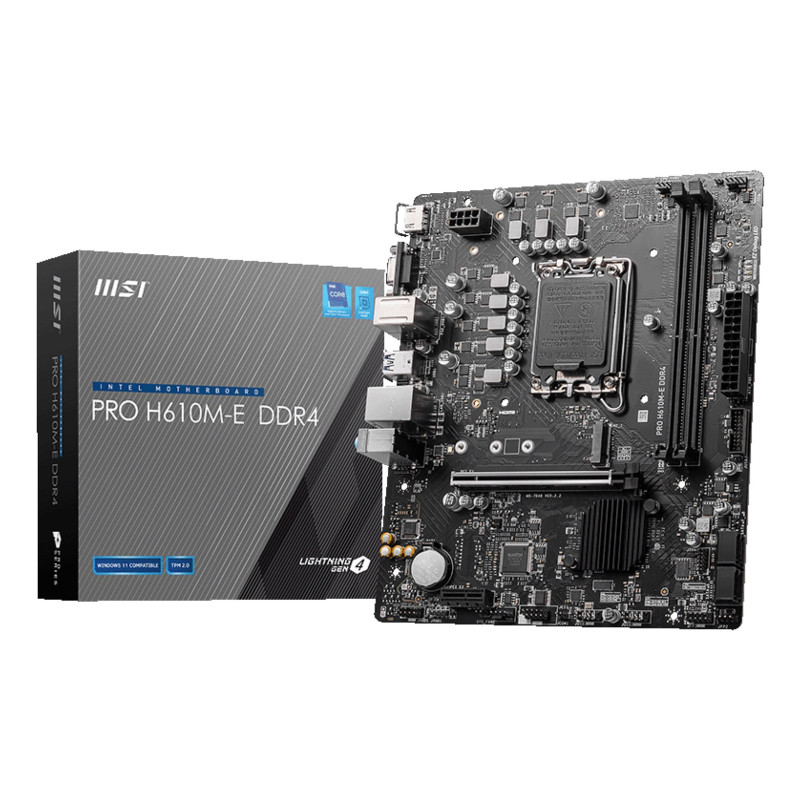

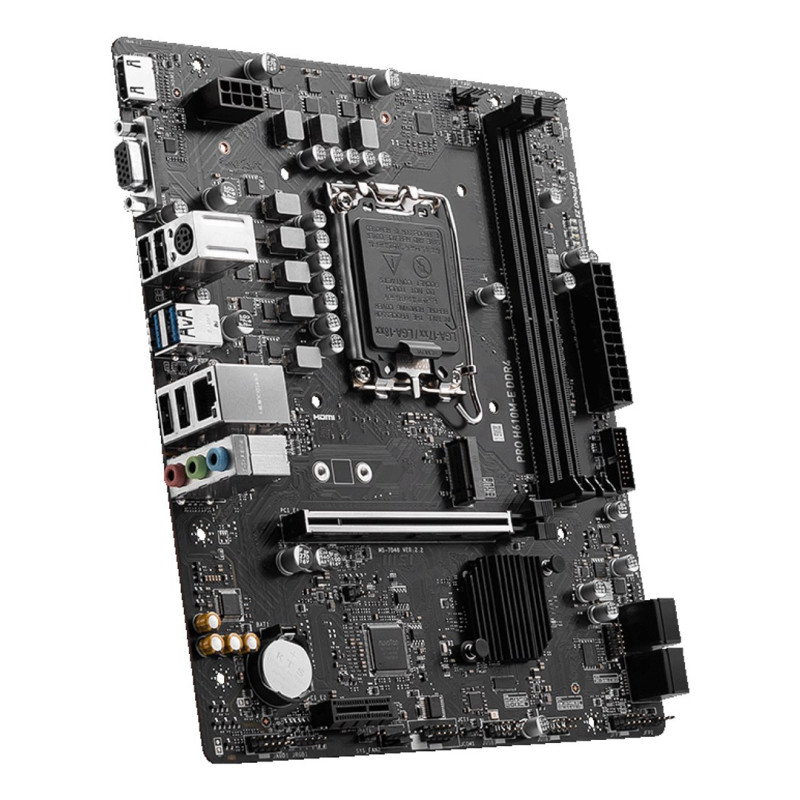

MSI PRO H610M-E DDR4 motherboard Intel H610 LGA 1700 micro ATX
Product reference:
6-7D48-001R
MSI PRO H610M-E DDR4 motherboard Intel H610 LGA 1700 micro ATX
MSI PRO H610M-E DDR4 motherboard Intel H610 LGA 1700 micro ATX
Product reference:
6-7D48-001R
MSI PRO H610M-E DDR4 motherboard Intel H610 LGA 1700 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
4 - 8
business days
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i9 |
| Processor socket | LGA 1700 |
| Parallel processing technology support | Not supported |
| Motherboard chipset | Intel H610 |
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC897 |
| Motherboard chipset family | Intel |
| Audio output channels | 7.1 channels |
| Supported memory clock speed (max) | 3200 MHz |
| Supported memory clock speeds | 3200 MHz, 2666, 2933, 2133, 3000 |
| Maximum internal memory | 64 GB |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Height | 65 mm |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 4 |
| 12V power connector | Yes |
| Number of chassis fan connectors | 1 |
| TPM connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| Clear CMOS jumper | Yes |
| BIOS type | UEFI AMI |
| Drivers included | Yes |
| Cables included | SATA |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |

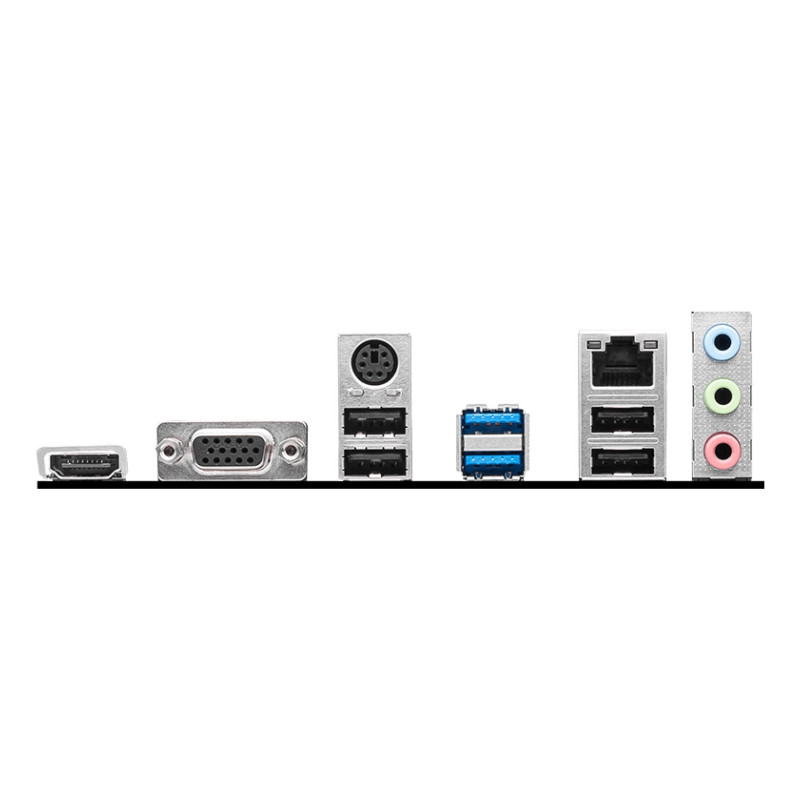

| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Weight | 760 g |
| Warnings | Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
