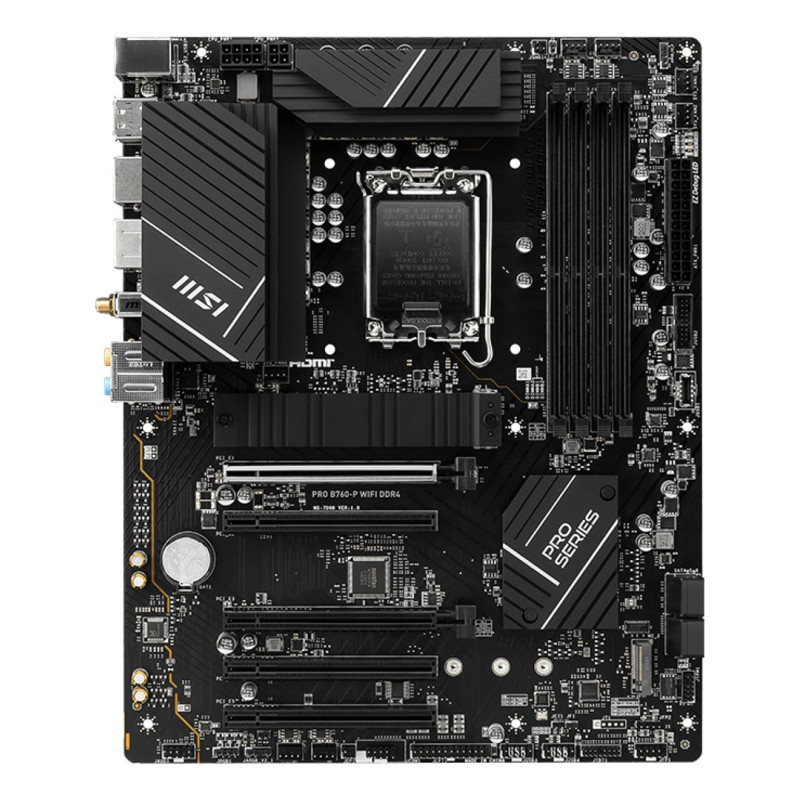

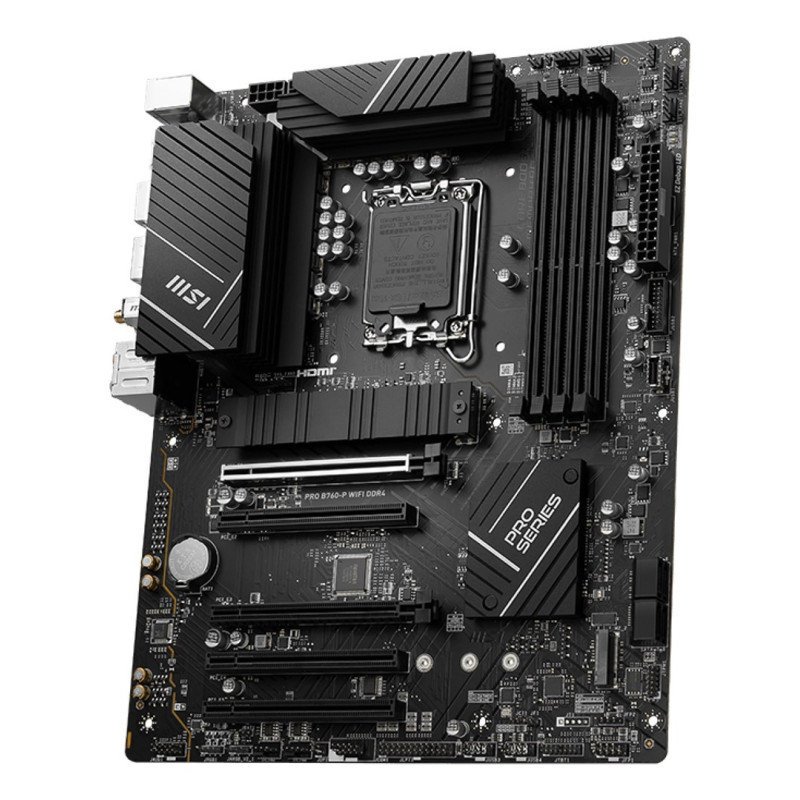

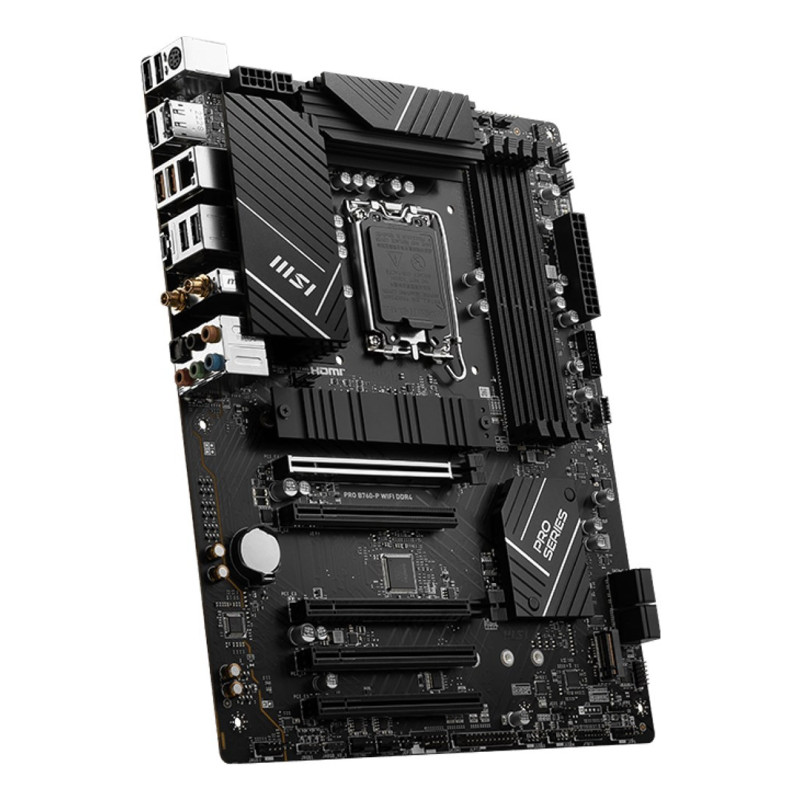

MSI PRO B760-P WIFI DDR4 motherboard Intel B760 LGA 1700 ATX
Product reference:
6-PRO B760-P WIFI DDR4
MSI PRO B760-P WIFI DDR4 motherboard Intel B760 LGA 1700 ATX
MSI PRO B760-P WIFI DDR4 motherboard Intel B760 LGA 1700 ATX
Product reference:
6-PRO B760-P WIFI DDR4
MSI PRO B760-P WIFI DDR4 motherboard Intel B760 LGA 1700 ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
4 - 8
business days
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| CPU fan connector | Yes |
| Depth | 304.8 mm |
| DisplayPorts quantity | 1 |
| ECC сompatibility | Non-ECC |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDMI ports quantity | 1 |
| Maximum internal memory | 128 GB |
| Maximum number of SMP processors | 1 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 6 |
| On-board graphics card | No |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 slots | 5 |
| Power source type | ATX |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Product colour | Black |
| RAID levels | 1, 5, 10 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| Supported memory clock speed (max) | 5333 MHz |
| Supported memory clock speeds | 2133, 2400, 2666, 2933, 3200, 3333, 3400, 3466, 3600 MHz, 3733, 3800, 4000, 4200, 4266, 4400, 4600, 4800, 5000, 5066, 5200, 5333 MHz |
| Supported memory types | DDR4-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, SATA III |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| TPM connector | Yes |
| USB 2.0 connectors | 4 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Warnings | Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
| Wi-Fi | Yes |
| Width | 243.8 mm |
| Windows operating systems supported | Windows 10, Windows 11 |
