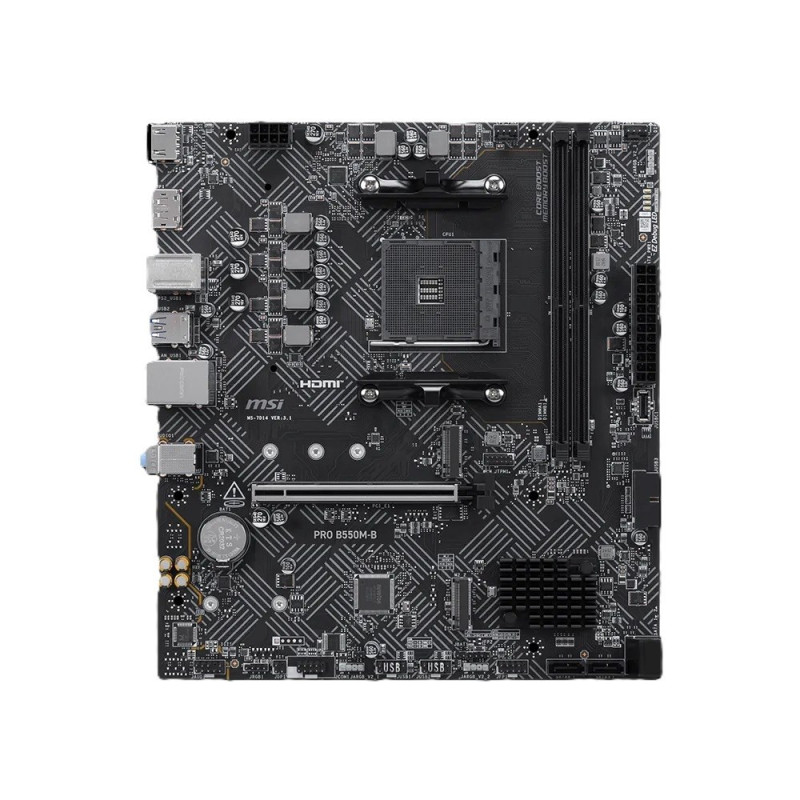

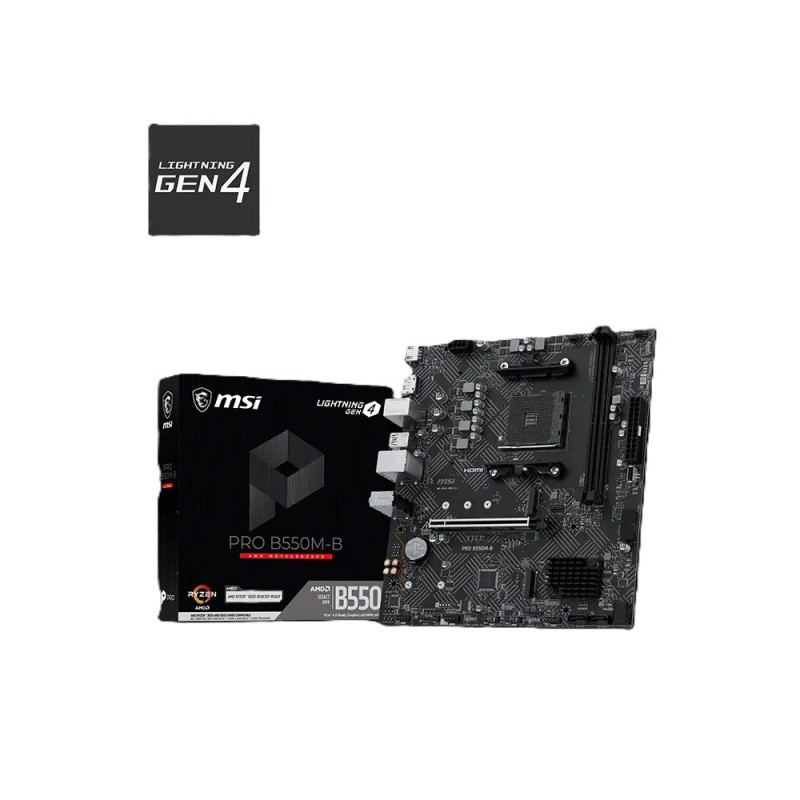

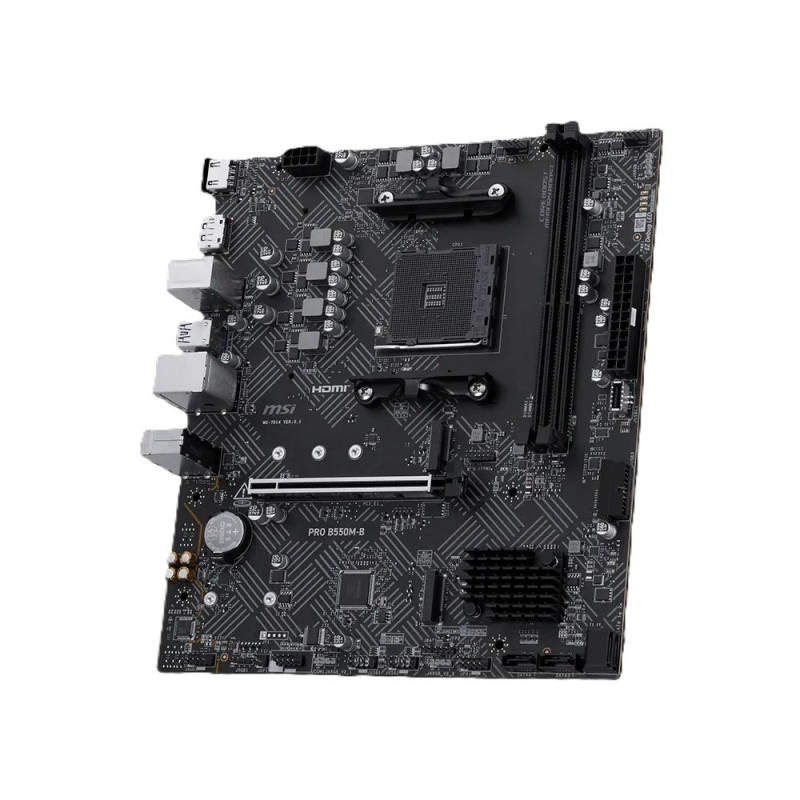

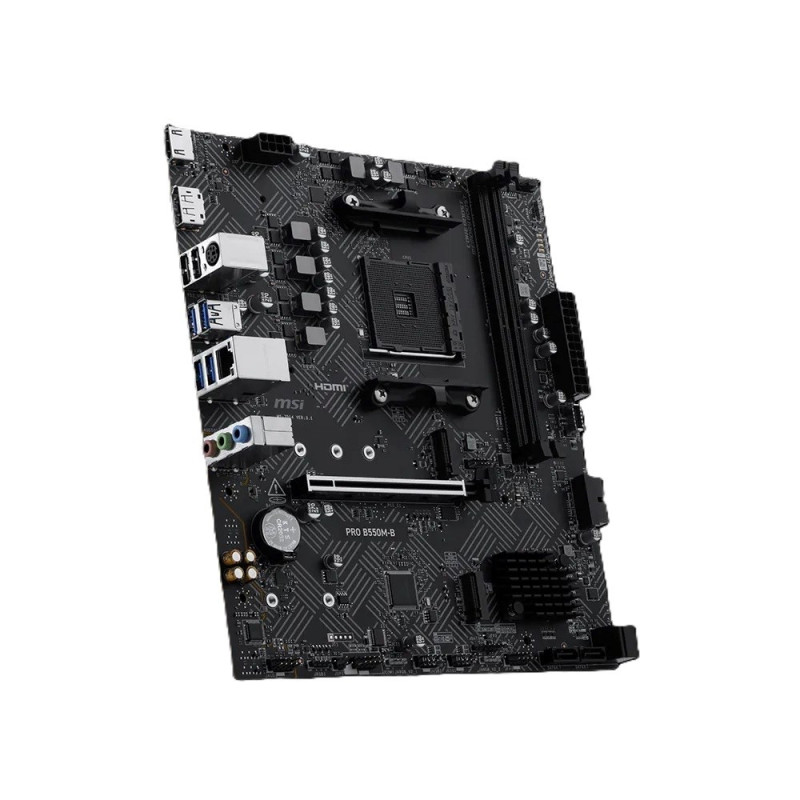

MSI PRO B550M-B Motherboard
Product reference:
6-7D14-023R
MSI PRO B550M-B Motherboard
MSI PRO B550M-B Motherboard
Product reference:
6-7D14-023R
MSI PRO B550M-B Motherboard
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
4 - 8
business days
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| 2nd M.2 largest key size | 22110 |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Bluetooth | No |
| Bluetooth version | Not applicable |
| Compatible processor series | AMD Ryzen |
| CPU fan connector | Yes |
| Depth | 220 mm |
| ECC сompatibility | Non-ECC |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Motherboard chipset | AMD B550 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Number of CPU fan connectors | 1 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 2 |
| Number of RGB LED pin headers | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 4 |
| On-board graphics card | No |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 slots | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Product colour | Black |
| RAID levels | 1, 5, 10 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| Supported memory clock speed (max) | 4533 MHz |
| Supported memory clock speeds | 2667, 2800, 2933, 3066, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600 MHz |
| Supported memory types | DDR4-SDRAM |
| Supported processor sockets | AM4 |
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD & SSD |
| Top Wi-Fi standard | Not available |
| Total number of SATA connectors | 4 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Wi-Fi | No |
| Width | 243.8 mm |
| Windows operating systems supported | Windows 10, Windows 11 x64 |
