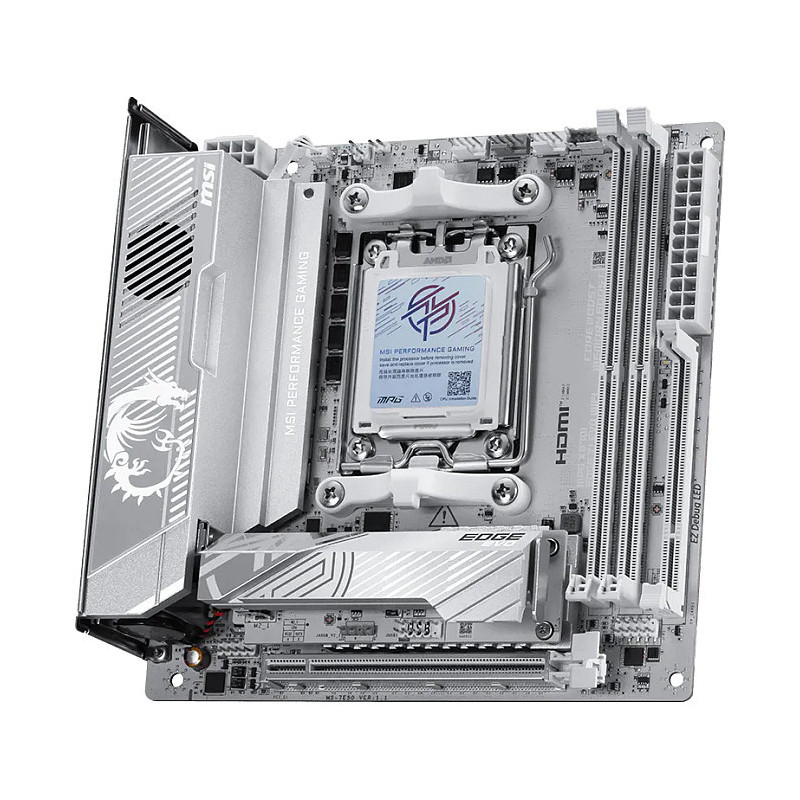

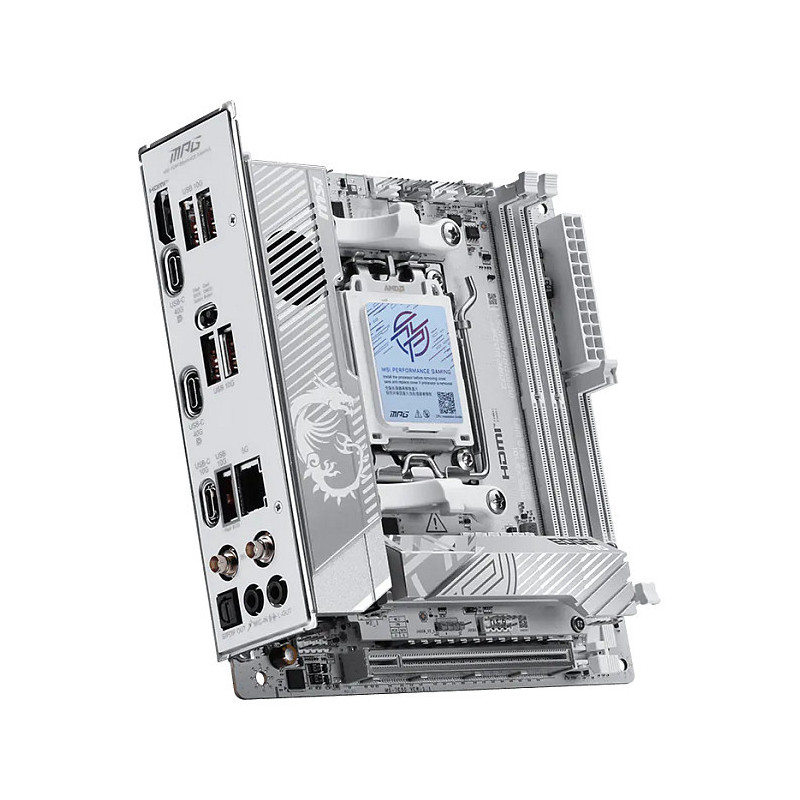

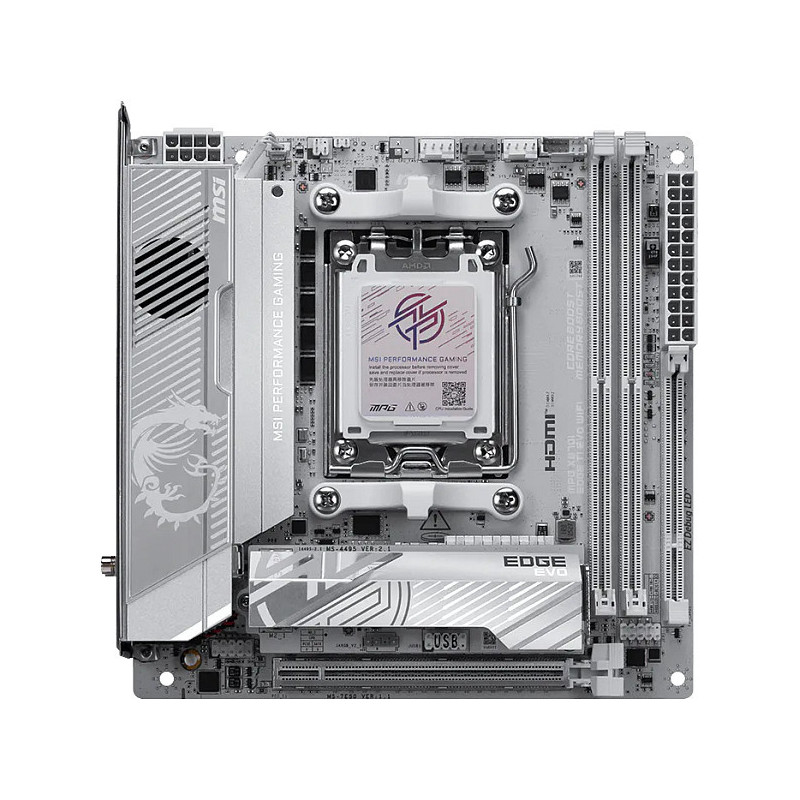

MSI MPG X870I EDGE TI EVO WIFI motherboard

MSI MPG X870I EDGE TI EVO WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: mini ITX, Motherboard chipset family: AMD

MPG X870I EDGE TI EVO WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, USB4, and the latest PCIe 5.0 compatibility, and this is the best white theme X870 ITX motherboard for AMD Ryzen™ 9000 series processors.

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 9000,8000,7000 MHz
Supported memory clock speed (max): 9000 MHz
Maximum internal memory: 256 GB

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 2
Number of storage drives supported: 3
Feature: RAID support
RAID levels: 0, 1, 5, 10

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 2
Total number of SATA connectors: 2
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Feature: EPS power connector (8-pin)

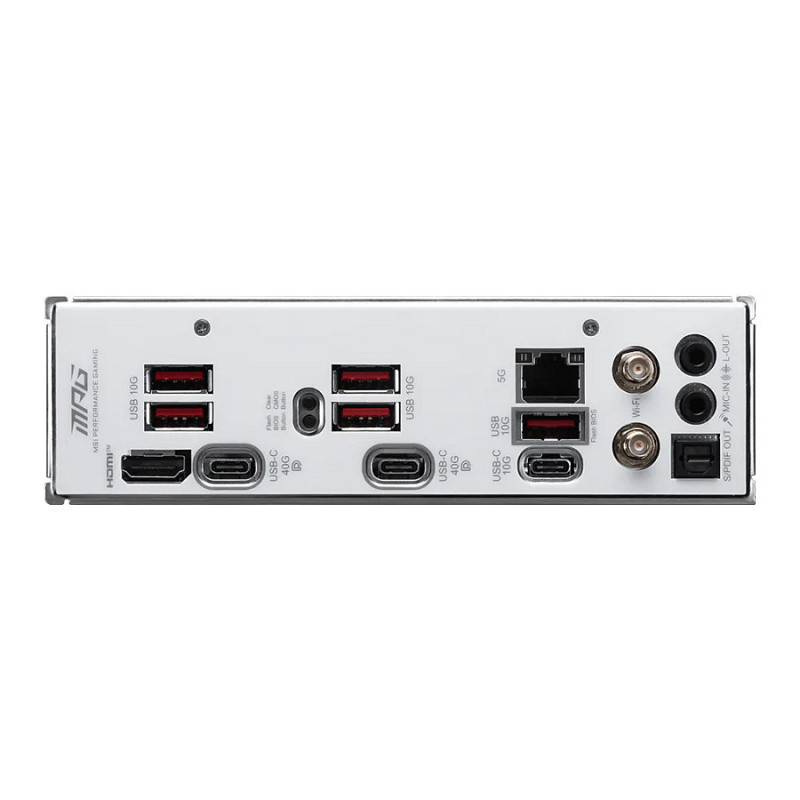

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB4 Gen 2x2 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 2
Feature: Microphone in
Feature: S/PDIF out port

Network

Feature: Ethernet LAN
Ethernet interface type: 5 Gigabit Ethernet
LAN controller: Realtek RTL8126
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 5.4

Features

Motherboard chipset: AMD X870
Audio chip: Realtek ALC4080
Audio output channels: 7.1 channels
Product colour: White
PC health monitoring: CPU, Fan, Temperature, Voltage
Component for: PC
Motherboard form factor: mini ITX
Motherboard chipset family: AMD

Expansion slots

PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 1
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0

BIOS

BIOS type: UEFI AMI
BIOS memory size: 512 Mbit
ACPI version: 6.5
System Management BIOS (SMBIOS) version: 3.7

Weight & dimensions

Width: 170 mm
Depth: 170 mm
