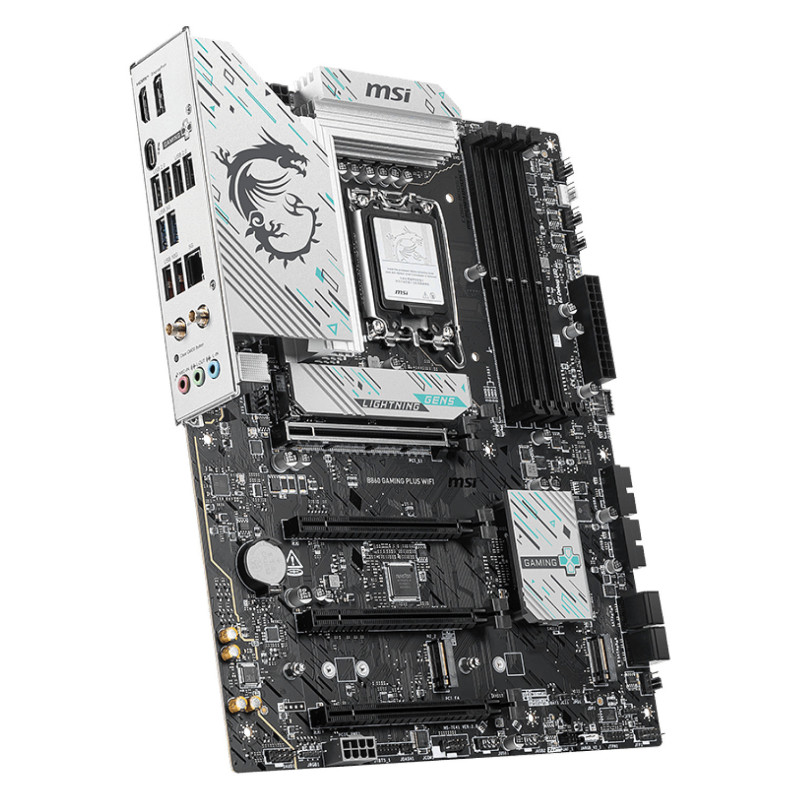

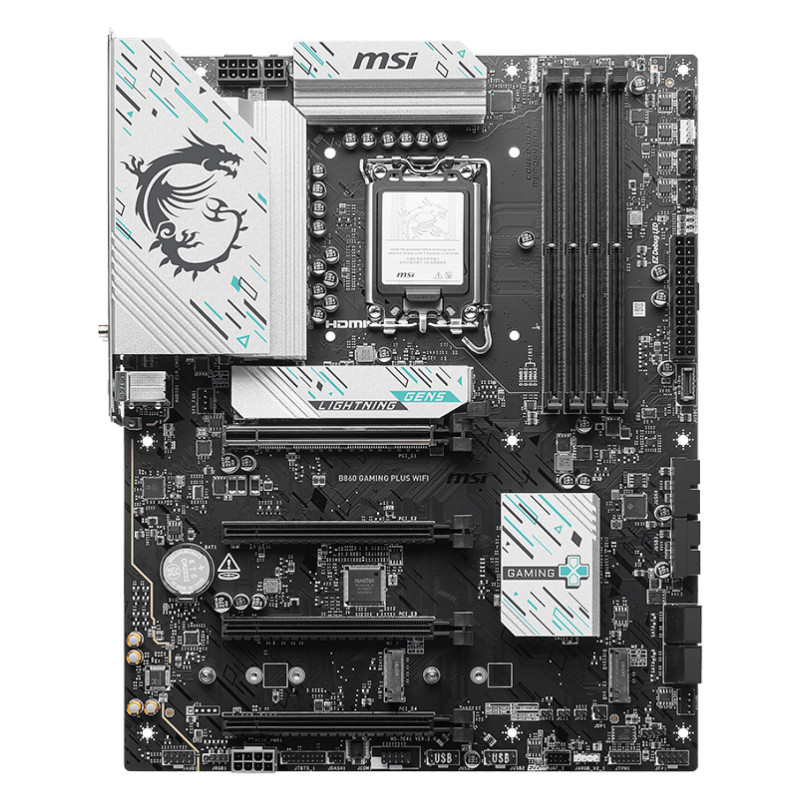

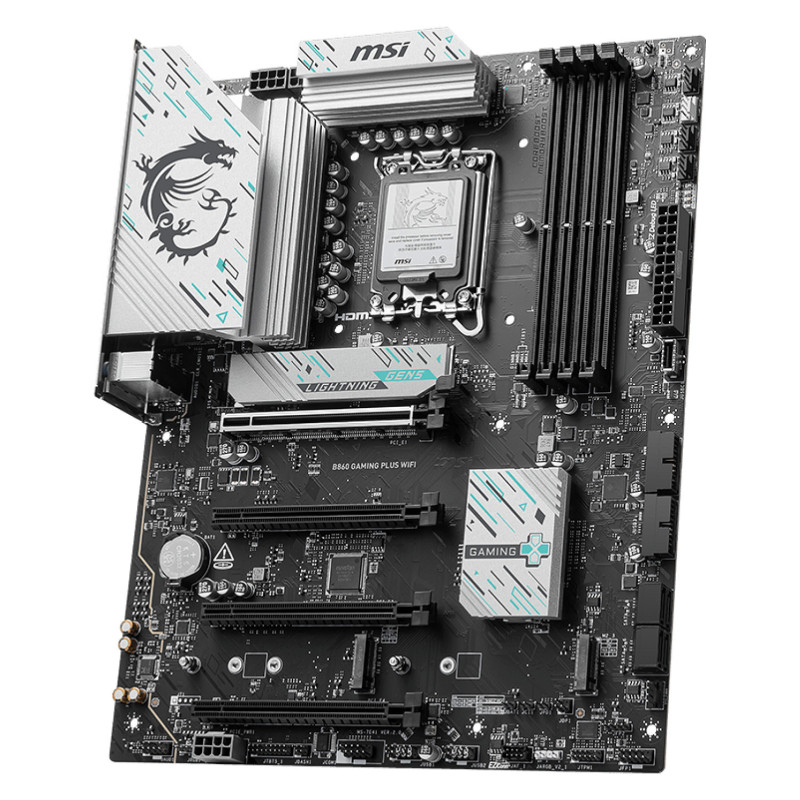

MSI B860 GAMING PLUS WIFI motherboard

MSI B860 GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
The B860 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring Thunderbolt 4 port, full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for Intel Core Ultra processors.

Processor

Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)
Supported processor sockets: LGA 1851
Maximum internal memory supported by processor: 256 GB

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4800,6400,8800 MHz
Supported memory clock speed (max): 8800 MHz
Maximum internal memory: 256 GB

Storage controllers

Supported storage drive types: HDD SSD
Supported storage drive interfaces: M.2, Micro SATA III
Number of HDDs supported: 4
Number of storage drives supported: 7
Feature: RAID support
RAID levels: 0, 1, 5, 10

Internal I/O

USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Total number of SATA connectors: 4
Feature: CPU fan connector
Number of CPU fan connectors: 1
Number of water pump connectors: 1
Feature: RGB LED pin header
Number of RGB LED pin headers: 3

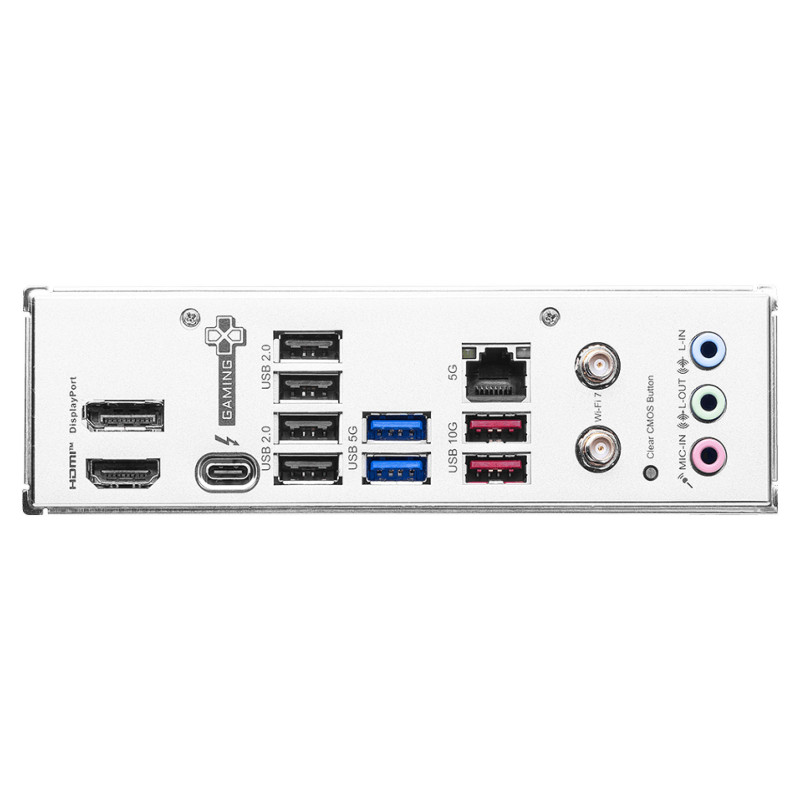

Rear panel I/O ports

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1

Network

Feature: Ethernet LAN
Ethernet interface type: 5 Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be) standard__MI_BR_47 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ac), Wi-Fi 6 (MSI), Wi-Fi_16 (802.11ax), Wi-Fi 7 (802.11be)
WLAN controller model: Killer Wi-Fi 7 1750x
Feature: Bluetooth__MI_BR45 version_50__ Blue

Features

Motherboard chipset: Intel B860
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64

Expansion slots

PCI Express x16 (Gen 4.x) slots: 3
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 3
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 6.5
System Management BIOS (SMBIOS) version: 3.7

Weight dimensions

Width: 243.8 mm
Depth: 304.8 mm
