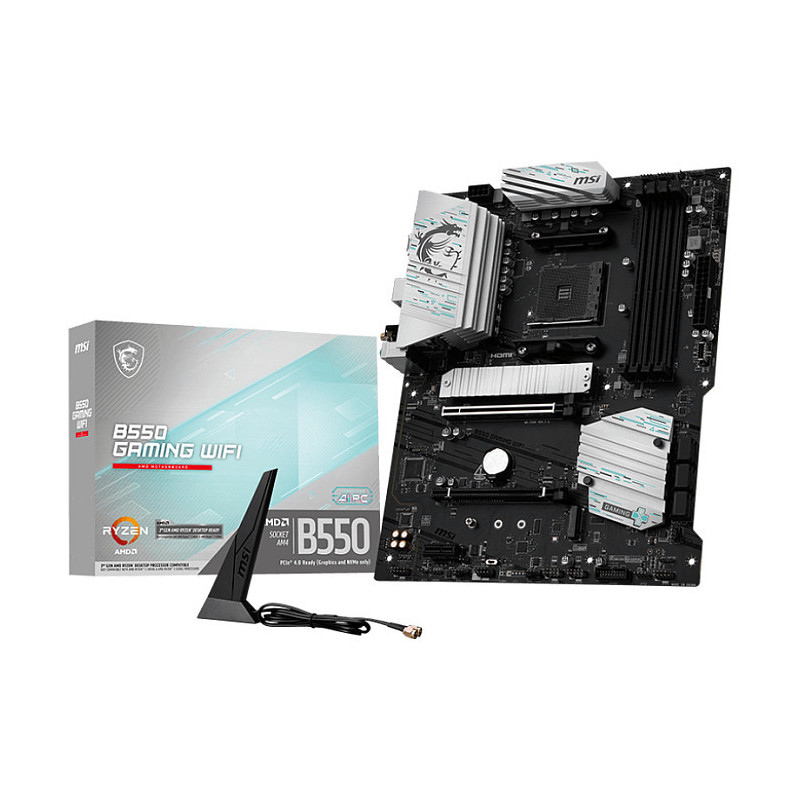

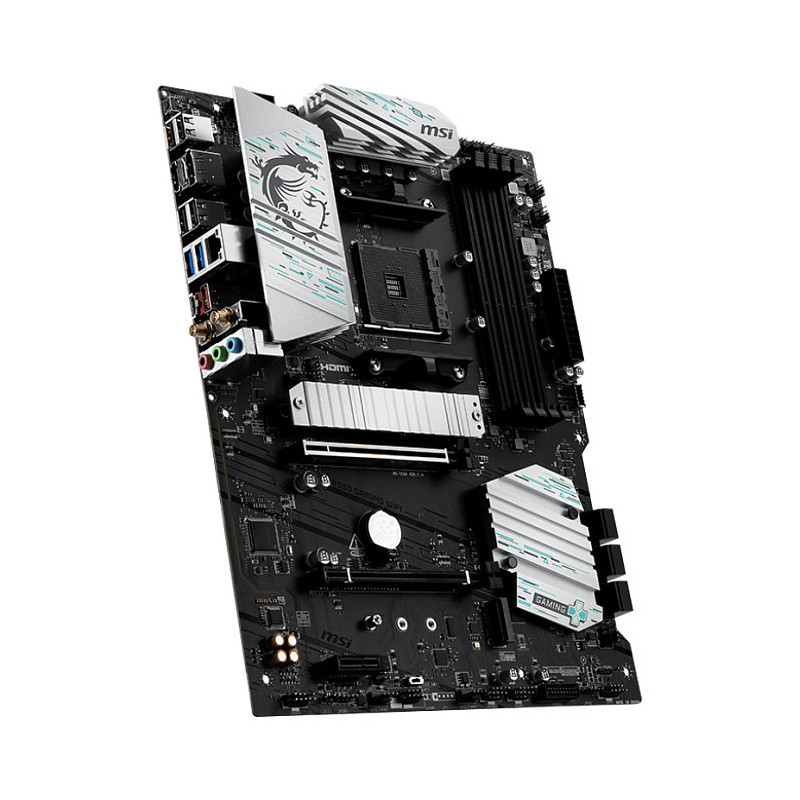

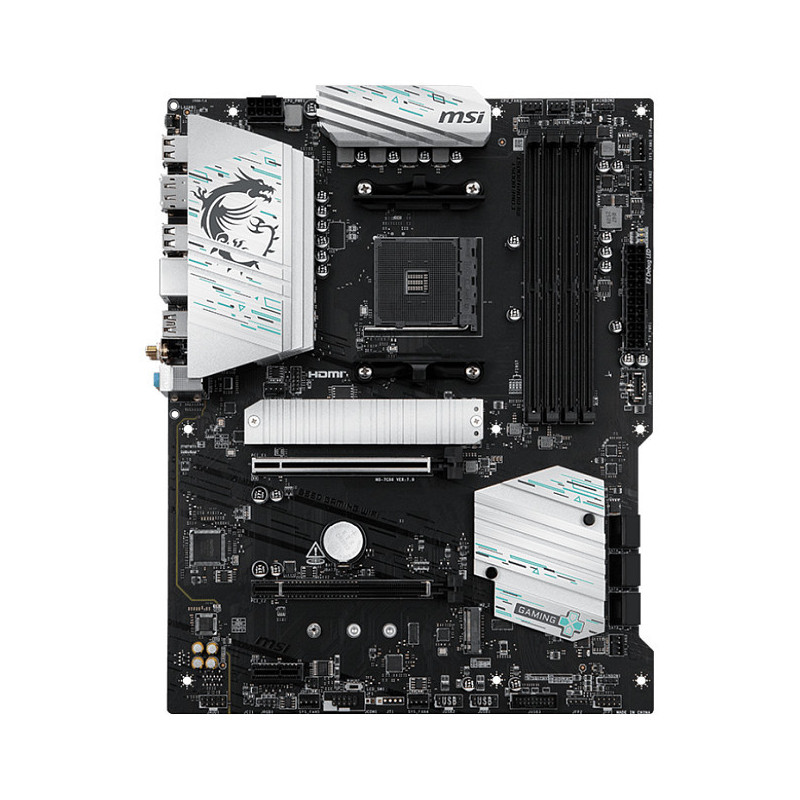

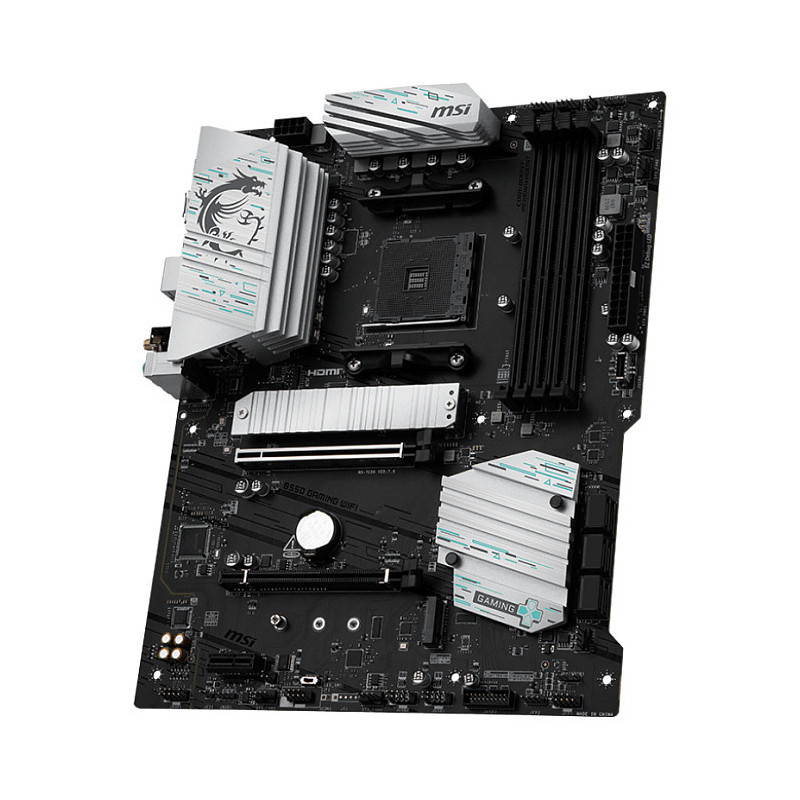

MSI B550 GAMING WIFI motherboard

MSI B550 GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 7000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, M.2, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C

The B550 GAMING WIFI is crafted to offer extensive connectivity, versatile tools, and Wi-Fi solution for gamers seeking a comprehensive experience. Featuring an 1G LAN, Wi-Fi and PCIe 4.0 solution, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors.

Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.

One Finger for EZ GPU Installation
The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.

Clear CMOS Button
Restore the BIOS to the default settings - helpful in 99% of the cases to successfully boot again.

10+2+1 Duet Rail POWER system
Unleash and sustain maximum performance with a flagship VRM design built with a total of 10 + 2 + 1 digital power phases. With a 8-pin power connector, B550 GAMING WIFI is ready for the challenge of heavy-loading tasks.

OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Chipset Heatsink
The PCH heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

FAST AND FUTURE-READY STORAGE
MSI Gaming series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

The Isolated Analogy Structure for Audio Connectors
To provide clear voice, MSI develops a unique structure - Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.

Splash on some color and vibrant RGB lighting effects using Mystic Light utility of MSI Center, which has million colors and fancy LED effects. Enjoy the full control and creativity of your PC's lighting with one software.

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

Processor

Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 7000 Series
Maximum number of SMP processors: 1

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4533,4600,4733,4800,4866 MHz
Supported memory clock speed (max): 2667 MHz
Maximum internal memory: 128 GB
Feature: Unbuffered memory

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: SATA III, M.2
Number of HDDs supported: 6
Number of storage drives supported: 8

Graphics

Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2160 pixels

Internal I/O

USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
Number of SATA III connectors: 6
Total number of SATA connectors: 6
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of chassis fan connectors: 6
Feature: Chassis intrusion connector
Feature: TPM connector
Feature: 12V power connector
Feature: RGB LED pin header

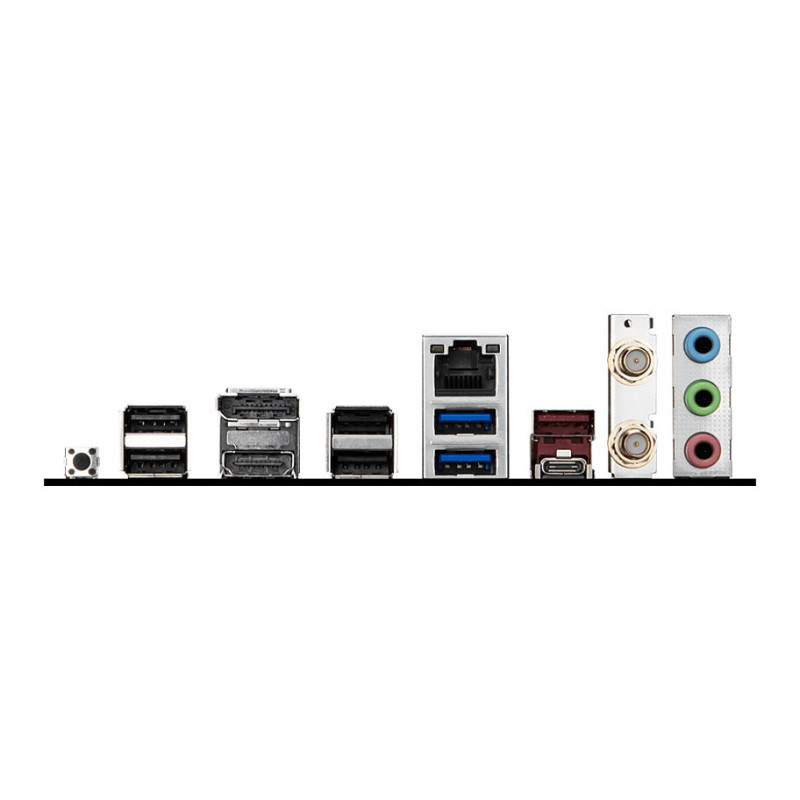

Rear panel I/O ports

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: S/PDIF out port
Digital audio optical out: 1
WiFi-AP antenna jack: 2
USB connector type: USB Type-A, USB Type-C

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek 8111H
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: Wi-Fi 5 (802.11ac)
Feature: Bluetooth
Bluetooth version: 5.0

Features

Motherboard chipset: AMD B550
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
PC health monitoring: CPU, Fan, Temperature
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD

Expansion slots

PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 3.0

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 6.0
Feature: Clear CMOS jumper
System Management BIOS (SMBIOS) version: 2.8

Logistics data

Harmonized System (HS) code: 84733020

Weight & dimensions

Width: 304 mm
Depth: 243.8 mm

Packaging content

Cables included: SATA
Feature: Drivers included
