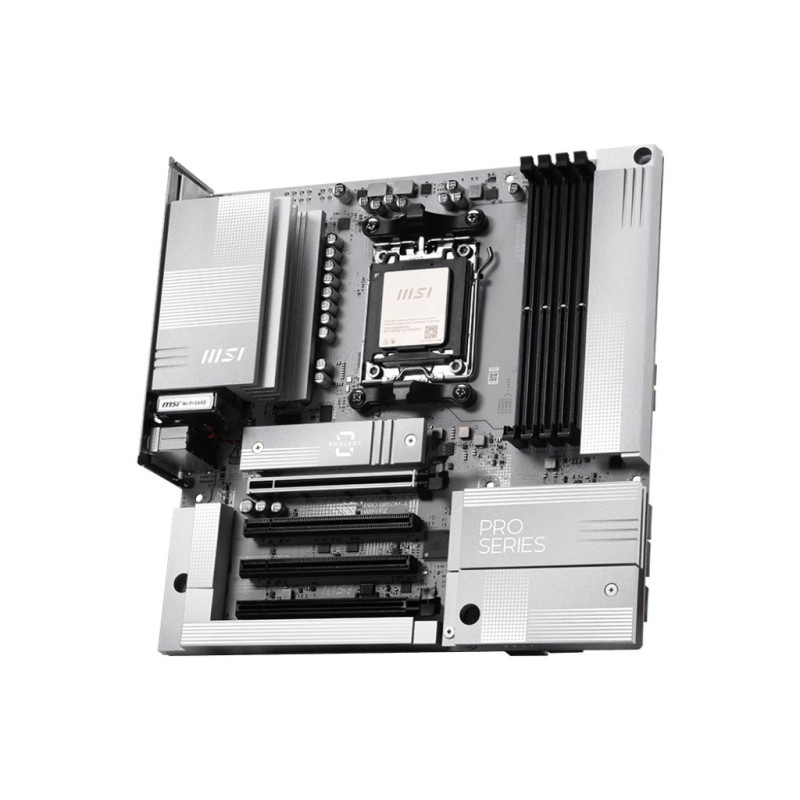

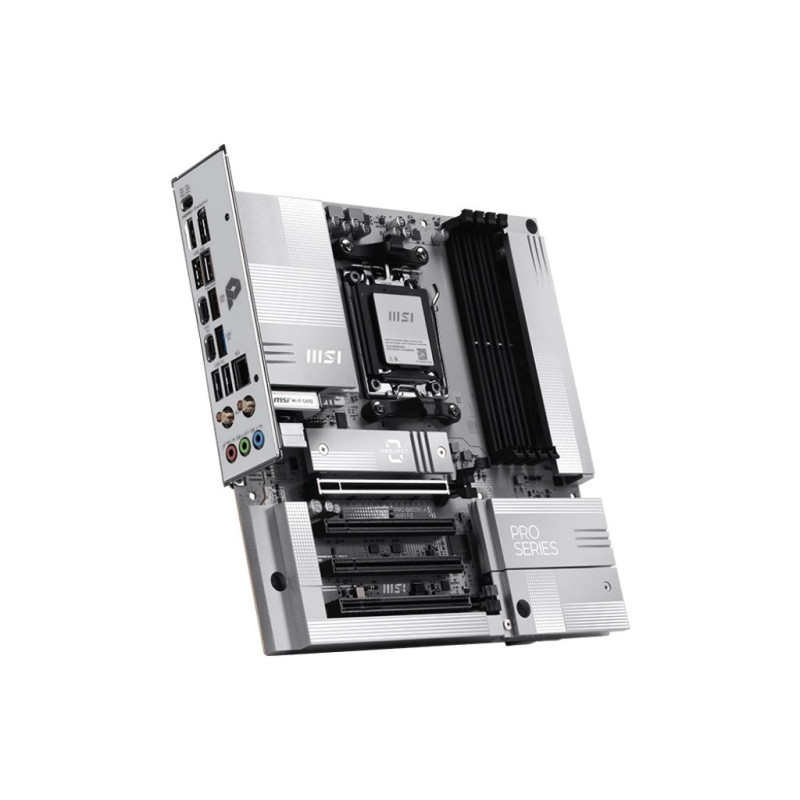

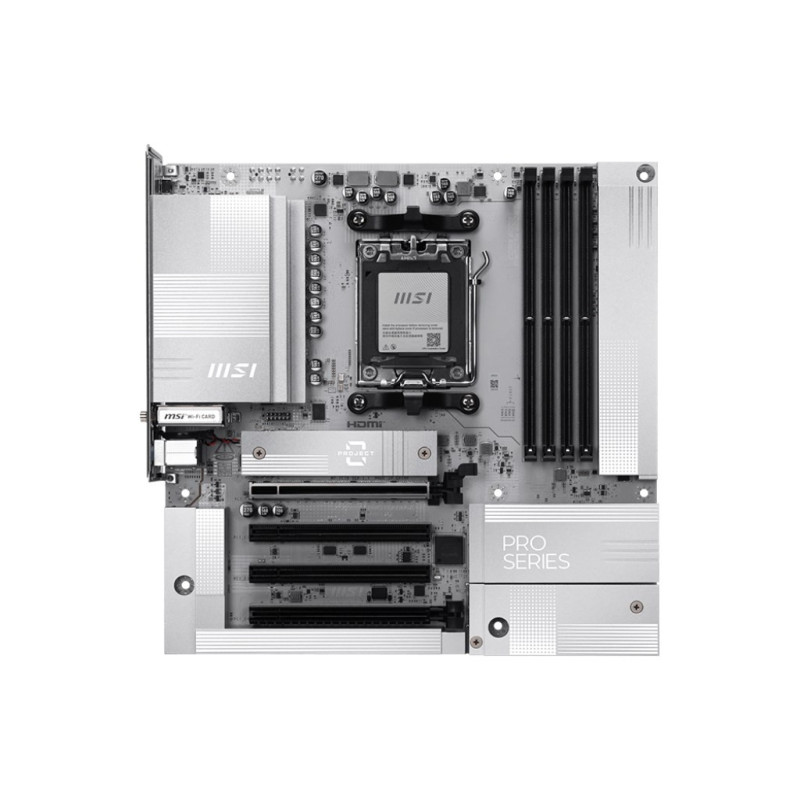

MSI AM5 PRO B850M-A WIFI PZ M-ATX AMD B850 Socket AM5 micro ATX
Product reference:
6-PRO B850M-A WIFI PZ
MSI AM5 PRO B850M-A WIFI PZ M-ATX AMD B850 Socket AM5 micro ATX
MSI AM5 PRO B850M-A WIFI PZ M-ATX AMD B850 Socket AM5 micro ATX
Product reference:
6-PRO B850M-A WIFI PZ
MSI AM5 PRO B850M-A WIFI PZ M-ATX AMD B850 Socket AM5 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series |
| Processor manufacturer | AMD |
| On-board graphics card | No |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Supported memory types | DDR5-SDRAM |
| Supported memory clock speed (max) | 8200 MHz |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 6000, 6400, 8200 MHz |
| Maximum internal memory | 256 GB |
| Depth | 243.8 mm |
| Width | 243.8 mm |
| Wi-Fi standards | 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 4 (802.11n) |
| Bluetooth version | 5.4 |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Ethernet interface type | 5 Gigabit Ethernet |
| Bluetooth | Yes |
| Total number of SATA connectors | 4 |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| Number of RGB LED pin headers | 3 |
| CPU fan connector | Yes |
| Front panel connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 2.0 connectors | 4 |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of storage drives supported | 6 |
| RAID levels | 10, 1 |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2 |
| RAID support | Yes |
| HDMI version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Clear CMOS button | Yes |
| Flashback BIOS button | Yes |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPort version | 1.4 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| PCI Express x16 slots | 4 |
