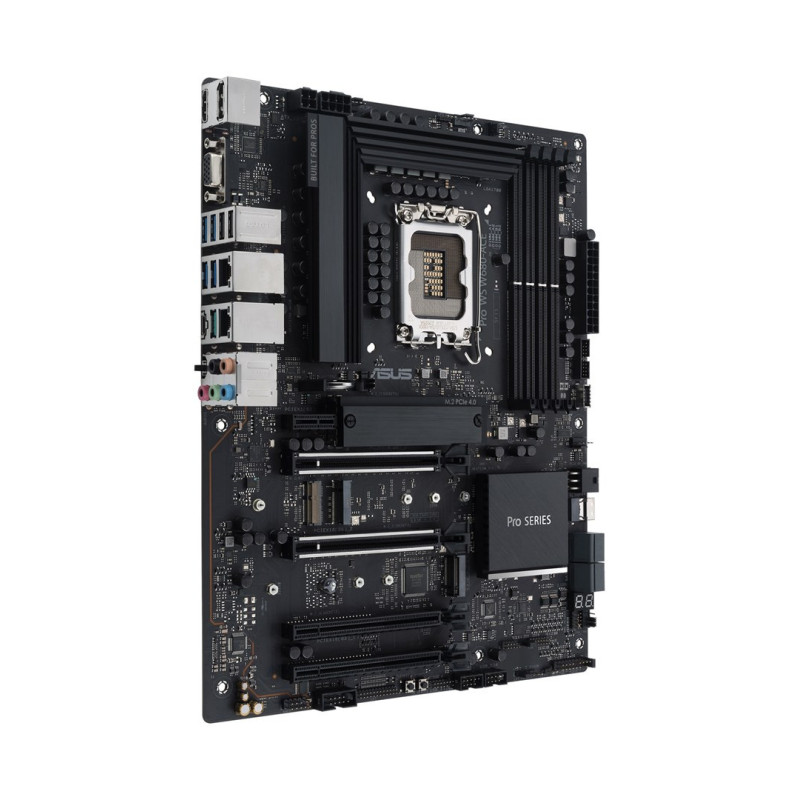

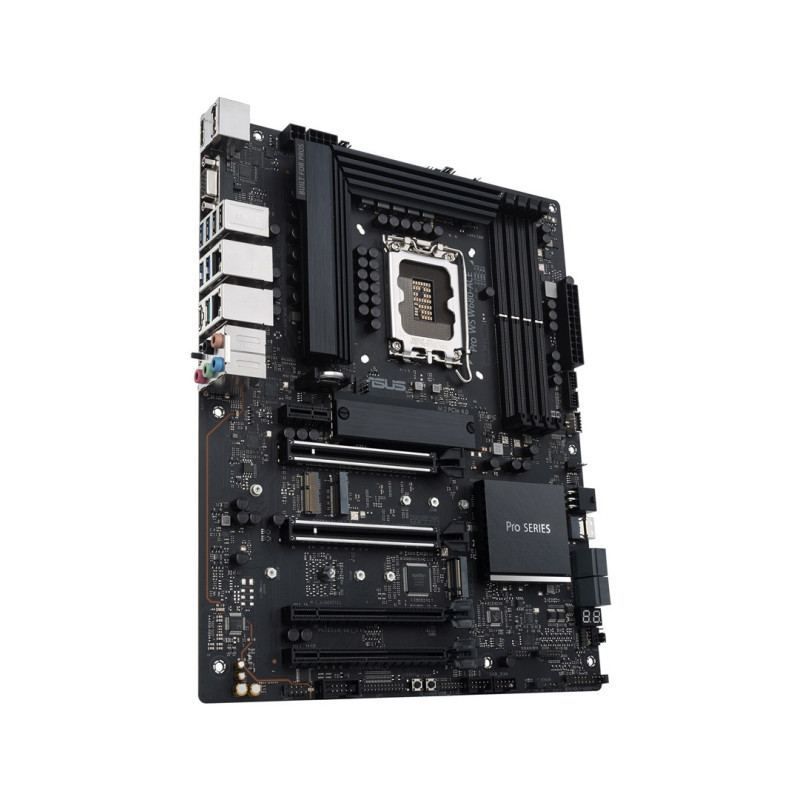

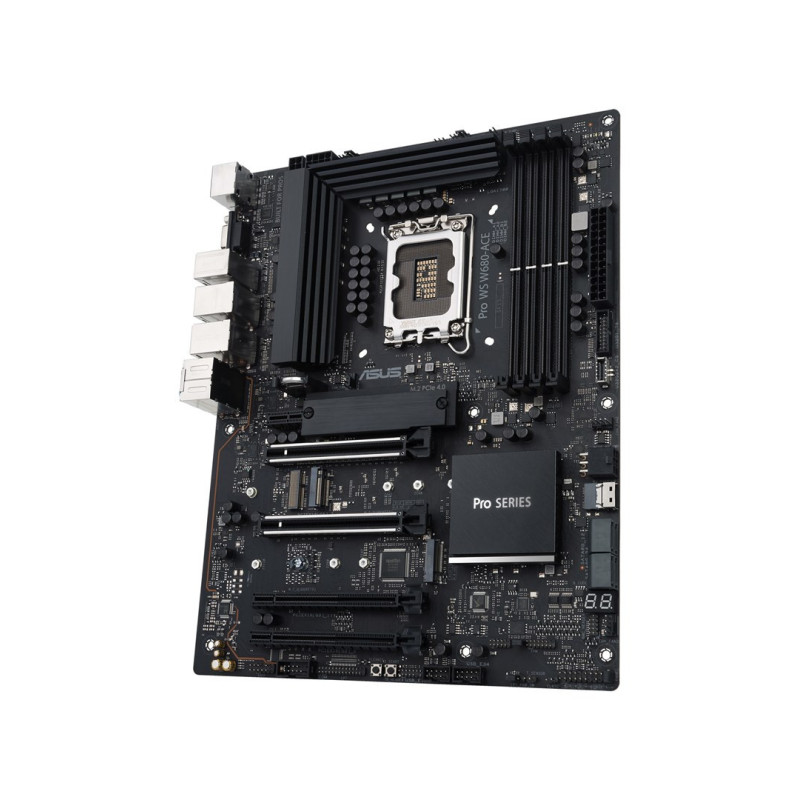

Motherboard - ASUS Pro WS W680-ACE Intel LGA 1700 ATX
Product reference:
14-4711387006177
High-density storage support with additional PCIe slots for high-performance applications.
Motherboard - ASUS Pro WS W680-ACE Intel LGA 1700 ATX
Product reference:
14-4711387006177
High-density storage support with additional PCIe slots for high-performance applications.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
ASUS WS W680 ACE ATX
ASUS PRO WS W680-ACE is a high-end server motherboard based on the Intel W680 chipset for LGA 1700 sockets. It supports 11 storage devices and has 3 M.2 slots.
Main features
- Supports 8 HDDs, UEFI AMI BIOS, RAID levels 0, 10, 1 and 5
- 4 x USB 3.2 Gen 1 ports, 1 x USB 3.2 Gen 2 port, 1 x USB-C port, 2 x USB 2.0 ports
- DisplayPort 1.4, HDMI 2.1, VGA (D-Sub) connector
Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Compatible processor models | Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor manufacturer | Intel |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
Graphics | |
| Support for parallel processing technology | Not supported |
Features | |
| Motherboard chipset family | Intel |
| Audio output channels | 7.1 channels |
| Motherboard format type | ATX |
| Motherboard chipset | Intel W680 |
| Cooling type | Hidden |
| Power supply type | ATX |
| Component | PC |
| Supported Windows operating systems | Windows 10 x64, Windows 11 |
Memory | |
| Unbuffered memory | Yes |
| Maximum internal memory | 128GB |
| ECC | Yes |
| Memory channels | Dual channel |
| Memory slot type | DIMMs |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
Weight and dimensions | |
| Width | 305mm |
| Depth | 244 mm |
| Height | 50mm |
Network | |
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
Internal I/O | |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Processor cooler connector | Yes |
| Number of chassis cooler connectors | 3 |
| Thunderbolt connectors | 1 |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| ATX power connector (24-pin) | Yes |
| Number of USB 2.0 ports | 2 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 1 |
| EPS power connector (8-pin) | Yes |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) ports | 1 |
| TPM connector | Yes |
| Number of COM ports | 1 |
| Integrated SAS ports | 1 |
| 12V power connector | Yes |
BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
Packaging details | |
| Package weight | 1.18 kg |
| Package height | 76 mm |
| Package width | 331 mm |
| Package depth | 266 mm |

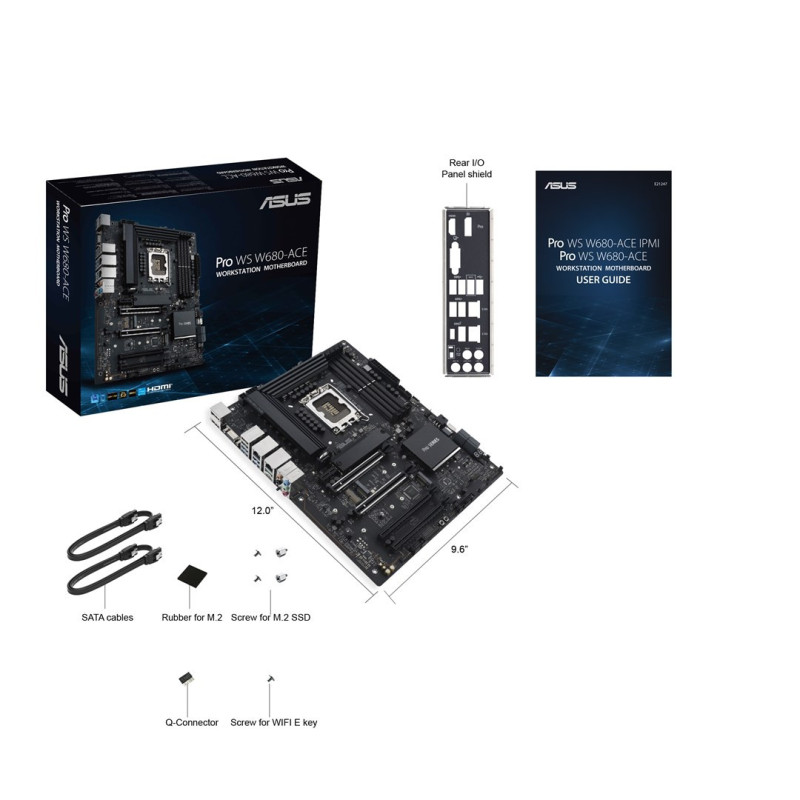

Package contents | |
| Cables included | SATA |
| User manual | Yes |
Storage controls | |
| Supported storage device interfaces | M.2, NVMe, SATA III |
| Supported storage device types | HDDs and SSDs |
| RAID levels | 0, 10, 1, 5 |
| RAID support | Yes |
| Number of supported storage devices | 11 |
| Number of HDDs supported | 8 |
Rear panel I/O ports | |
| Number of DisplayPorts | 1 |
| DisplayPort version | 1.4 |
| Number of Ethernet LAN (RJ-45) ports | 2 |
| Number of USB 2.0 ports | 2 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 4 |
| Number of HDMI ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 1 |
| Microphone input | Yes |
| HDMI version | 2.1 |
| Line-in | Yes |
| Number of VGA (D-Sub) ports | 1 |
Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 3 |
| PCI Express x1 (Gen 3.x) slots | 1 |
Other features | |
| Weight | 997 grams |
| Return to BIOS button | Yes |
| Number of M.2 (E) slots | 1 |
| Height | 70mm |
| Length | 340mm |
| Weight | 1590 grams |
| Width | 275 mm |
