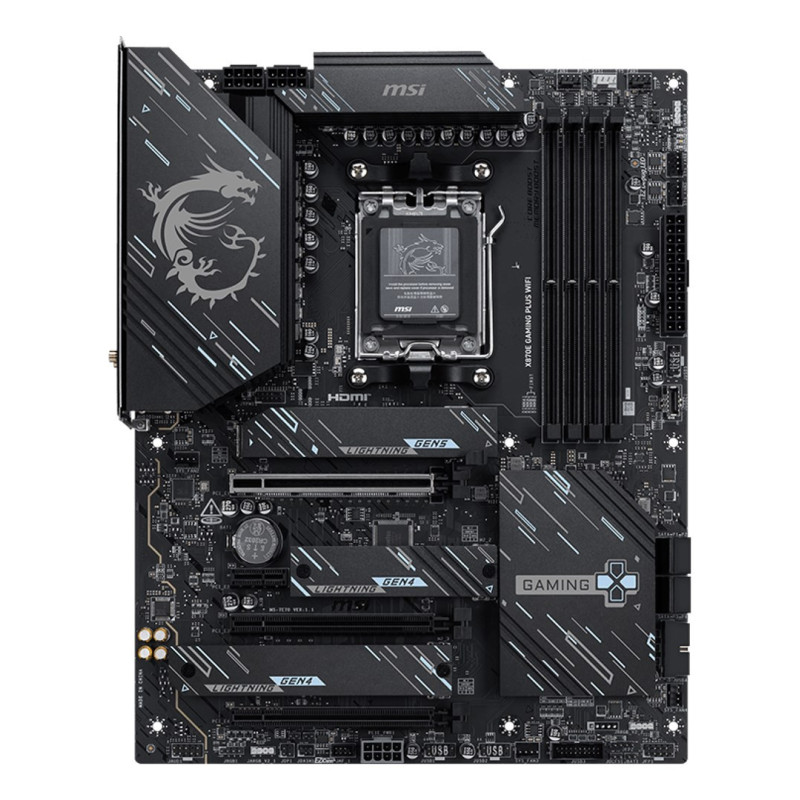

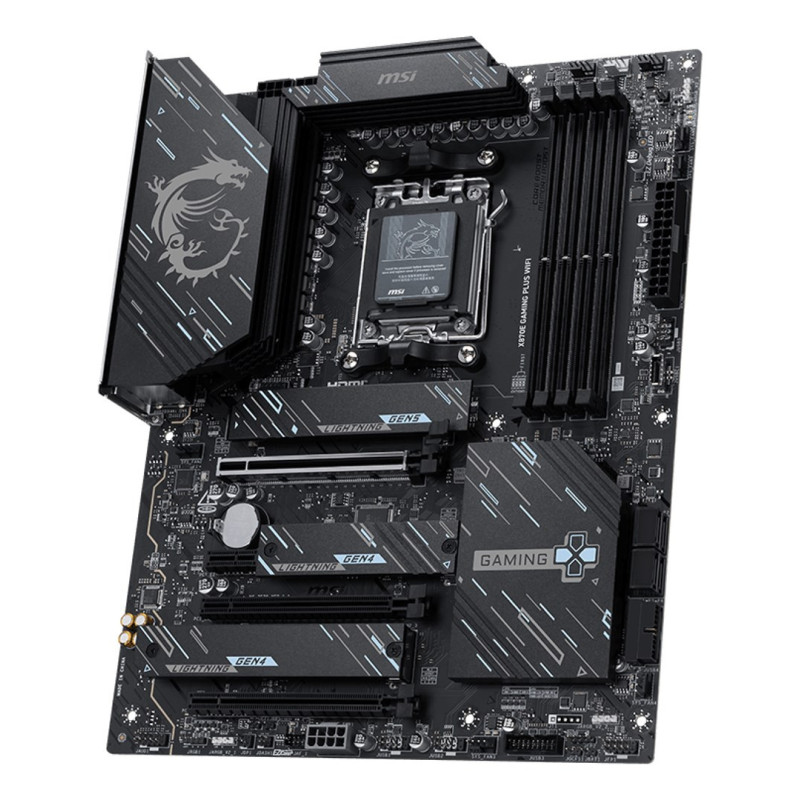

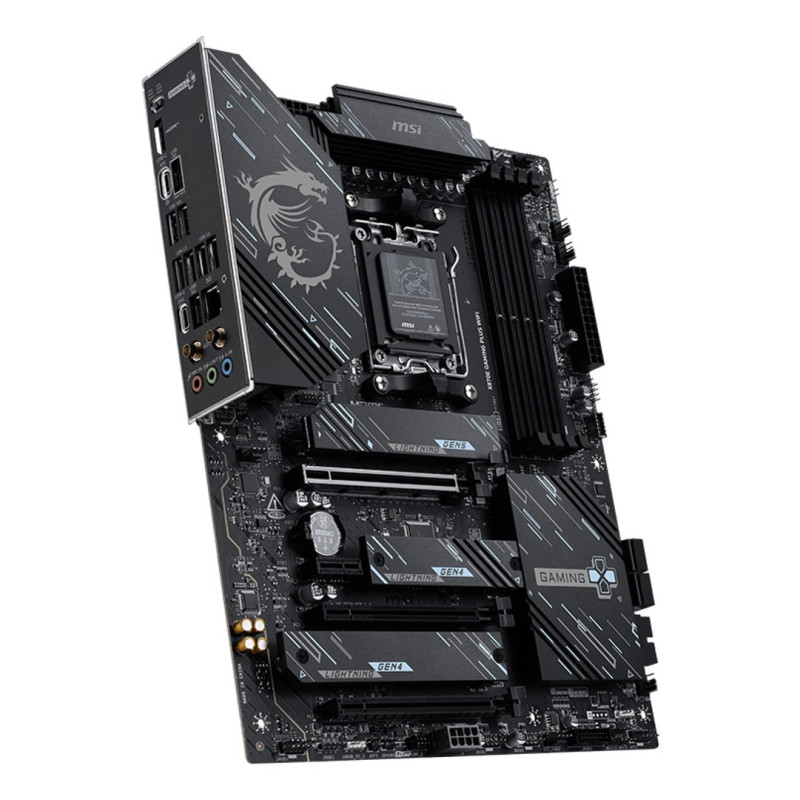

Motherboard - MSI X870E GAMING PLUS WIFI AM5 ATX, Wi-Fi 7, DDR5 Support
Product reference:
14-4711377347594
The MSI X870E GAMING PLUS WIFI AM5 ATX motherboard supports AMD Ryzen 7000, 8000 and 9000 series processors with AM5 socket. It offers Wi-Fi 7, dual-channel DDR5 memory support, and a wide range of USB and SATA ports.
Motherboard - MSI X870E GAMING PLUS WIFI AM5 ATX, Wi-Fi 7, DDR5 Support
Product reference:
14-4711377347594
The MSI X870E GAMING PLUS WIFI AM5 ATX motherboard supports AMD Ryzen 7000, 8000 and 9000 series processors with AM5 socket. It offers Wi-Fi 7, dual-channel DDR5 memory support, and a wide range of USB and SATA ports.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
MSI X870E Gaming Plus Wifi Motherboard AMD X870E Socket AM5 ATX
Compatible with AMD Ryzen 7000, 8000 and 9000 series processors with Socket AM5. Features Wi-Fi 7, dual-channel DDR5 memory support, and multiple USB and SATA ports.
- Enables the use of AMD Ryzen 8000, 9000 and 7000 series processors with Socket AM5.
- Equipped with Wi-Fi 7 and Bluetooth 5.4 for fast wireless connectivity.
- We have 4 DDR5 memory slots, for a maximum capacity of up to 256 GB.
- Multiple USB ports and RAID support are included for a variety of storage options.
Processor | |
|---|---|
| Supported processor sockets | Socket AM5 |
| Composite processor types | AMD Ryzen 8000 series, AMD Ryzen 9000 series, AMD Ryzen 7000 series |
| Processor manufacturer | AMD |
Features | |
| Motherboard chip family | AMD |
| Motherboard chip | AMD X870E |
| Motherboard format type | ATX |
Memory | |
| Memory channels | Dual channel |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| ECC compatibility | Non-ECC |
| Maximum internal memory | 256GB |
Weight and dimensions | |
| Width | 304.8 mm |
| Depth | 243.8 mm |
Network | |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 6E, Wi-Fi 6, Wi-Fi 5, Wi-Fi 4, Wi-Fi 7 |
| Ethernet LAN | Yes |
| Bluetooth version | 5.4 |
Internal I/O | |
| Number of SATA III connectors | 4 |
| Number of USB 3.2 Gen 2 Type-C ports | 1 |
| CPU cooler connector | Yes |
| TPM connector | Yes |
| Number of USB 3.2 Gen 1 Type-A ports | 4 |
| ATX power connector (24-pin) | Yes |
| Number of chassis cooler connections | 6 |
| RGB LED pin connector | Yes |
| Number of CPU cooler connections | 1 |
| USB 2.0 ports | 6 |
Storage controls | |
| RAID support | Yes |
| RAID levels | 10, 0, 1, 5 |
| Supported storage device interfaces | M.2, SATA III |

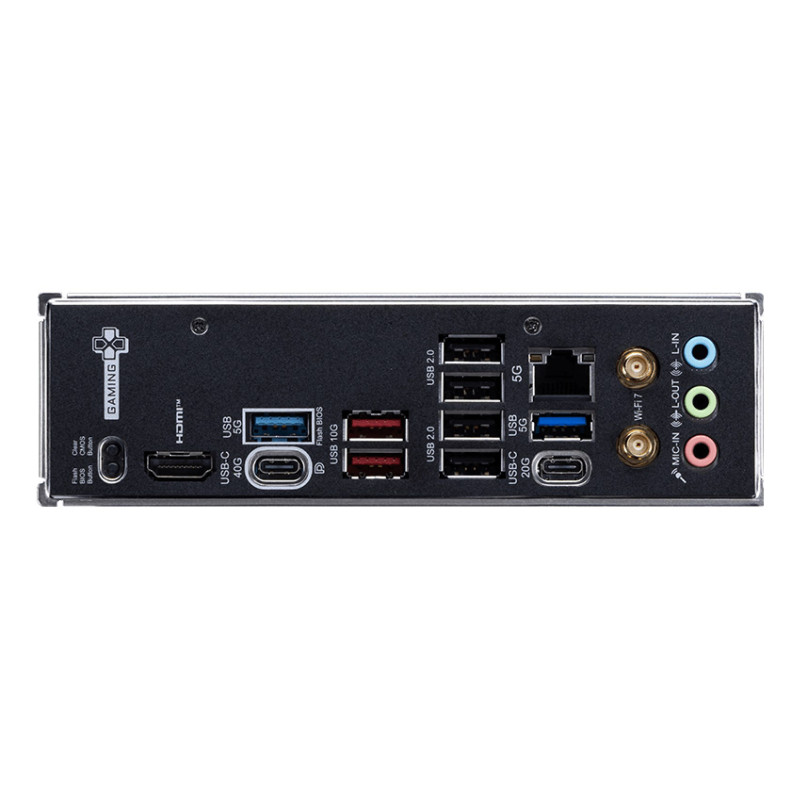

Rear panel I/O ports | |
| Number of USB 3.2 Gen 2 Type-A ports | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Number of USB 2.0 ports | 4 |
| Number of HDMI ports | 1 |
| Number of USB 3.2 Gen 1 Type-A ports | 2 |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| USB4 Gen 3x2 Number of ports | 1 |
Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 3 |
| PCI Express x1 slots | 1 |
| Height | 70mm |
| Length | 300mm |
| Weight | 1800g |
| Width | 350mm |
