Motherboard - MSI PRO H810M-B Intel H810 LGA 1851 DDR5 128GB 2.5GbE HDMI
Product reference:
14-4711377337977
The MSI PRO H810M-B motherboard supports Intel Core Ultra processors with LGA 1851 socket and up to 128 GB DDR5 memory. It has 2.5 Gigabit Ethernet, HDMI 2.1 and multiple USB ports.
Motherboard - MSI PRO H810M-B Intel H810 LGA 1851 DDR5 128GB 2.5GbE HDMI
Product reference:
14-4711377337977
The MSI PRO H810M-B motherboard supports Intel Core Ultra processors with LGA 1851 socket and up to 128 GB DDR5 memory. It has 2.5 Gigabit Ethernet, HDMI 2.1 and multiple USB ports.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

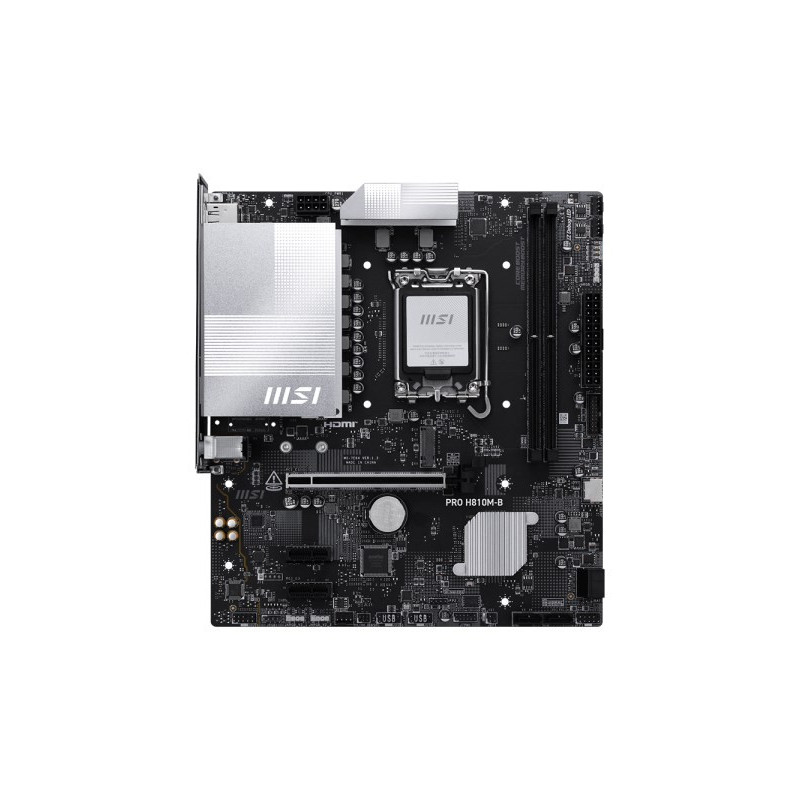

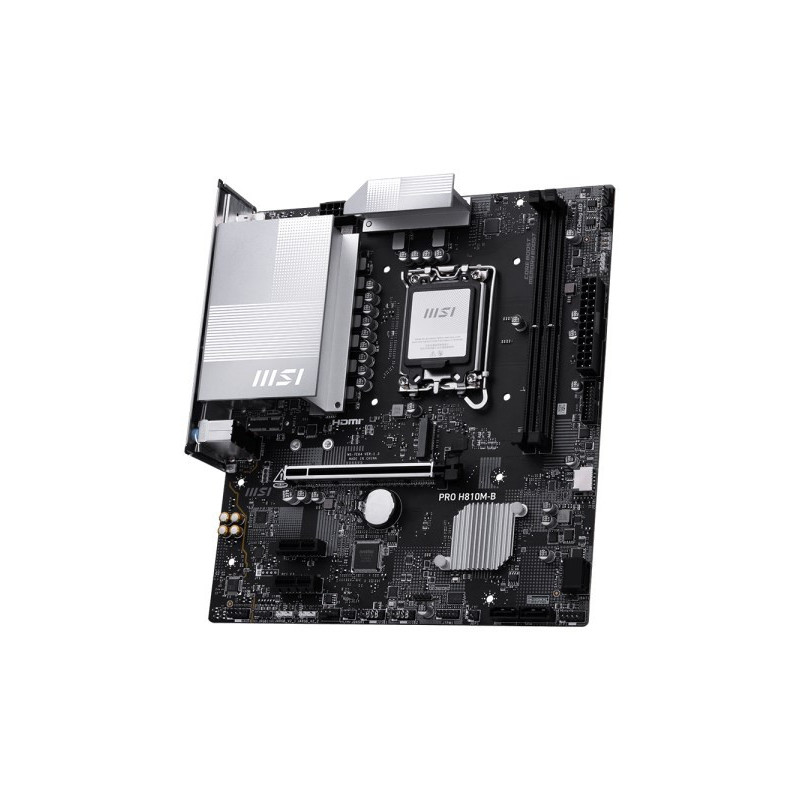

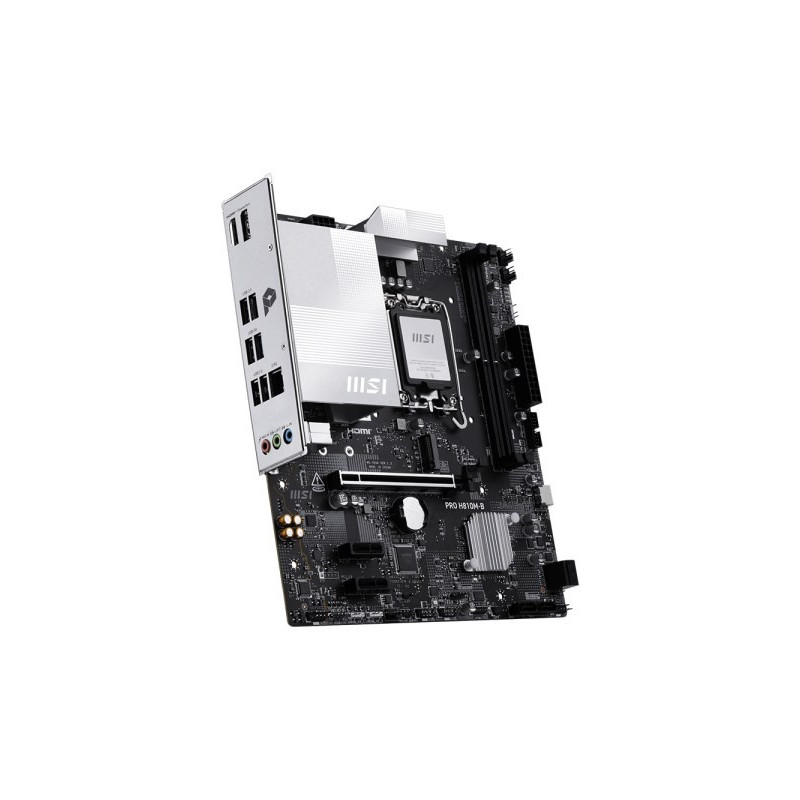

MSI Pro H810M-B Motherboard Intel H810 LGA 1851 Micro ATX
Compatible with Intel Core Ultra processors with LGA 1851 socket and up to 128 GB DDR5 memory. Key features: 2.5 Gigabit Ethernet, HDMI 2.1 and multiple USB ports.
- Enables Intel Core Ultra processors with LGA 1851 socket, ensuring high performance.
- Equipped with a 7.1 channel sound system with Realtek ALC897, ensuring immersive sound quality.
- A dual DDR5 UDIMM memory slot system with a maximum capacity of 128 GB is available, ensuring better memory performance.
- Multiple USB ports and 2.5 Gigabit Ethernet are included for fast connectivity and data transfer.
Processor | |
|---|---|
| Composite processor types | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 (Socket V1) |
| Processor manufacturer | Intel |
Features | |
| Compatible Windows operating systems | Windows 11 |
| Audio chip | Realtek ALC897 |
| Motherboard chipset family | Intel |
| Motherboard chip | Intel H810 |
| Motherboard format type | micro ATX |
| Audio output channels | 7.1 channels |
Memory | |
| Composite memory frequencies | 6400MHz, 4800MHz |
| Types of compound memory | DDR5 UDIMM |
| Maximum internal memory | 128GB |
| Number of memory slots | 2 |
| ECC compatibility | Non-ECC |
Weight and dimensions | |
| Width | 220mm |
| Depth | 243.8 mm |
Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
Internal I/O | |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| CPU cooler connector | Yes |
| RGB LED pin connector | Yes |
| ATX power connector (24-pin) | Yes |
| 12V power connector | Yes |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) ports | 2 |
| Number of USB 2.0 ports | 4 |
| Audio connector | Yes |
| Fan connector for power | Yes |
| TPM connector | Yes |
| Number of chassis fan connectors | 2 |
| Number of USB 3.2 (Gen 2) Type-C ports | 1 |
| Number of RGB LED pin connectors | 1 |
Memory controllers | |
| Composite types of memory disks | HDD SSD |
| Composite memory disk interface types | SATA III |

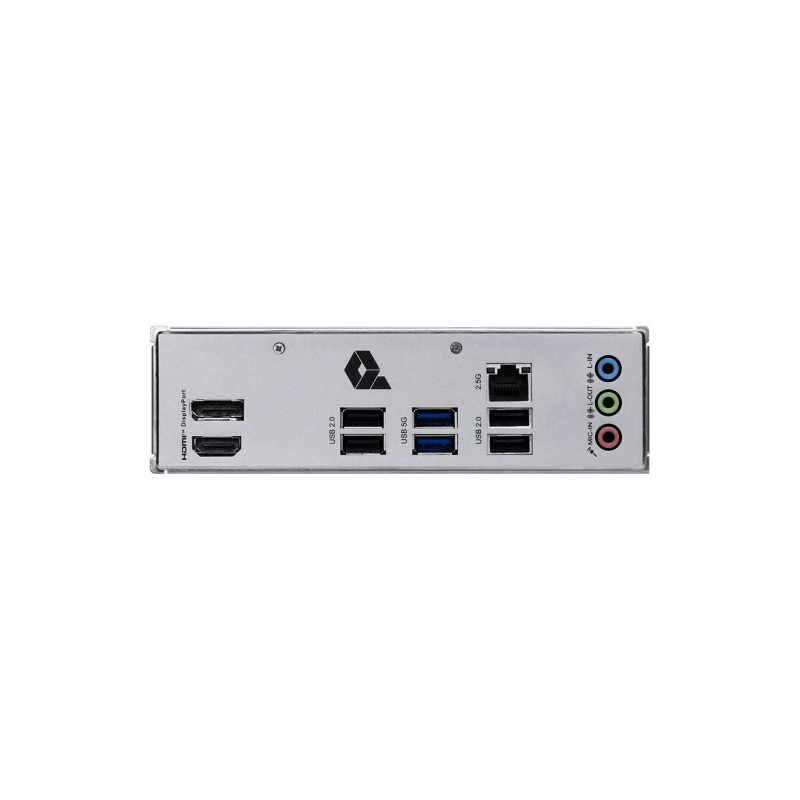

Rear panel I/O ports | |
| Number of DisplayPort ports | 1 |
| Number of Ethernet LAN (RJ-45) ports | 1 |
| Number of HDMI ports | 1 |
| Number of USB 2.0 ports | 4 |
| Audio connector | Yes |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 2 |
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| M.2 (M) number of sockets | 1 |
| PCI Express x1 slots | 2 |
| Height | 60mm |
| Length | 310mm |
| Weight | 1300g |
| Width | 260mm |
