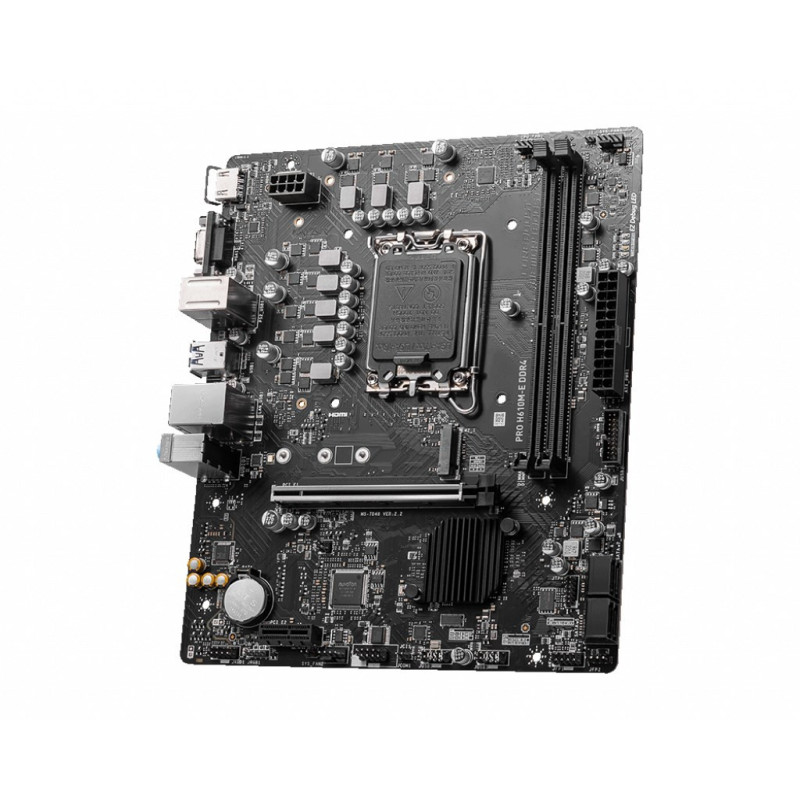

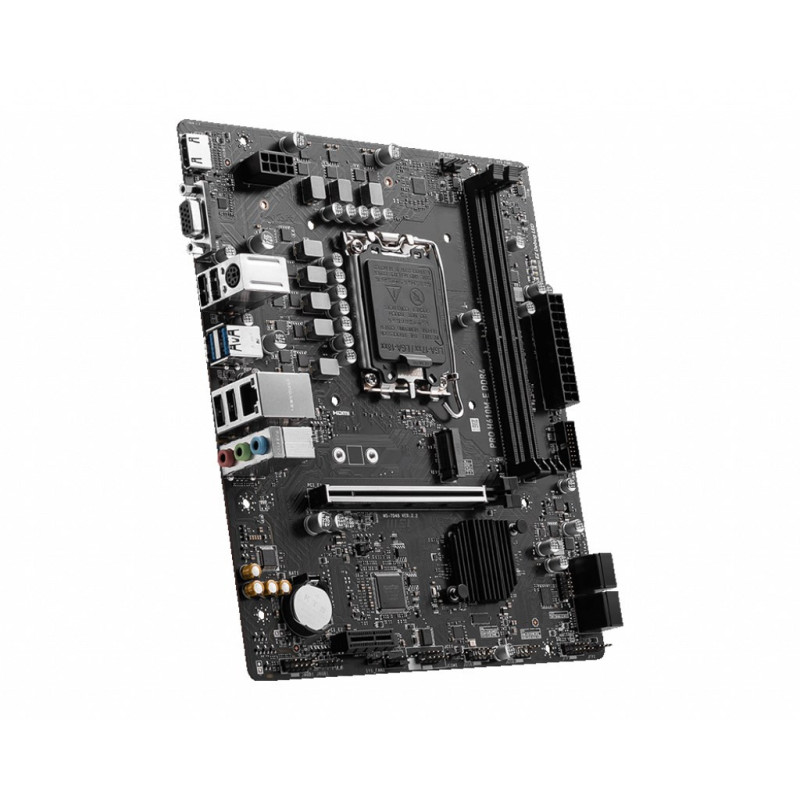

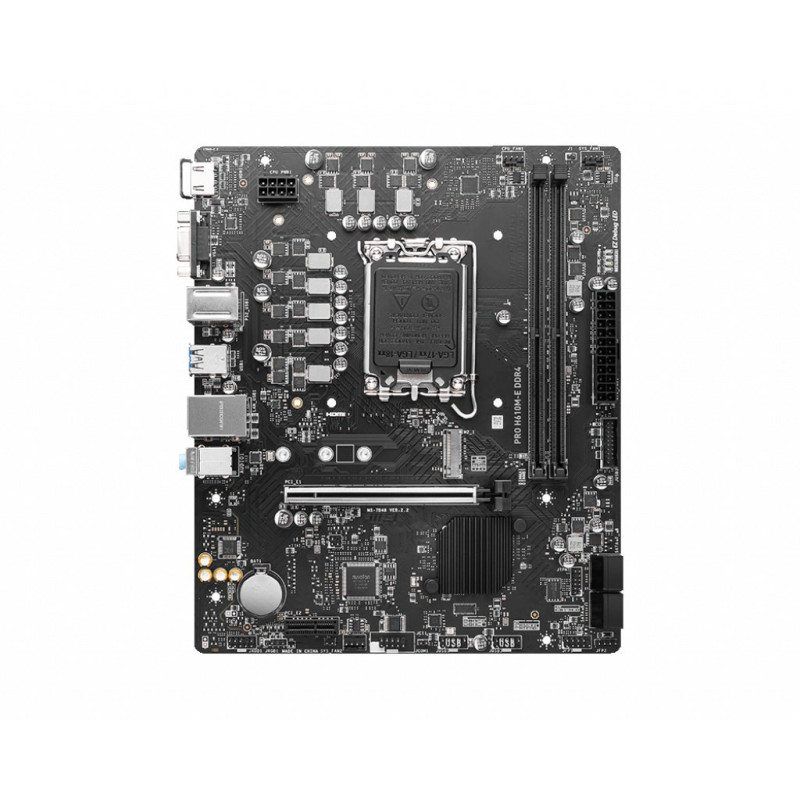

Motherboard - MSI PRO H610M-E LGA 1700 DDR4 64GB Micro ATX
Product reference:
14-4711377002660
Supports Intel LGA 1700 processors and up to 64GB of DDR4 memory. Key features include dual-channel memory, 7.1 audio output, and a wide range of USB and SATA ports.
Motherboard - MSI PRO H610M-E LGA 1700 DDR4 64GB Micro ATX
Product reference:
14-4711377002660
Supports Intel LGA 1700 processors and up to 64GB of DDR4 memory. Key features include dual-channel memory, 7.1 audio output, and a wide range of USB and SATA ports.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
MSI Pro H610M-E DDR4 Motherboard Intel H610 LGA 1700 Micro ATX
Supports LGA 1700 processors with up to 64GB of memory. Key features include dual memory channels, 7.1 audio output, and a wide range of USB and SATA ports.
- Enables Intel® Core™ i9 processors with LGA 1700 socket, ensuring high performance.
- Micro ATX format board with dual memory DDR4 support up to 64 GB.
- Equipped with a 7.1 channel sound system and Realtek ALC897 audio chip, providing an immersive audio experience.
- Includes multiple USB ports and SATA III connectors for a variety of connectivity options.
Processor | |
|---|---|
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Core™ i9 |
| Processor manufacturer | Intel |
Graphics | |
| Support for parallel processing technology | Not supported |
Features | |
| Motherboard format type | micro ATX |
| Audio output channels | 7.1 channels |
| Motherboard chip | Intel H610 |
| Audio chip | Realtek ALC897 |
Memory | |
| Supported memory clock speeds | 2933, 3000, 2133, 2666, 3200 MHz |
| Memory channels | Dual channel |
| Memory slot type | DIMMs |
| Maximum supported memory frequency speed | 3200MHz |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 64GB |
| Number of memory slots | 2 |
Weight and dimensions | |
| Height | 65 mm |
| Weight | 760g |
Network | |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
Internal I/O | |
| ATX power connector (24-pin) | Yes |
| Number of SATA III connectors | 4 |
| Number of USB 2.0 ports | 4 |
| Number of chassis fan connectors | 1 |
| TPM connector | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| 12V power connector | Yes |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 2 |
BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS switch | Yes |
Memory controllers | |
| Supported memory types | HDD SSD |
| Supported memory interfaces | M.2, SATA III |

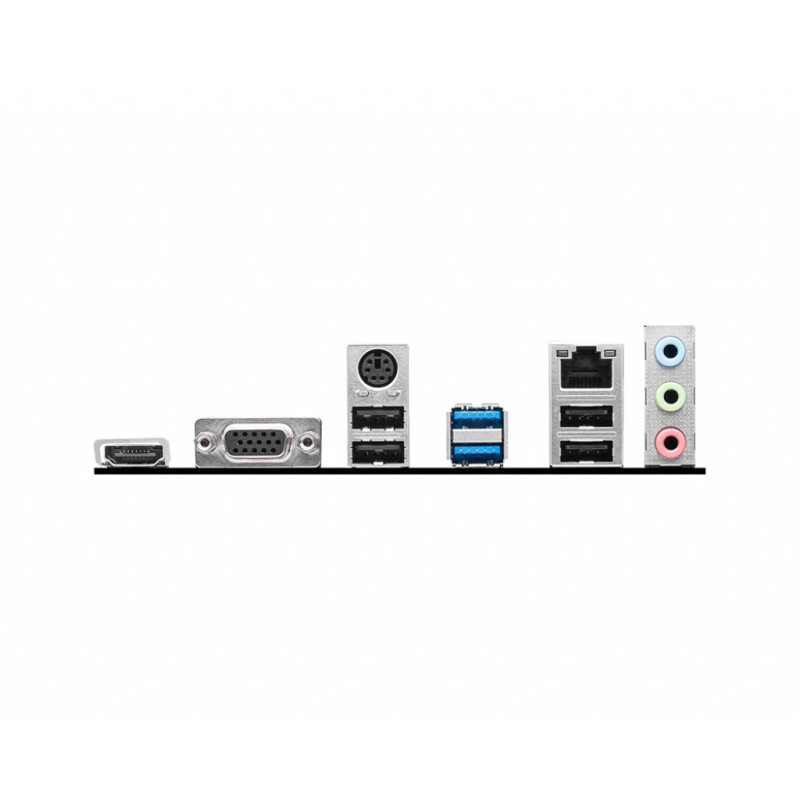

Rear panel I/O ports | |
| Number of Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 2 |
| Number of VGA (D-Sub) ports | 1 |
| Number of HDMI ports | 1 |
| HDMI version | 2.1 |
| Number of USB 2.0 ports | 4 |
| Height | 90 mm |
| Length | 320mm |
| Weight | 1200g |
| Width | 260 mm |
