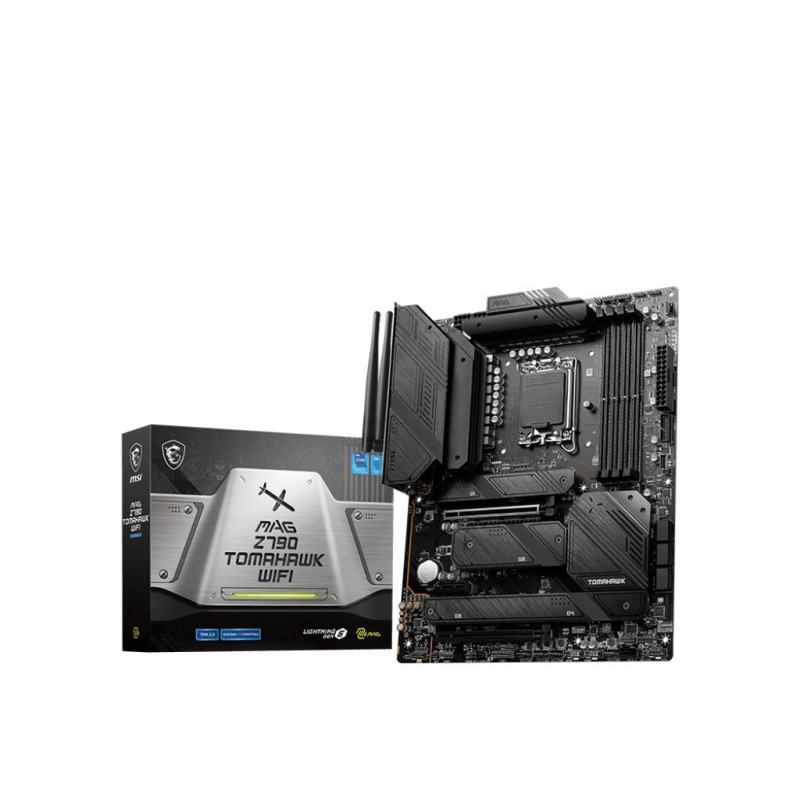

MSI Mag Z790 Tomahawk WiFi Motherboard LGA 1700 ATX
MSI MAG Z790 TOMAHAWK WIFI is a high-performance motherboard for Intel LGA 1700 processors. It supports up to 128 GB of DDR5-SDRAM memory with a dual-channel configuration and four DIMM slots.
Main features:
- Supports up to 128 GB DDR5-SDRAM memory
- Dual-channel configuration with four DIMM slots
- 2.5 Gigabit Ethernet LAN and Wi-Fi 6 (802.11ax) connectivity
- 7.1 channel audio output
Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
Graphics | |
| Support for parallel processing technology | Not supported |
Features | |
| Motherboard chip | Intel Z790 |
| Motherboard shape | ATX |
| Audio output channels | 7.1 channels |
| Supported Windows operating systems | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
Memory | |
| Unbuffered memory | Yes |
| Maximum internal memory | 128GB |
| Supported memory clock speeds | 5200, 6000, 6600, 7000, 6200, 5800, 5400, 6800, 6400, 4800, 5600, 7200 MHz |
| Supported memory clock speed (max) | 5333MHz |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual channel |
Weight and dimensions | |
| Width | 304.8 mm |
| Depth | 243.8 mm |
Network | |
| Bluetooth | Yes |
| Wi-Fi standards | Wi-Fi 4 (802.11n), 802.11g, 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Internal I/O | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Housing penetration connector | Yes |
| USB 2.0 ports | 4 |
| Number of SATA II connectors | 6 |
| Front panel audio connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| RGB LED pin connector | Yes |
| Front panel connector | Yes |
| CPU cooler connector | Yes |
| TPM connector | Yes |
BIOS | |
| BIOS type | EFI AMI |
Package contents | |
| Cables included | SATA |
Memory controllers | |
| Supported storage drive types | HDD SSD |
| RAID levels | 10, 0, 5 |
| Supported storage drive interfaces | M.2, PCI Express |
| Internal memory capacity | 10GB |

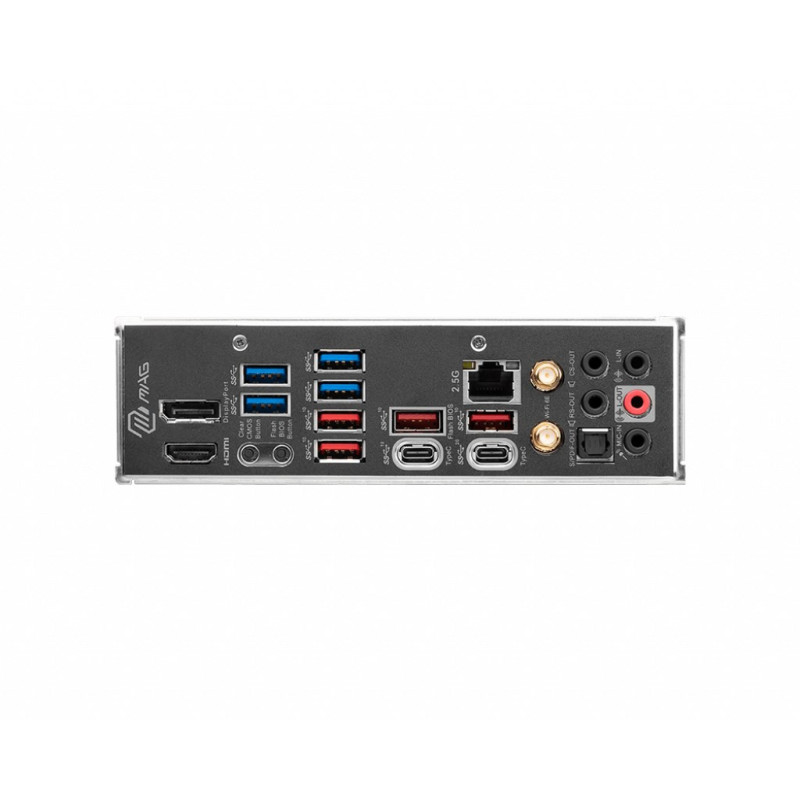

Rear panel I/O ports | |
| HDMI version | 2.1 |
| S/PDIF out port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 4 |
| Number of HDMI ports | 1 |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| Number of DisplayPort ports | 1 |
| DisplayPort version | 1.4 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 4 |
| Length | 340mm |
| Height | 70mm |
| Width | 275 mm |
| Weight | 1800g |
