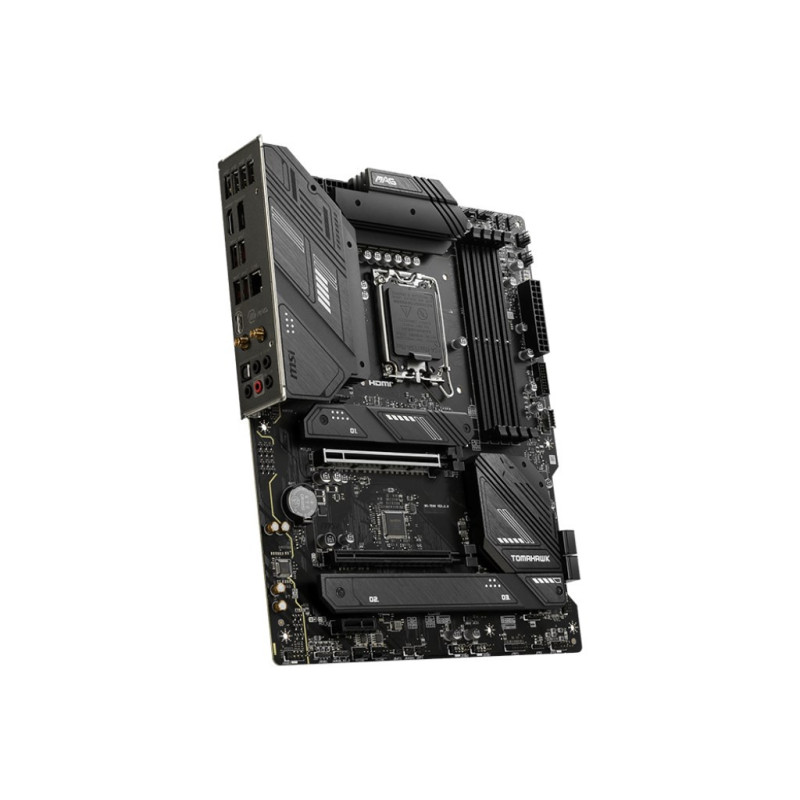

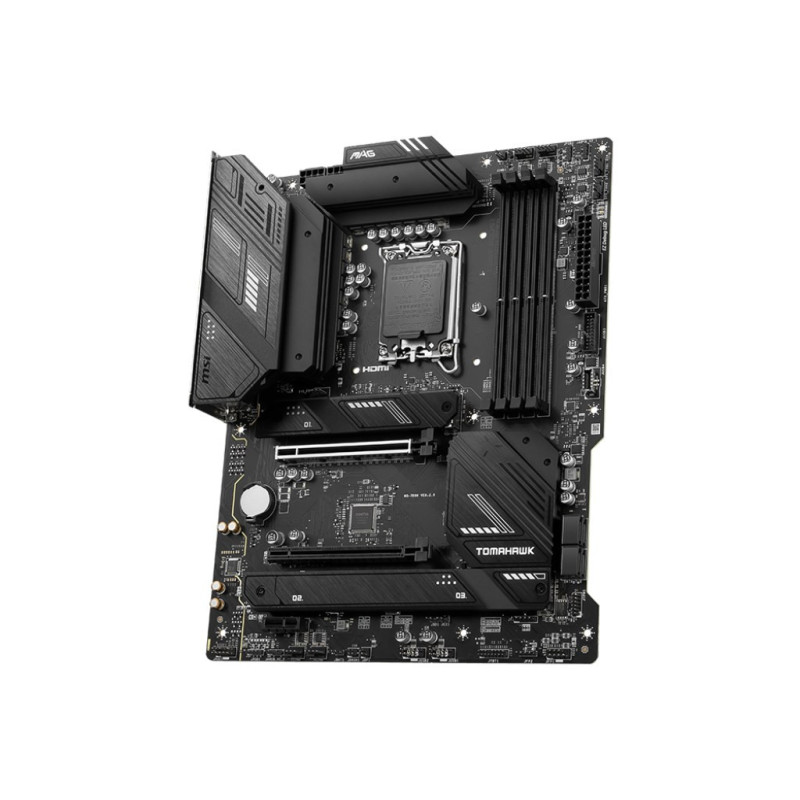

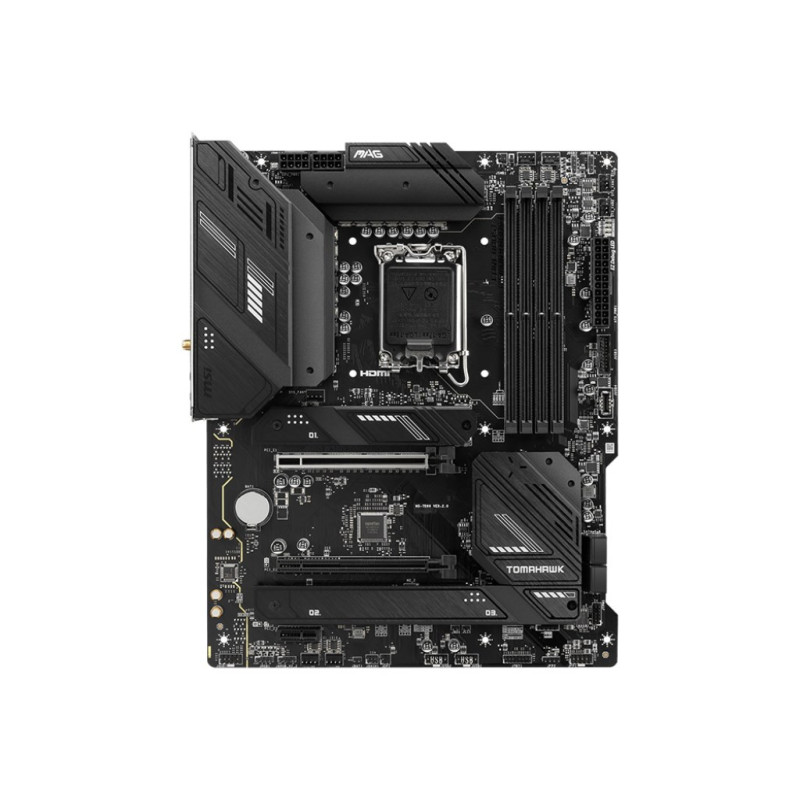

Motherboard - MSI MAG B760 Tomahawk WiFi LGA 1700 ATX
Product reference:
14-4711377034210
LGA 1700 ATX motherboard with Wi-Fi 6E and 2.5 Gigabit Ethernet LAN. Supports up to 128 GB DDR5 memory, 10 rear USB ports, and 4 internal SATA III connectors.
Motherboard - MSI MAG B760 Tomahawk WiFi LGA 1700 ATX
Product reference:
14-4711377034210
LGA 1700 ATX motherboard with Wi-Fi 6E and 2.5 Gigabit Ethernet LAN. Supports up to 128 GB DDR5 memory, 10 rear USB ports, and 4 internal SATA III connectors.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
MSI Mag B760 Tomahawk WiFi LGA 1700 ATX
This motherboard is designed for Intel's 12th and 13th generation processors, featuring a robust 12+1 phase power delivery system. It supports up to 128GB of DDR5 memory and has four DIMM slots.
Main features:
- Wi-Fi 6E (802.11ax) connection
- 2.5 Gigabit Ethernet LAN
- USB 3.2 Gen 2x2 Type-C port
- DisplayPort 1.4 output and HDMI 2.1 output
Processor | |
|---|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Pentium® Gold, Intel® Celeron® |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Maximum number of SMP processors | 1 |
Features | |
| Motherboard chip family | Intel |
| Power supply type | ATX |
| Audio output channels | 7.1 channels |
| Supported Windows operating systems | Windows 11, Windows 10 |
| Motherboard format type | ATX |
| Sound chip | Realtek ALC897 |
Memory | |
| Supported memory clock speeds | 7000, 5800, 5400, 6800, 6400, 5200, 4800, 6000, 6600, 5000, 5600, 6200 |
| Maximum internal memory | 128GB |
| Memory channels | Dual channel |
| Supported memory clock speed (max) | 7000MHz |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
Weight and dimensions | |
| Width | 243.8 mm |
| Depth | 304.8 mm |
Network | |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Wi-Fi standards | Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), 802.11b |
| Ethernet LAN | Yes |
| Bluetooth version | 5.3 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Internal I/O | |
| USB 2.0 ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Front panel connector | Yes |
| CPU cooler connector | Yes |
| S/PDIF output connector | Yes |
| ATX power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| TPM connector | Yes |
| RGB LED pin connector | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Memory controllers | |
| RAID levels | 10, 0, 1, 5 |
| RAID support | Yes |
| Supported memory device interfaces | M.2, SATA III |

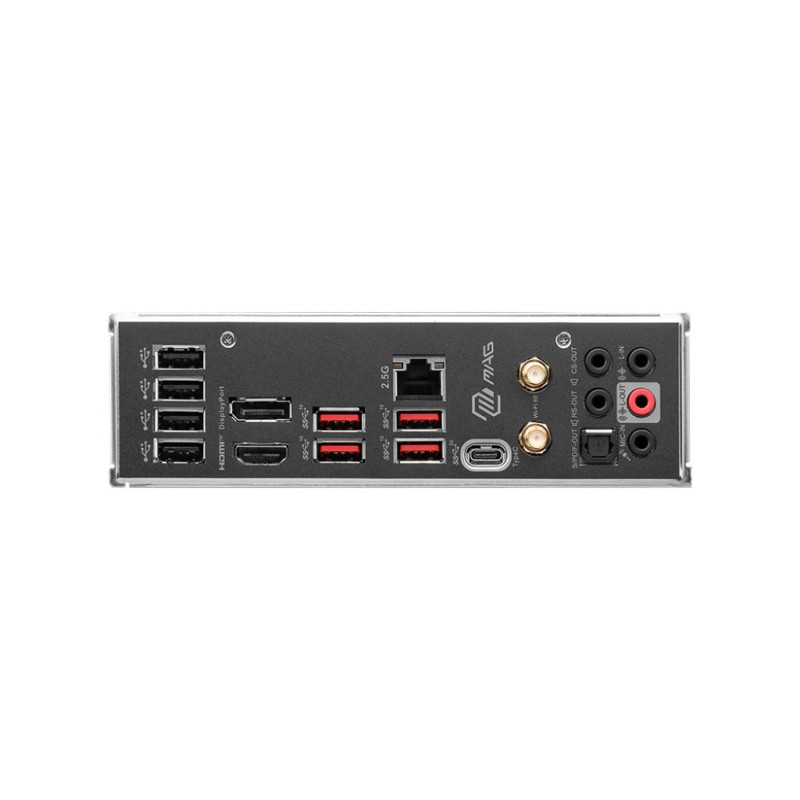

Rear panel I/O ports | |
| Number of USB 2.0 ports | 4 |
| DisplayPort version | 1.4 |
| Number of DisplayPorts | 1 |
| HDMI version | 2.1 |
| Number of HDMI ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 slots | 2 |
| Number of M.2 (M) slots | 3 |
| Length | 350mm |
| Height | 270mm |
| Width | 70mm |
| Weight | 1780 grams |
