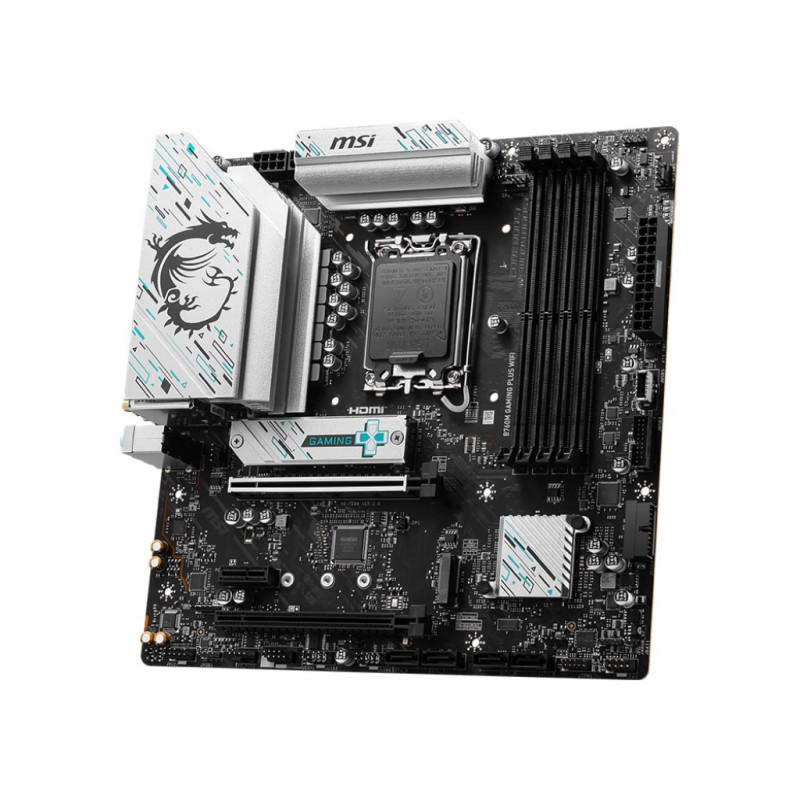

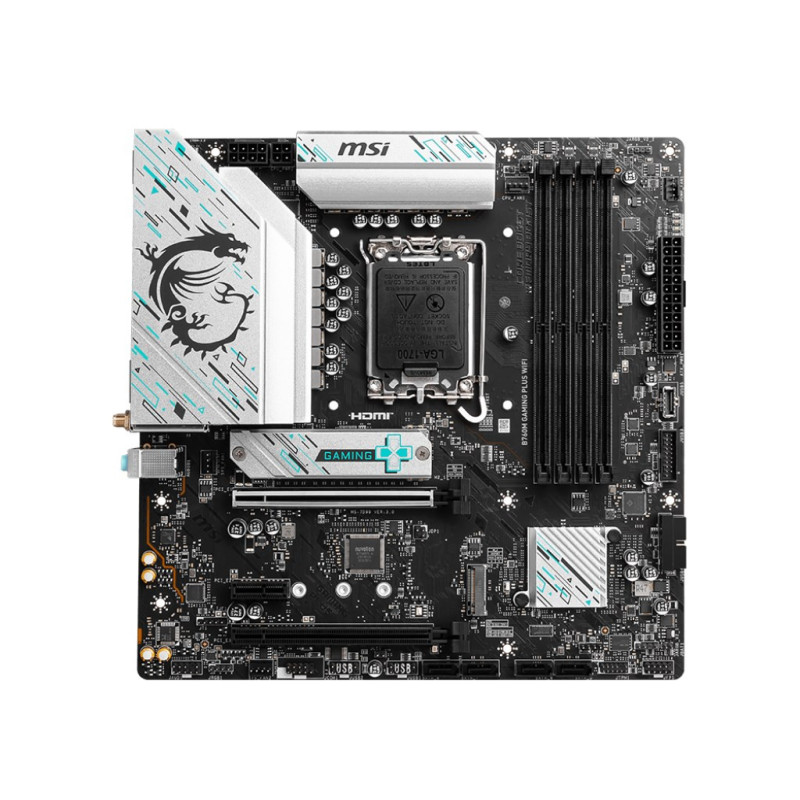

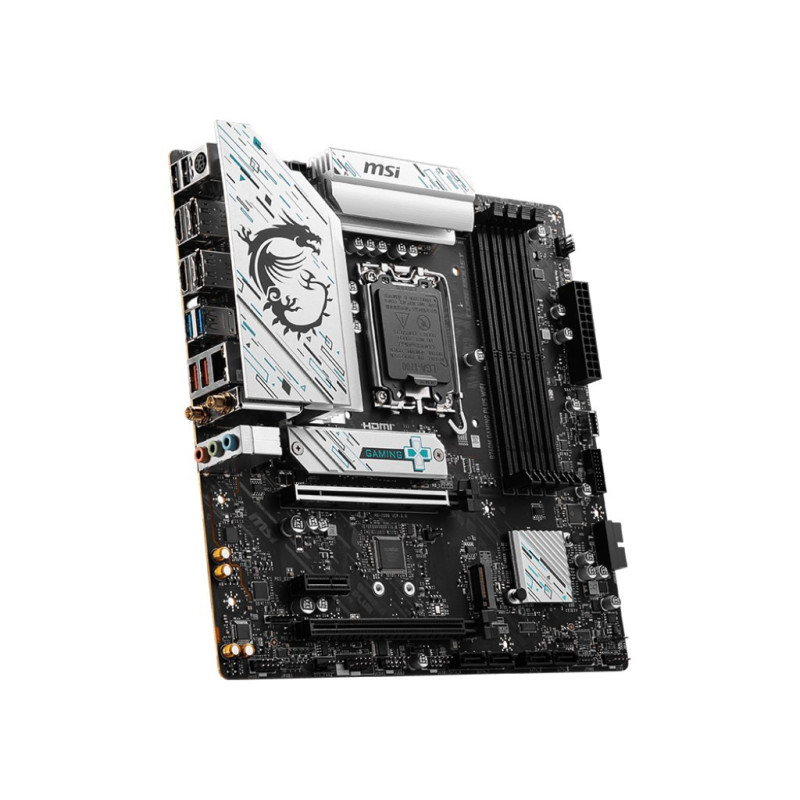

Motherboard - MSI B760M GAMING PLUS WIFI Intel LGA 1700 DDR5 192GB Wi-Fi 6E
Product reference:
14-4711377154017
Supports Intel LGA 1700 processors with a maximum of 192 GB of internal memory using DDR5-SDRAM. Equipped with Wi-Fi 6E, Bluetooth 5.3 and multiple USB ports for convenient connectivity.
Motherboard - MSI B760M GAMING PLUS WIFI Intel LGA 1700 DDR5 192GB Wi-Fi 6E
Product reference:
14-4711377154017
Supports Intel LGA 1700 processors with a maximum of 192 GB of internal memory using DDR5-SDRAM. Equipped with Wi-Fi 6E, Bluetooth 5.3 and multiple USB ports for convenient connectivity.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
MSI B760M Gaming Plus Wifi Motherboard Intel B760 LGA 1700 Micro ATX
Compatible with Intel LGA 1700 processors, maximum internal memory size - 192 GB using DDR5-SDRAM. Equipped with Wi-Fi 6E, Bluetooth 5.3 and multiple USB ports for connectivity. Compatible with Windows 10 and Windows 11 operating systems.
- Enables the use of Intel® Pentium® Gold and Intel® Celeron® processors with the LGA 1700 socket.
- Equipped with Wi-Fi 6E and Bluetooth 5.3 for fast wireless connectivity.
- Offers dual-channel DDR5 memory support with a maximum capacity of 192 GB.
- Multiple USB ports and advanced audio output with 7.1 channels are included to enhance your multimedia experience.
- Motherboard chipset: Intel B760.
- Audio chip: Realtek ALC897.
- Power supply type: ATX.
- Motherboard format type: micro ATX.
Processor | |
|---|---|
| Maximum number of SMP processors | 1 |
| Processor manufacturer | Intel |
| Composite processor models | Intel® Pentium® Gold, Intel® Celeron® |
| Supported processor sockets | LGA 1700 |
Memory | |
| Memory channels | Dual channel |
| Supported memory clock speeds | 6800, 6600, 6400, 6200, 5800, 5600, 5400, 5200, 5000, 4800 |
| Number of memory slots | 4 |
| Memory slot type | DIMMs |
| Maximum supported memory frequency speed | 6800MHz |
| ECC compatibility | Non-ECC |
Weight and dimensions | |
| Width | 243.8 mm |
| Depth | 243.8 mm |
Network | |
| Wi-Fi standards | 802.11b, Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), 802.11ad, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Internal I/O | |
| Number of SATA III connectors | 4 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 4 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) ports | 1 |
| TPM connector | Yes |
| Number of USB 2.0 ports | 4 |
BIOS | |
| BIOS type | UEFI AMI |
Memory controllers | |
| Supported memory interfaces | M.2, SATA III |

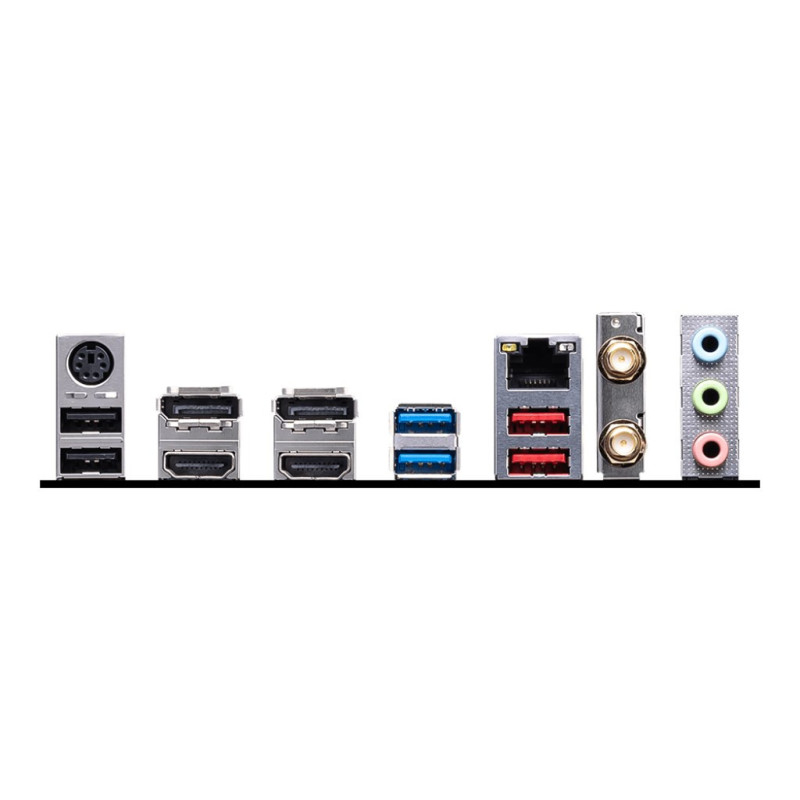

Rear panel I/O ports | |
| Number of USB 2.0 ports | 2 |
| Number of DisplayPort ports | 2 |
| Number of Ethernet LAN (RJ-45) ports | 1 |
| Number of HDMI ports | 2 |
| HDMI version | 2.1 |
Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
