Motherboard - MSI B760 GAMING PLUS WIFI DDR4 LGA 1700 ATX 128GB Memory
Product reference:
14-4711377247900
Supports Intel LGA 1700 processors and up to 128GB of DDR4 memory. The device features Wi-Fi 6, 2.5 Gigabit Ethernet, and multiple USB ports for convenient connectivity.
Motherboard - MSI B760 GAMING PLUS WIFI DDR4 LGA 1700 ATX 128GB Memory
Product reference:
14-4711377247900
Supports Intel LGA 1700 processors and up to 128GB of DDR4 memory. The device features Wi-Fi 6, 2.5 Gigabit Ethernet, and multiple USB ports for convenient connectivity.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
MSI B760 Gaming Plus Wifi DDR4 Motherboard Intel B760 LGA 1700 ATX
Supports Intel LGA 1700 processors and up to 128GB of DDR4 memory. Equipped with Wi-Fi 6, 2.5 Gigabit Ethernet, and multiple USB ports for connectivity.
- Supports Intel® Celeron® and Pentium® Gold processors with LGA 1700 socket.
- Equipped with Wi-Fi 6 and Bluetooth 5.3 for fast connectivity.
- Supports dual-channel DDR4 memory with a maximum capacity of 128 GB.
- Offers multiple USB ports and advanced audio capabilities with 7.1 channels.
Processor | |
|---|---|
| Maximum internal memory supported by the processor | 128GB |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| Processor manufacturer | Intel |
Features | |
| Audio chip | Realtek ALC897 |
| Motherboard chip family | Intel |
| Composite Windows operating systems | Windows 11 x64, Windows 10 x64 |
| Motherboard format type | ATX |
| Motherboard chip | Intel B760 |
Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slot type | DIMMs |
| Supported memory clock speeds | 5333 MHz, 3200 MHz, 2666 MHz, 5200 MHz, 4266 MHz, 3800 MHz, 3333 MHz, 2400 MHz, 5066 MHz, 4600 MHz, 3400 MHz, 3733 MHz, 4400 MHz, 5000 MHz, 4000 MHz, 4800 MHz, 2933 MHz, 3600 MHz, 3466 MHz, 2133 MHz, 4200 MHz |
| ECC compatibility | Non-ECC |
| Memory channels | Dual channel |
Weight and dimensions | |
| Depth | 304.8 mm |
| Width | 243.8 mm |
Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| LAN controller | Dragon RTL8125BG |
| Wi-Fi standards | 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax |
Internal I/O | |
| RGB LED pin header | Yes |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of USB 3.2 Gen 1 ports | 3 |
| Number of USB 2.0 ports | 4 |
BIOS | |
| BIOS type | UEFI AMI |
Memory controllers | |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Supported memory device interfaces | M.2, SATA |
| RAID levels | 5, 1, 0, 10 |
| Number of supported storage devices | 6 |

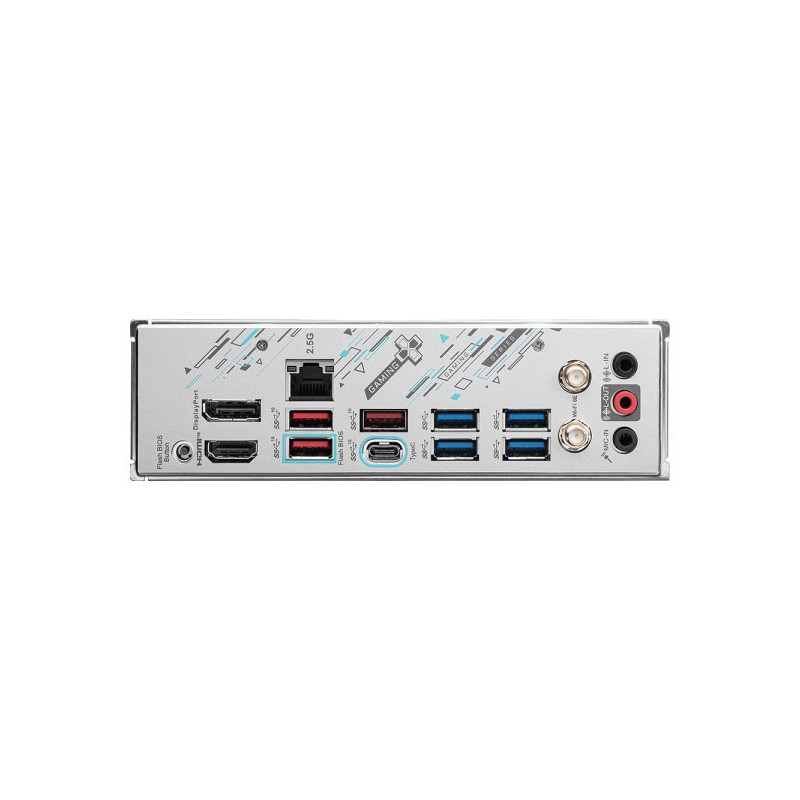

Rear panel I/O ports | |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | Yes |
| DisplayPort version | 1.4 |
| Number of HDMI ports | 1 |
| Number of USB 3.2 Gen 2 Type-A ports | 2 |
| Number of USB 3.2 Gen 2 Type-C ports | 1 |
Expansion slots | |
| PCI Express x1 slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| Length | 345mm |
| Height | 65 mm |
| Width | 270mm |
| Weight | 1520 grams |
