Motherboard - MSI B550m Pro-vdh WiFi AMD B550 Socket Am4 Micro Atx
Product reference:
14-4719072733698
The MSI B550M PRO-VDH WIFI motherboard supports AMD processors for the AM4 socket and features Wi-Fi 5 (802.11ac) and Bluetooth 4.2 connectivity. It has one PCI Express x16 slot, two M.2 slots, and four SATA III connectors for storage.
Motherboard - MSI B550m Pro-vdh WiFi AMD B550 Socket Am4 Micro Atx
Product reference:
14-4719072733698
The MSI B550M PRO-VDH WIFI motherboard supports AMD processors for the AM4 socket and features Wi-Fi 5 (802.11ac) and Bluetooth 4.2 connectivity. It has one PCI Express x16 slot, two M.2 slots, and four SATA III connectors for storage.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

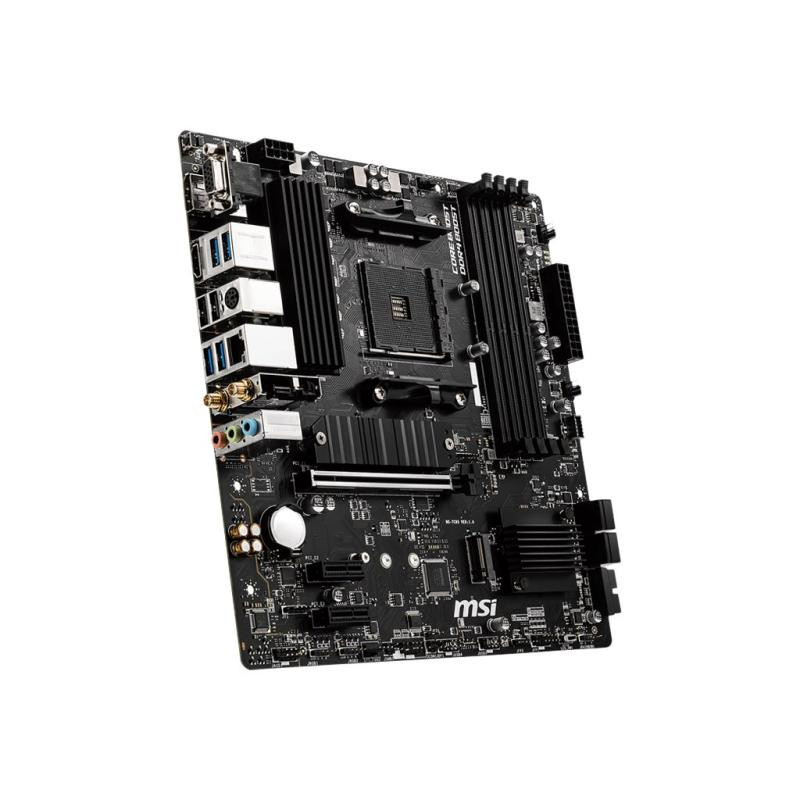

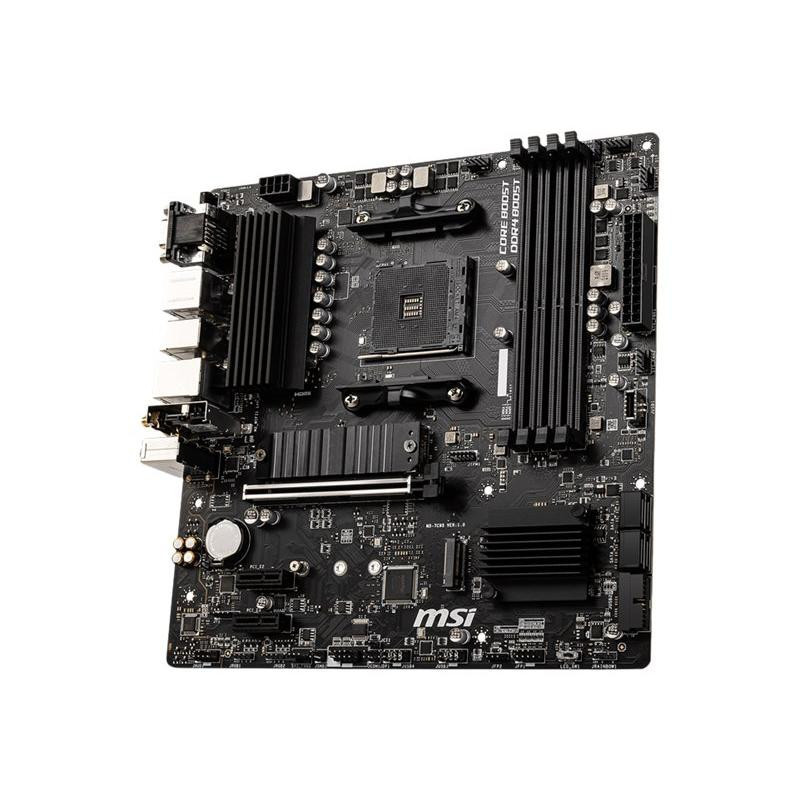

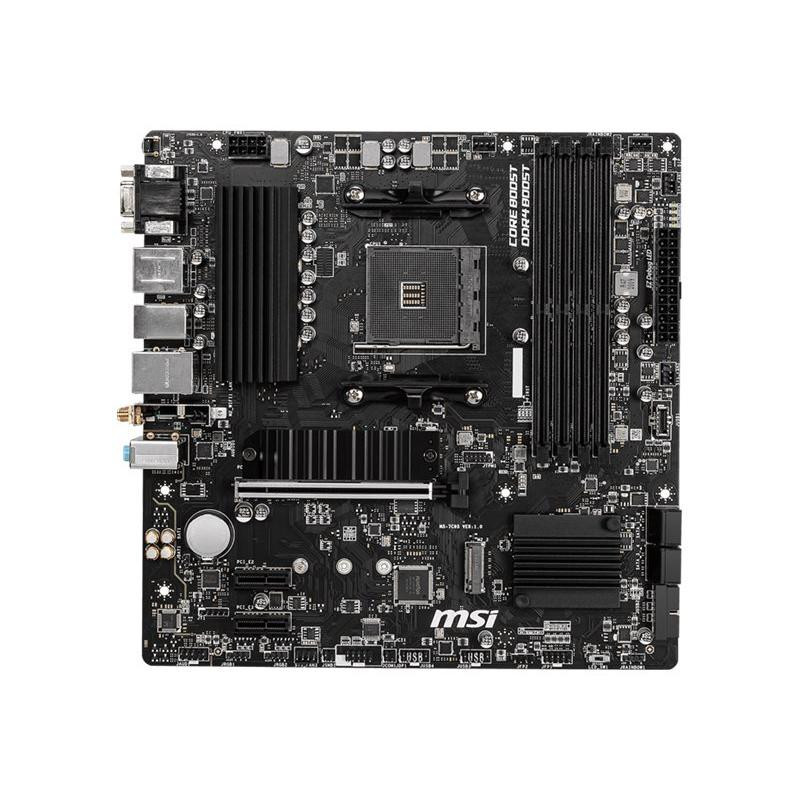

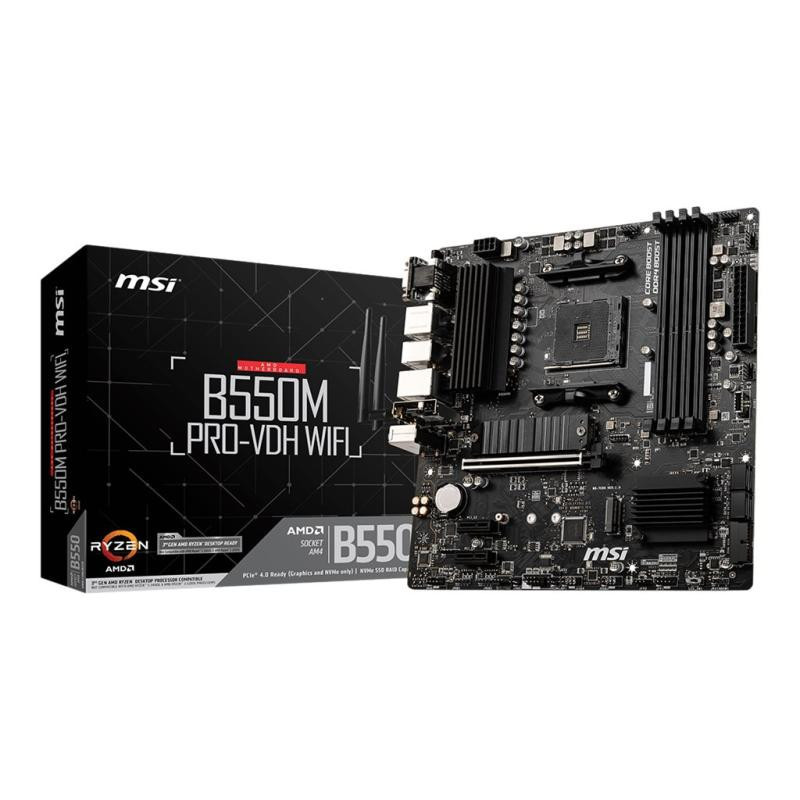

MSI B550M PRO-VDH WiFi
The MSI B550M PRO-VDH WiFi is a micro ATX motherboard for AMD Ryzen processors. It features Wi-Fi 5 and Bluetooth connectivity, as well as a Gigabit Ethernet interface.
Main features
- Four SATA III connectors for ample storage options
- Connectivity: Wi-Fi 5 (802.11ac), Bluetooth 4.2, Gigabit Ethernet
- Expansion slots: one PCI Express x16 (Gen 4.x), two M.2, two PCI Express x1 (Gen 3.x)
- Supports up to 128 GB of DDR4 memory with various frequencies: 1866, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400 MHz
- 7.1 channel audio output with Realtek ALC892 audio chip
Processor | |
|---|---|
| Supported processor sockets | Socket AM4 |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | AMD |
| Compatible processor series | 3-osios generations AMD Ryzen™ 3, 5, 7, 9, AMD Ryzen 3000 series |
Graphics | |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum graphics card memory | 16000MB |
Features | |
| Motherboard chip | AMD B550 |
| Product color | Black |
| Audio output channels | 7.1 channels |
| Motherboard format type | micro ATX |
| Audio chip | Realtek ALC892 |
| Number of mounting holes | 8 |
Memory | |
| Non-volatile memory | Yes |
| Maximum internal memory | 128GB |
| Number of memory slots | 4 |
| Memory channels | Dual channels |
| Supported memory types | DDR4-SDRAM |
| Memory slot type | DIMMs |
| Supported memory clock speeds | 1866, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400 MHz |
Weight and dimensions | |
| Depth | 244 mm |
| Height | 65 mm |
| Width | 244 mm |
Network | |
| LAN controller | Realtek 8111HN |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Yes |
Internal I/O | |
| USB 2.0 ports | 2 |
| RGB LED pin connector | Yes |
| Number of SATA III connectors | 4 |
| ATX power connector (24-pin) | Yes |
| Number of chassis fan connectors | 3 |
| CPU fan connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
BIOS | |
| Clear CMOS switch | Yes |
Package contents | |
| Add drivers | Yes |
| Cables included | SATA |
Storage controls | |
| RAID support | Yes |
| RAID levels | 10, 1, 0 |
| Supported storage device interfaces | SATA III |
| Supported storage device types | HDD and SSD |

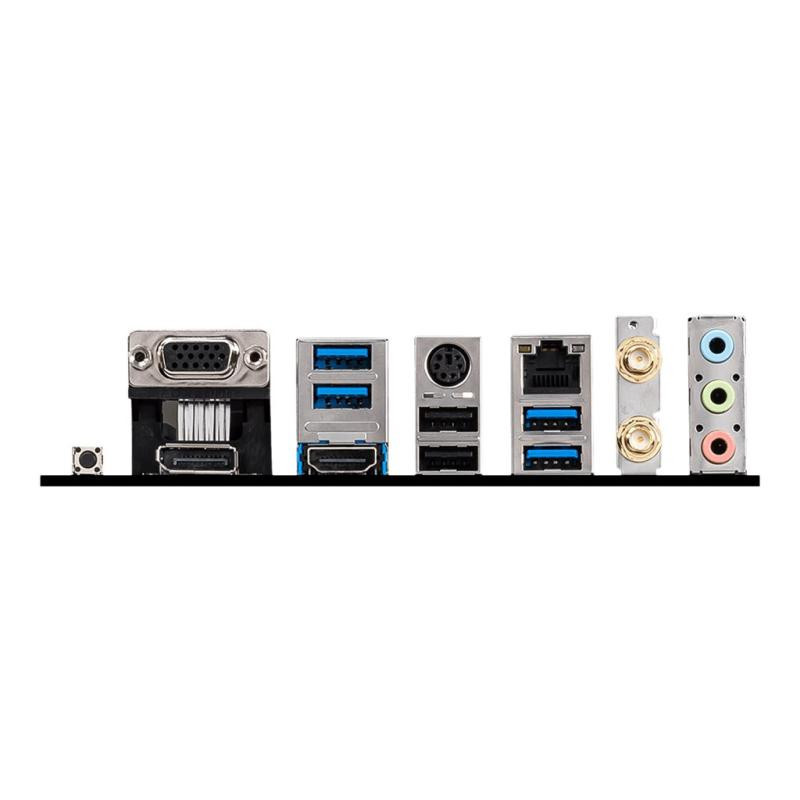

Rear panel I/O ports | |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of VGA (D-Sub) ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 4 |
| Number of HDMI ports | 1 |
| WiFi-AP antenna connector | 2 |
| Number of DisplayPorts | 1 |
| PS/2 number of ports | 1 |
| Number of USB 2.0 ports | 2 |
| Height | 270mm |
| Length | 280 mm |
| Weight | 1115 grams |
| Width | 70mm |
