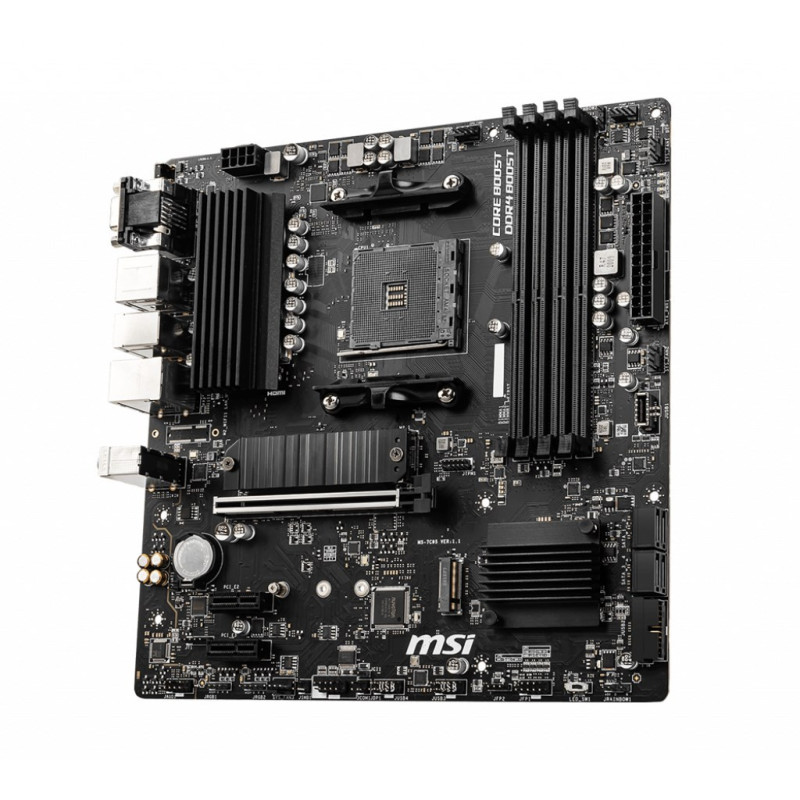

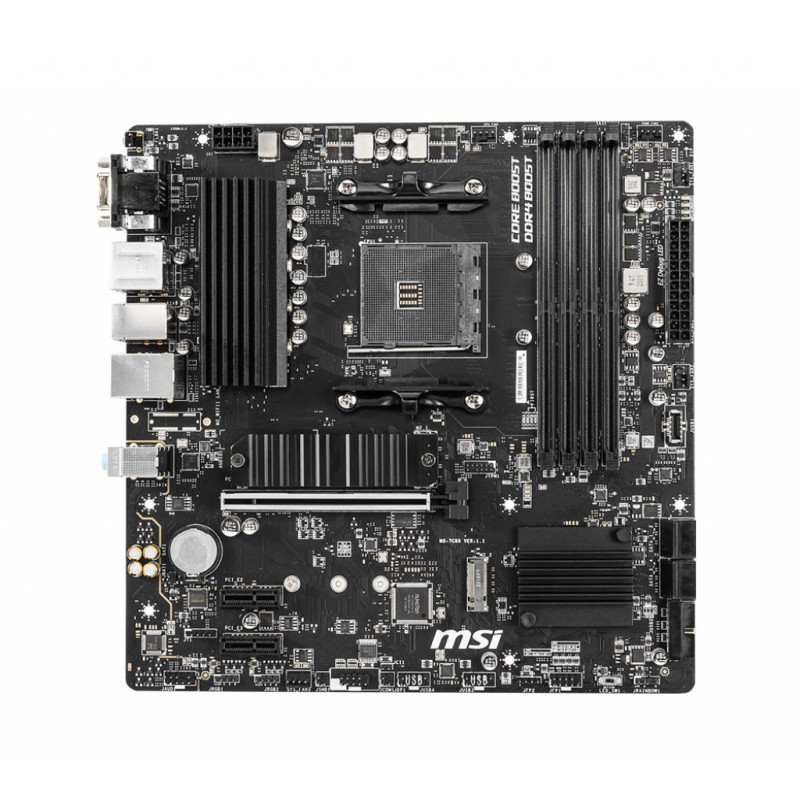

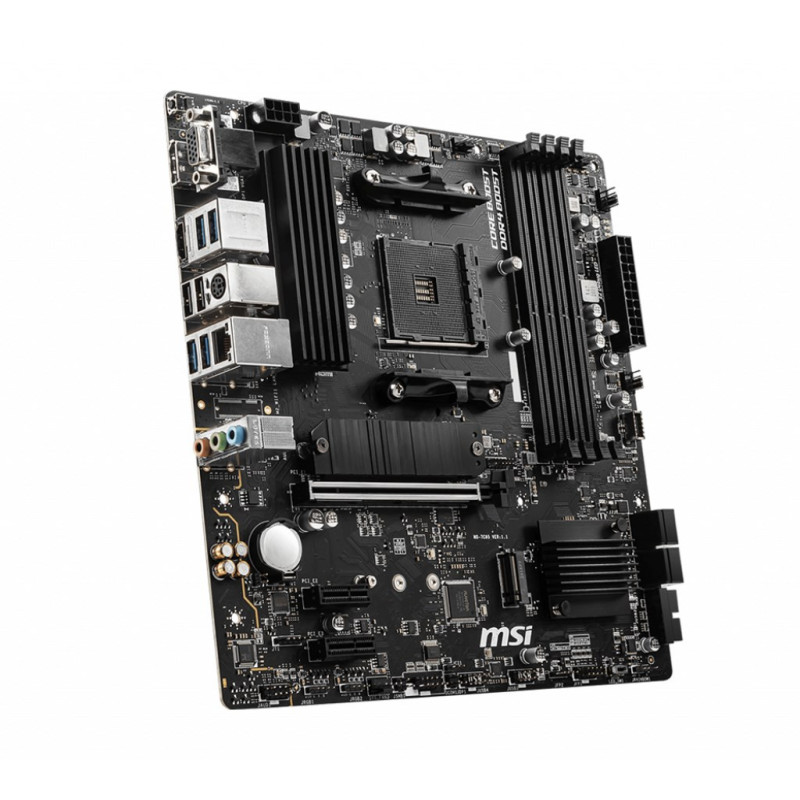

Motherboard - MSI B550M PRO-VDH
MSI B550M PRO-VDH motherboard for Socket AM4 supports AMD Ryzen 5, Ryzen 7 and Ryzen 9 series processors from 3-osios generation. It provides a maximum resolution of 4096 x 2160 pixels and 7.1 channel audio output.
Main features
- Supports up to 128 GB of unbuffered DDR4 memory
- Dual-channel architecture for better performance
- Micro ATX format design
- Realtek 8111HN LAN controller, guaranteeing stable network connection
Processor | |
|---|---|
| Maximum number of SMP processors | 1 |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen™ 5, AMD Ryzen™ 7, 3-osios generations AMD Ryzen™ 9 |
| Processor manufacturer | AMD |
Graphics | |
| Maximum resolution | 4096 x 2160 pixels |
| Support for parallel processing technology | Not supported |
Features | |
| Audio output channels | 7.1 channels |
| Motherboard chipset | AMD |
| Motherboard format | micro ATX |
| Motherboard chip | AMD B550 |
Memory | |
| Memory slot type | DIMMs |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual channels |
| Supported memory clock speeds | 1866, 2667, 2933, 3000, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400 MHz |
| Unbuffered memory | Yes |
| Maximum internal memory | 128GB |
Weight and dimensions | |
| Depth | 244 mm |
| Width | 244 mm |
Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| LAN controller | Realtek 8111HN |
Internal I/O | |
| RGB LED pin connector | Yes |
| 12V power connector | Yes |
| Front panel connector | Yes |
| ATX power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| CPU cooler connector | Yes |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 ports | 2 |
| Enclosure burglary connector | Yes |
| Number of connections for case coolers | 3 |
| Serial port connections | 1 |
| Number of SATA III connectors | 4 |
BIOS | |
| Clear CMOS switch | Yes |
Package contents | |
| Cables included | SATA |
| Add drivers | Yes |
Memory controllers | |
| Supported storage drive types | HDD SSD |
| Supported storage drive interfaces | Serial ATA III |
| RAID levels | 10, 1, 0 |

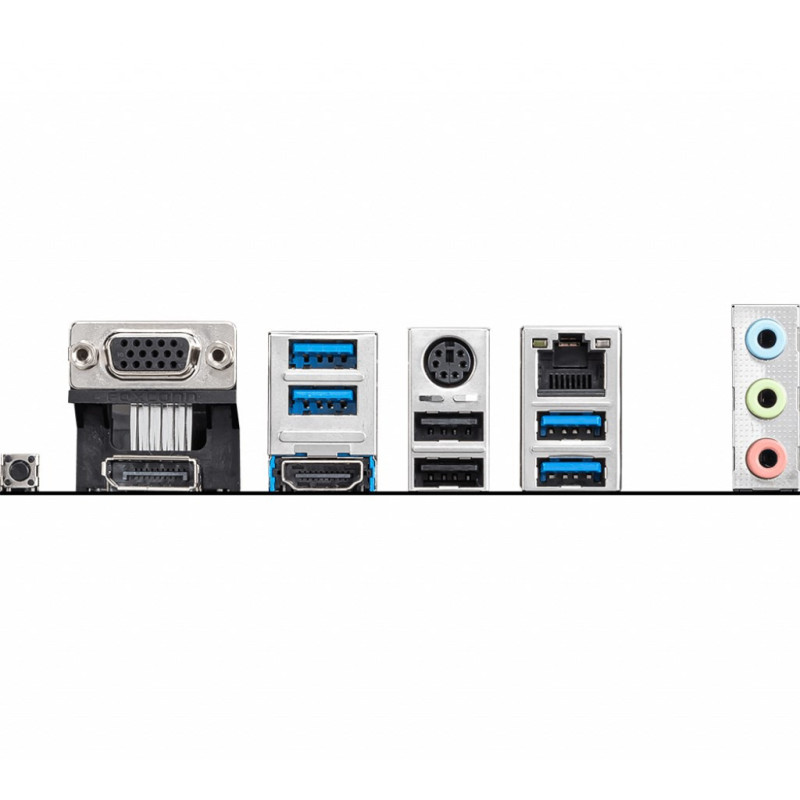

Rear panel I/O ports | |
| Number of VGA (D-Sub) ports | 1 |
| HDMI version | 2.1 |
| Number of DisplayPort ports | 1 |
| Number of HDMI ports | 1 |
| Number of USB 2.0 ports | 2 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| M.2 (M) number of sockets | 2 |
| Height | 280 mm |
| Length | 275 mm |
| Weight | 1070g |
| Width | 85 mm |
