Motherboard - GIGABYTE Z790 EAGLE AX, Intel 14th Gen, 12+1+1 VRM, 7600MHz DDR5, Wi-Fi 6E
Product reference:
14-4719331860998
The GIGABYTE Z790 EAGLE AX motherboard supports 14th Generation Intel Core processors with a 12+1+1 phase digital VRM and up to 7600MHz DDR5 memory. It features 3 PCIe 4.0 M.2 slots, Wi-Fi 6E, 2.5GbE LAN, and USB 3.2 Gen 2 connectivity.
Motherboard - GIGABYTE Z790 EAGLE AX, Intel 14th Gen, 12+1+1 VRM, 7600MHz DDR5, Wi-Fi 6E
Product reference:
14-4719331860998
The GIGABYTE Z790 EAGLE AX motherboard supports 14th Generation Intel Core processors with a 12+1+1 phase digital VRM and up to 7600MHz DDR5 memory. It features 3 PCIe 4.0 M.2 slots, Wi-Fi 6E, 2.5GbE LAN, and USB 3.2 Gen 2 connectivity.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

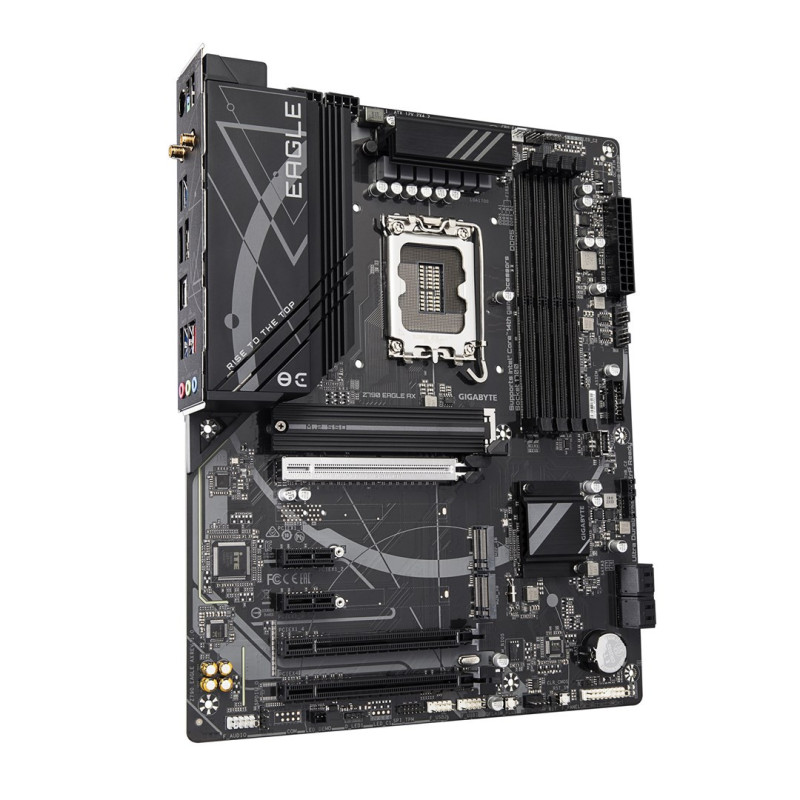

GIGABYTE Z790 EAGLE AX motherboard
Supports Intel Core 14-osios generation processors with 12+1+1 phase digital VRM and up to 7600MHz DDR5 memory. Features include 3x PCIe 4.0 M.2 slots, Wi-Fi 6E, 2.5GbE LAN and USB 3.2 Gen 2 connectors.
- Supports Intel® Core™ processors with a maximum internal memory of up to 192 GB.
- Equipped with advanced Wi-Fi 6E and 2.5 Gigabit Ethernet for fast network connectivity.
- Offers 7.1 channel audio output and Realtek ALC897 audio chip for an immersive audio experience.
- Includes multiple expansion slots and storage options for various system upgrades.
Technical data | |
|---|---|
| Processor socket | LGA 1700 |
| Motherboard chip | Intel Z790 Express |
| Motherboard format type | ATX |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Favorable types of memory | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 192GB |
| Favorable memory frequencies | 5200, 5800, 5400, 4400, 6200, 5600, 7600, 7200, 6800, 6600, 4800, 7400, 6000, 7000, 6400 MHz |
| Network controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth version | 5.3 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Dimensions (W × H × D) | 305mm × 35mm × 244mm |
| Weight | 1.81 kg |
| Power supply type | ATX |
| Favorable operating systems | Windows 10 x64, Windows 11 x64 |
| Height | 100mm |
| Length | 400mm |
| Weight | 1800g |
| Width | 350mm |
