Motherboard - GIGABYTE Z790 D AX, compatible with Intel Core 14th generation, 12+1+1 VRM, up to 7600MHz DDR5, Wi-Fi 6E.
Product reference:
14-4719331860592
The GIGABYTE Z790 D AX motherboard supports Intel Core 14th Generation processors, has 192GB of maximum memory capacity and up to 7600MHz DDR5 speed. It also offers 3xPCIe 4.0 M.2 slots, Wi-Fi 6E and 2.5GbE LAN connectivity.
Motherboard - GIGABYTE Z790 D AX, compatible with Intel Core 14th generation, 12+1+1 VRM, up to 7600MHz DDR5, Wi-Fi 6E.
Product reference:
14-4719331860592
The GIGABYTE Z790 D AX motherboard supports Intel Core 14th Generation processors, has 192GB of maximum memory capacity and up to 7600MHz DDR5 speed. It also offers 3xPCIe 4.0 M.2 slots, Wi-Fi 6E and 2.5GbE LAN connectivity.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

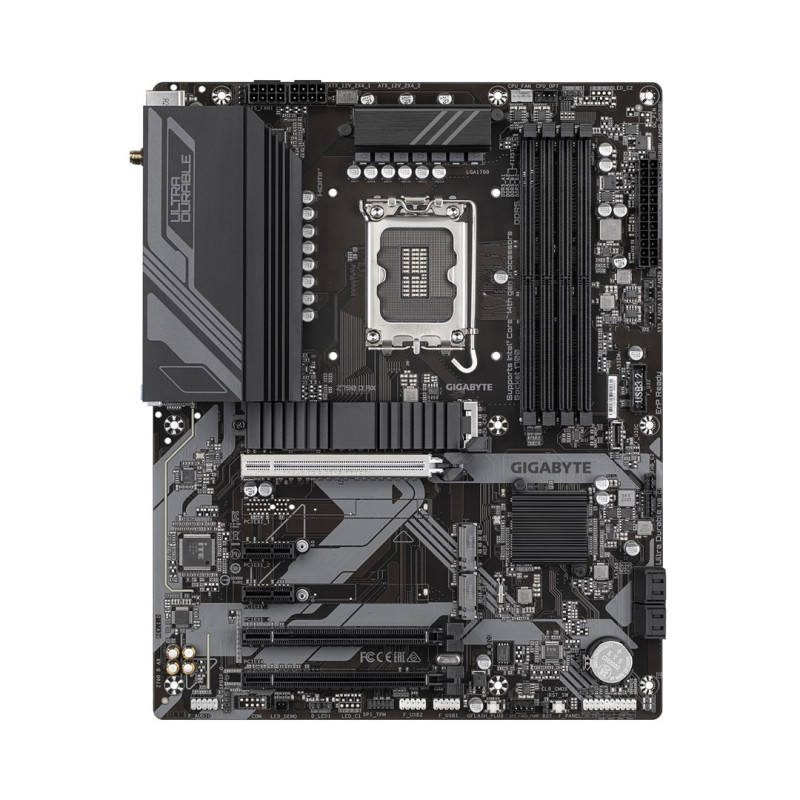

GIGABYTE Z790 D AX motherboard
Compatible with Intel Core 14-osios generation processors, maximum memory capacity 192 GB and speeds up to 7600MHz DDR5. Main features: 3xPCIe 4.0 M.2 sockets, Wi-Fi 6E and 2.5GbE LAN connection.
- Enables the use of Intel® Core™ processors with the LGA 1700 socket, enabling high-performance computing.
- Equipped with advanced Wi-Fi 6E and Bluetooth 5.3, ensuring fast and reliable wireless connectivity.
- Dual-channel DDR5 memory support with a maximum capacity of 192 GB for enhanced multitasking.
- 7.1 channel audio output and Realtek ALC897 audio chip for immersive sound quality.
- Compatible with Windows 10 x64 and Windows 11 x64 operating systems.
- Warranty period: 3 years.
Technical data | |
|---|---|
| Processor manufacturer | Intel |
| Composite processor models | Intel® Core™ i5, i3, i7, i9, Pentium® Gold, Celeron® |
| Motherboard chipset | Intel Z790 Express |
| Motherboard format type | ATX |
| Audio output channels | 7.1 channels |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum resolution | 4096 x 2304 pixels |
| Wi-Fi standards | Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 802.11g, 802.11a |
| Bluetooth version | 5.3 |
| LAN controller | Realtek RTL8125 |
| Number of SATA III connectors | 4 |
| Number of USB 3.2 Gen 2 ports | 1 |
| DisplayPort version | 1.2 |
| HDMI version | 2.1 |
| Battery type | CR2032 |
| Package weight | 1.84 kg |
| Width | 305mm |
| Depth | 244 mm |
| Height | 35mm |
| Height | 100mm |
| Length | 400mm |
| Weight | 1800g |
| Width | 300mm |
