Motherboard - Gigabyte MX34-BS0 LGA 1700 Intel C262 Blue
Product reference:
14-4719331859626
Gigabyte MX34-BS0 micro ATX motherboard with LGA 1700 socket and Intel C262 chipset supports Intel Xeon E-2400 and Pentium Gold G7400 series processors. It is equipped with four DDR5 UDIMM slots, two Gigabit Ethernet ports, eight SATA connectors, RAID 0/1/5/10 support, and PCIe Gen 5 and Gen 4 expansion slots.
Motherboard - Gigabyte MX34-BS0 LGA 1700 Intel C262 Blue
Product reference:
14-4719331859626
Gigabyte MX34-BS0 micro ATX motherboard with LGA 1700 socket and Intel C262 chipset supports Intel Xeon E-2400 and Pentium Gold G7400 series processors. It is equipped with four DDR5 UDIMM slots, two Gigabit Ethernet ports, eight SATA connectors, RAID 0/1/5/10 support, and PCIe Gen 5 and Gen 4 expansion slots.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

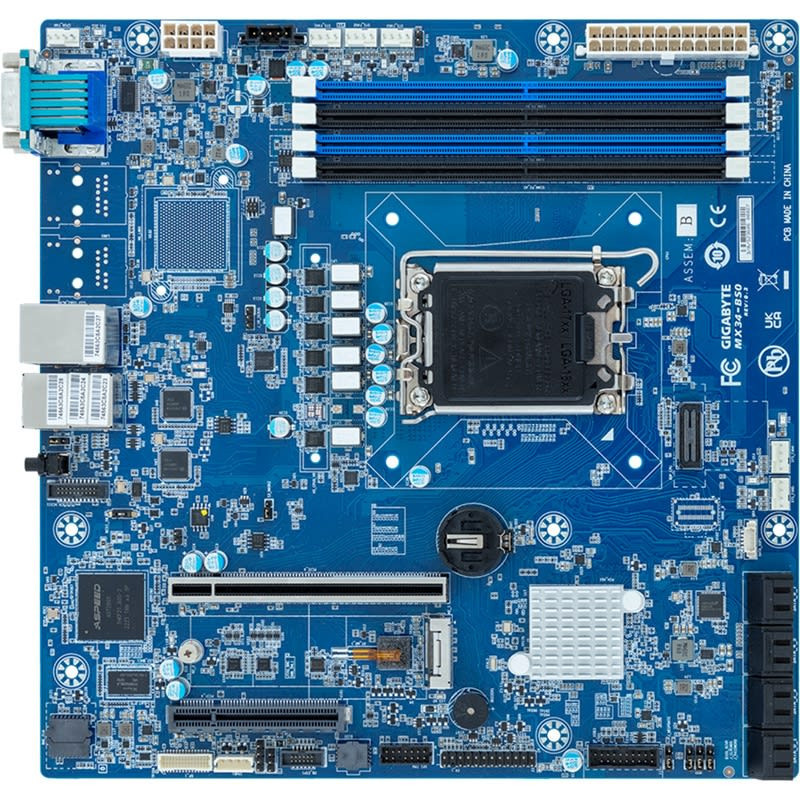

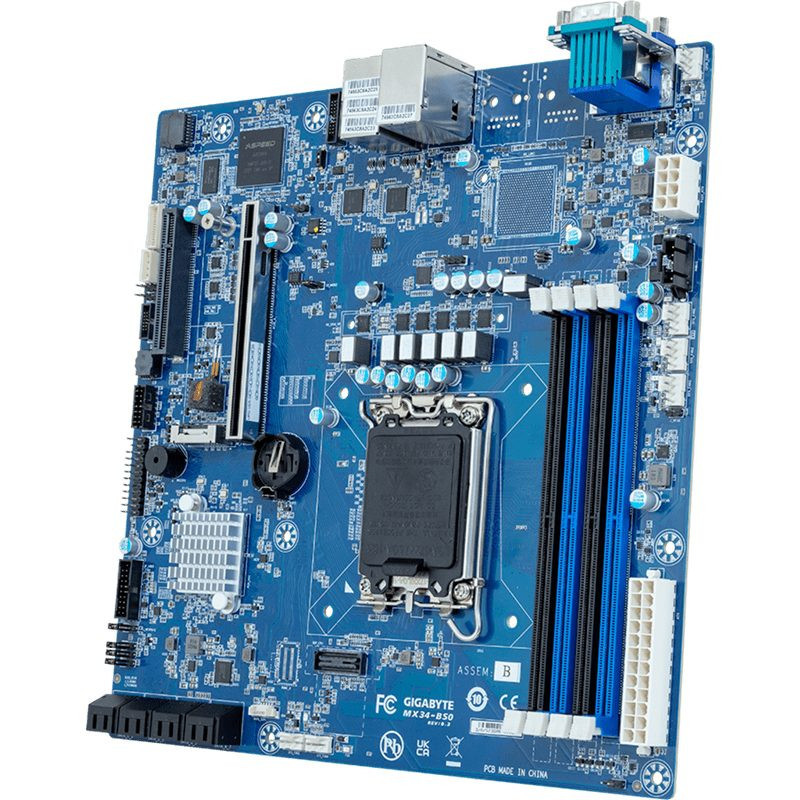

Gigabyte MX34-BS0 motherboard LGA 1700 Intel C262 blue
Gigabyte The MX34-BS0 micro ATX motherboard with LGA 1700 socket and Intel C262 chipset supports Intel Xeon E-2400 and Pentium Gold G7400 series processors. It features four DDR5 UDIMM slots, two Gigabit Ethernet ports, eight SATA connectors, RAID 0/1/5/10 support, as well as PCIe Gen 5 and Gen 4 expansion slots.
- Micro ATX server and workstation motherboard with Intel C262 chipset and LGA 1700 socket
- Supports Intel Xeon E-2400 and compatible Pentium Gold processors
- Four DDR5 UDIMM slots with dual-channel memory support
- Enterprise-grade storage and connectivity features: eight SATA ports, M.2 support, RAID 0/1/5/10, two Gigabit Ethernet ports, and a dedicated management LAN port
Product information | |
|---|---|
| Product type | Motherboard for servers and workstations |
| Brand | Gigabyte |
| Model | MX34-BS0 |
| Form factor | Micro ATX |
| Chipset | Intel C262 |
| Color | Blue |
| Dimensions | 244 × 244 mm |
Processor support | |
| Processor socket | LGA 1700 |
| Compatible processors | Intel Xeon E-2400, Intel Pentium Gold G7400 and G7400T |
| Maximum number of processors | 1 |
| Processor manufacturer | Intel |
Memory | |
| Memory type | DDR5 UDIMM |
| Memory slots | 4 DIMM slots |
| Memory channels | Two-channel |
| Supported memory frequencies | 3,600, 4,000 and 4,400 |
Data storage and expansion | |
| Storage interfaces | M.2 and SATA III |
| Supported storage devices | HDDs and SSDs |
| RAID support | RAID 0, 1, 5, and 10 |
| Internal SATA connectors | 8 |
| PCI Express slots | 1 × PCIe x16 Gen 5 and 1 × PCIe x8 Gen 4 |
Connectivity and input/output connections | |
| Network ports | 2 × Gigabit Ethernet |
| Management LAN | 1 separate port |
| Wireless connection | Not supported |
| USB ports on the rear panel | 2 × USB 3.2 Gen 1 Type-A |
| Video output on the rear panel | 1 × VGA |
| Serial port | 1 × COM |
Internal connections | |
| Power connections | 24-pin ATX and 12V |
| Internal USB connector | 1 × USB 3.2 Gen 1 |
| Fan connections | 1 CPU fan connector and 5 chassis fan connectors |
| Cables included | 2 × SATA cables |
Safety warning | |
| Warning | Use only with compatible components and in accordance with the installation instructions. Disconnect power before installation or maintenance. Do not open, disassemble, or touch internal electronic components unnecessarily, as this may damage them or cause injury. |
| Height | 100mm |
| Length | 400mm |
| Weight | 1600g |
| Width | 350mm |
