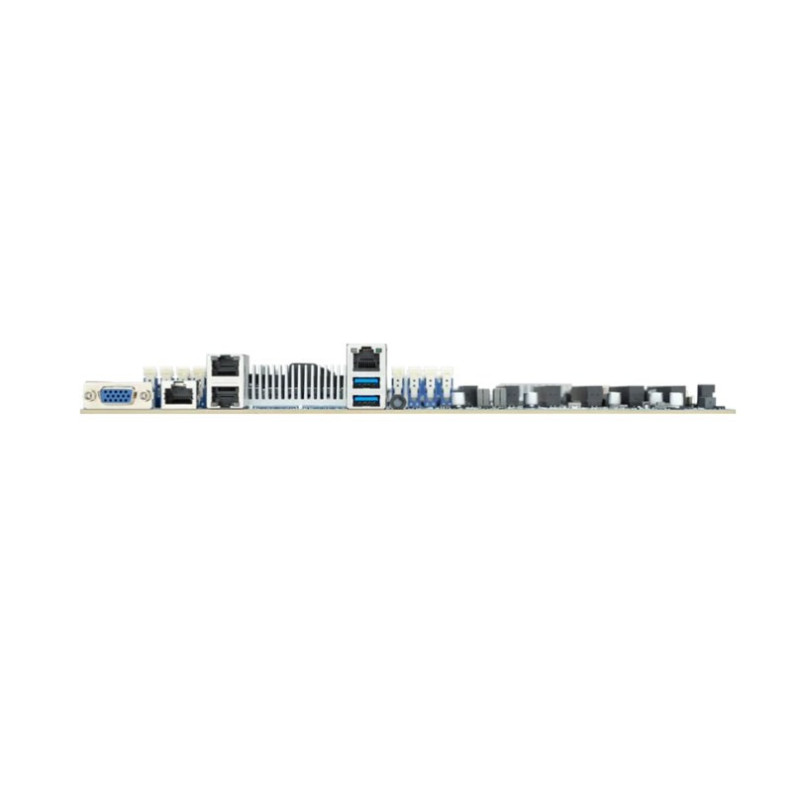

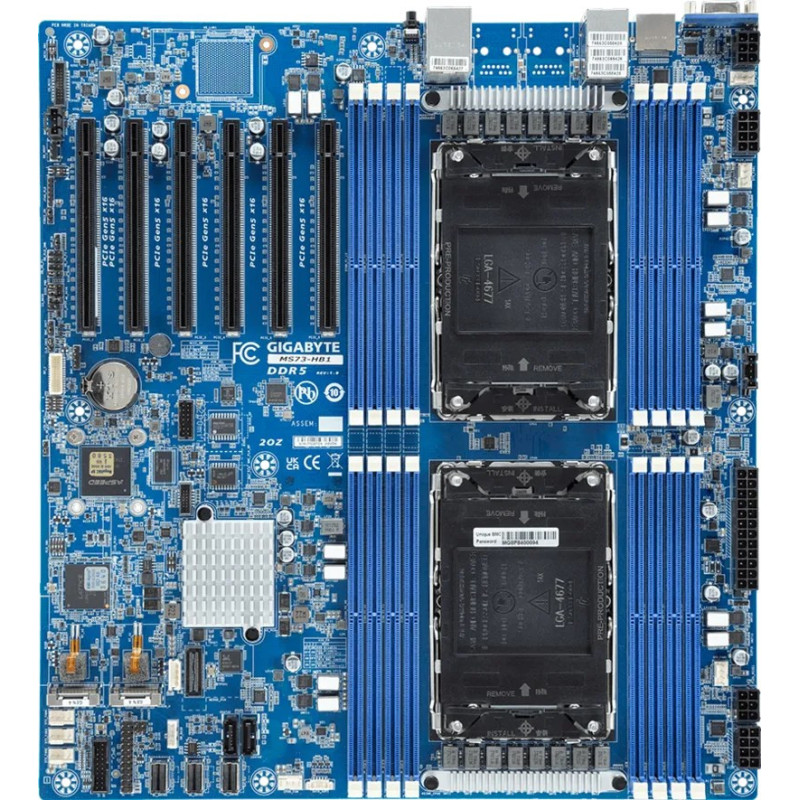

Motherboard - Gigabyte MS73-HB1 2x LGA4677 Intel Xeon Scalable Gen 4 / 5 Intel C741
Product reference:
6-9MS73HB1MR-000
Motherboard - Gigabyte MS73-HB1 2x LGA4677 Intel Xeon Scalable Gen 4/5 Intel C741
Motherboard - Gigabyte MS73-HB1 2x LGA4677 Intel Xeon Scalable Gen 4 / 5 Intel C741
Product reference:
6-9MS73HB1MR-000
Motherboard - Gigabyte MS73-HB1 2x LGA4677 Intel Xeon Scalable Gen 4/5 Intel C741
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 7
business days
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| ATX Power connector (24-pin) | Yes |
| Cables included | SATA |
| COM ports quantity | 1 |
| Compatible operating systems | Windows Server 2022 |
| Compatible processor series | Intel® Xeon® |
| Component for | Server |
| CPU fan connector | Yes |
| Depth | 330.2 mm |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Front panel connector | Yes |
| LAN controller | Intel® I210-AT |
| Memory channels | Octa-channel |
| Memory slots type | DIMM |
| Motherboard chipset | Intel C741 |
| Motherboard chipset family | Intel |
| Motherboard form factor | Extended ATX |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 16 |
| Number of storage drives supported | 12 |
| On-board graphics card model | Aspeed AST2600 |
| Operating relative humidity (H-H) | 8 - 80% |
| Operating temperature (T-T) | -40 - 60 °C |
| PCI Express x16 (Gen 5.x) slots | 5 |
| PCI Express x8 (Gen 5.x) slots | 2 |
| Processor manufacturer | Intel |
| Processor socket | LGA 4677 (Socket E) |
| RAID levels | 1, 5, 10 |
| RAID support | Yes |
| Storage relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | 10 - 40 °C |
| Supported memory clock speeds | 4800, 5600 |
| Supported memory types | DDR5-SDRAM |
| Supported storage drive interfaces | SATA III |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Wi-Fi | No |
| Width | 304.8 mm |
