Motherboard - Gigabyte MA34-CP0 EATX LGA 7529 Intel Xeon 6 DDR5 Sockets Dual LAN Black
Product reference:
14-4719331865351

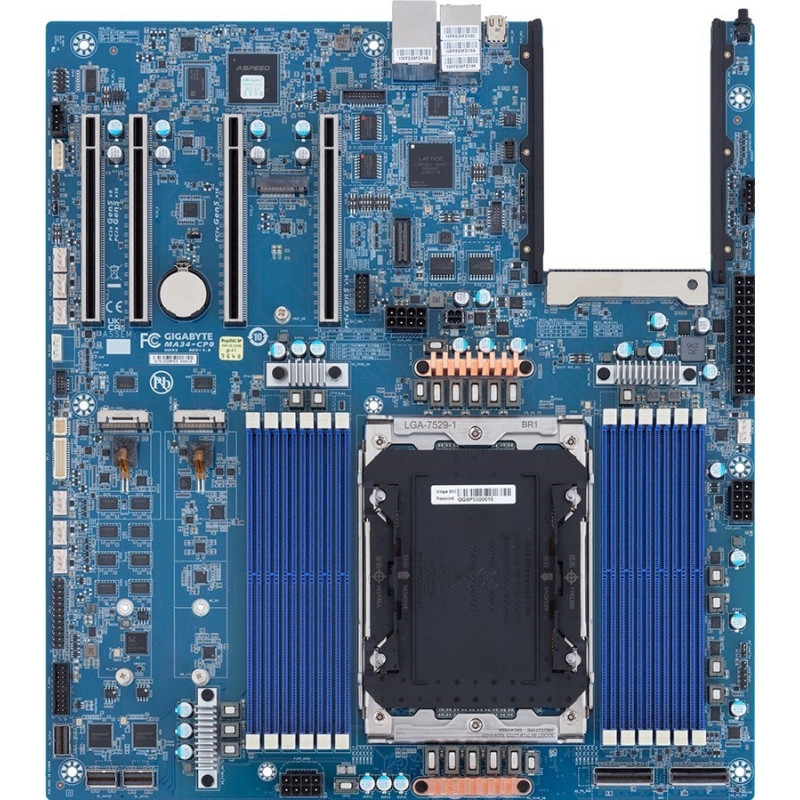

The Gigabyte MA34-CP0 is an EATX form factor motherboard for Intel Xeon processors with the LGA 7529 socket. It supports up to 12 DDR5 memory slots, offers a variety of storage interfaces, including M.2 and SATA III, and has two Ethernet LAN connectors for networking.
Motherboard - Gigabyte MA34-CP0 EATX LGA 7529 Intel Xeon 6 DDR5 Sockets Dual LAN Black
Product reference:
14-4719331865351
The Gigabyte MA34-CP0 is an EATX form factor motherboard for Intel Xeon processors with the LGA 7529 socket. It supports up to 12 DDR5 memory slots, offers a variety of storage interfaces, including M.2 and SATA III, and has two Ethernet LAN connectors for networking.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Gigabyte MA34-CP0 LGA7529 Intel Motherboard
Gigabyte MA34-CP0 is an EATX motherboard designed for Intel Xeon processors with the LGA 7529 socket. It supports up to 12 DDR5 memory slots, offers multiple storage interfaces including M.2 and SATA III, and has two Ethernet LAN ports for networking.
- Designed for server and workstation applications, supporting Intel Xeon processors for high-performance computing.
- With 12 DIMM slots for DDR5 memory, it allows for extensive multitasking and data management.
- Equipped with multiple connectivity options, including two Ethernet LAN ports and USB 3.2 Gen 1 ports for fast data transfers.
- Supports both HDD and SSD storage solutions with M.2 and SATA III interfaces, allowing for flexible storage configurations.
Features | |
|---|---|
| Product Type | Motherboard |
| Product Brand | Gigabyte |
| Model | MA34-CP0 |
Specifications | |
| Form | EATX |
| Processor Socket | LGA 7529 |
| Compatible Processor Series | Intel Xeon 6 |
| Maximum Number of SMP Processors | 1 |
| Integrated Graphics Card Model | Aspeed AST2600 |
| Supported Memory Types | DDR5 RDIMM/MRDIMM |
| Number of Memory Slots | 12 |
| Supported Memory Frequency Speeds | 6400MHz, 8800MHz |
| Memory Channels | 12 channels |
| Dimensions (W × D) | 304.8mm × 335.2mm |
| Ethernet LAN Ports | 2 (1 Gigabit Ethernet) |
| USB Ports | 2 × USB 3.2 Gen 1 Type-A, 1 × USB 2.0 |
| Storage Device Interfaces | M.2, SATA III |
| M.2 Number of Sockets | 2 |
| Number of SlimSAS Connectors | 3 |
| Case Fan Connectors | 6 |
| TPM Connector | Yes |
| Power Connector (24-pin) | Yes |
| Height | 80mm |
| Length | 450mm |
| Weight | 1800g |
| Width | 400mm |
