Motherboard - GIGABYTE B860M DS3H Motherboard, Intel Core Ultra, 9066MHz DDR5, PCIe 5.0
Product reference:
14-4719331866709
Supports Intel Core Ultra series processors with LGA 1851 socket and up to 9066MHz DDR5 memory. The device has 1 PCIe 5.0 M.2 slot, 2.5GbE LAN and USB 3.2 Gen 2 connectors.
Motherboard - GIGABYTE B860M DS3H Motherboard, Intel Core Ultra, 9066MHz DDR5, PCIe 5.0
Product reference:
14-4719331866709
Supports Intel Core Ultra series processors with LGA 1851 socket and up to 9066MHz DDR5 memory. The device has 1 PCIe 5.0 M.2 slot, 2.5GbE LAN and USB 3.2 Gen 2 connectors.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

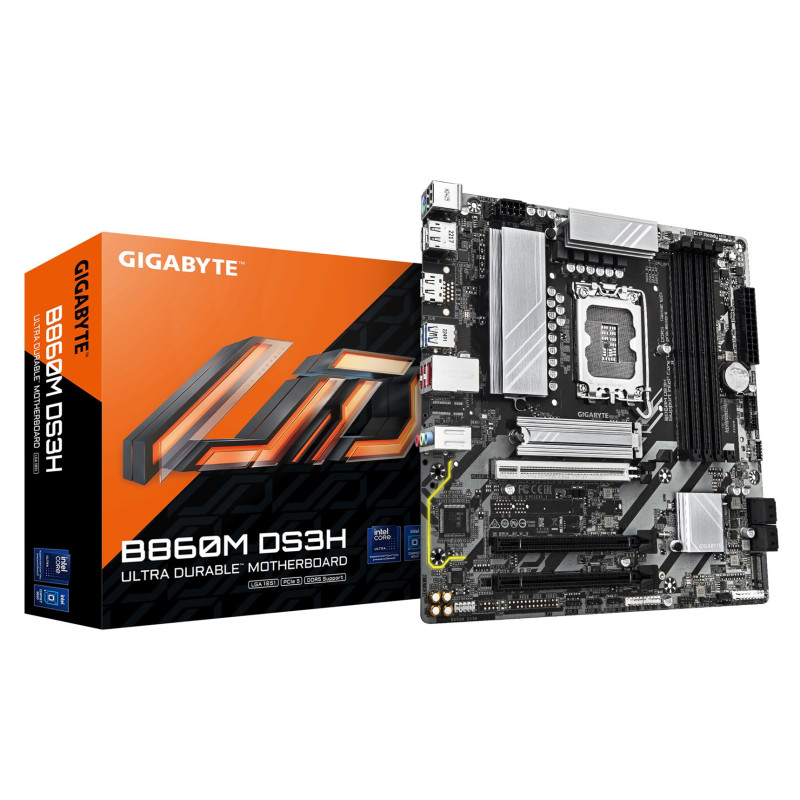

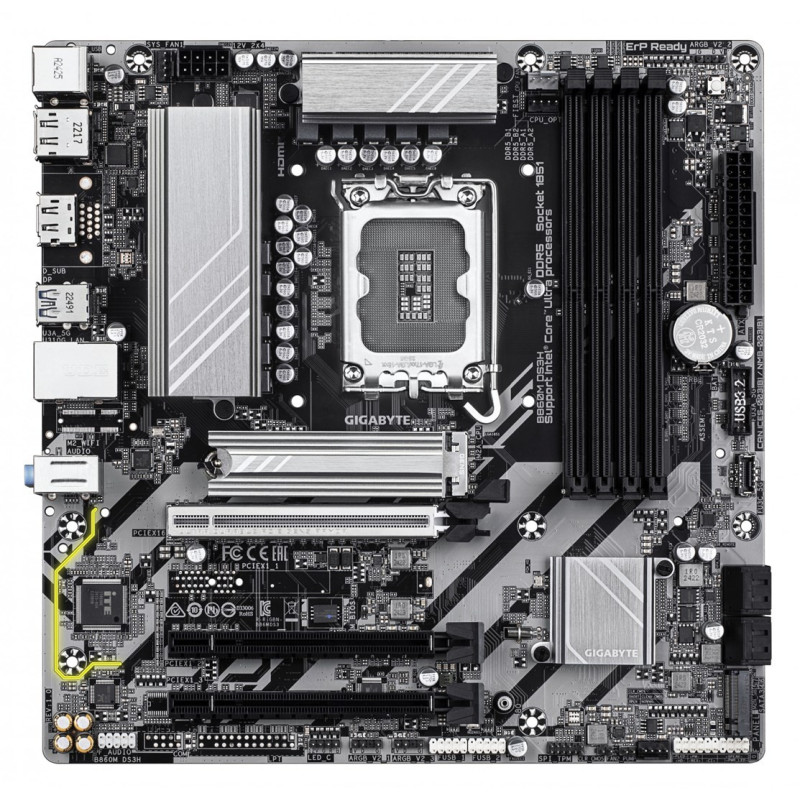

GIGABYTE B860M DS3H Motherboard, Intel Core Ultra, 9066MHz DDR5, PCIe 5.0
Compatible with Intel Core Ultra series processors with LGA 1851 socket and supports up to 9066MHz DDR5 memory. Equipped with 1x PCIe 5.0 M.2 slot, 2.5GbE LAN and USB 3.2 Gen 2 connectors.
- Compatible with Intel Core Ultra series processors (LGA 1851 socket)
- Supports up to 9066MHz DDR5 memory with a maximum capacity of 256GB
- Equipped with 1x PCIe 5.0 and 1x PCIe 4.0 M.2 slots for fast storage solutions
- Equipped with 2.5GbE LAN to improve network connectivity
- Includes USB 3.2 Gen 2 ports for fast data transfer speeds
Technical data | |
|---|---|
| Warranty period | 3 years |
Processor | |
| Processor manufacturer | Intel |
| Composite processor types | Intel Core Ultra (Series 2), Intel® Core™ Ultra (Series 1) |
| Supported processor sockets | LGA 1851 |
Graphics | |
| Maximum resolution | 4096 x 2160 pixels |
| DirectX version | 12.0 |
| HDCP | Yes |
Features | |
| Power supply type | ATX |
| Supported Windows operating systems | Windows 10 x64, Windows 11 x64 |
| Motherboard chip | Intel B860 |
| Audio chip | Realtek ALC897 |
| Motherboard format type | micro ATX |
| Audio output channels | 7.1 channels |
Memory | |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Maximum internal memory | 256GB |
| ECC compatibility | ECC Non-ECC |
Weight and dimensions | |
| Width | 244 mm |
| Height | 35mm |
| Depth | 244 mm |
Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
Internal I/O | |
| Number of SATA III connectors | 4 |
| Number of USB 3.2 Gen 1 ports | 2 |
| Number of chassis fan connectors | 2 |
BIOS | |
| BIOS type | UEFI AMI |
Packaging details | |
| Package weight | 1.09 kg |
Storage controls | |
| Number of HDD supported | 4 |
| RAID support | Yes |
Rear panel I/O ports | |
| Number of USB 2.0 ports | 3 |
| Number of HDMI ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots | |
| PCI Express x16 slots | 5 |
Battery | |
| Battery type | CR2032 |
Other features | |
| Weight | 1kg |
| Height | 50mm |
| Length | 320mm |
| Weight | 1500g |
| Width | 260mm |
