Motherboard - GIGABYTE B760M DS3H GEN5 LGA 1700, DDR5 5600MHz, 2xM.2, 2.5GbE, USB 3.2 Gen2
Product reference:
14-4719331872793
The GIGABYTE B760M DS3H GEN5 motherboard supports Intel Core 14th Generation processors with LGA 1700 socket and up to 5600MHz DDR5 memory. It has 2 PCIe 4.0 M.2 slots, 2.5GbE LAN and USB 3.2 Gen2 connectors.
Motherboard - GIGABYTE B760M DS3H GEN5 LGA 1700, DDR5 5600MHz, 2xM.2, 2.5GbE, USB 3.2 Gen2
Product reference:
14-4719331872793
The GIGABYTE B760M DS3H GEN5 motherboard supports Intel Core 14th Generation processors with LGA 1700 socket and up to 5600MHz DDR5 memory. It has 2 PCIe 4.0 M.2 slots, 2.5GbE LAN and USB 3.2 Gen2 connectors.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

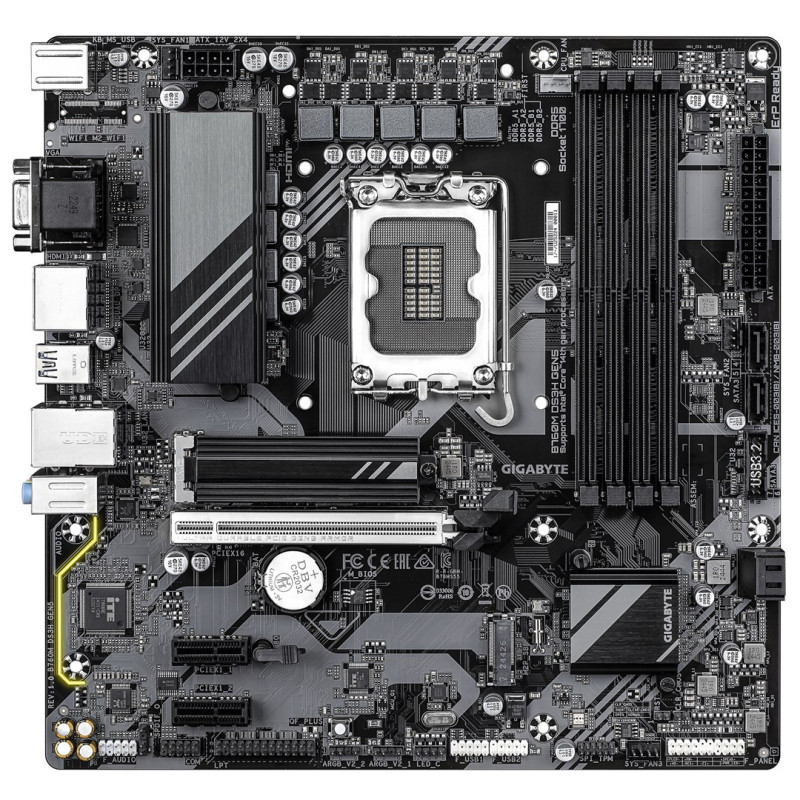

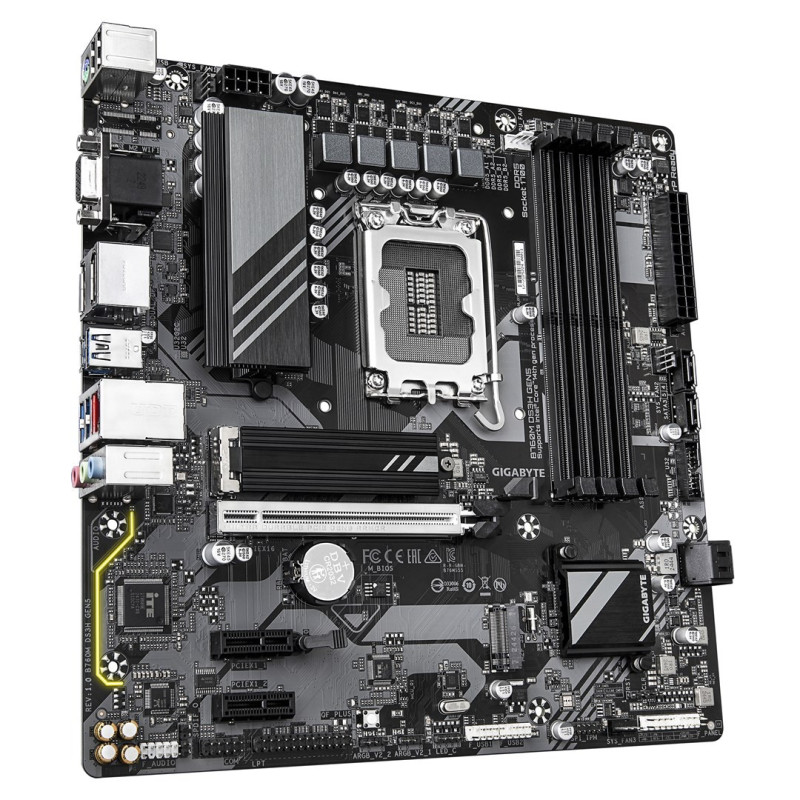

GIGABYTE B760M DS3H GEN5 Motherboard
Compatible with Intel Core 14-osios generation processors with LGA 1700 socket, and up to 5600MHz DDR5 memory. Equipped with 2xPCIe 4.0 M.2 sockets, 2.5GbE LAN and USB 3.2 Gen2 connectors.
- Enables the use of a wide range of Intel processors, including 12-ąją and 13-ąją Core series.
- DDR5-SDRAM memory support is provided, with speeds up to 5600 MHz.
- Offers robust connectivity options, including 2.5 Gigabit Ethernet and multiple USB ports.
- Compact micro ATX format design, perfect for various configurations.
Processor | |
|---|---|
| Composite processor models | Intel ® Pentium® Gold, Intel Core i7 12-oji generation, Intel ® Celeron®, Intel Core i5 13-oji generation, Intel Core i9 12-oji Generation, Intel Core i3 14-oji Generation, Intel Core i5 12-oji Generation, Intel Core i7 14-oji Generation, Intel Core i7 13-oji generation, Intel Core i3 12-oji generation, Intel Core i3 13-oji generation, Intel Core i9 13-oji generation, Intel Core i5 14-oji generation, Intel Core i9 14-oji generation |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Multiple processor sockets | LGA 1700 |
Graphics | |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
Features | |
| PC health monitoring | Water cooling, Temperature, Fan, Voltage |
| Motherboard chip | Intel B760 Express |
| Power supply type | ATX |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
Memory | |
| Number of memory slots | 4 |
| Memory slot type | DIMMs |
| Memory channels | Dual channel |
| Maximum internal memory | 256GB |
Weight and dimensions | |
| Depth | 174 mm |
| Width | 244 mm |
Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Internal I/O | |
| Number of CPU fan connectors | 1 |
| Number of SATA III connectors | 4 |
BIOS | |
| BIOS type | UEFI AMI |
Memory controllers | |
| Number of supported storage devices | 6 |

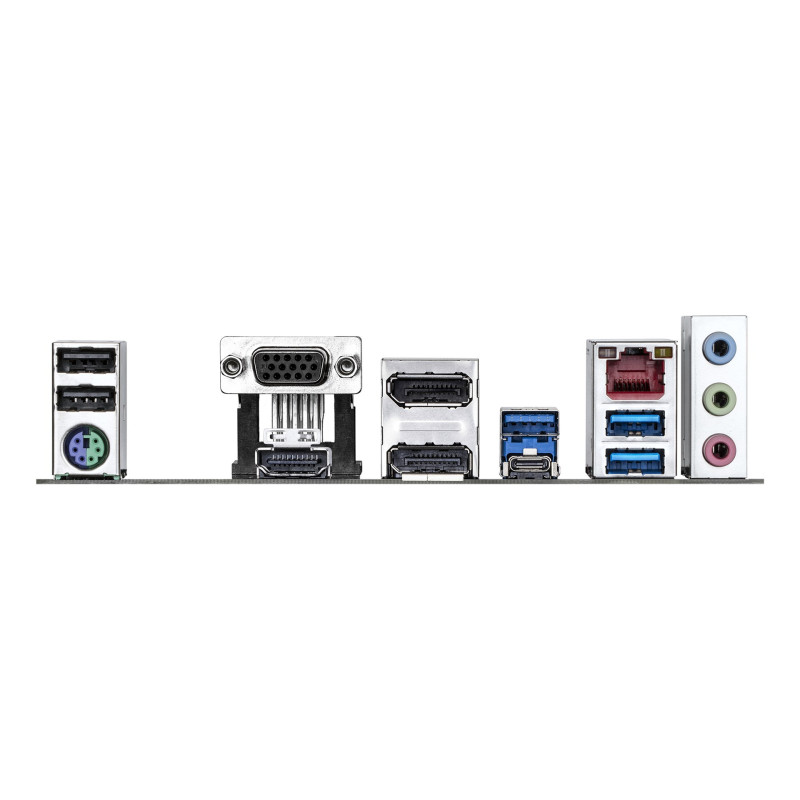

Rear panel I/O ports | |
| Number of USB 3.2 Gen 2 Type-C ports | 1 |
| HDMI version | 2.1 |
Expansion slots | |
| PCI Express x16 (Gen 5.x ) slots | 1 |
| M.2 (M) number of sockets | 2 |
| Height | 60mm |
| Length | 420mm |
| Weight | 1500g |
| Width | 320mm |
