- New
Motherboard - Gigabyte B760M DS3H DDR4 LGA 1700 Micro ATX
Product reference:
14-4719331850876
The Gigabyte B760M DS3H DDR4 motherboard supports up to six storage devices with RAID levels 0, 1, 5 and 10, providing flexible data management and convenient BIOS resetting.
Motherboard - Gigabyte B760M DS3H DDR4 LGA 1700 Micro ATX
Product reference:
14-4719331850876
The Gigabyte B760M DS3H DDR4 motherboard supports up to six storage devices with RAID levels 0, 1, 5 and 10, providing flexible data management and convenient BIOS resetting.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

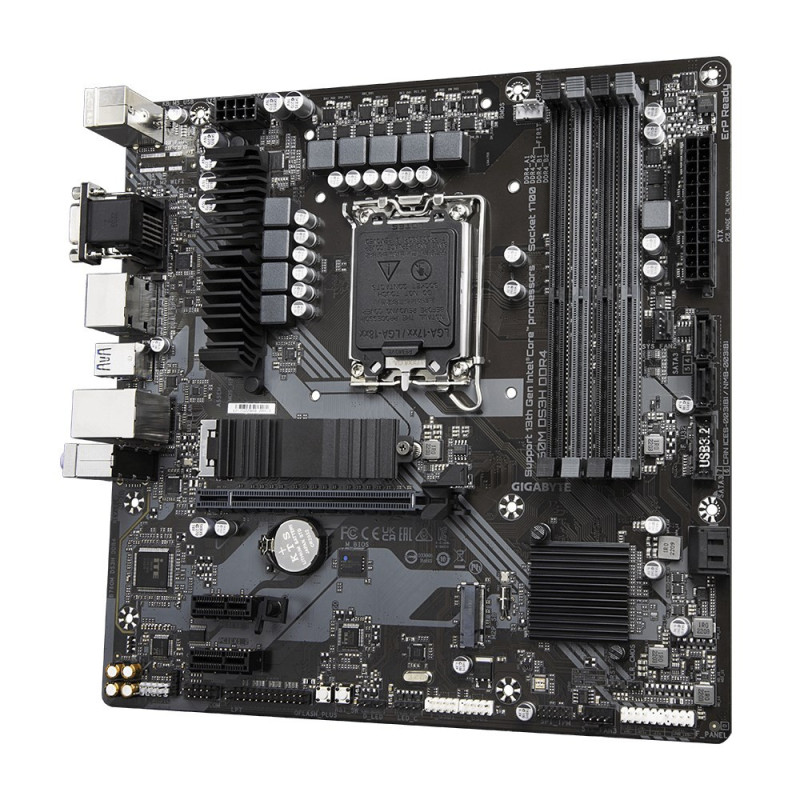

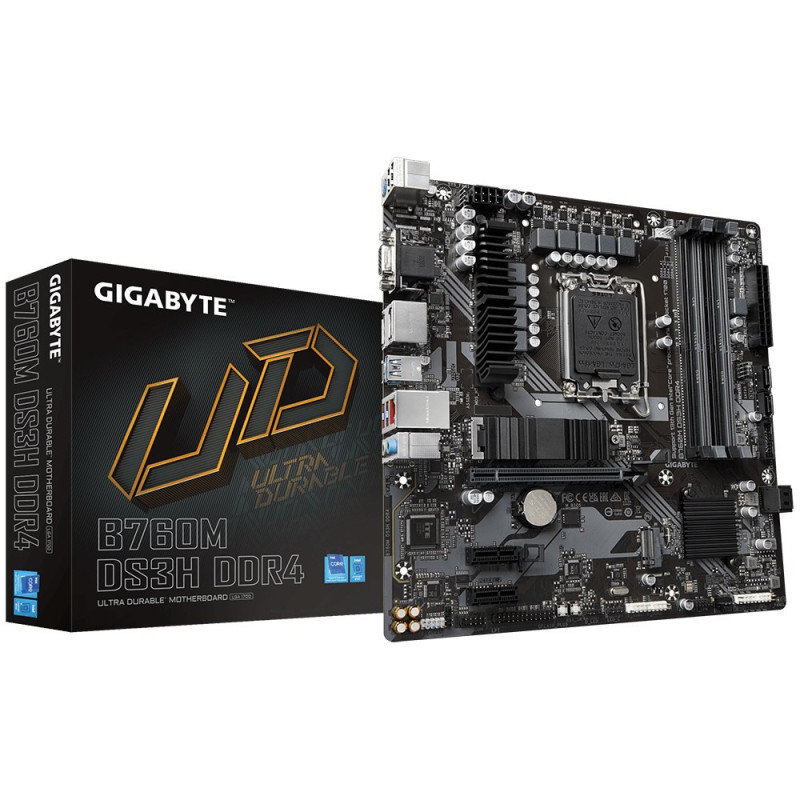

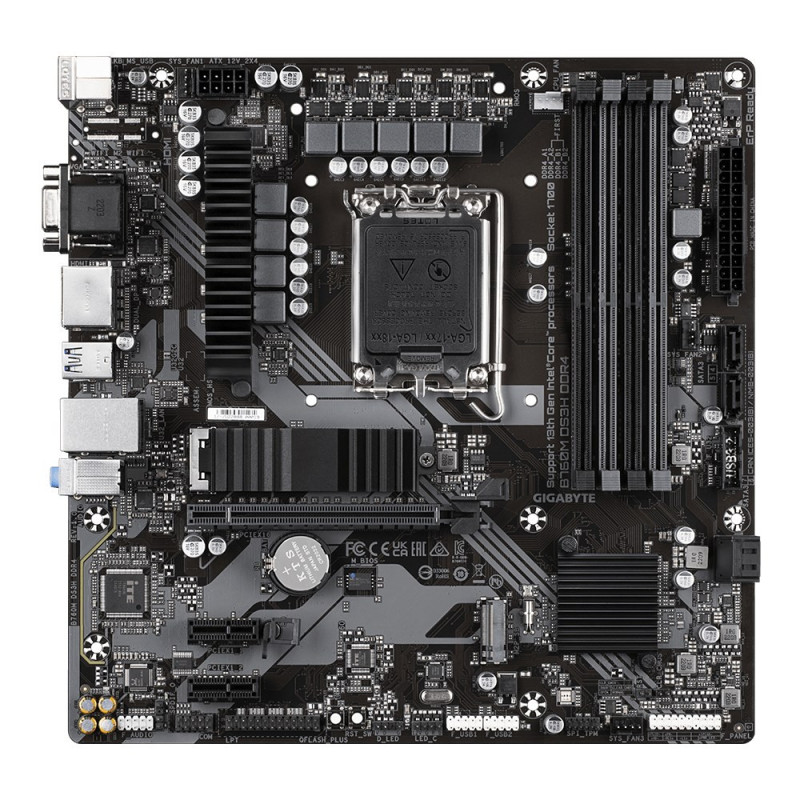

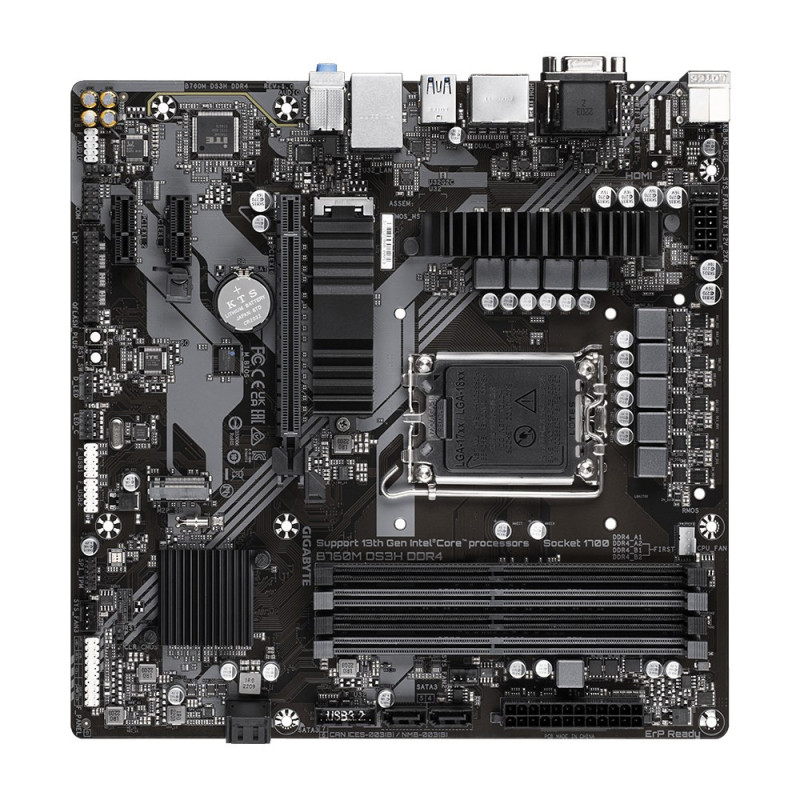

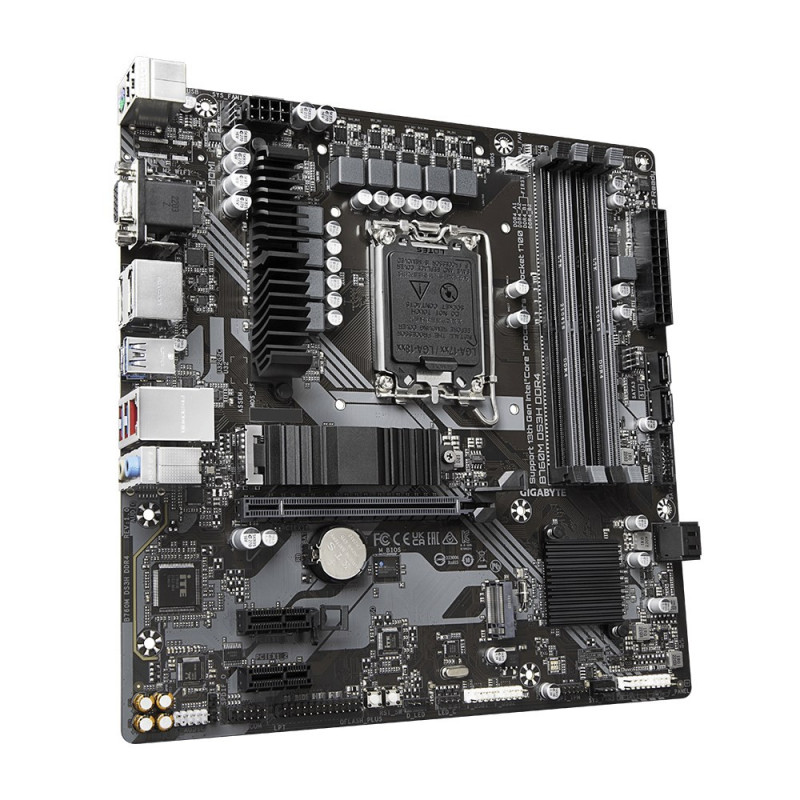

Gigabyte B760M DS3H LGA 1700 Micro ATX Motherboard
The Gigabyte B760M DS3H is a micro ATX motherboard for Intel LGA 1700 processors. It features three case fan headers, an ATX power connector, and a host of other connectors.
Main features
- Connect up to six storage devices with RAID levels 1, 10, 0, and 5
- Supported M.2 and SATA III interfaces
- One USB 3.2 Gen 2 Type-C port and one PS/2 port
- One HDMI, two DisplayPort, and three USB 3.2 Gen 1 Type-A ports
Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Compatible processor series | Intel® Core™ i7, i9, Pentium® Gold, i3, i5, Celeron® |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
Graphics | |
| Number of supported screens | 4 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
Features | |
| Supported Windows operating systems | Windows 11, 10 |
| Power supply type | ATX |
| PC health monitoring | Water cooling, Voltage, Temperature, Fan |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Motherboard format type | micro ATX |
Memory | |
| Types of memory supported by the processor | DDR4-SDRAM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 4933MHz |
| Maximum internal memory | 128GB |
Weight and dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Internal I/O | |
| RGB LED pin connector | Yes |
| Number of chassis fan connections | 3 |
| ATX power connector (24-pin) | Yes |
| Number of M.2 (M) slots | 2 |
| CPU fan connector | Yes |
| USB 2.0 ports | 2 |
| Number of SATA III connectors | 4 |
| Number of USB 3.2 Gen 1 ports | 1 |
BIOS | |
| BIOS type | UEFI AMI |
Storage controls | |
| Number of supported storage devices | 6 |
| RAID support | Yes |
| Supported storage device interfaces | M.2, SATA III |
Rear panel I/O ports | |
| Number of USB 3.2 Gen 2 Type-C ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of HDMI ports | 1 |
| Number of DisplayPort ports | 2 |
Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| | |
