Motherboard - Gigabyte B760 DS3H DDR4 LGA1700 18+2+1 VRM PCIe 4.0 M.2 USB 3.2 Gen 2
Product reference:
14-4719331850746
Supports Intel 14th Gen Core processors with LGA 1700 socket and up to 128GB DDR4 memory at 5333MHz (OC). Features 18+2+1 phase VRM, two PCIe 4.0 M.2 slots, Gigabit Ethernet, USB 3.2 Gen 2, and 7.1 audio channel system.
Motherboard - Gigabyte B760 DS3H DDR4 LGA1700 18+2+1 VRM PCIe 4.0 M.2 USB 3.2 Gen 2
Product reference:
14-4719331850746
Supports Intel 14th Gen Core processors with LGA 1700 socket and up to 128GB DDR4 memory at 5333MHz (OC). Features 18+2+1 phase VRM, two PCIe 4.0 M.2 slots, Gigabit Ethernet, USB 3.2 Gen 2, and 7.1 audio channel system.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

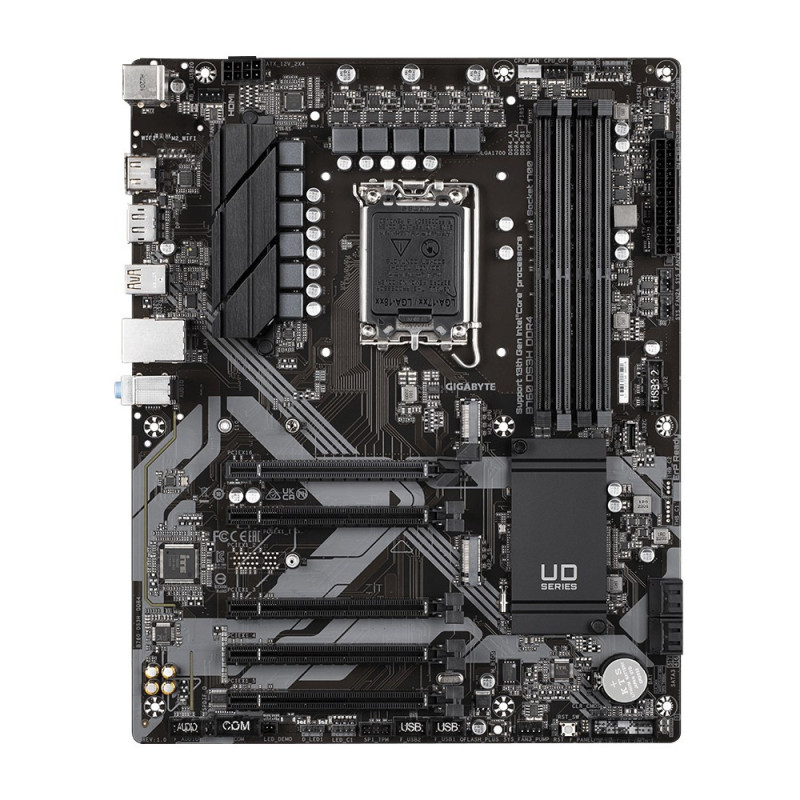

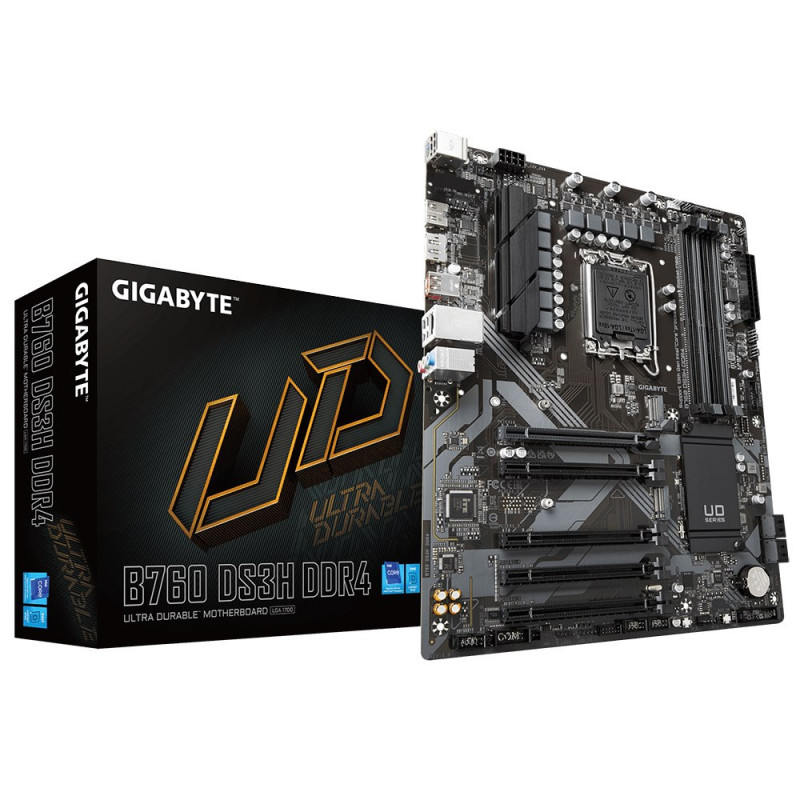

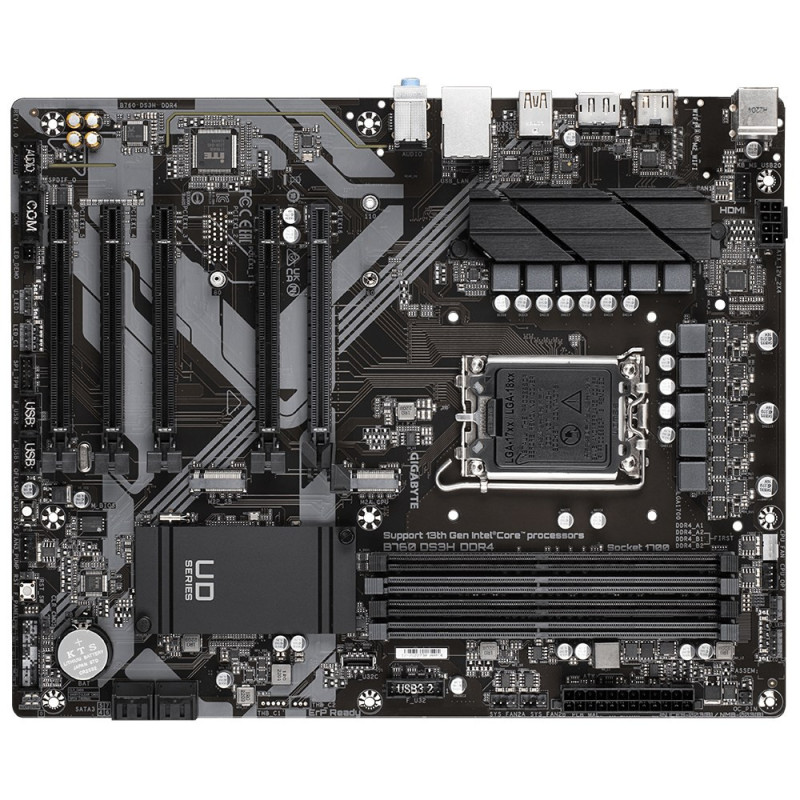

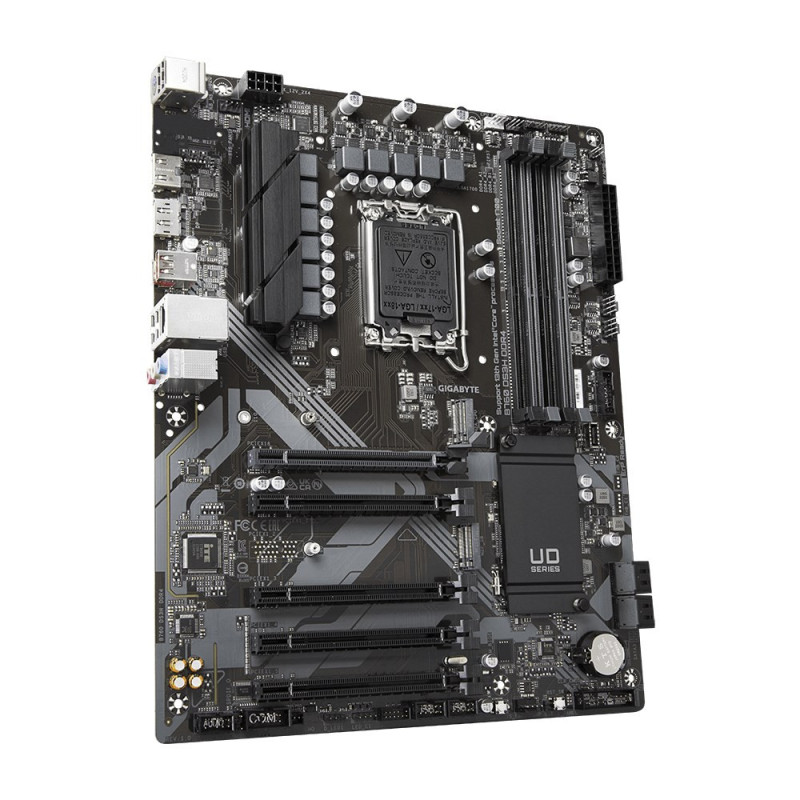

Gigabyte B760 DS3H DDR4 Motherboard
Compatible with Intel 12-os, 13-os and 14-os generation Core processors with LGA 1700 socket, and up to 128GB DDR4 memory running at 5333MHz (OC). Features: 18+2+1 phase VRM, two PCIe 4.0 M.2 slots, Gigabit Ethernet, USB 3.2 Gen 2 and 7.1 channel audio system.
- Compatible with Intel 12-os, 13-os and 14-os generation processors, ensuring powerful performance.
- Dual-channel DDR4 memory support up to 128GB with high-speed frequencies for smooth multi-processing.
- Comprehensive connectivity including USB Type-C, HDMI 2.0, DisplayPort 1.2, and Gigabit Ethernet.
- Reliable cooling and PC health monitoring features ensure system stability and reliability.
- Warranty period: 3 years.
Processor | |
|---|---|
| Processor manufacturer | Intel |
| Composite processor models | Intel ® Core™ i3, i5, i7, i9, Pentium® Gold, Celeron® |
Graphics | |
| DirectX version | 12.0 |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP support | Yes |
Features | |
| PC health monitoring | Voltage, water cooling, temperature, fan |
| Composite operating systems | Windows 10 x64, Windows 11 x64 |
| Motherboard Chipset Family | Intel |
| Motherboard chip | Intel B760 Express |
| Motherboard format type | ATX |
| Audio output channels | 7.1 channels |
Memory | |
| Types of compound memory | DDR4-SDRAM |
| Memory slot type | DIMMs |
| Number of memory slots | 4 |
| Composite memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Composite memory frequencies | 2133, 2400, 2666, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333 MHz |
| Memory channels | Dual channel |
| Unbuffered memory | Yes |
Dimensions and weight | |
| Width | 305mm |
| Depth | 244 mm |
| Height | 35mm |
Network | |
| Ethernet LAN | Gigabit Ethernet ( RJ-45 ) |
| Wi-Fi | No |
Internal I/O | |
| RGB LED pin header | Yes |
| Front panel connector | Yes |
| ATX power connector ( 24-pin ) | Yes |
| EPS power connector ( 8-pin ) | Yes |
| 12V power connector | Yes |
| CPU fan connector | Yes |
| Serial port connections | 1 |
| Front panel audio connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 ports | 2 |
| S/PDIF output connector | Yes |
| TPM connector | Yes |
| Total number of SATA connectors | 4 (SATA III) |
BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS switch | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
Memory controllers | |
| Number of supported storage drives | 6 |
| Supported storage drive types | HDD and SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| RAID support | Yes (RAID 0, 1, 5, 10) |
| Number of HDD supported | 4 |
Expansion slots | |
| PCI Express x16 slots | 5 |
| M.2 number of sockets | 2 |

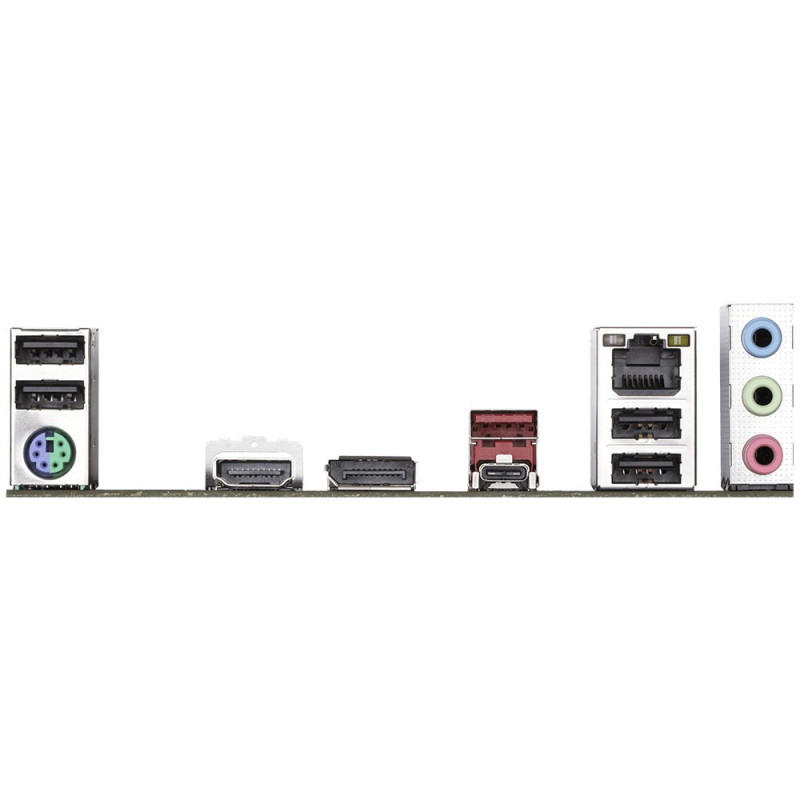

Rear panel I/O ports | |
| Number of HDMI ports | 1 (HDMI 2.0) |
| DisplayPort version | 1.2 |
| Number of DisplayPort ports | 1 |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 1 |
| Number of USB 2.0 ports | 4 |
| PS/2 number of ports | 1 |
| Microphone input | Yes |
| Headphone outputs | 3 |
Battery | |
| Battery type | CR2032 (Lithium manganese dioxide) |
| Number of battery cells | 1 |
| Battery weight | 3 grams |
| Lithium weight per battery | 0.07 grams |
| Height | 85 mm |
| Length | 343 mm |
| Weight | 1233 grams |
| Width | 274 mm |
