Motherboard - Gigabyte B650 Gaming X AX V2
Product reference:
14-4719331860073
The Gigabyte B650 GAMING X AX V2 motherboard delivers fast and efficient performance, supporting up to 5 storage devices with RAID 1, 0 and 10, and offering 3 PCI Express x16 and 3 M.2 slots for expansion.
Motherboard - Gigabyte B650 Gaming X AX V2
Product reference:
14-4719331860073
The Gigabyte B650 GAMING X AX V2 motherboard delivers fast and efficient performance, supporting up to 5 storage devices with RAID 1, 0 and 10, and offering 3 PCI Express x16 and 3 M.2 slots for expansion.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

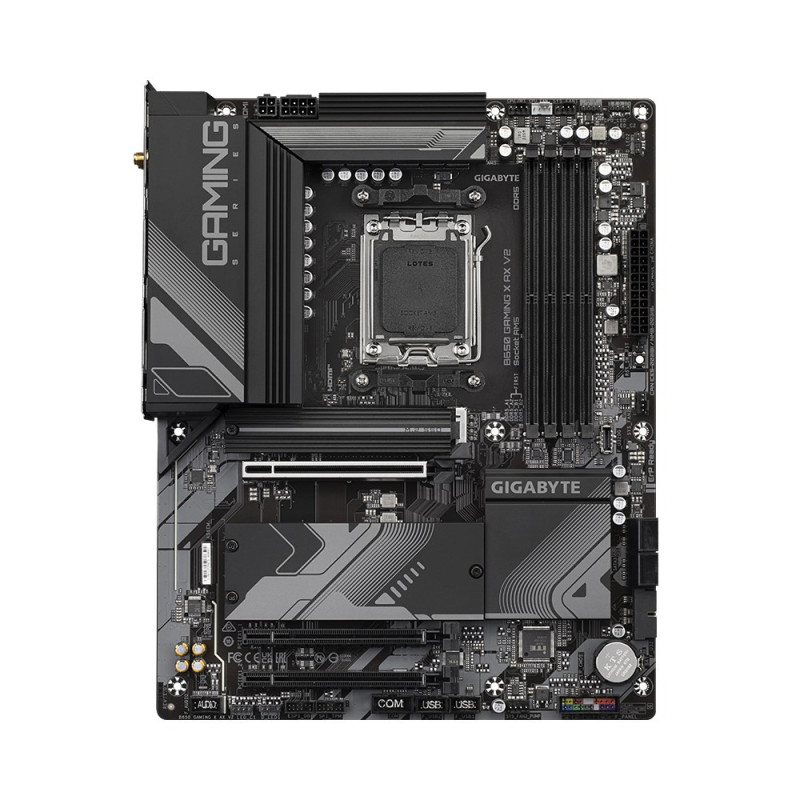

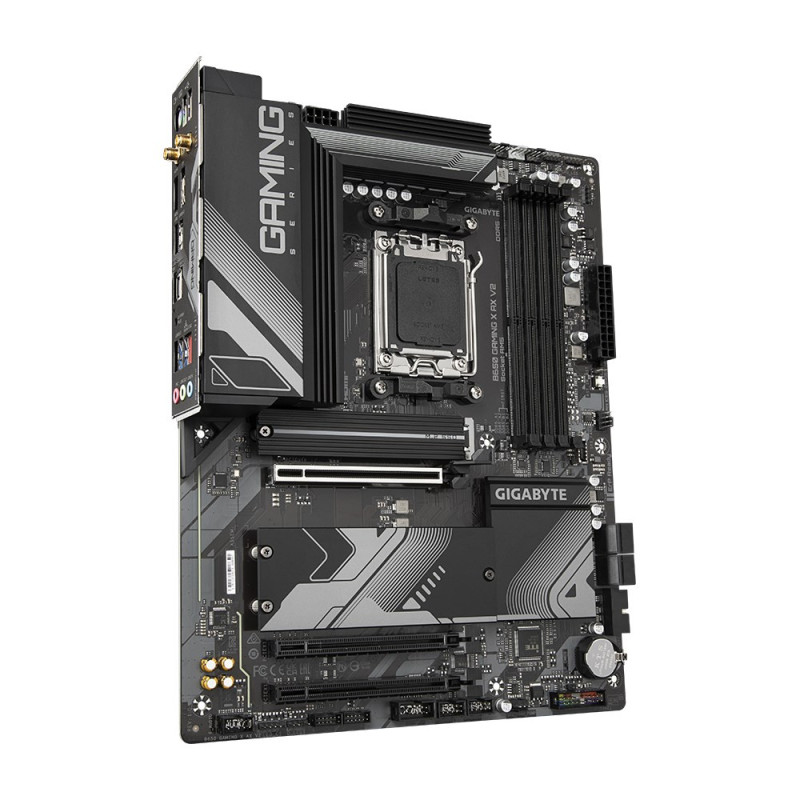

Motherboard - Gigabyte B650 Gaming X Ax V2
The Gigabyte B650 Gaming X Ax V2 motherboard is a high-performance motherboard for gaming and content creation. It features three PCI Express x16 slots, three M.2 (M) slots, and supports up to five storage devices.
Main features:
- Supports up to 7 storage devices
- Three PCI Express x16 slots and three M.2 (M) slots
- SATA III, M.2 and PCI Express 4.0 storage interfaces
- One HDMI 2.1 and one DisplayPort 1.4 port
Processor | |
|---|---|
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Compatible processor models | AMD Ryzen 9000 series, AMD Ryzen 7000 series, AMD Ryzen 8000 series |
| Maximum amount of internal memory supported by the processor | 192GB |
| Processor manufacturer | AMD |
Graphics | |
| HDCP | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Support for parallel processing technology | Not supported |
| DirectX version | 12.0 |
Features | |
| Product color | Bronze |
| Motherboard Chipset Family | AMD |
| Motherboard format type | ATX |
| PC health monitoring | Fan, Voltage, Temperature, Water cooling |
| Sound chip | Realtek ALC897 |
| Motherboard chip | AMD B650 |
| Audio output channels | 7.1 channels |
| Power supply type | ATX |
| Cooling type | Active |
| Supported Windows operating systems | Windows 10 x64, Windows 11 x64 |
Memory | |
| Supported memory module capacities | 8GB, 32GB, 48GB, 1GB, 12GB, 2GB, 4GB, 16GB |
| Supported memory clock speeds | 7000, 5200, 6800, 5600, 7200, 8000 MHz, 4400, 6600, 4800, 7600, 7800 MHz, 6400, 6000 MHz, 6200 |
| Maximum internal memory | 256GB |
| Unbuffered memory | Yes |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slot type | DIMMs |
| Memory channels | Dual channels |
| Maximum supported memory frequency speed | 8000MHz |
Weight and dimensions | |
| Width | 305mm |
| Depth | 244 mm |
| Height | 35mm |
Network | |
| Bluetooth | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| WLAN controller model | Realtek RTL8852CE |
| Wi-Fi | Yes |
| Bluetooth version | 5.3 |
Internal I/O | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 ports | 2 |
| Number of SATA III connectors | 4 |
| Front panel connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel audio connector | Yes |
| 12V power connector | Yes |
| Serial port connections | 1 |
| CPU fan connector | Yes |
| RGB LED connector | Yes |
| EPS power connector (8-pin) | Yes |
| ATX power connector (24-pin) | Yes |
| TPM connector | Yes |
BIOS | |
| Clear CMOS switch | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| Clear CMOS button | Yes |
| BIOS type | UEFI AMI |
Packaging details | |
| Package depth | 270mm |
| Package weight | 2.16 kg |
| Package width | 335 mm |
| Package height | 80mm |
Package contents | |
| Cables included | SATA |
| Batteries included | Yes |
| Antenna included | Yes |
Storage controls | |
| RAID support | Yes |
| Supported storage device interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage device types | HDD and SSD |
| RAID levels | 10, 0, 1 |
| Number of supported storage devices | 7 |
| Number of HDD supported | 4 |

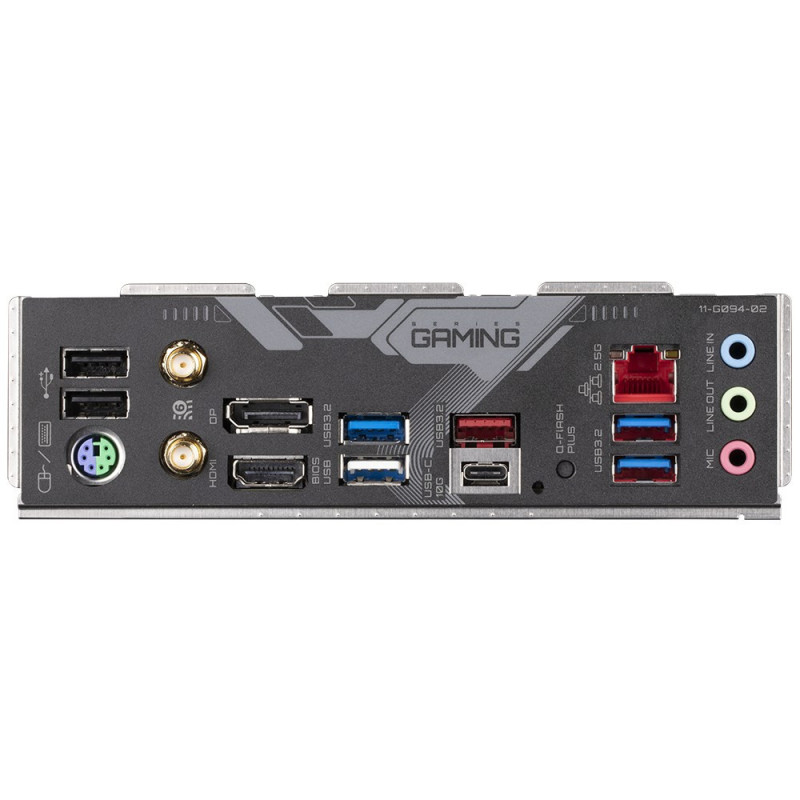

Rear panel I/O ports | |
| Number of DisplayPorts | 1 |
| DisplayPort version | 1.4 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 3 |
| HDMI version | 2.1 |
| Microphone input | Yes |
| Number of HDMI ports | 1 |
| USB connection type | USB Type-C, USB Type-A |
| WiFi-AP antenna connector | 2 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports | 1 |
| Number of USB 2.0 ports | 3 |
| Headphone outputs | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots | |
| PCI Express x16 slots | 3 |
| M.2 (M) number of sockets | 3 |
Battery | |
| Lithium weight per battery | 0.07 grams |
| Battery type | CR2032 |
| Battery weight | 3 grams |
| Number of battery cells | 1 |
| Battery technology | Lithium manganese dioxide (LiMnO2) |
Logistics data | |
| Number of products per shipment (inner) box | 1 pc. |
| Height | 270mm |
| Length | 340mm |
| Weight | 1930 |
| Width | 80mm |
