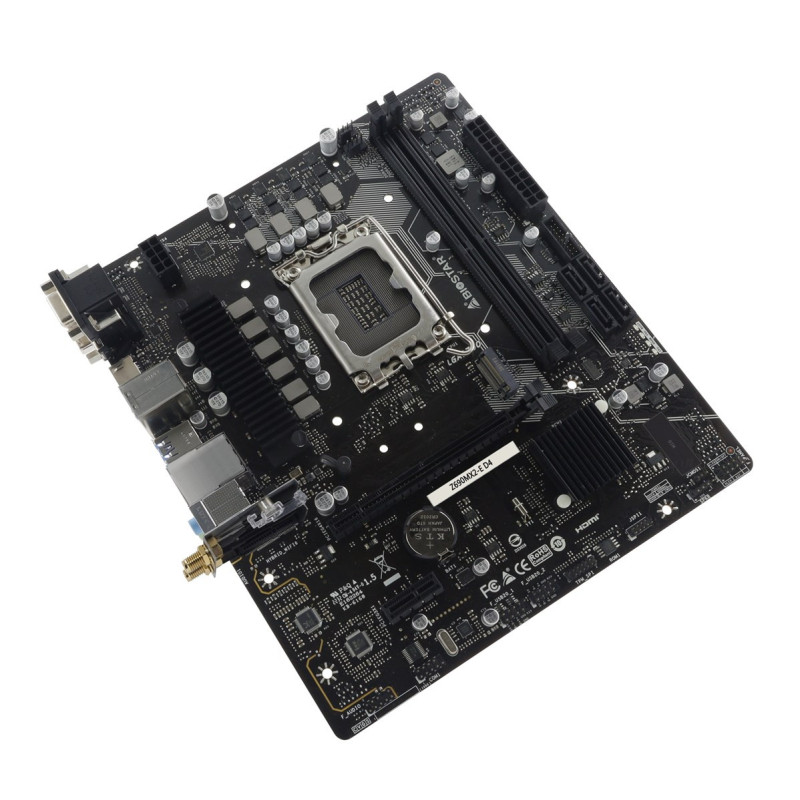

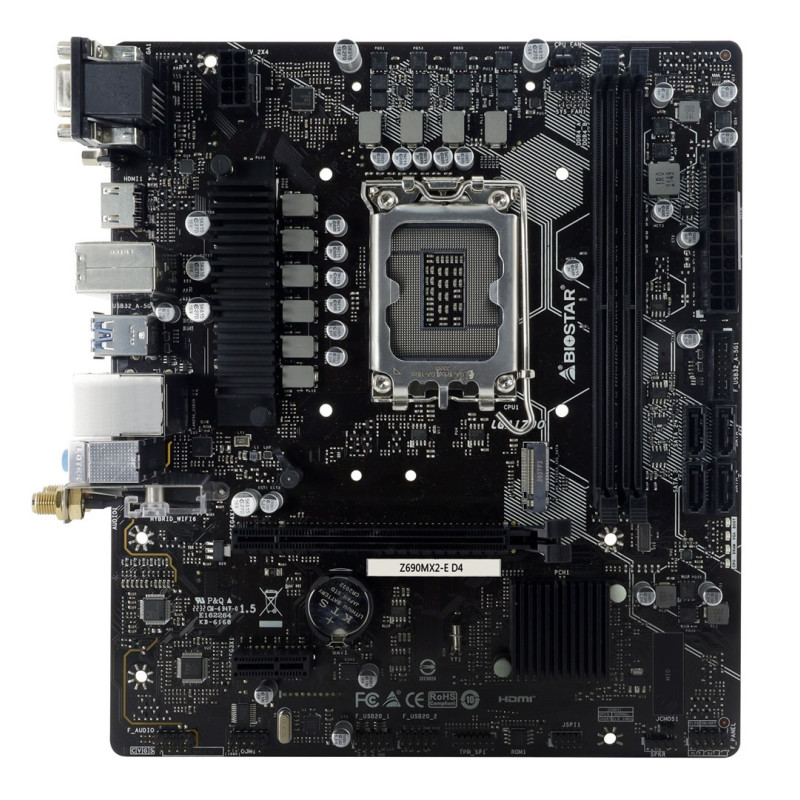

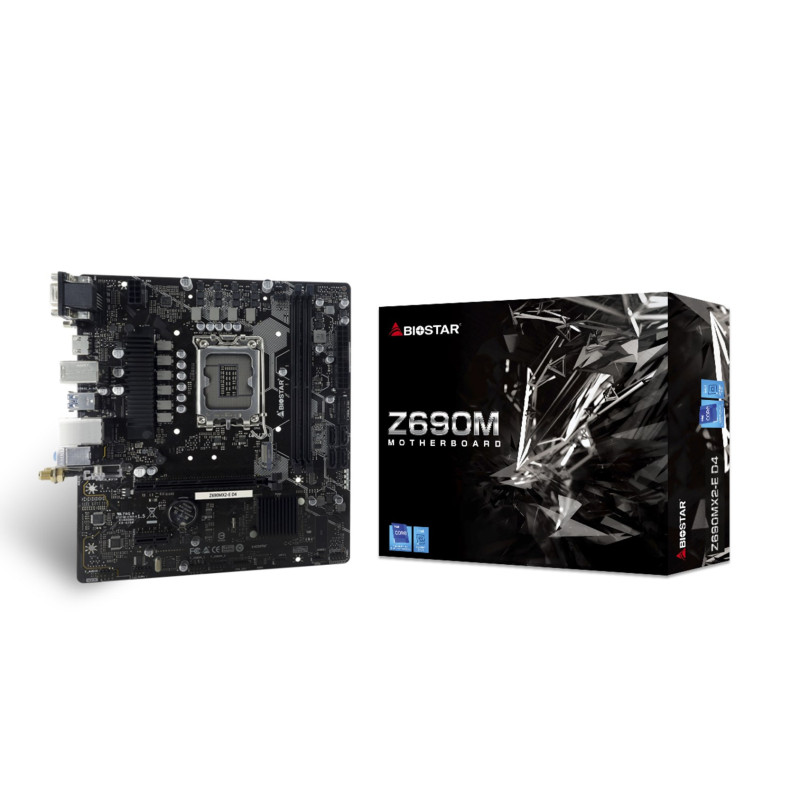

Motherboard - Biostar Z690MX2-E D4 Intel Z690 LGA 1700 micro ATX DDR4
Product reference:
14-4712960688148
The Biostar Z690MX2-E D4 motherboard supports Intel processors with the LGA 1700 socket and the Intel Z690 chipset. It has dual-channel DDR4 memory support, 2.5 Gigabit Ethernet, and multiple USB ports.
Motherboard - Biostar Z690MX2-E D4 Intel Z690 LGA 1700 micro ATX DDR4
Product reference:
14-4712960688148
The Biostar Z690MX2-E D4 motherboard supports Intel processors with the LGA 1700 socket and the Intel Z690 chipset. It has dual-channel DDR4 memory support, 2.5 Gigabit Ethernet, and multiple USB ports.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Biostar Z690MX2-E D4 Motherboard Intel Z690 LGA 1700 Micro ATX
Compatible with Intel processors with LGA 1700 socket and Intel Z690 chipset. Key features: dual-channel DDR4 memory support, 2.5 Gigabit Ethernet and multiple USB ports.
- Supports the latest Intel 12-osios and 13-osios generation processors with LGA 1700 socket.
- Offers dual-channel DDR4 memory support with a maximum capacity of 64 GB.
- Equipped with 2.5 Gigabit Ethernet for fast networking.
- Includes multiple USB ports and supports RAID configurations to enhance storage capabilities.
Processor | |
|---|---|
| Processor manufacturer | Intel |
| Composite processor models | Intel Core i7 13-osios generations, Intel Core i9 13-osios generations, Intel Core i7 12-osios generations, Intel Core i5 14-osios generations, Intel Core i5 12-osios generations, Intel Core i7 14-osios generations, Intel Core i3 14-osios generations, Intel Core i3 13-osios generations, Intel Core i9 14-osios generations, Intel Core i3 12-osios generations, Intel Core i5 13-osios generations, Intel Core i9 12-osios generations |
| Processor socket | LGA 1700 |
Features | |
| Motherboard chip | Intel Z690 |
| PC health monitoring | CPU, Fan, Temperature |
| Supported Windows operating systems | Windows 10 x64, Windows 11 x64 |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard format type | micro ATX |
Memory | |
| Supported memory frequencies | 2400, 1866, 4400, 3200 MHz, 2666, 2133, 3800, 4000 MHz, 2933, 3600 |
| Number of memory slots | 2 |
| Maximum internal memory | 64GB |
| Memory channels | Dual channel |
| Supported memory types | DDR4-SDRAM |
| Memory slot type | DIMMs |
| ECC compatibility | Non-ECC |
Weight and dimensions | |
| Depth | 236 mm |
| Width | 208 mm |
Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125B |
Internal I/O | |
| USB 2.0 ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| ATX power connector (24-pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 1 |
| Number of COM ports | 1 |
| Number of SATA III connectors | 4 |
| TPM connector | Yes |
| CPU fan connector | Yes |
| Front panel connector | Yes |
BIOS | |
| BIOS type | UEFI |
Memory controllers | |
| RAID levels | 0, 5, 10, 1 |
| Number of HDD supported | 5 |
| RAID support | Yes |
| Supported storage device types | HDD SSD |
| Supported memory device interfaces | M.2, SATA III |

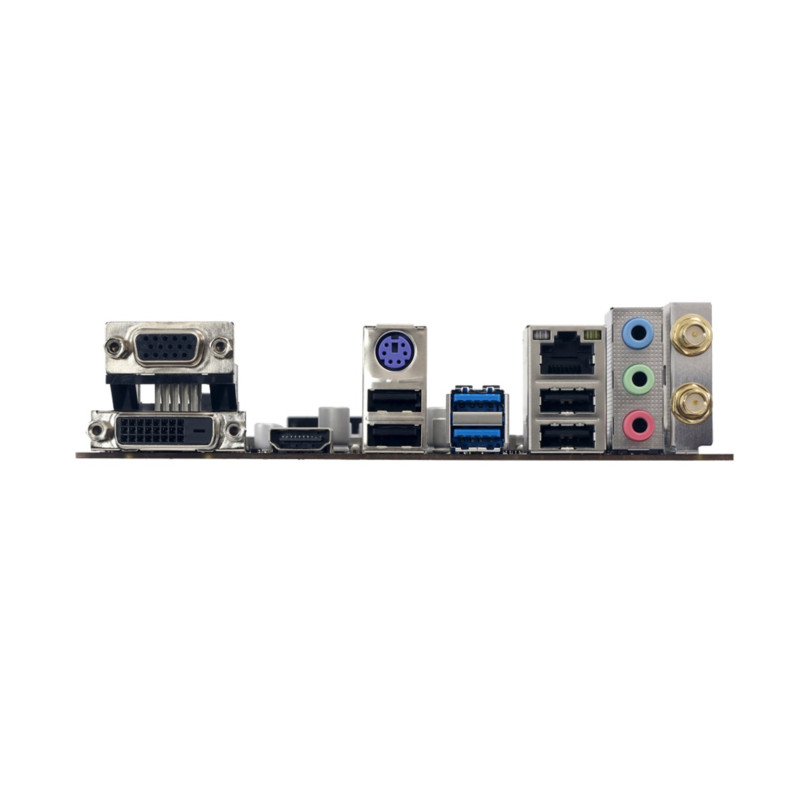

Rear panel I/O ports | |
| PS/2 number of ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 2 |
| Number of DVI-D ports | 1 |
| Number of USB 2.0 ports | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of HDMI ports | 1 |
| Number of VGA (D-Sub) ports | 1 |
Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| M.2 (M) number of sockets | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Height | 100mm |
| Length | 400mm |
| Weight | 1500g |
| Width | 300mm |
