Motherboard - Biostar H81MHV3 3.0 H81 LGA 1150 (H3 Socket) 'Micro ATX'
Product reference:
14-4712960685598
The Biostar H81MHV3 motherboard supports up to 16 GB of DDR3-SDRAM memory and is compatible with Intel processors, ensuring excellent performance and expandability.
Motherboard - Biostar H81MHV3 3.0 H81 LGA 1150 (H3 Socket) 'Micro ATX'
Product reference:
14-4712960685598
The Biostar H81MHV3 motherboard supports up to 16 GB of DDR3-SDRAM memory and is compatible with Intel processors, ensuring excellent performance and expandability.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

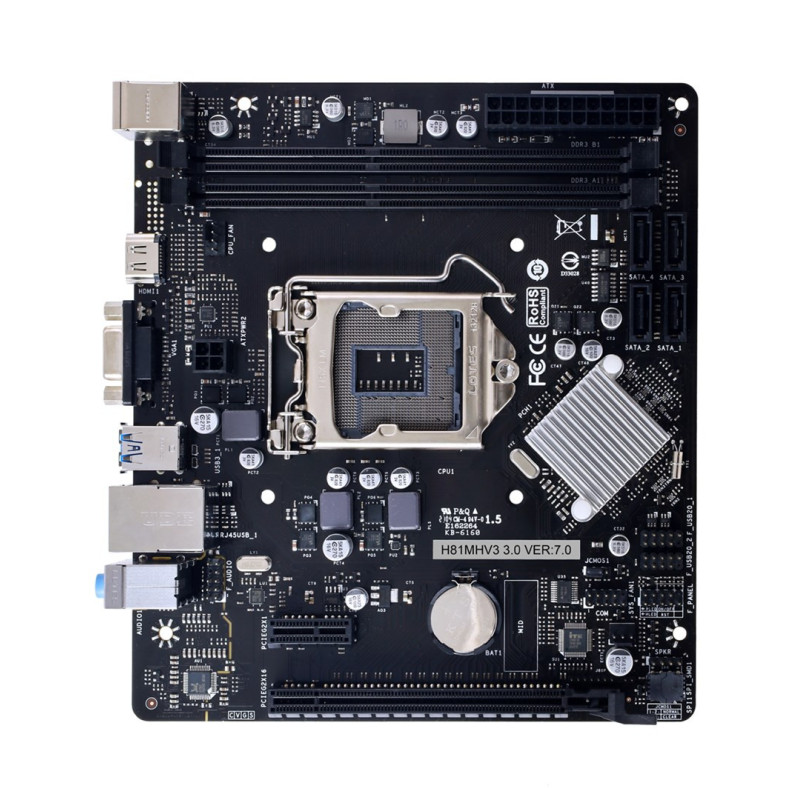

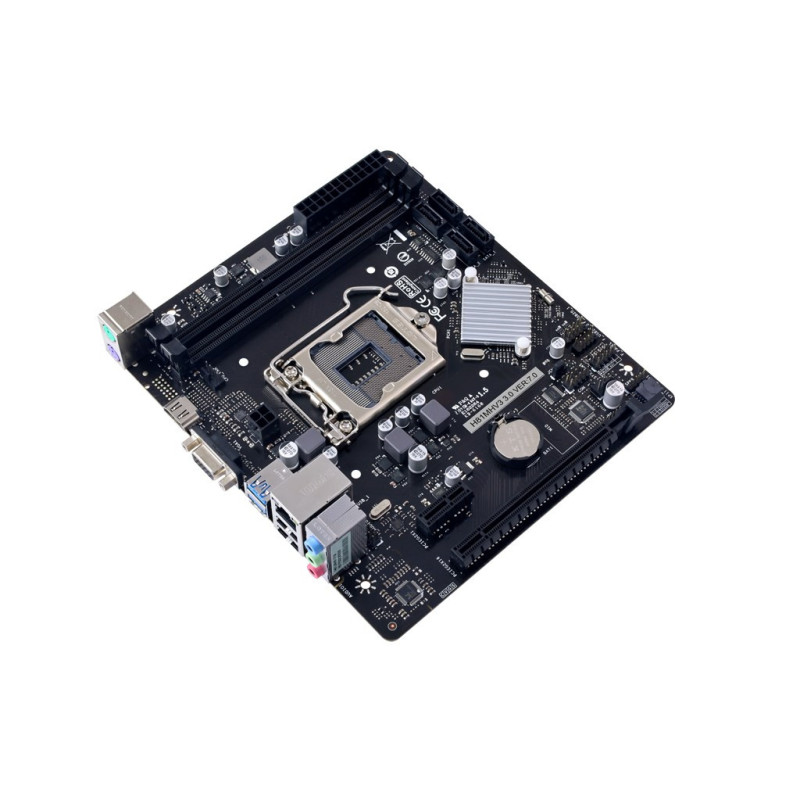

Biostar H81MHV3
Biostar H81MHV3 is a micro ATX motherboard designed for Intel LGA 1150 processors, with a Intel H81 chipset supporting up to 16 GB DDR3-SDRAM memory.
Main features
- Supports Intel Core i7, i5, Celeron, i3 and Pentium processors
- Dual-channel memory support with two DIMM slots
- Gigabit Ethernet LAN interface
- PCI Express x1 and x16 slots
Processor | |
|---|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i7, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Pentium® |
| Processor socket | LGA 1150 (Socket H3) |
| Maximum number of SMP processors | 1 |
Graphics | |
| DirectX version | 11.1 |
| HDCP | Yes |
Features | |
| Supported Windows operating systems | Windows 10, Windows 8.1, Windows 8, Windows 7 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 5.1 channels |
| Motherboard chipset | Intel® H81 |
| Motherboard format type | micro ATX |
Memory | |
| Supported memory types | DDR3-SDRAM |
| Memory slot type | DIMMs |
| Number of memory slots | 2 |
| Memory channels | Dual channel |
| Maximum internal memory | 16GB |
| Supported memory clock speeds | 1600MHz, 1333MHz, 1066MHz |
Weight and dimensions | |
| Width | 170mm |
| Depth | 190 mm |
Network | |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
Internal I/O | |
| Number of SATA II connectors | 2 |
| Number of peripheral (Molex) power connectors (4-pin) | 1 |
| Front panel connector | Yes |
| ATX power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| CPU cooler connector | Yes |
| Number of SATA III connectors | 2 |
| Number of USB 2.0 ports | 2 |
BIOS | |
| Clear CMOS switch | Yes |
Package contents | |
| Cables included | SATA |
Memory controllers | |
| Supported memory device interfaces | SATA II, SATA III |

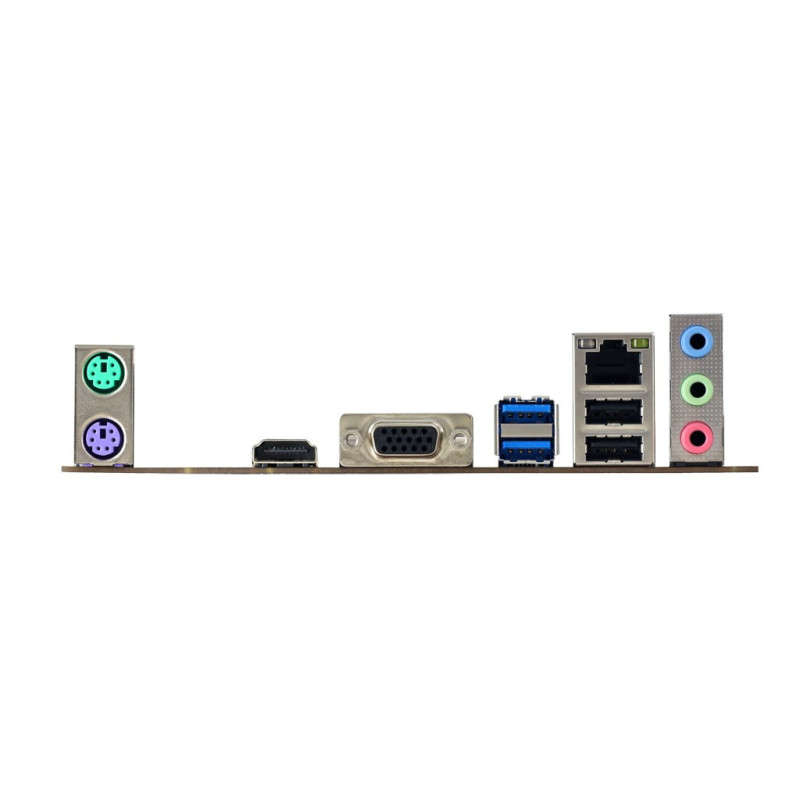

Rear panel I/O connectors | |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 2 |
| Number of HDMI ports | 1 |
| Headphone outputs | 3 |
| PS/2 number of connections | 2 |
| Number of VGA (D-Sub) connectors | 1 |
| Ethernet LAN (RJ-45) connections | 1 |
| Number of USB 2.0 ports | 2 |
Expansion slots | |
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| Height | 100mm |
| Length | 350mm |
| Weight | 800g |
| Width | 300mm |
