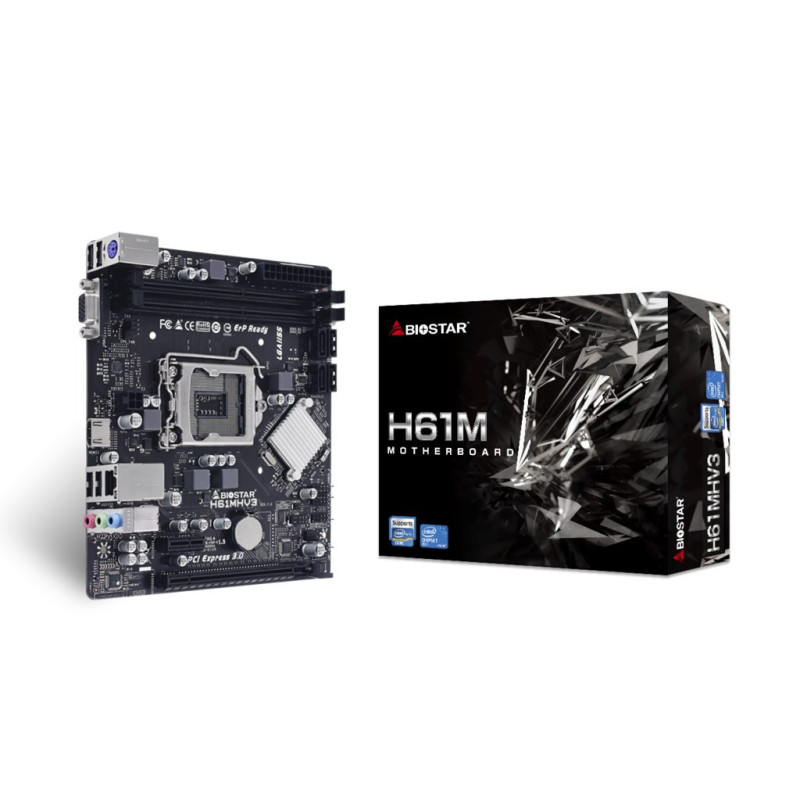

Motherboard - Biostar H61MHV3 LGA 1155 Micro ATX Motherboard
Product reference: 14-4712960685208

Biostar The H61MHV3 micro ATX motherboard supports Intel LGA 1155 processors and DDR3 memory installed in two DIMM slots. It is equipped with HDMI and VGA connectors, four SATA II connectors, USB 2.0 ports and a PCI Express x16 slot.

Motherboard - Biostar H61MHV3 LGA 1155 Micro ATX Motherboard

Product reference: 14-4712960685208

Biostar The H61MHV3 micro ATX motherboard supports Intel LGA 1155 processors and DDR3 memory installed in two DIMM slots. It is equipped with HDMI and VGA connectors, four SATA II connectors, USB 2.0 ports and a PCI Express x16 slot.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
102,57 €
103,61 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

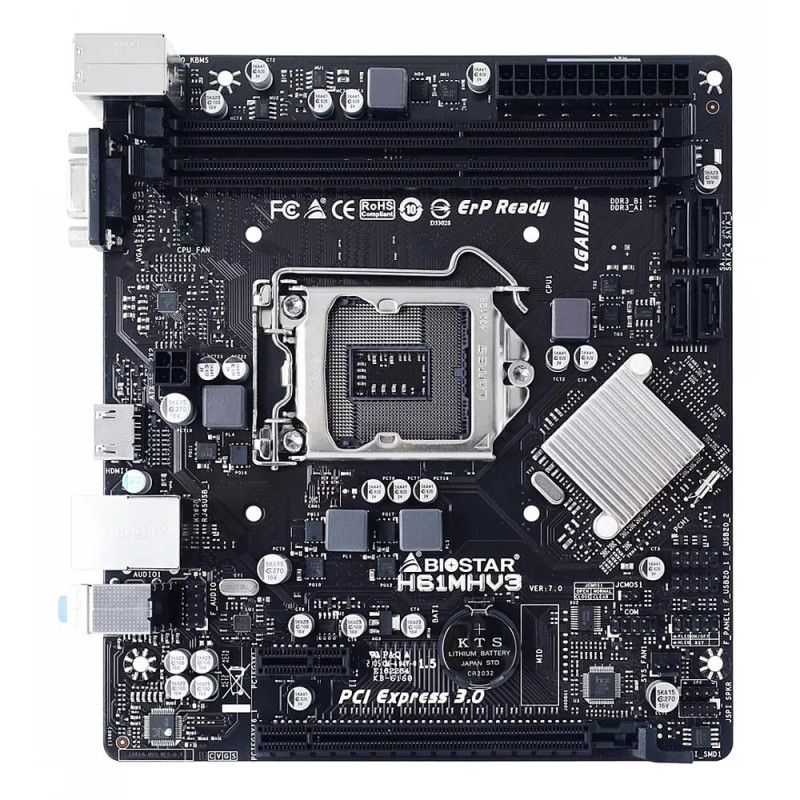

Biostar H61MHV3 LGA 1155 Micro ATX motherboard


Biostar The H61MHV3 Micro ATX motherboard supports Intel LGA 1155 processors and DDR3 memory in two DIMM slots. It features HDMI and VGA video outputs, four SATA II connectors, USB 2.0 ports, and a PCI Express x16 slot.


  • Micro ATX motherboard with Intel H61 chipset and LGA 1155 socket
  • Compatible with Intel Core i3, i5, i7, Pentium and Celeron processors
  • Supports dual-channel DDR3 memory and has two DIMM slots
  • HDMI and VGA video outputs, four SATA II connectors, gigabit LAN and PCI Express expansion

Product information

Product type Micro ATX motherboard
Brand Biostar
Model H61MHV3
Motherboard chipset Intel H61
Form factor Micro ATX
Dimensions 170 × 191 mm (width × height)

Processor support

Processor socket LGA 1155 (Socket H2)
Compatible processors Intel Core i3, Core i5, Core i7, Pentium and Celeron processors
Supported processor manufacturer Intel

Memory

Memory type DDR3-SDRAM
Memory slots 2 DIMM slots
Memory architecture Two-channel
Supported memory frequencies 1066, 1333 and 1600 MHz
ECC support No

Connections and expansion

Network controller Realtek RTL8111H Gigabit LAN
PCI Express slots 1 × PCI Express x16 and 1 × PCI Express x1
PCI Express versions PCI Express 2.0 and 3.0
Data logger connections 4 × SATA II connectors
Internal USB ports 2 × USB 2.0 ports

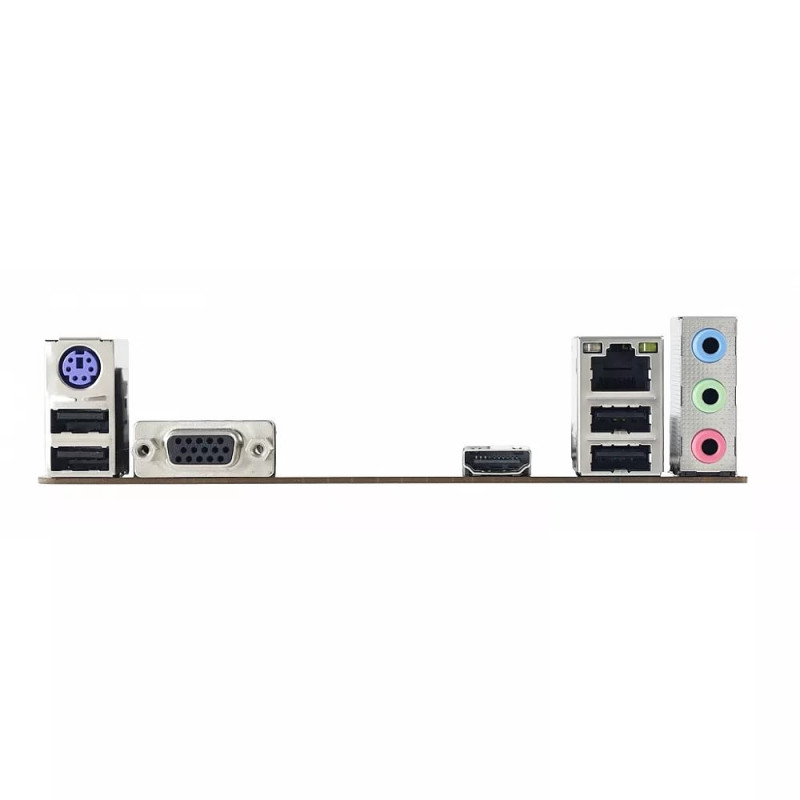

Rear connection panel

Video outputs 1 × HDMI and 1 × VGA (D-Sub)
USB ports 4 × USB 2.0
Network port 1 × RJ-45 Ethernet
PS/2 port 1
Audio outputs 3

Sound and monitoring

Audio codec Realtek ALC897
Audio output 7.1 channel sound
Hardware monitoring Monitoring of processor, voltage, temperature and fans
Fan connections 1 × CPU fan connector and 2 × case fan connectors

Included accessories

Included User manual, SATA cable and drivers

Safety warning

Warning Install and use the motherboard only with compatible components and in accordance with the manufacturer's instructions. Disconnect power and take appropriate electrostatic discharge precautions before installing or servicing.

Height50mm
Length400mm
Weight900g
Width300mm
