Motherboard - Biostar B760MX2-E D4 Intel B760 LGA 1700 Micro ATX
Product reference:
14-4712960686892
Supports Intel LGA 1700 processors with up to 64GB of DDR5 memory. Features include 7.1 audio channels, Gigabit Ethernet, and multiple USB ports.
Motherboard - Biostar B760MX2-E D4 Intel B760 LGA 1700 Micro ATX
Product reference:
14-4712960686892
Supports Intel LGA 1700 processors with up to 64GB of DDR5 memory. Features include 7.1 audio channels, Gigabit Ethernet, and multiple USB ports.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

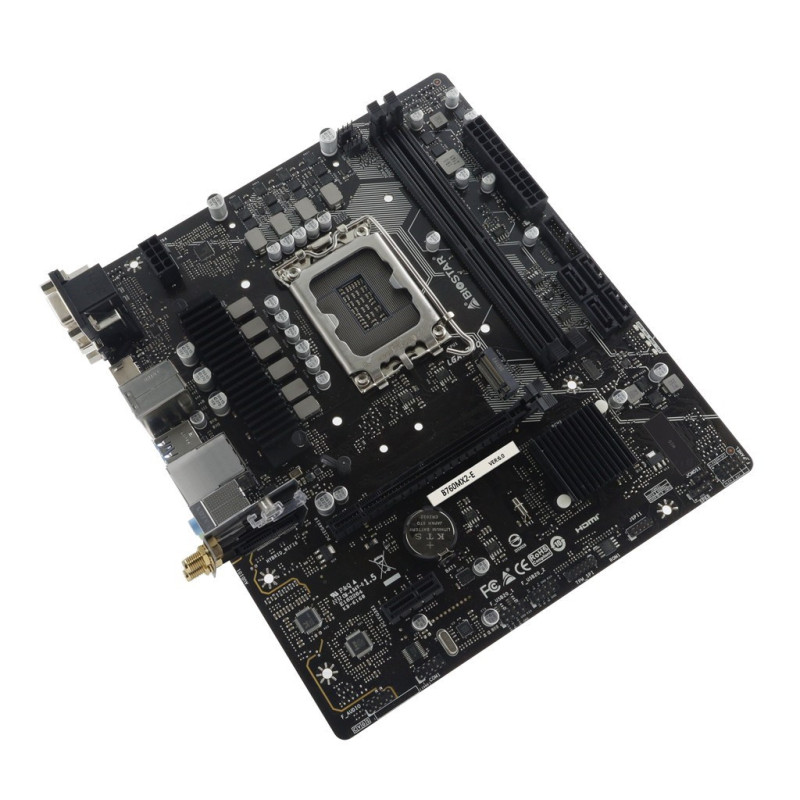

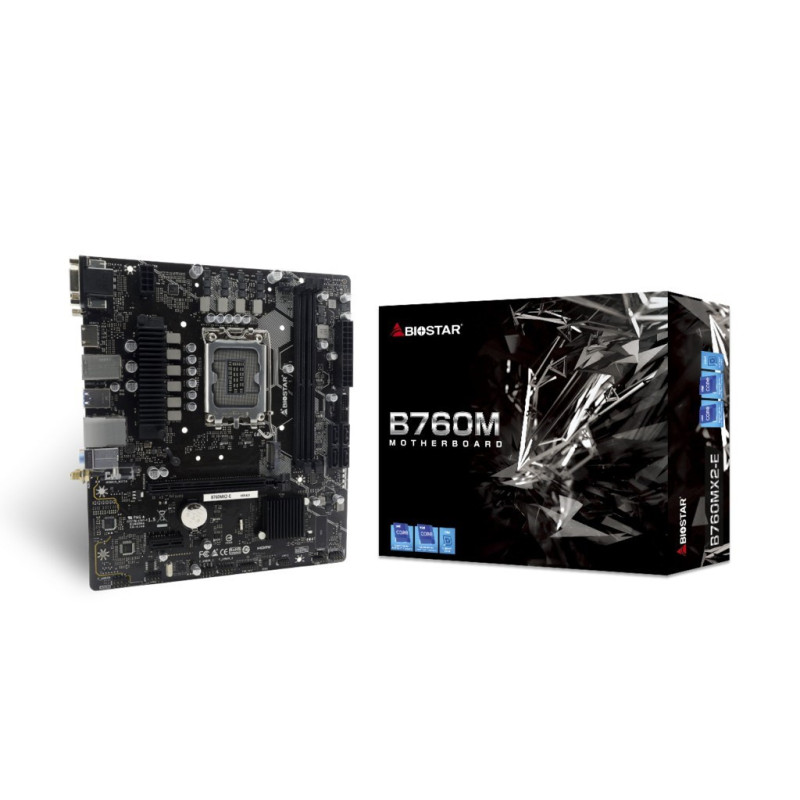

Biostar B760MX2-E D4 motherboard Intel B760 LGA 1700 Micro ATX black
Compatible with Intel LGA 1700 processors, supporting up to 64 GB DDR5 memory. Key features: 7.1 audio channels, Gigabit Ethernet and multiple USB ports.
- Processor socket: LGA 1700, compatible with Intel® Core™ i3/i5/i7/i9, Pentium® and Celeron® series
- Memory support: up to 64 GB DDR5-SDRAM with speeds of 4800 MHz to 6000 MHz
- Audio output: 7.1 channels with Realtek ALC897 audio chip
- Expansion slots: 1 PCI Express x4 (Gen 4.x) slot for additional equipment
- Connectivity: Gigabit Ethernet interface with multiple USB 2.0 and USB 3.2 Gen 1 ports
Processor | |
|---|---|
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Core™ i3, i5, i7, i9, Pentium®, Celeron® |
| Processor manufacturer | Intel |
| Supported processor sockets | LGA 1700 |
Features | |
| Audio output channels | 7.1 channels |
| Power supply type | ATX |
| Cooling type | Passive |
| Motherboard chipset family | Intel |
| Motherboard format type | micro ATX |
| Supported Windows operating systems | Yes |
| Audio chip | Realtek ALC897 |
| Motherboard chip | Intel B760 |
Memory | |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
| Number of memory slots | 2 |
| Supported memory clock speeds | 4800, 5200, 5400, 5600, 6000 MHz |
| Maximum internal memory | 64GB |
Weight and dimensions | |
| Width | 236 mm |
| Depth | 208 mm |
Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
Internal I/O | |
| Number of USB 2.0 ports | 2 |
| EPS power connector (8-pin) | Yes |
| Front panel connector | Yes |
| Number of SATA III connectors | 4 |
| Number of USB 3.2 Gen 1 ports | 1 |
| M.2 (E) number of sockets | 1 |
| Number of case fan connections | 1 |
| TPM connector | Yes |
| Number of COM ports | 1 |
| Front panel audio connector | Yes |
| ATX power connector (24-pin) | Yes |
Package contents | |
| Cables included | SATA |
| Add drivers | Yes |
Memory controllers | |
| Supported memory device interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage device types | HDD and SSD |

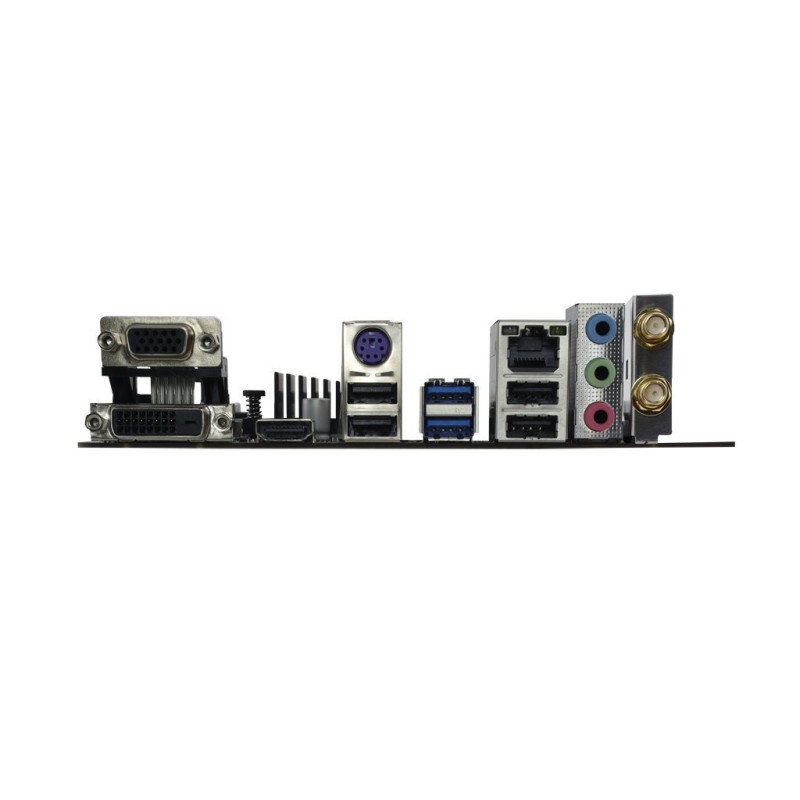

Rear panel I/O ports | |
| Number of USB 2.0 ports | 4 |
| Number of VGA (D-Sub) ports | 1 |
| Number of HDMI ports | 1 |
| Number of DVI ports | 1 |
| Number of USB 3.2 Gen 1 Type-A ports | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 number of ports | 1 |
| Number of audio ports | 3 |
| Number of Wi-Fi antenna ports | 1 |
Expansion slots | |
| PCI Express x4 (Gen 4.x) slots | 1 |
| Height | 50mm |
| Length | 400mm |
| Weight | 1000g |
| Width | 300mm |
