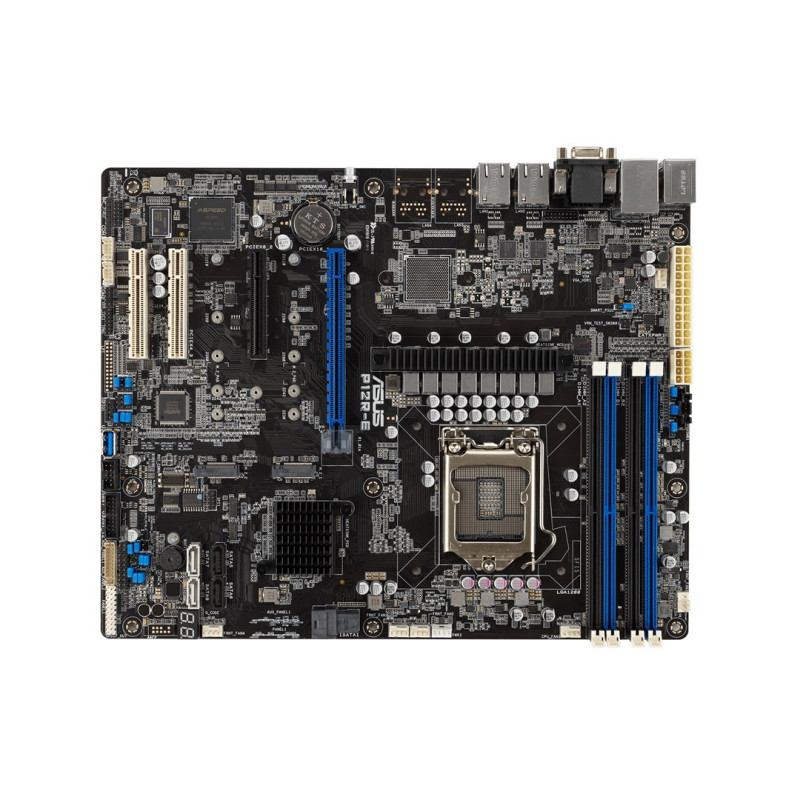

ASUS 90SB0A90-M0UAY0 ATX motherboard for LGA 1200
ASUS ATX server motherboard with Intel LGA 1200 socket for compatible Intel Xeon processors. It supports up to 128 GB DDR4 memory, eight SATA drives, two M.2 slots, RAID, and integrated Aspeed AST2600 graphics.
- Server-specific ASUS ATX motherboard with LGA 1200 socket, compatible with Intel Xeon processors
- Supports up to 128 GB of DDR4 memory via four DIMM slots
- Flexible storage options: two M.2 slots, eight SATA III ports, and RAID support
- Integrated Aspeed AST2600 graphics, HDMI, VGA, USB ports and various PCI Express expansion options
Product identification | |
|---|---|
| Product type | Server motherboard |
| Brand | ASUS |
| Model | 90SB0A90-M0UAY0 |
| Form factor | ATX |
| For the system | Server |
| Dimensions | 305 × 244 mm (width × depth) |
Processor support | |
| Processor socket | Intel LGA 1200 (Socket H5) |
| Compatible processor family | Intel Xeon |
| Chipset family | Intel |
Memory | |
| Memory type | DDR4-SDRAM |
| Memory slots | 4 DIMM slots |
| Supported module capacities | 8GB, 16GB and 32GB |
| Supported memory frequencies | 2666 MHz, 2933 MHz and 3200 MHz |
| Memory architecture | Two-channel |
Graphics and image | |
| Integrated graphics controller | Aspeed AST2600 |
| Graphics memory | 64MB |
| Video outputs | 1 HDMI port and 1 VGA port |
Data storage | |
| Storage interfaces | M.2 and SATA III |
| Number of SATA III connectors | 8 |
| M.2 sockets | 2 M.2 M-key sockets |
| Supported disc types | HDD and SSD |
| Maximum number of disks | 10 |
| The largest number of HDD | 8 |
Expansion and connections | |
| PCI Express slots | 1 × PCIe x16 Gen 3, 1 × PCIe x16 and 3 × PCIe x8 |

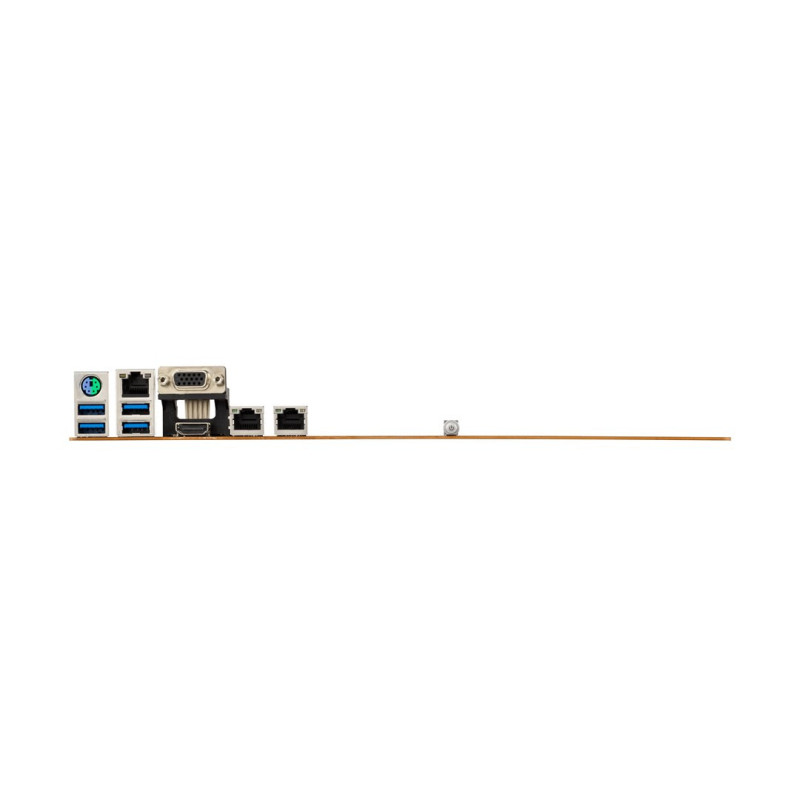

| Rear USB ports | 2 × USB 3.2 Gen 1 Type-A and 2 × USB 3.2 Gen 2 Type-A |
| PS/2 port | 1 |
| Internal USB ports | 1 × USB 3.2 Gen 1 connector |
| Serial connection | 1 internal COM port |
Internal functions | |
| RAID support | Yes |
| TPM connector | Yes |
| Chassis fan connectors | 6 |
| Power fan connector | Yes |
| Condition monitoring | Processor and fan monitoring |
Environmental conditions | |
| Relative humidity during operation | 10-50% |
| Storage temperature | −40-70 °C |
| Relative humidity during storage | 20-90% |
Safety warning | |
| Warning | For installation in a compatible server system only. Before installation or maintenance, disconnect power, protect the board from static electricity, and use a compatible processor, memory, power supply, cooling system, and chassis. |
| Height | 100mm |
| Length | 450mm |
| Weight | 1500g |
| Width | 350mm |
