Motherboard - ASUS X870 MAX GAMING WIFI7 AM5 ATX, DDR5, 256GB, Wi-Fi 7
Product reference:
14-4711636007856
The ASUS X870 MAX GAMING WIFI7 AM5 ATX motherboard supports AMD Ryzen 8000, 9000 and 7000 series processors, with a maximum memory capacity of 256 GB and DDR5-SDRAM support. It features Wi-Fi 7, 2.5 Gigabit Ethernet and a wide range of USB ports, including USB Type-C and USB4 Gen 3x2.
Motherboard - ASUS X870 MAX GAMING WIFI7 AM5 ATX, DDR5, 256GB, Wi-Fi 7
Product reference:
14-4711636007856
The ASUS X870 MAX GAMING WIFI7 AM5 ATX motherboard supports AMD Ryzen 8000, 9000 and 7000 series processors, with a maximum memory capacity of 256 GB and DDR5-SDRAM support. It features Wi-Fi 7, 2.5 Gigabit Ethernet and a wide range of USB ports, including USB Type-C and USB4 Gen 3x2.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

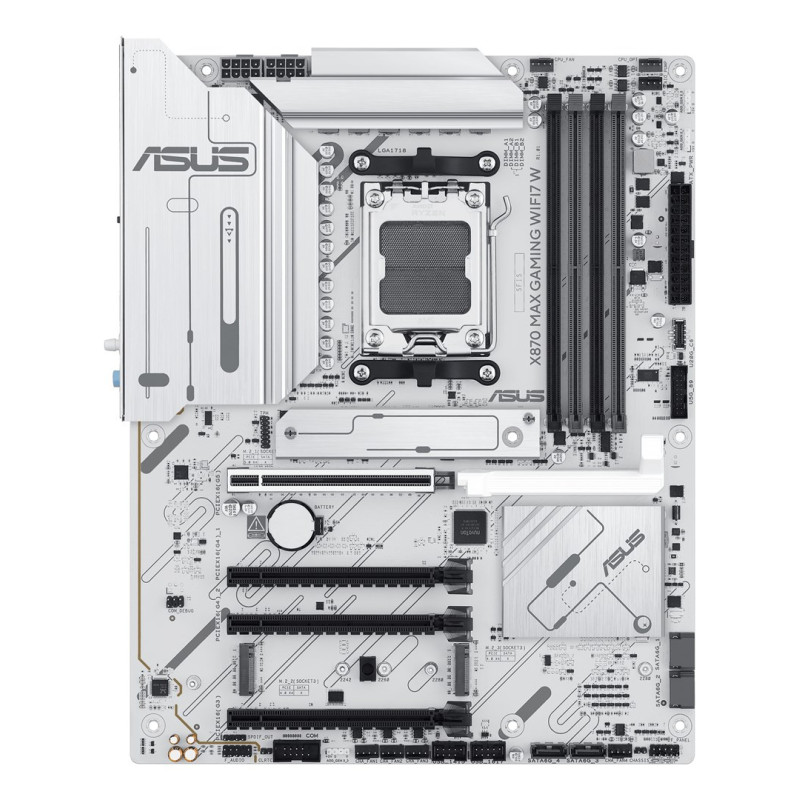

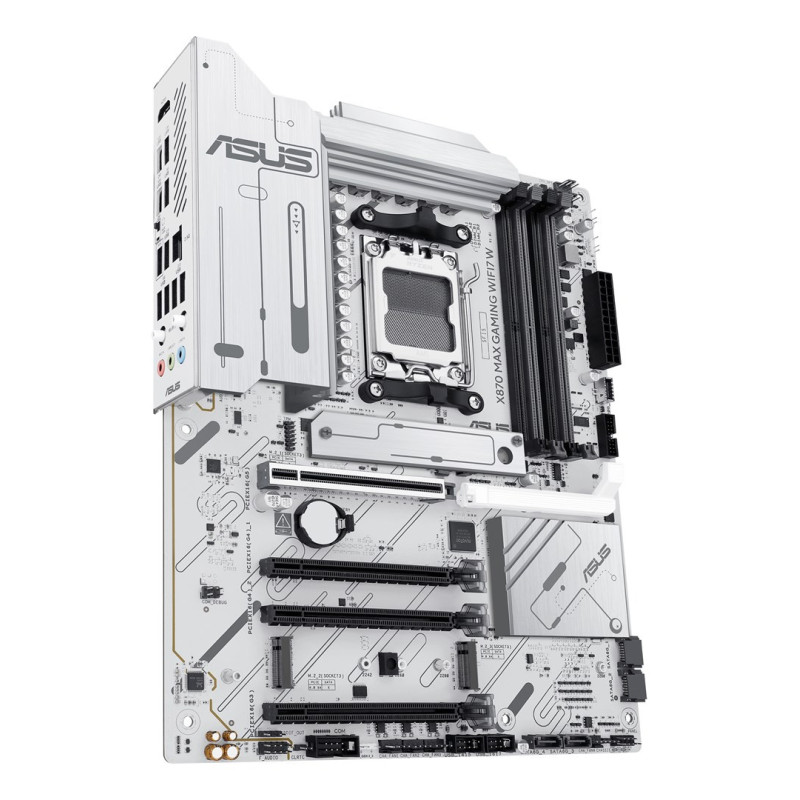

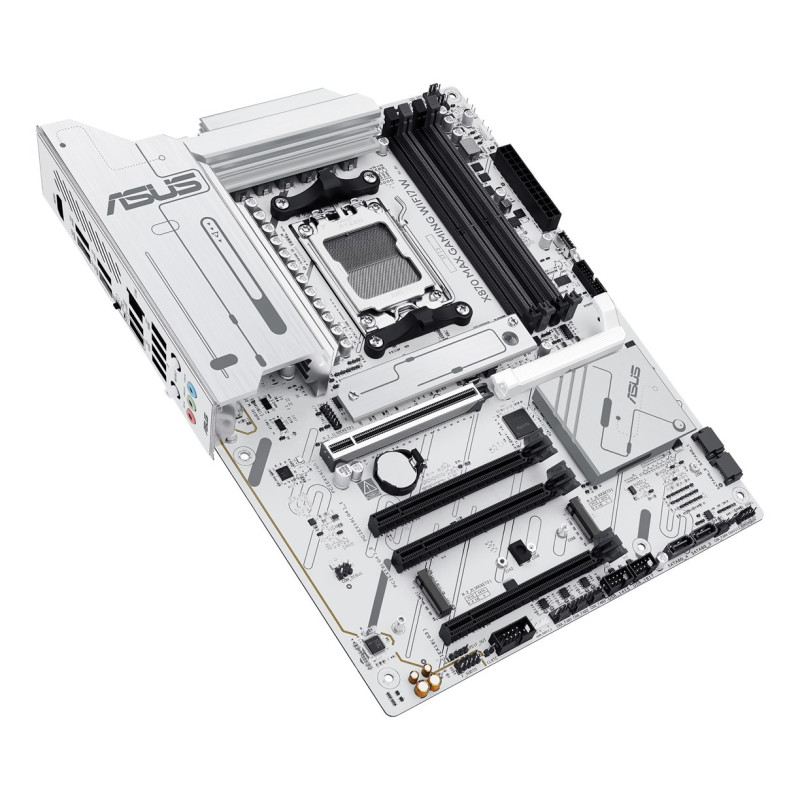

ASUS X870 Max Gaming Wifi7 with AMD X870 Socket AM5 ATX
Compatible with AMD Ryzen 8000, 9000 and 7000 series processors, maximum memory capacity of 256 GB and DDR5-SDRAM support. Equipped with Wi-Fi 7, 2.5 Gigabit Ethernet and multiple USB ports, including USB Type-C and USB4 Gen 3x2.
- Compatible with AMD Ryzen 8000, 9000 and 7000 series processors, has Socket AM5.

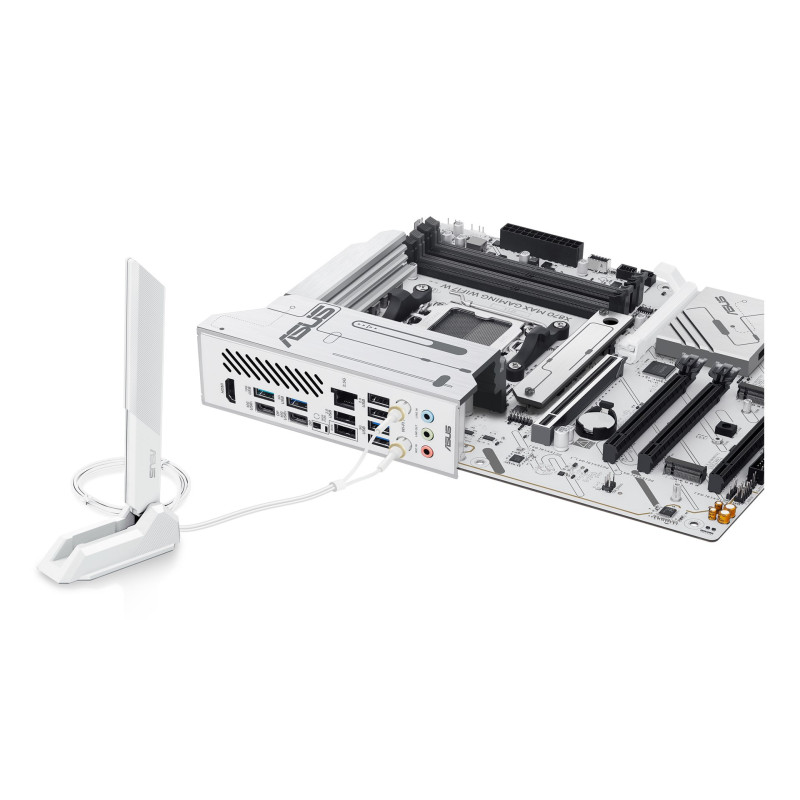

- Equipped with Wi-Fi 7 technology and 2.5 Gigabit Ethernet, ensuring ultra-fast connectivity.
- Offers a maximum internal memory capacity of 256 GB with DDR5-SDRAM support.
- Featuring advanced audio output with 7.1 channels, ensuring an immersive gaming experience.
Processor | |
|---|---|
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 8000 series, AMD Ryzen 9000 series, AMD Ryzen 7000 series |
| Processor manufacturer | AMD |
Graphics | |
| Maximum resolution | 3840 x 2160 pixels |
| Support for parallel processing technology | Not supported |
Memory | |
| Non-volatile memory | Yes |
| Supported memory frequency (max) | 8000MHz |
| ECC compatibility | ECC Non-ECC |
| Memory channels | Two-channel |
| Number of memory slots | 4 |
| Memory slot type | DIMMs |
| Supported memory types | DDR5-SDRAM |
Weight and dimensions | |
| Depth | 244 mm |
| Width | 305mm |
Network | |
| Wake-on-LAN ready | Yes |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth version | 5.4 |
Internal I/O | |
| Number of USB 2.0 ports | 2 |
| Front panel audio connector | Yes |
| ATX power connector (24-pin) | Yes |
| S/PDIF output connector | Yes |
| Number of SATA III connectors | 4 |
| Number of USB 3.2 Gen 1 ports | 1 |
BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS switch | Yes |
Memory controllers | |
| Supported memory device interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| Supported storage device types | HDD SSD |
| RAID support | Yes |
| RAID levels | 10, 1, 5, 0 |
| Number of supported storage devices | 7 |
Rear panel I/O ports | |
| Number of USB 2.0 ports | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB connector type | USB Type-C, USB Type-A |
| HDMI version | 2.1 |
| Number of HDMI ports | 1 |
| Headphone outputs | 3 |
| WiFi-AP antenna connector | 2 |
| Number of USB4 Gen 3x2 ports | 2 |
| Microphone input | Yes |
| Number of USB 3.2 Gen 1 Type-A ports | 3 |
| Number of USB 3.2 Gen 2 Type-A ports | 1 |
Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
