Motherboard - ASUS Prime Z790-P LGA 1700 ATX
Product reference:
14-4711081937449
16 GB RAM, up to 4 TB storage capacity using supported interfaces. AMD Ryzen 9 5900X processor with 12 cores and 24 threads, NVIDIA GeForce RTX 3080 Ti graphics card with 12 GB GDDR6X memory.
Motherboard - ASUS Prime Z790-P LGA 1700 ATX
Product reference:
14-4711081937449
16 GB RAM, up to 4 TB storage capacity using supported interfaces. AMD Ryzen 9 5900X processor with 12 cores and 24 threads, NVIDIA GeForce RTX 3080 Ti graphics card with 12 GB GDDR6X memory.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

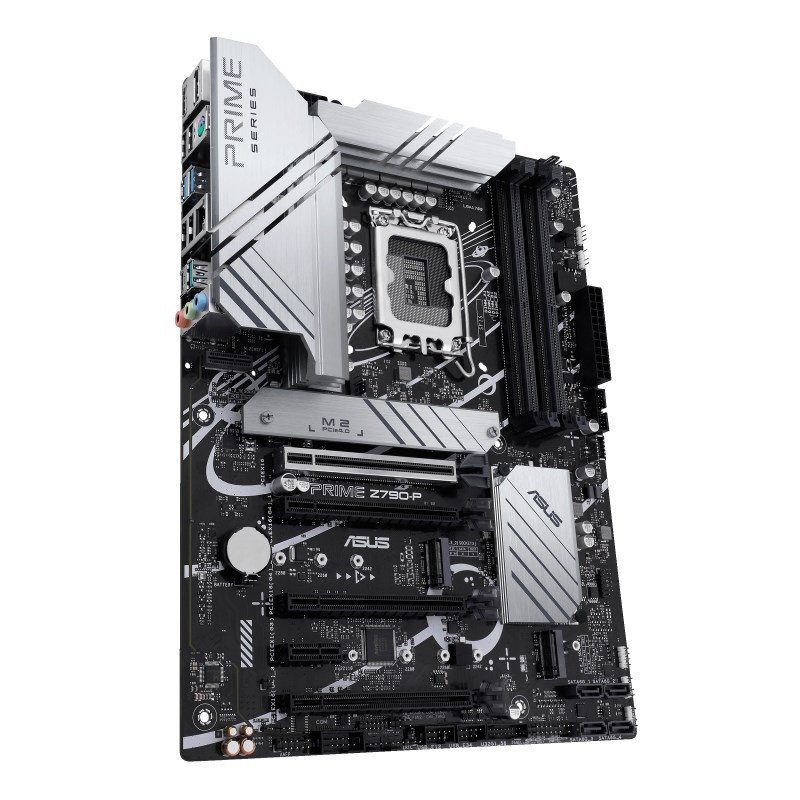

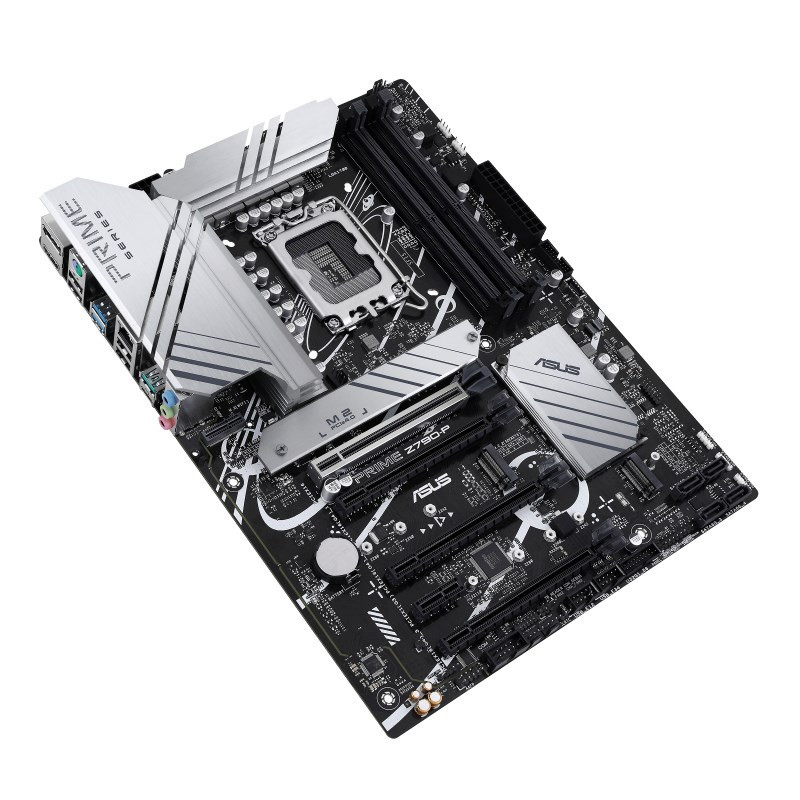

ASUS Prime Z790-p ATX
This motherboard is based on the Intel Z790 chipset and supports 12-osios generation processors. It has 16 GB RAM of RAM, which can be expanded up to 128 GB using four DDR5 DIMM slots. Supported memory includes up to 4 TB using M.2 NVMe PCIe 5.0, SATA III, and USB 3.2 Gen 2 interfaces.
Main features
- Supports Intel Core i9/i7 processors in LGA1700 socket
- 16 GB (4x4GB) DDR5 memory, expandable up to 128 GB
- Up to 4 TB memory using M.2 NVMe PCIe 5.0, SATA and USB interfaces
Processor | |
|---|---|
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor manufacturer | Intel |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
Graphics | |
| Support for parallel processing technology | Not supported |
Features | |
| Motherboard format type | ATX |
| Audio output channels | 7.1 channels |
| Power supply type | ATX |
| Supported Windows operating systems | Windows 11, Windows 10 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
Memory | |
| Unbuffered memory | Yes |
| Supported memory clock speeds | 4800, 5600, 7200, 5000, 6200, 7000, 6800, 6600, 5800, 5400, 6400, 5200, 6000 MHz |
| Memory channels | Dual channels |
| Maximum internal memory | 128GB |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
| Maximum memory frequency speed supported | 7200MHz |
Weight and dimensions | |
| Depth | 234 mm |
| Width | 305mm |
Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Internal I/O | |
| Thunderbolt connectors | 1 |
| Number of COM ports | 1 |
| Number of SATA III connectors | 4 |
| CPU cooler connector | Yes |
| TPM connector | Yes |
| ATX power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| USB 2.0 ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| EPS power connector (8-pin) | Yes |
| S/PDIF output connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of chassis cooler connections | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) connector | 1 |
| 12V power connector | Yes |
| RGB LED pin connector | Yes |
BIOS | |
| Clear CMOS button | Yes |
| BIOS type | UEFI AMI |
Packaging details | |
| Package depth | 273 mm |
| Package weight | 1.58 kg |
| Package width | 338 mm |
| Package height | 68 mm |

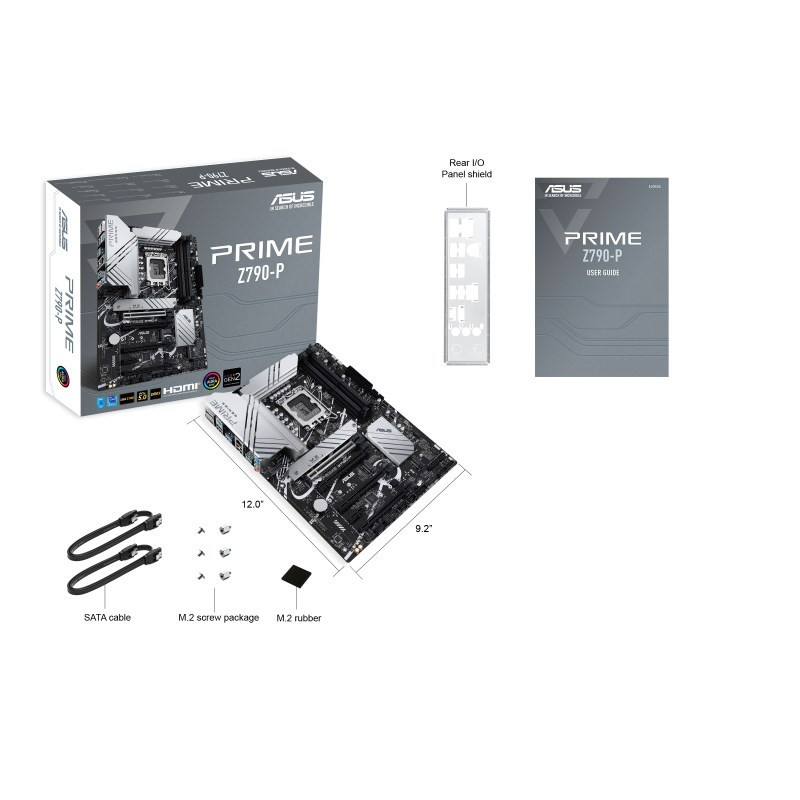

Package contents | |
| Add drivers | Yes |
| Cables included | SATA |
Memory controllers | |
| Supported storage drive types | HDD SSD |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10, 5 |

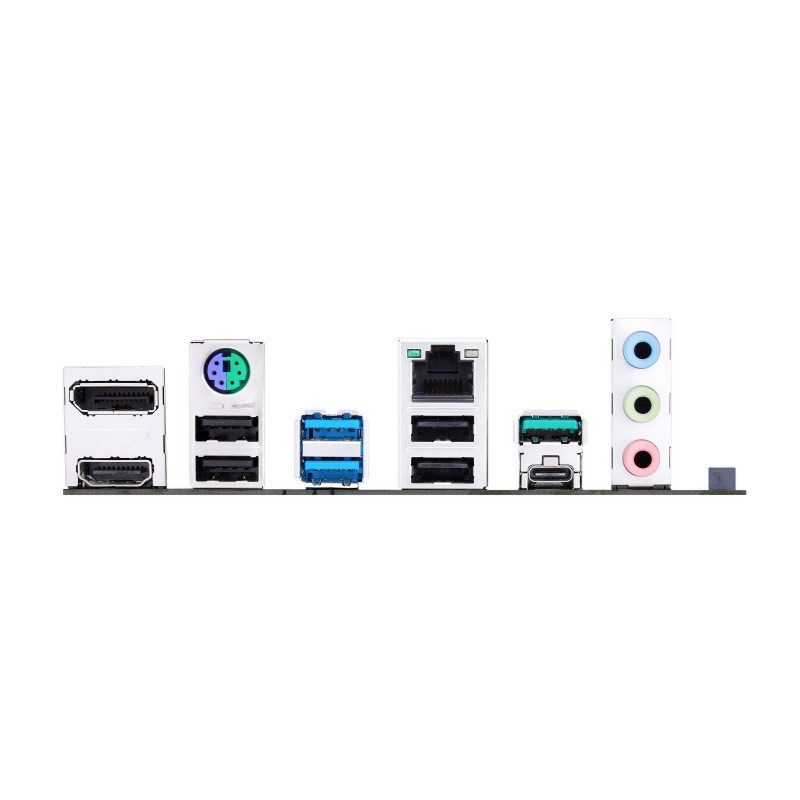

Rear panel I/O ports | |
| DisplayPort quantity | 1 |
| Number of Ethernet LAN (RJ-45) ports | 1 |
| PS/2 number of ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Number of USB 2.0 ports | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Number of HDMI ports | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Expansion slots | |
| M.2 (M) number of sockets | 3 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
Other features | |
| M.2 (E) number of sockets | 1 |
| Height | 70mm |
| Length | 275 mm |
| Weight | 1577 g |
| Width | 340mm |
