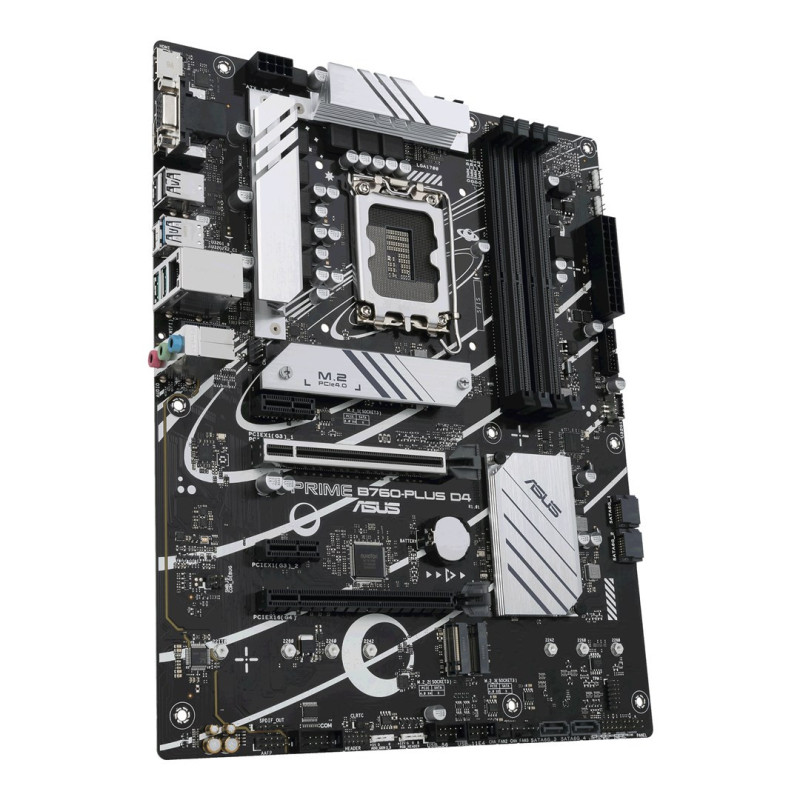

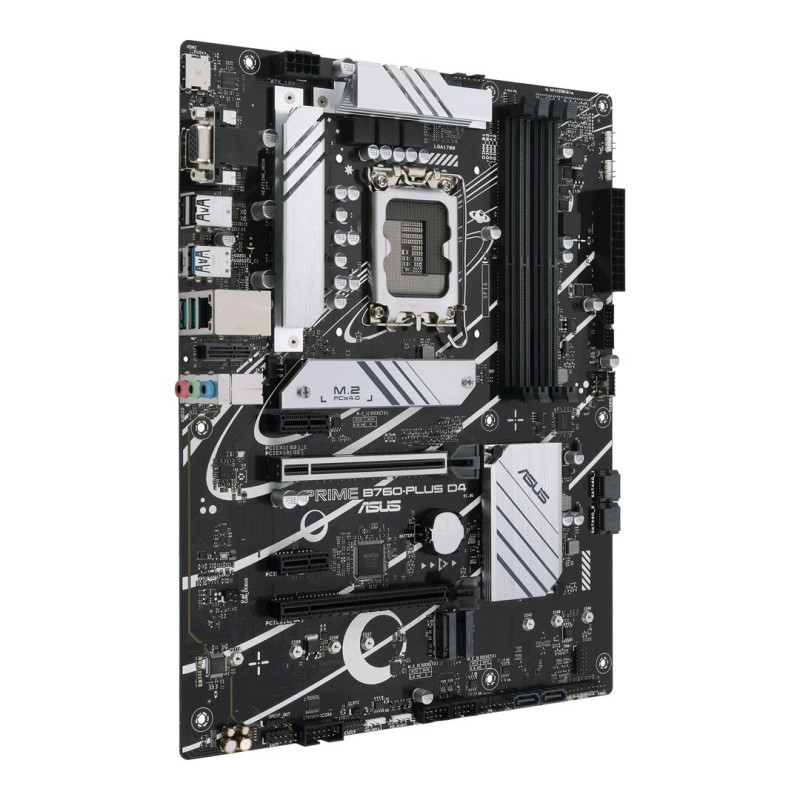

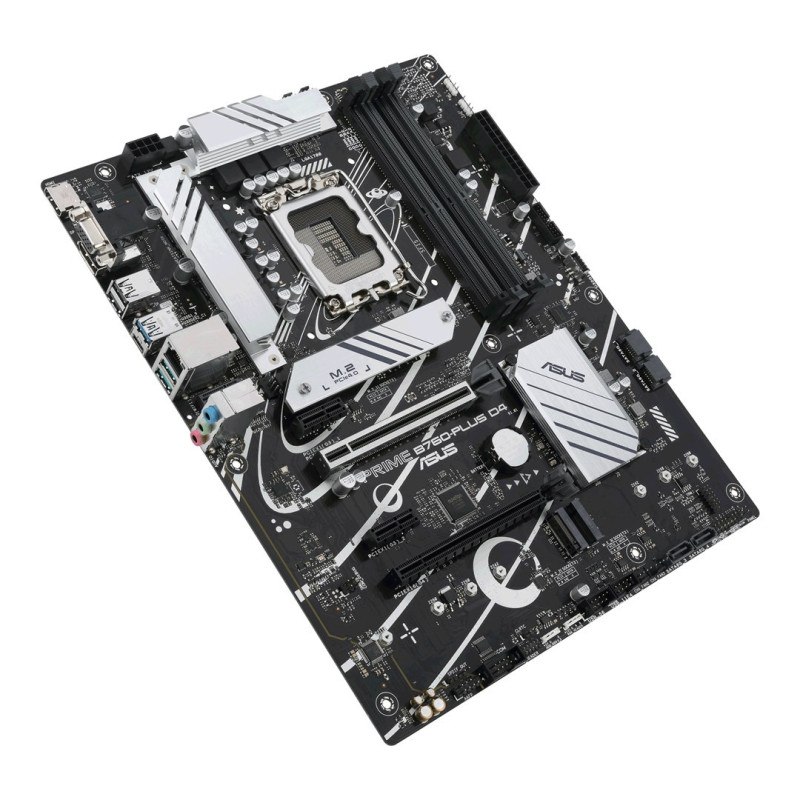

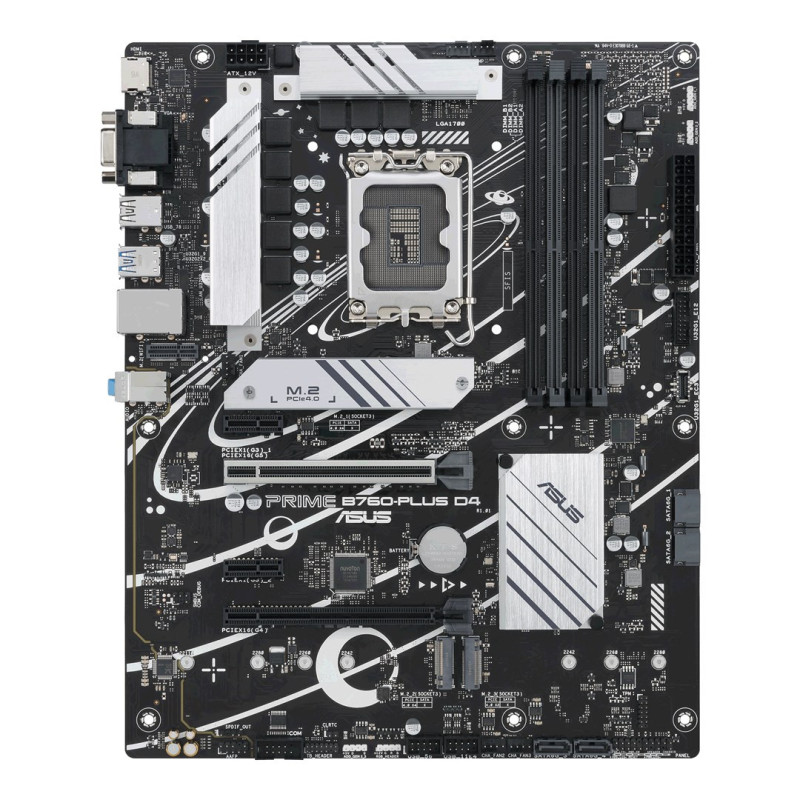

ASUS Prime B760-plus D4 LGA 1700 ATX
The ASUS PRIME B760-PLUS D4 motherboard features the Intel B760 chipset for LGA 1700 processors. It features a large memory capacity, supporting up to 7 drives, including 4 HDD.
Main features:
- Supports up to 7 memory disks (4 x HDD)
- 3 x M.2 sockets and 1 x M.2 E socket
- Multiple I/O ports including HDMI, USB 3.2 Gen 1-2, Ethernet LAN, DisplayPort 1.4, and VGA (D-Sub)
- UEFI AMI BIOS with RAID support (levels 1, 0, 10 and 5)
Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Maximum number of SMP processors | 1 |
| Compatible processor models | Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron® |
Graphics | |
| Parallel processing technology supported | Not supported |
Features | |
| Motherboard chipset | Intel B760 |
| Supported Windows operating systems | Windows 10, Windows 11 |
| Motherboard format type | ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Power supply type | ATX |
Memory | |
| Supported memory clock speeds | 2933, 3600, 2400, 2800, 5066, 3400, 3466, 4600, 3200, 2666, 4266, 4000, 4800, 3733, 4400, 5000, 3333, 3000, 2133 MHz |
| Maximum internal memory | 128GB |
| Not full memory | Yes |
| Memory channels | Dual channel |
| Maximum supported memory frequency | 5066MHz |
| Supported memory types | DDR4-SDRAM |
| Memory slot type | DIMMs |
| Number of memory slots | 4 |
Weight and dimensions | |
| Width | 305mm |
| Depth | 244 mm |
Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | No |
| Ethernet LAN | Yes |
Internal I/O | |
| Number of COM ports | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF Out connector | Yes |
| TPM connector | Yes |
| CPU cooler connector | Yes |
| Number of chassis cooler connections | 3 |
| Thunderbolt connectors | 1 |
| Number of USB 2.0 ports | 2 |
| Front panel connector | Yes |
| Peripheral (Molex) power connector (4-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| ATX power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 2 |
| 12V power connector | Yes |
| RGB LED pin connector | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Packaging details | |
| Package height | 53 mm |
| Package depth | 266 mm |
| Package width | 328 mm |
| Package weight | 1.16 kg |
Package contents | |
| User manual | Yes |
| Cables included | SATA |
Memory controllers | |
| RAID levels | 1, 0, 10, 5 |
| Supported storage drive types | HDD and SSD |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 7 |
| Supported number of HDD | 4 |

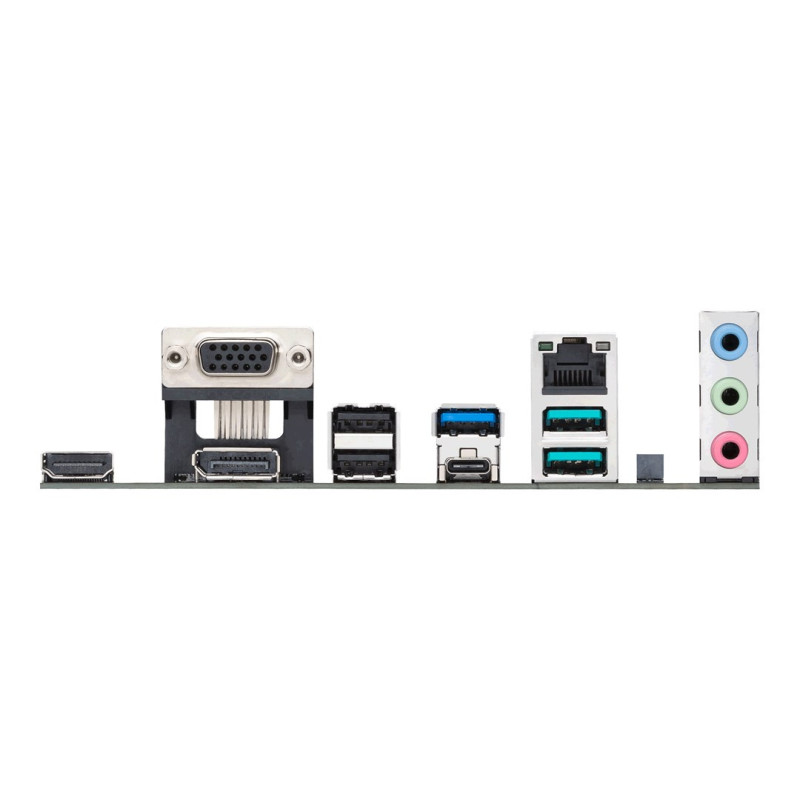

Rear panel I/O ports | |
| Number of HDMI ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 2 |
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| Number of DisplayPort ports | 1 |
| Number of USB 2.0 ports | 2 |
| Line-in | Yes |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| Number of VGA (D-Sub) ports | 1 |
| Headphone outputs | 1 |
Expansion slots | |
| M.2 (M) number of sockets | 3 |
| Number of PCI Express x1 (Gen 3.x) slots | 2 |
| Number of PCI Express x16 (Gen 4.x) slots | 1 |
| Number of PCI Express x16 (Gen 5.x) slots | 1 |
Other features | |
| M.2 (E) number of sockets | 1 |
| Height | 265 mm |
| Length | 333mm |
| Weight | 1200g |
| Width | 55 mm |
