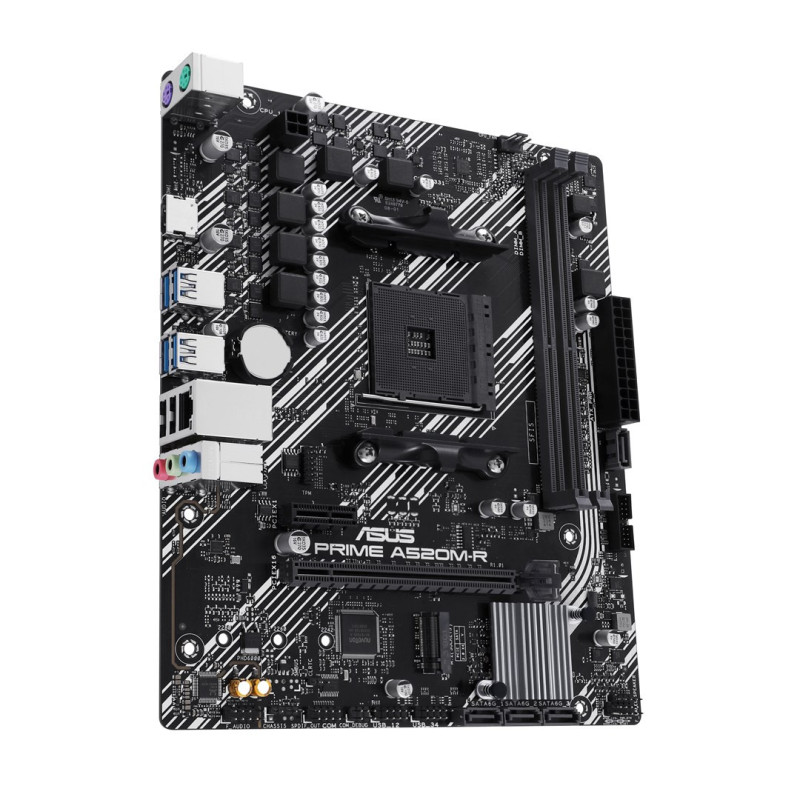

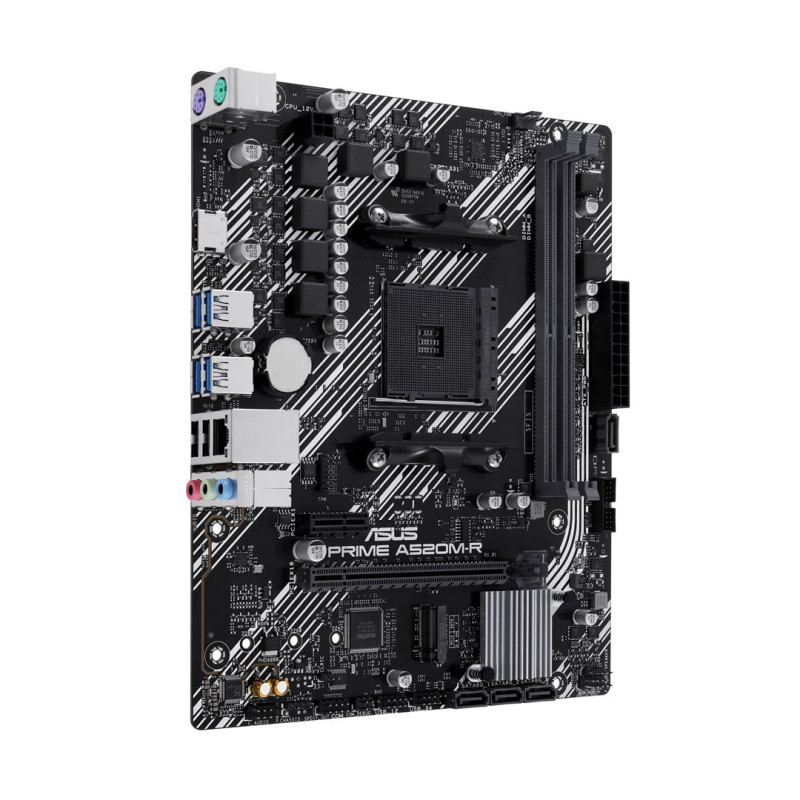

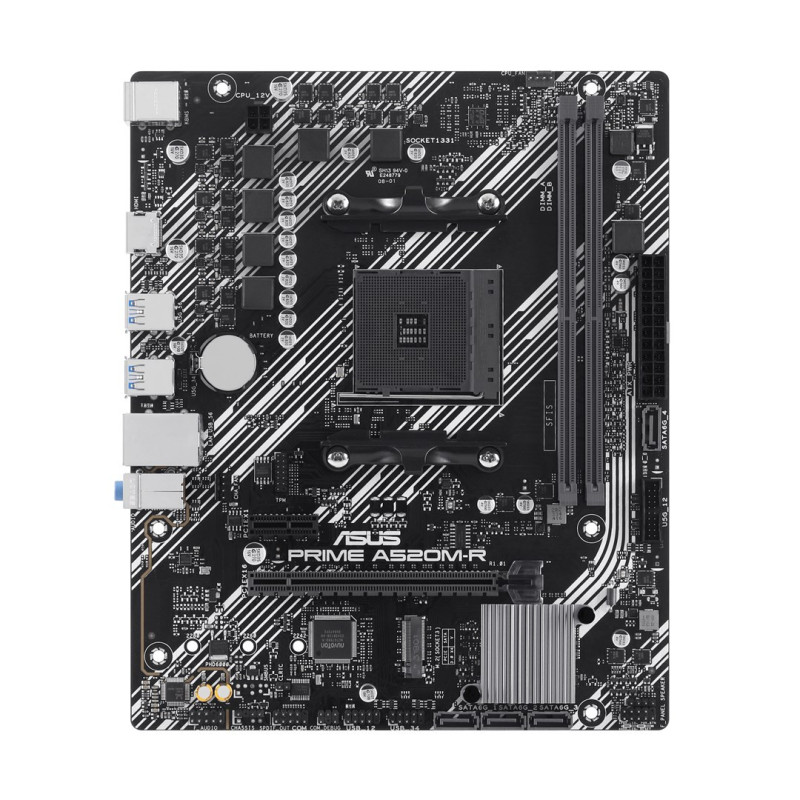

Motherboard - ASUS Prime A520M-R AMD A520 AM4 Micro ATX
Product reference:
14-4711387466414
The ASUS PRIME A520M-R motherboard supports up to 5 storage devices with RAID levels 0, 1, and 10, ensuring fast and reliable data storage. It also has 1 x16 Gen 3.x and 1 x1 Gen 3.x PCIe slots for system expansion.
Motherboard - ASUS Prime A520M-R AMD A520 AM4 Micro ATX
Product reference:
14-4711387466414
The ASUS PRIME A520M-R motherboard supports up to 5 storage devices with RAID levels 0, 1, and 10, ensuring fast and reliable data storage. It also has 1 x16 Gen 3.x and 1 x1 Gen 3.x PCIe slots for system expansion.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Motherboard - ASUS Prime A520M-R AMD
The ASUS PRIME A520M-R motherboard for AM4 socket Ryzen processors features a robust 6-layer PCB and high-quality components. It has USB ports, SATA III connectors, and an M.2 slot for memory upgrades.
Main features:
- Supports AM4 socket Ryzen processors
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- PCI Express x16 (Gen 3.x) slot: 1, M.2 (M) slot: 1
Processor | |
|---|---|
| Processor socket | AM4 |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen™ 5, 7, 3, 3rd Gen Ryzen™ 9, 5th Gen Ryzen 9 |
| Supported processor sockets | AM4 |
Graphics | |
| Support for parallel processing technology | Not supported |
Features | |
| Product color | Black |
| Motherboard form factor | micro ATX |
| Power supply type | ATX |
| Cooling type | Passive |
| Motherboard Chipset Family | AMD |
| Motherboard chip | AMD A520 |
| Audio output channels | 7.1 channels |
| Supported Windows operating systems | Windows 10, Windows 11 |
Memory | |
| Supported memory clock speeds | up to 5100 MHz |
| Memory channels | Dual channel |
| Unbuffered memory | Yes |
| Maximum internal memory | 64GB |
| Number of memory slots | 2 |
| Memory slot type | DIMMs |
| Supported memory types | DDR4-SDRAM |
Weight and dimensions | |
| Width | 236 mm |
| Depth | 193 mm |
Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
Internal I/O | |
| USB 2.0 ports | 2 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Processor cooler connector | Yes |
| ATX power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| 12V power connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of chassis cooler connections | 1 |
| Number of SATA III connectors | 4 |
| TPM connector | Yes |
| Number of COM ports | 1 |
BIOS | |
| BIOS type | UEFI AMI |
Packaging details | |
| Package height | 51.5 mm |
| Package weight | 880g |
| Package depth | 263 mm |
| Package width | 270mm |
Package contents | |

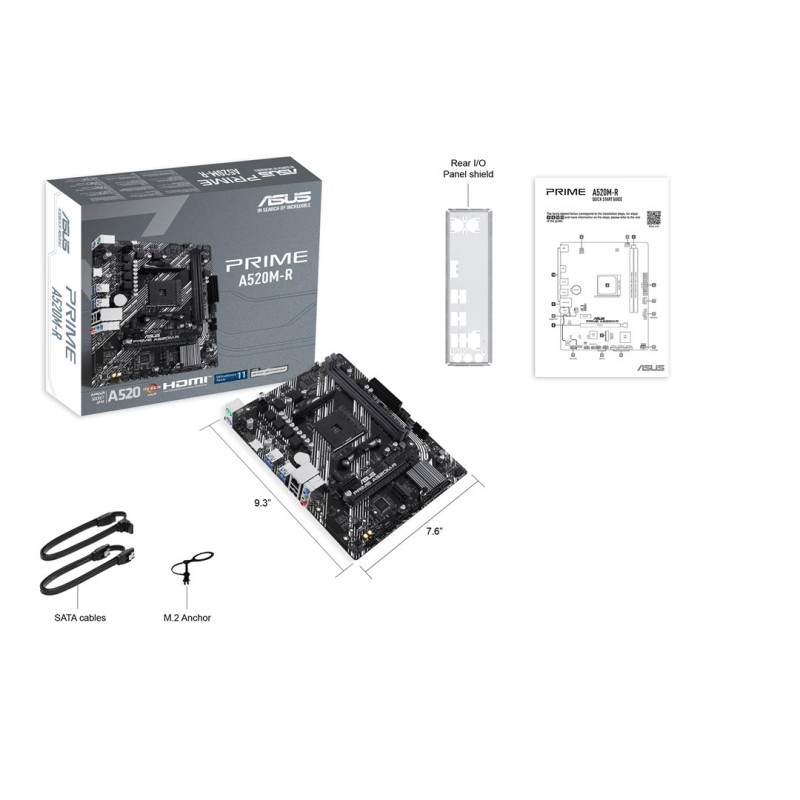

| Cables included | SATA |
Memory controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDDs and SSDs |
| Number of storage drives supported | 5 |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
Rear panel I/O ports | |
| HDMI version | 2.1 |
| Number of PS/2 ports | 2 |
| Number of HDMI ports | 1 |
| Microphone input | Yes |
| Line-in | Yes |
| Number of USB 2.0 ports | 2 |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
