Motherboard - ASRock X870 Steel Legend WiFi
Product reference:
14-4710483949340
Supports AMD Ryzen™ 7000, 8000 and 9000 series processors, maximum memory capacity up to 256 GB, and speeds up to 8000+ MHz. Equipped with Wi-Fi 7, Bluetooth 5.4 and a variety of USB ports, including USB 3.2 Gen 2x2 Type-C.
Motherboard - ASRock X870 Steel Legend WiFi
Product reference:
14-4710483949340
Supports AMD Ryzen™ 7000, 8000 and 9000 series processors, maximum memory capacity up to 256 GB, and speeds up to 8000+ MHz. Equipped with Wi-Fi 7, Bluetooth 5.4 and a variety of USB ports, including USB 3.2 Gen 2x2 Type-C.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
ASRock X870 Steel Legend WiFi Motherboard - Black
Compatible with AMD Ryzen™ 7000, 8000 and 9000 series processors, maximum memory capacity - 256 GB, speeds up to 8000+ MHz. Features Wi-Fi 7, Bluetooth 5.4 and multiple USB ports, including USB 3.2 Gen 2x2 Type-C.
- Enables the use of AMD Ryzen™ 7000, 8000 and 9000 series processors with Socket AM5.
- Maximum internal memory - 256 GB with 4 DIMM slots, supporting DDR5-SDRAM speeds up to 8000+ MHz.
- Integrated Wi-Fi 7 (802.11be) and Bluetooth 5.4 for advanced connectivity options.
- Features 7.1 channel audio output with Realtek ALC4082 audio chip, ensuring high-quality sound.
- Multiple USB ports are included, including 2 USB 3.2 Gen 2x2 Type-C ports and 4 USB 2.0 connectors.
Processor | |
|---|---|
| Processor manufacturer | AMD |
| Composite processor types | AMD Ryzen™ 7000, 8000, 9000 series |
| Maximum number of SMP processors | 1 |
| Processor socket | Socket AM5 |
Features | |
| Audio output channels | 7.1 channels |
| Motherboard chip | AMD X870 |
| Operating system architecture | 64-bit |
| Audio chip | Realtek ALC4082 |
| Motherboard format type | ATX |
| Supported Windows operating systems | Windows 11 x64, Windows 10 x64 |
Memory | |
| Supported memory frequency (max) | 8000+ MHz |
| Maximum internal memory | 256GB |
| Memory slot type | DIMMs |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual channel |
Weight and dimensions | |
| Depth | 244 mm |
| Width | 305mm |
Network | |
| Bluetooth version | 5.4 |
| LAN controller | Dragon RTL8125BG |
| Wi-Fi standards | 802.11a/b/g/n/ac/ax/be |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Internal I/O | |
| RGB LED pin connector | Yes |
| USB 2.0 ports | 2 |
| Number of SATA III connectors | 4 |
| Number of USB 3.2 Gen 1 ports | 2 |
| CPU cooler connector | Yes |
| ATX power connector (24-pin) | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Memory controllers | |
| Supported memory device interfaces | Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4) |

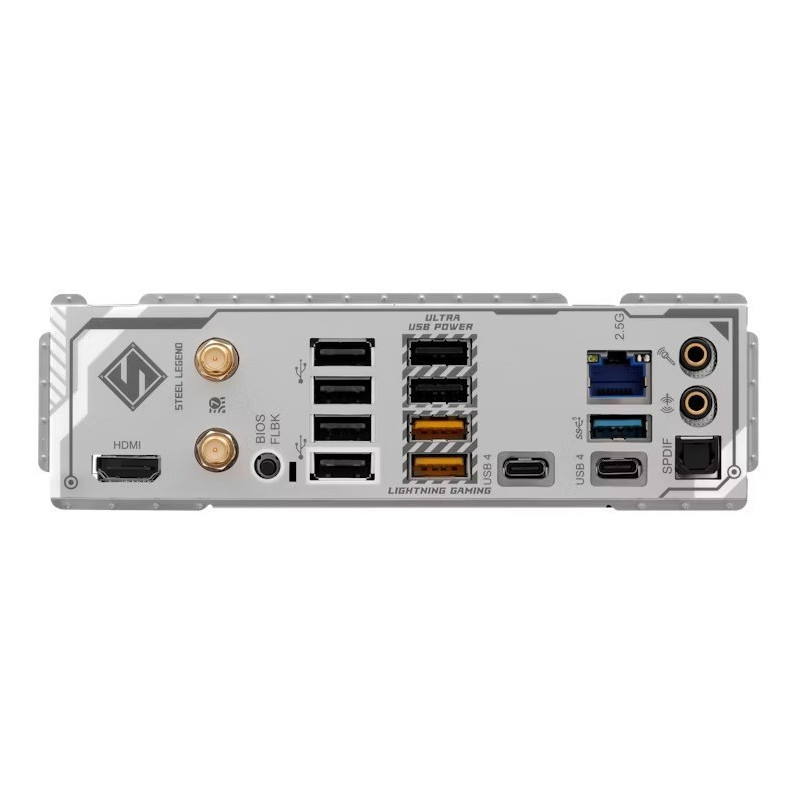

Rear panel I/O ports | |
| Number of USB 3.2 Gen 2x2 Type-C ports | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 3.2 Gen 2 Type-A ports | 2 |
| Number of HDMI ports | 1 |
| Number of USB 3.2 Gen 1 Type-A ports | 3 |
Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Height | 286 mm |
| Length | 352 mm |
| Weight | 2076 g |
| Width | 82 mm |
