ASRock X870 Pro RS WiFi


ASRock X870 Pro RS WiFi - ATX motherboard for AMD Ryzen 7000, 8000 and 9000 series processors with Socket AM5 socket and AMD X870 chipset. It supports up to 256 GB DDR5 memory, PCIe 5.0, Wi-Fi 7, Bluetooth 5.4, 2.5 Gigabit Ethernet and multiple M.2 and USB connectors.


  • ATX motherboard with AMD X870 chipset and Socket AM5 for Ryzen 7000, 8000 and 9000 series processors
  • Four DDR5 DIMM slots support dual-channel memory up to 256GB and frequencies over 8000MHz
  • PCIe 5.0 x16 slot and M.2 storage device support, including one PCIe Gen5 x4 and one PCIe Gen4 x4 slot
  • Wi-Fi 7, Bluetooth 5.4, and 2.5 Gigabit Ethernet ensure fast wireless and wired connectivity

Product information

Product type ATX motherboard
Brand ASRock
Model X870 Pro RS WiFi
Chipset AMD X870
Processor socket Socket AM5
Compatible processors AMD Ryzen 7000, 8000 and 9000 series
Dimensions 305 × 244 mm (width × depth)

Memory

Memory type DDR5-SDRAM
Memory slots 4 × DIMMs
Memory configuration Two-channel
Maximum memory frequency 8000+ MHz
Memory type Not registered

Development and data storage

PCI Express slot 1 × PCIe 5.0 x16
M.2 storage interfaces 1 × PCIe Gen5 x4 and 1 × PCIe Gen4 x4
SATA connectors 4 × SATA III

Connection

Wireless network Wi-Fi 7 (802.11be), also compatible with 802.11a/b/g, Wi-Fi 4, Wi-Fi 5 and Wi-Fi 6E
Bluetooth Bluetooth 5.4
LAN controller Dragon RTL8125BG
Internal USB ports 2 × USB 2.0, 1 × USB 3.2 Gen 1 and 1 × USB 3.2 Gen 2

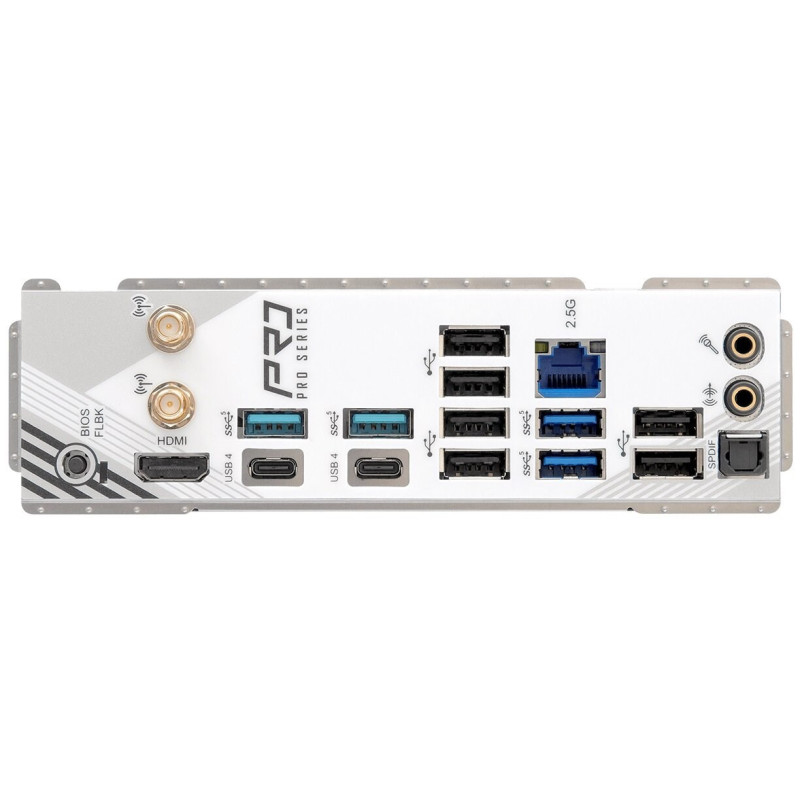

Rear USB ports 6 × USB 2.0, 4 × USB 3.2 Gen 1 Type-A and 2 × USB 3.2 Gen 2x2 Type-C
Network connection 1 × RJ-45 Ethernet connector
Video output 1 × HDMI
Wireless antenna connector Yes

Sound and internal functions

Audio codec Realtek ALC1220
Audio output 7.1 channel sound
Audio connections Line-out, microphone-in, S/PDIF-out, and front-panel audio connector
Power connector 24-pin ATX
Cooling connection Processor fan connector
Lighting connector RGB LED connector
BIOS UEFI AMI
Supported operating systems Windows 10 x64 and Windows 11 x64

Safety information

Safety warning For installation in a compatible desktop computer only. Unplug the computer before installation and follow the motherboard and processor installation instructions. Handle the board by its edges and protect it from static electricity, moisture, and physical damage.

Height281 mm
Length346 mm
Weight2015
Width75 mm
