Motherboard - ASRock X870 Pro RS ATX
Product reference:
14-4710483949326
AM4 socket for AMD Ryzen 7000 series processors, supporting up to 128GB DDR5 RAM with four DIMM slots.
Motherboard - ASRock X870 Pro RS ATX
Product reference:
14-4710483949326
AM4 socket for AMD Ryzen 7000 series processors, supporting up to 128GB DDR5 RAM with four DIMM slots.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

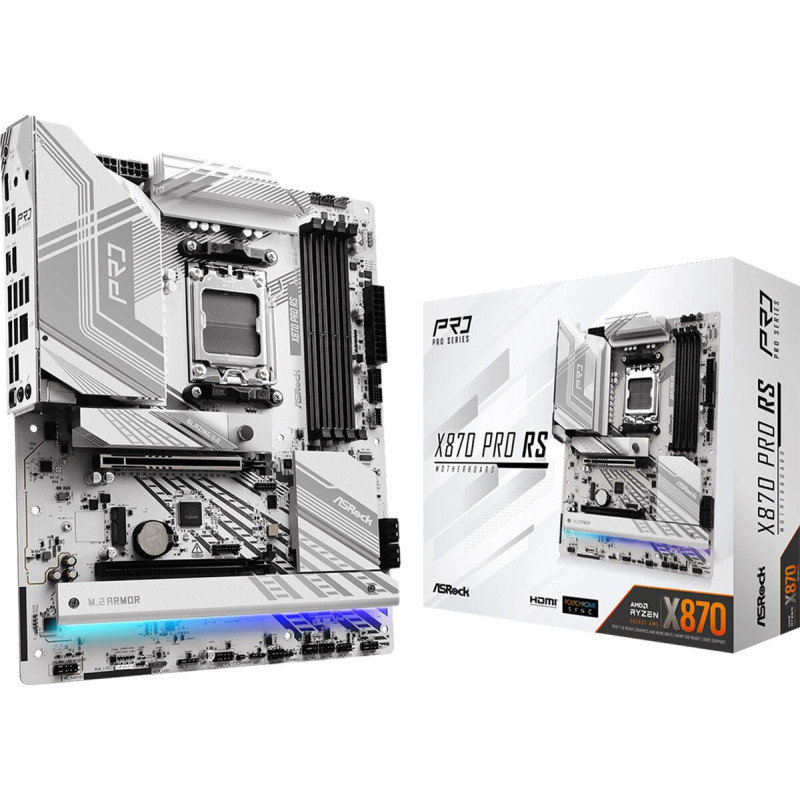

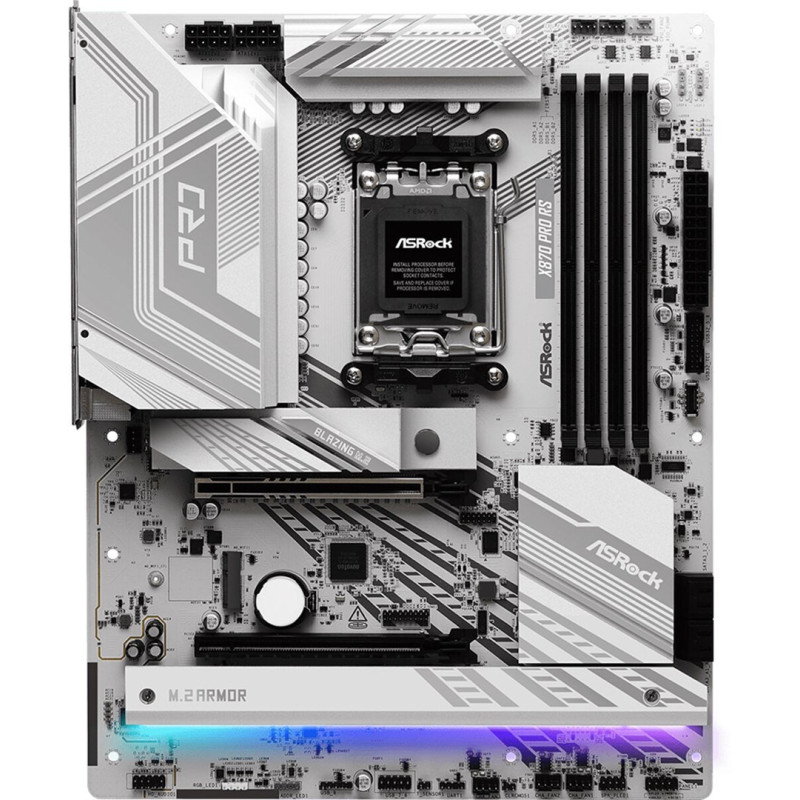

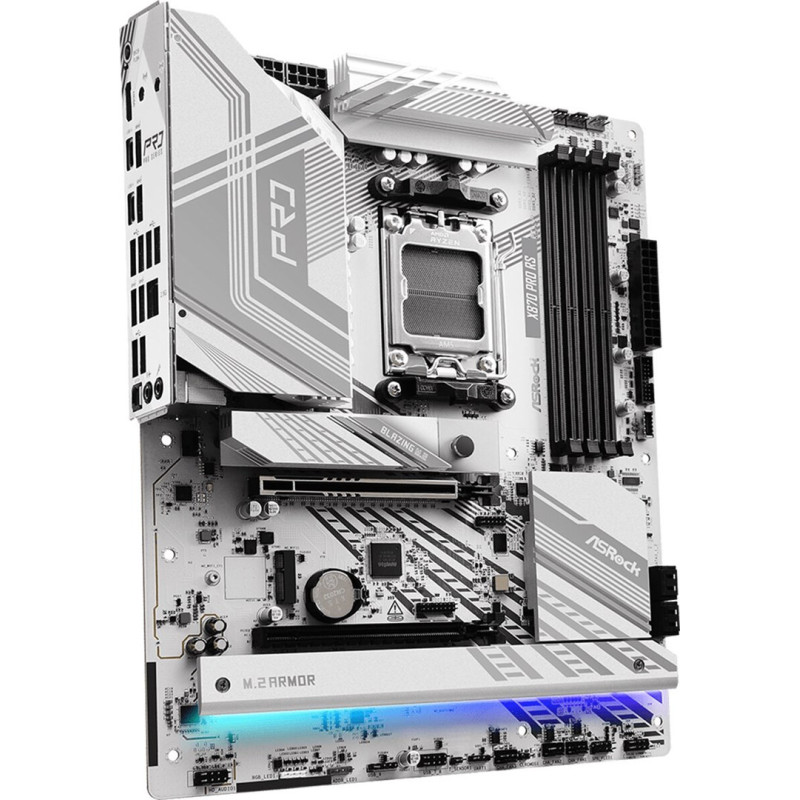

ASRock X870 Pro RS
AM5 socket AMD Ryzen for 7000 series processors. Supports up to 256GB DDR5 RAM with four DIMM slots.
- Compatible with AMD Ryzen™ 7000 and AMD Ryzen™ 8000 series processors
- Supports up to 256 GB DDR5-SDRAM with 4 DIMM slots
- Equipped with Realtek ALC1220 sound chip with 7.1 channels
- Includes 2.5 Gigabit Ethernet and Wi-Fi 6E (802.11ax)
- Fast M.2 (PCIe Gen5 x4) and Hyper M.2 (PCIe Gen4 x4) storage support
Processor | |
|---|---|
| Compatible processor series | AMD Ryzen™ 7000 Series, AMD Ryzen™ 8000 Series |
| Processor manufacturer | AMD |
| Processor socket | Nest AM5 |
| Maximum number of SMP processors | 1 |
Features | |
| Motherboard Chipset Family | AMD |
| Sound chip | Realtek ALC1220 |
| Motherboard format type | ATX |
| Motherboard chip | AMD X870 |
| Operating system architecture | 64-bit |
| Audio output channels | 7.1 channels |
| Supported Windows operating systems | Windows 11 x64, Windows 10 x64 |
Memory | |
| Memory channels | Dual channels |
| Memory slot type | DIMMs |
| Unbuffered memory | Yes |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 256GB |
Weight and dimensions | |
| Width | 305mm |
| Depth | 244 mm |
Network | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Dragon RTL8125BG |
| Bluetooth | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
Internal I/O | |
| CPU cooler connector | Yes |
| USB 3.2 Gen 1 connectors | 1 |
| USB 2.0 ports | 2 |
| ATX power connector (24-pin) | Yes |
| RGB LED pin connector | Yes |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| USB 3.2 Gen 2 ports | 1 |
BIOS | |
| BIOS type | UEFI AMI |
Storage controls | |
| Supported storage device interfaces | Fast M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4) |

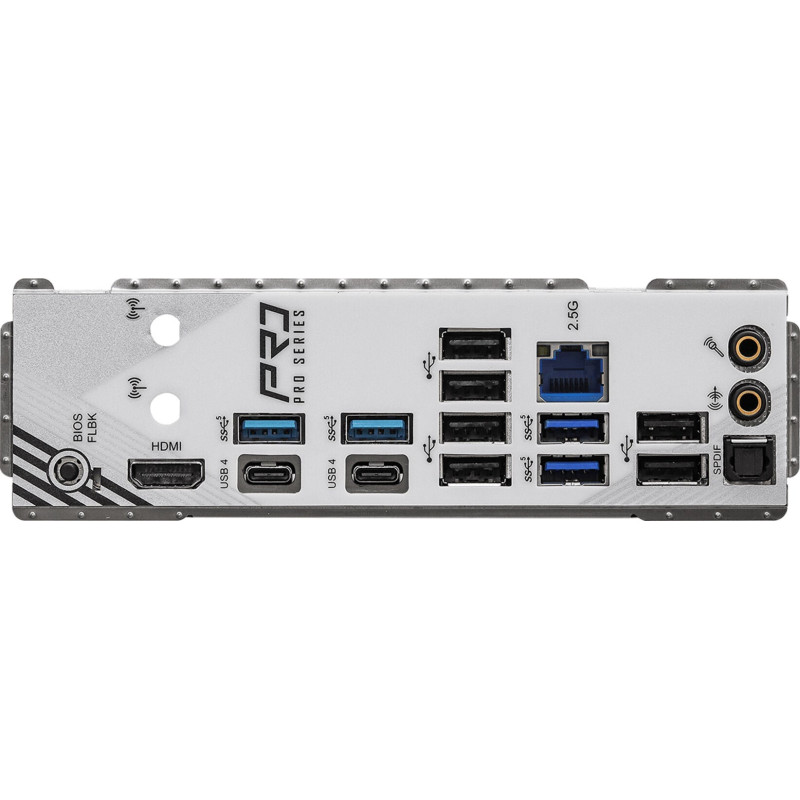

Rear panel I/O connectors | |
| Ethernet LAN (RJ-45) connections | 1 |
| S/PDIF output connector | Yes |
| USB 2.0 ports | 6 |
| Number of HDMI ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 4 |
| Line output | Yes |
| Microphone input | Yes |
| Number of USB 3.2 Gen 2x2 Type-C ports | 2 |
Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Height | 281 mm |
| Length | 346 mm |
| Weight | 2015 |
| Width | 75 mm |
