Motherboard - Asrock WRX90 WS EVO AMD sTR5 EEB
Product reference:
14-4710483945199
The Asrock WRX90 WS EVO motherboard supports AMD Ryzen Threadripper processors and up to 2 TB of DDR5-SDRAM memory, ensuring top performance with 7 PCI Express x16 (Gen 5.x) slots and 4 SATA III connectors.
Motherboard - Asrock WRX90 WS EVO AMD sTR5 EEB
Product reference:
14-4710483945199
The Asrock WRX90 WS EVO motherboard supports AMD Ryzen Threadripper processors and up to 2 TB of DDR5-SDRAM memory, ensuring top performance with 7 PCI Express x16 (Gen 5.x) slots and 4 SATA III connectors.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

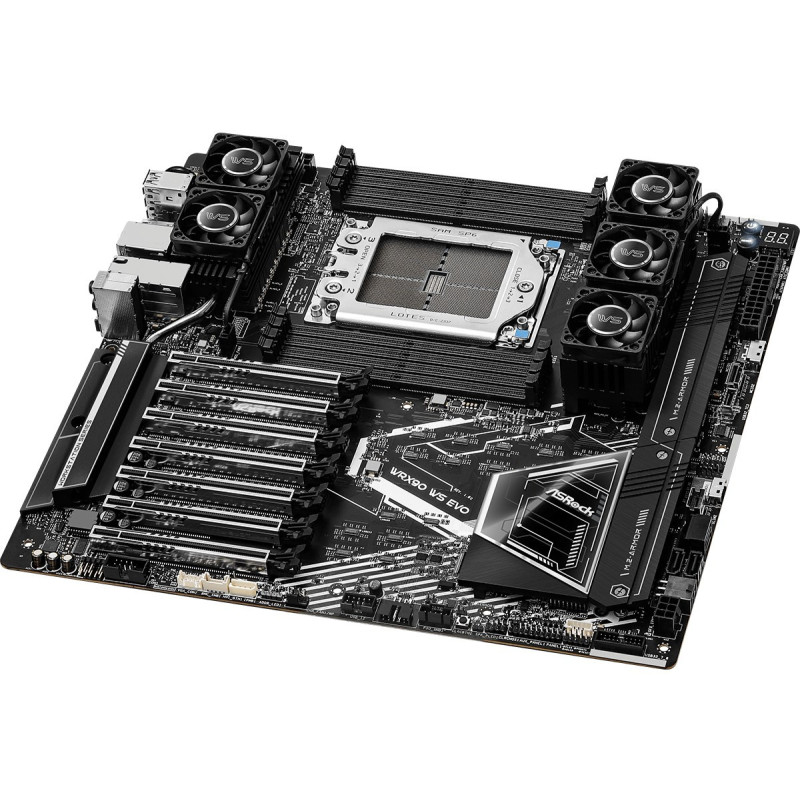

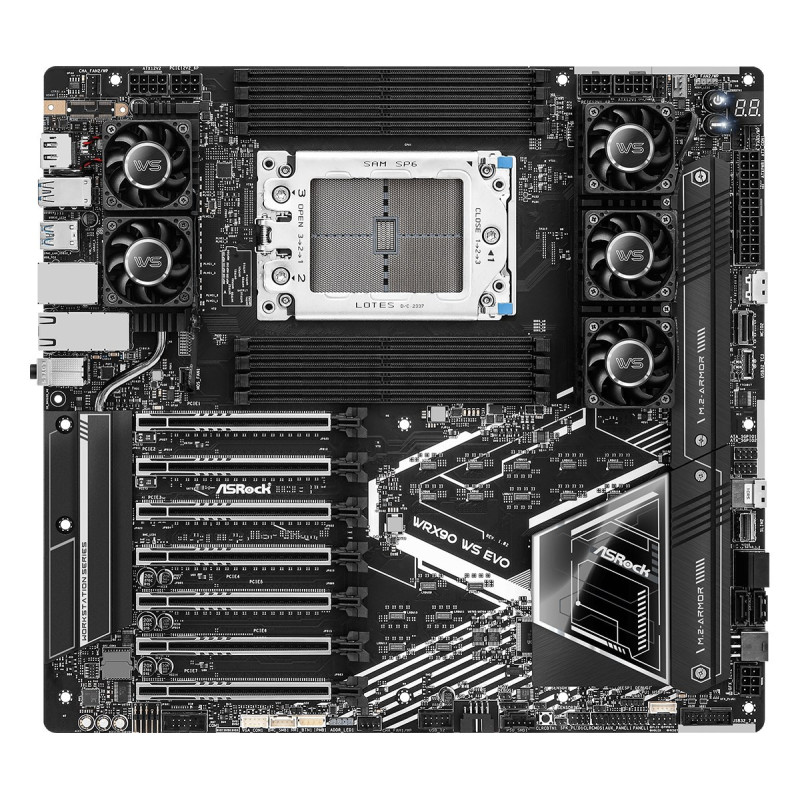

Asrock WRX90 WS Evo
The Asrock WRX90 WS EVO motherboard for AMD Ryzen Threadripper processors features an sTR5 socket and is ideal for high-performance computing. It has 8 DIMM slots supporting up to 2 terabytes of DDR5-SDRAM memory.
Main features:
- Supports AMD Ryzen Threadripper processors
- 8 DIMM slots supporting up to 2TB of DDR5-SDRAM memory
- 7 PCI Express x16 (Gen 5.x) slots
- Intel X710-AT2 LAN controller with 10 Gigabit Ethernet
Processor | |
|---|---|
| Processor socket | Socket sTR5 |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen™ Threadripper™ |
Features | |
| Chipset | AMD WRX90 |
| Audio chip | Realtek ALC1220 |
| Audio output channels | 7.1 channels |
| Form | EEC |
Memory | |
| Maximum internal memory | 2TB |
| Supported memory frequencies | 7600MHz |
| Memory slot type | DIMMs |
| Supported memory types | DDR5-SDRAM |
| ECC | Yes |
| Number of sockets | 8 |
Weight and dimensions | |
| Depth | 330 mm |
| Width | 305mm |
Network | |
| LAN controller | Intel X710-AT2 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Wi-Fi | No |
Internal I/O | |
| USB 2.0 ports | 2 |
| USB 3.2 Gen 1 connectors | 1 |
| Processor cooler connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM ports | 1 |
| ATX power connector (24-pin) | Yes |
| USB 3.2 Gen 2x2 ports | 1 |
BIOS | |
| BIOS memory size | 256 Mbit |
| BIOS type | EFI AMI |
Storage controls | |
| Supported storage interfaces | M.2, SATA III |
| RAID levels | 1, 0, 10 |
| RAID support | Yes |

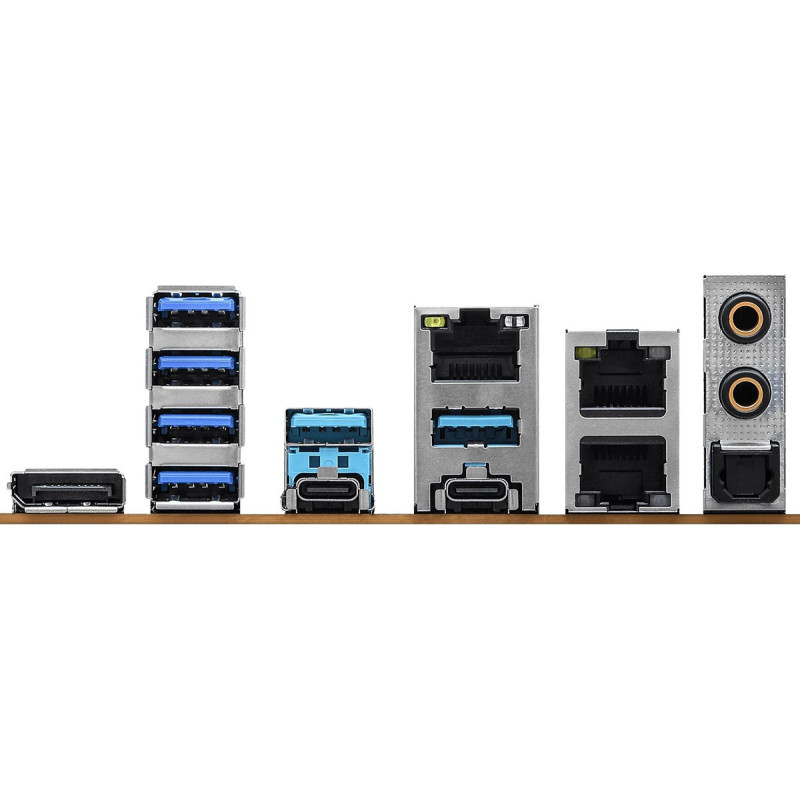

Rear panel I/O connectors | |
| S/PDIF output connector | Yes |
| DisplayPort quantity | 1 |
| DisplayPort version | 1.1a |
| USB4 Gen 2x2 ports quantity | 2 |
| USB 3.2 Gen 2 Type-A ports quantity | 4 |
| Number of Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 Type-A connectors quantity | 2 |
| IPMI LAN (RJ-45) connector | Yes |
| Microphone input | Yes |
Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 7 |
| Number of M.2 (M) slots | 2 |
| Length | 361 mm |
| Height | 91 mm |
| Width | 381 mm |
| Weight | 3175 grams |
