Motherboard - ASRock H610M-H2 / M.2 Micro ATX
Product reference:
14-4710483946929
Supports Intel LGA 1700 processors and up to 64GB of DDR4 memory. Features include HDMI output, Gigabit Ethernet, and multiple USB ports.
Motherboard - ASRock H610M-H2 / M.2 Micro ATX
Product reference:
14-4710483946929
Supports Intel LGA 1700 processors and up to 64GB of DDR4 memory. Features include HDMI output, Gigabit Ethernet, and multiple USB ports.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

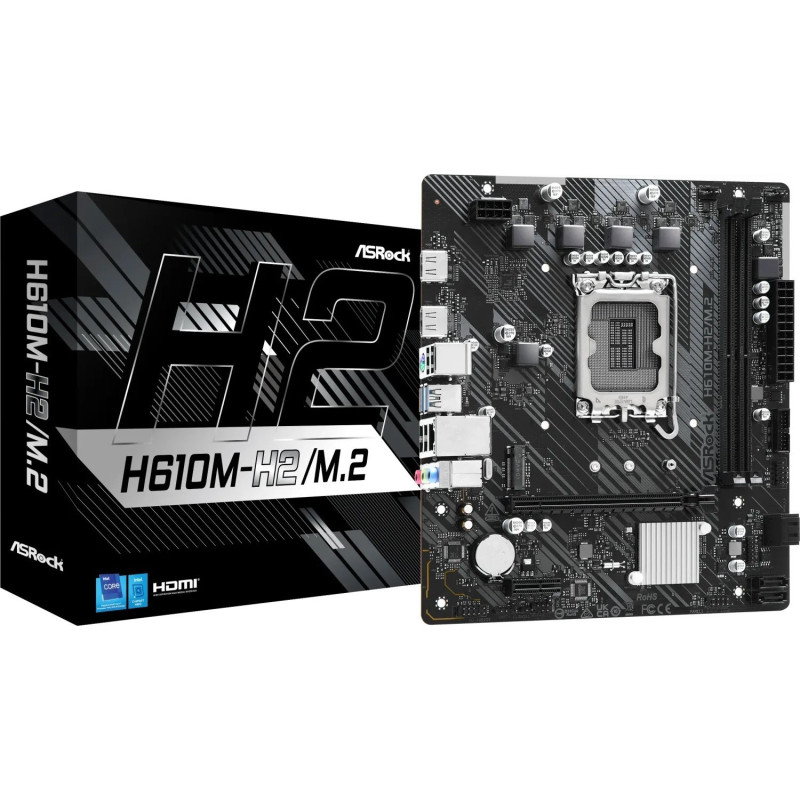

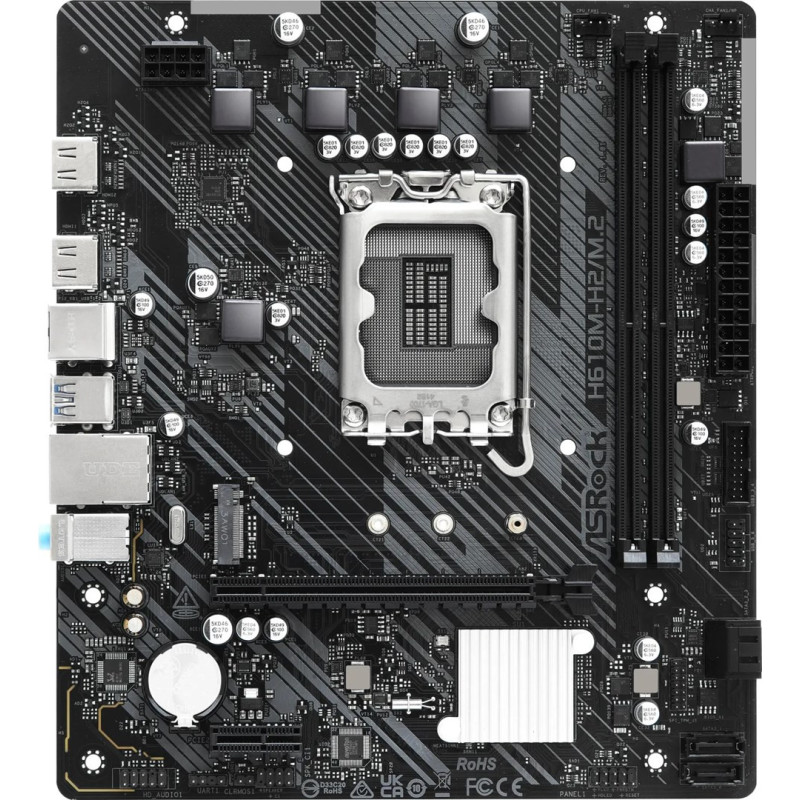

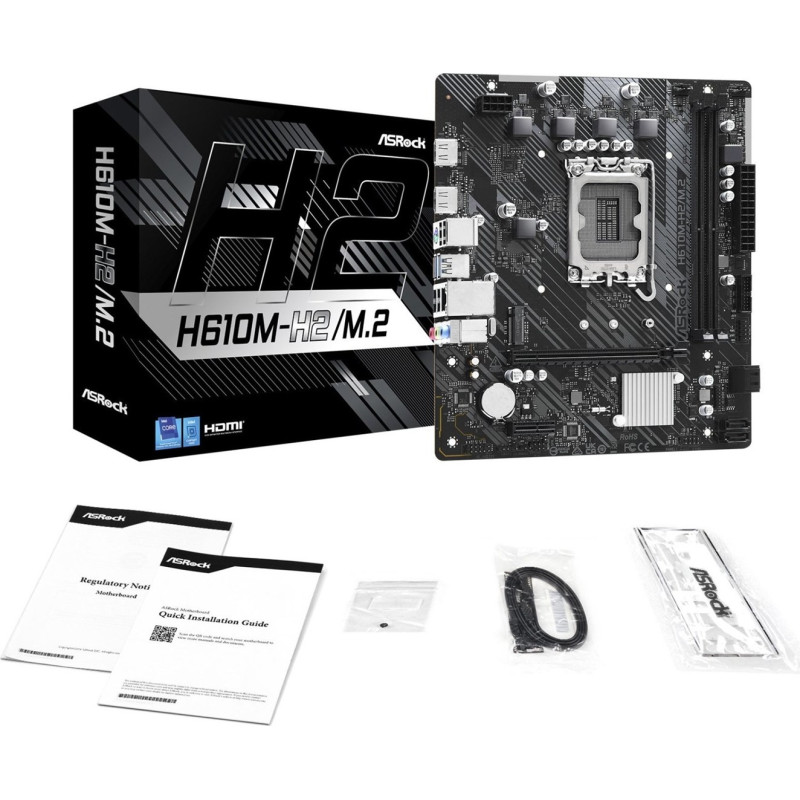

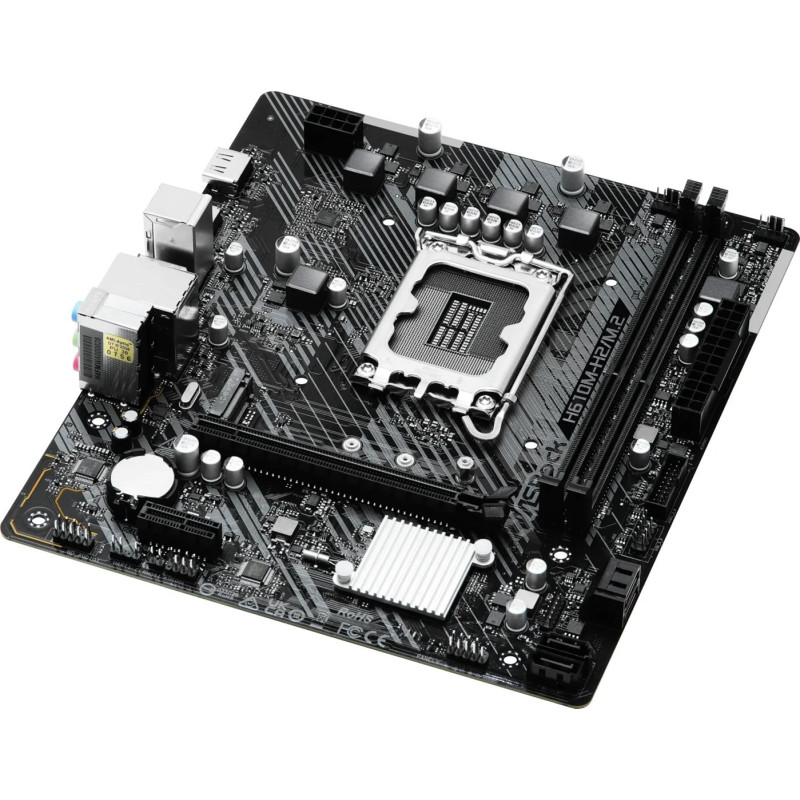

ASRock H610M-H2/M.2 motherboard - Micro ATX, DDR4, black
Compatible with Intel LGA 1700 processors and up to 64GB DDR4 memory. Key features include HDMI output, Gigabit Ethernet, and multiple USB ports.
- Enables the use of an Intel LGA 1700 socket with a maximum of 1 SMP processor.
- Equipped with Intel H610 chipset and Realtek ALC897 audio chip for better performance.
- Maximum internal memory capacity - 64 GB with dual-channel DDR4-SDRAM support.
- Offers multiple connectivity options, including 4 SATA III connectors and 1 M.2 interface for storage devices.
- The rear panel features 2 HDMI ports and 4 USB 2.0 ports for versatile connectivity.
Processor | |
|---|---|
| Maximum number of SMP processors | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
Graphics | |
| HDCP | Yes |
| Maximum resolution | 7680 x 4320 pixels |
Features | |
| Motherboard chip | Intel H610 |
| Audio chip | Realtek ALC897 |
| PC health monitoring | Fan, CPU, Voltage, Temperature |
| Motherboard shape | micro ATX |
| Supported Windows operating systems | Windows 10 x64, Windows 11 x64 |
Memory | |
| Maximum internal memory | 64GB |
| Supported memory types | DDR4-SDRAM |
| Memory slot type | DIMMs |
| Memory channels | Dual channel |
| Number of memory slots | 2 |
| Supported memory clock frequency (max) | 3200MHz |
Weight and dimensions | |
| Depth | 193 mm |
| Width | 220mm |
Network | |
| LAN controller | Realtek 8111H |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Internal I/O | |
| ATX power connector (24-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| TPM connector | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Storage controls | |
| Supported storage device types | HDDs and SSDs |
| Supported storage device interfaces | M.2, SATA III |
Rear panel I/O ports | |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 2.0 ports | 4 |
| Number of HDMI ports | 2 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 2 |
Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
