Motherboard - Asrock EC266D4U Intel LGA 1700 DDR5 32GB micro ATX
Product reference:
14-4711430523026
The Asrock EC266D4U motherboard supports Intel LGA 1700 processors and has four DDR5 memory slots with a maximum capacity of 32GB. It also offers a wide range of connectivity options, including eight SATA III connectors and various PCI Express slots for expansion.
Motherboard - Asrock EC266D4U Intel LGA 1700 DDR5 32GB micro ATX
Product reference:
14-4711430523026
The Asrock EC266D4U motherboard supports Intel LGA 1700 processors and has four DDR5 memory slots with a maximum capacity of 32GB. It also offers a wide range of connectivity options, including eight SATA III connectors and various PCI Express slots for expansion.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

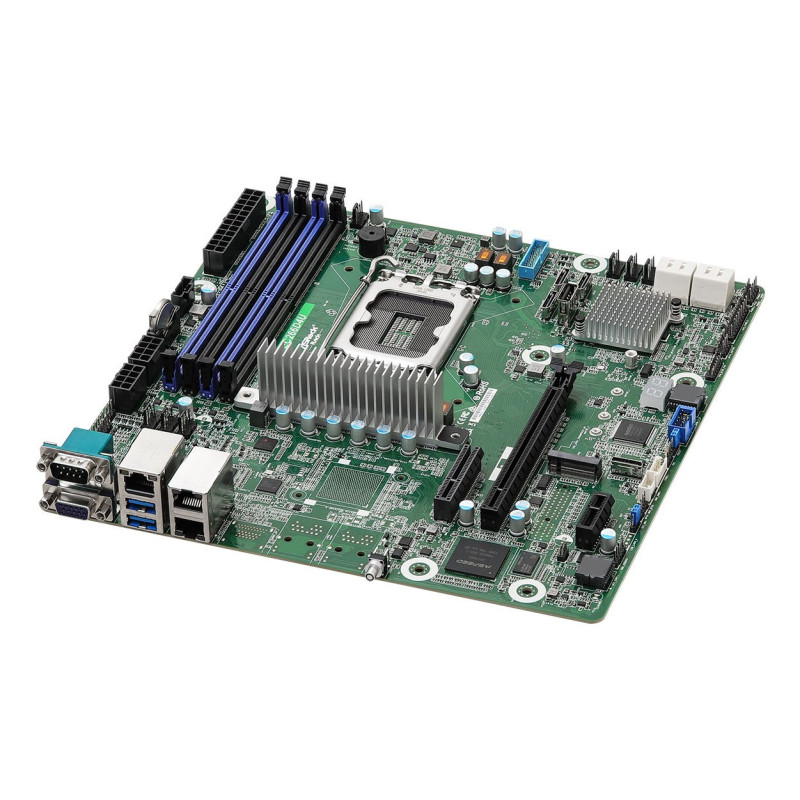

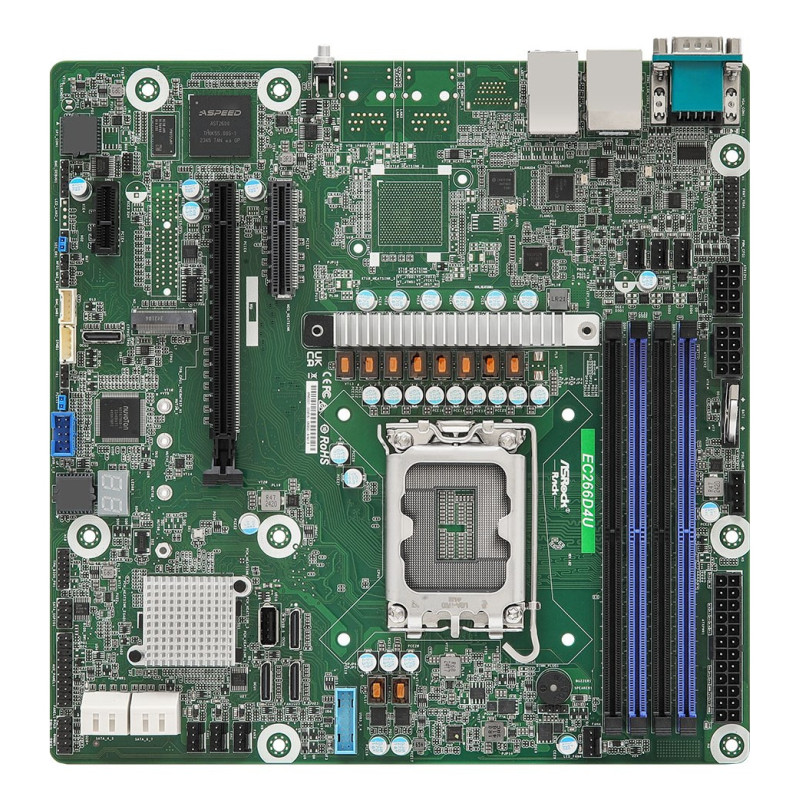

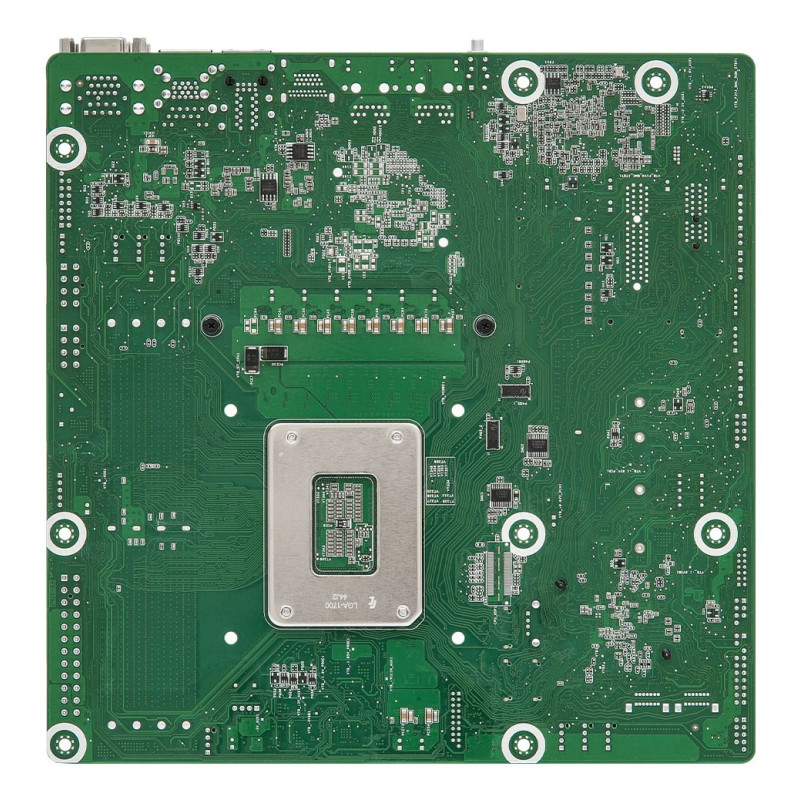

Asrock EC266D4U motherboard Intel C266 LGA 1700 Micro ATX
The Asrock EC266D4U motherboard supports Intel LGA 1700 processors and has four DDR5 memory slots with a maximum capacity of 32 GB. It includes several connectivity options such as eight SATA III connectors and various PCI Express slots for expansion.
- Supports Intel LGA 1700 processors, including Xeon and Pentium series, for versatile performance.
- Equipped with 4 DDR5 memory slots, allowing for a maximum of 32 GB of high-speed memory.
- Offers multiple connectivity options with 8 SATA III switches and various USB ports for easy expansion.
- The Micro ATX form factor design ensures compatibility with a wide range of cases while maintaining a compact design.
Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Compatible processor models | Intel Xeon E, Intel® Xeon®, Intel® Pentium® Gold |
| Processor manufacturer | Intel |
Graphics | |
| Integrated graphics card model | Aspeed AST2600 |
Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 32GB |
| Supported memory frequency (max) | 4400MHz |
Dimensions | |
| Depth | 244 mm |
| Width | 244 mm |
Internal I/O | |
| Number of SATA III switches | 8 |
| USB 2.0 switches | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) switches | 2 |

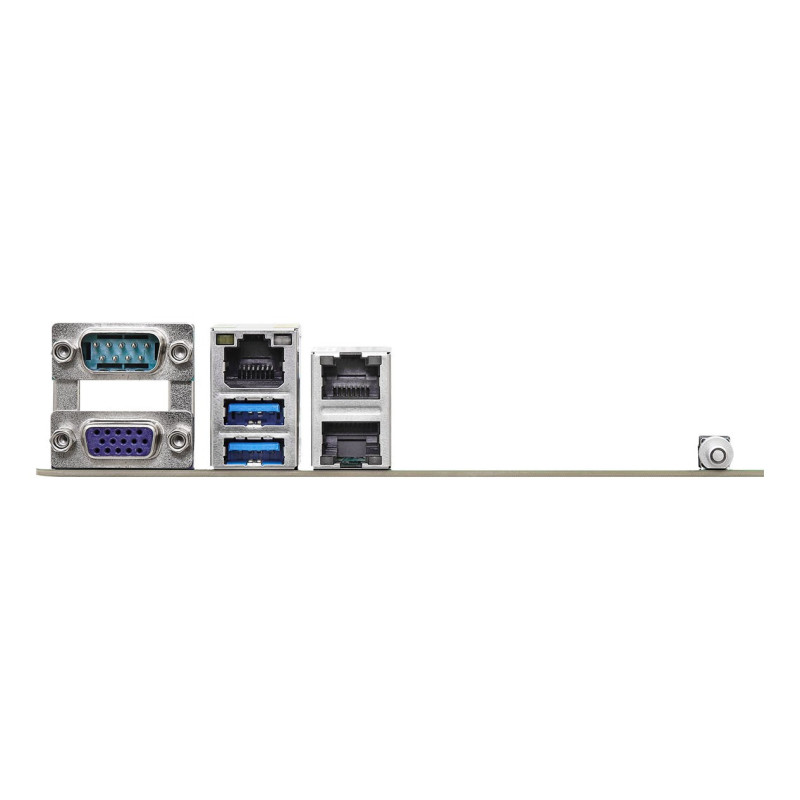

Rear panel I/O ports | |
| Number of Ethernet LAN (RJ-45) ports | 2 |
| Number of VGA (D-Sub) ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 2 |
Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 4.x) slots | 1 |
