Motherboard - Asrock EC266D2I, Intel LGA 1700, 2x DDR5, 8x SATA III, Mini ITX, Black
Product reference:
14-4711430521763
The Asrock EC266D2I motherboard supports Intel LGA 1700 processors and features a mini ITX form factor design. It features 2 DDR5 RAM memory slots, 8 SATA III connectors, and multiple USB 3.2 ports for convenient connectivity.
Motherboard - Asrock EC266D2I, Intel LGA 1700, 2x DDR5, 8x SATA III, Mini ITX, Black
Product reference:
14-4711430521763
The Asrock EC266D2I motherboard supports Intel LGA 1700 processors and features a mini ITX form factor design. It features 2 DDR5 RAM memory slots, 8 SATA III connectors, and multiple USB 3.2 ports for convenient connectivity.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

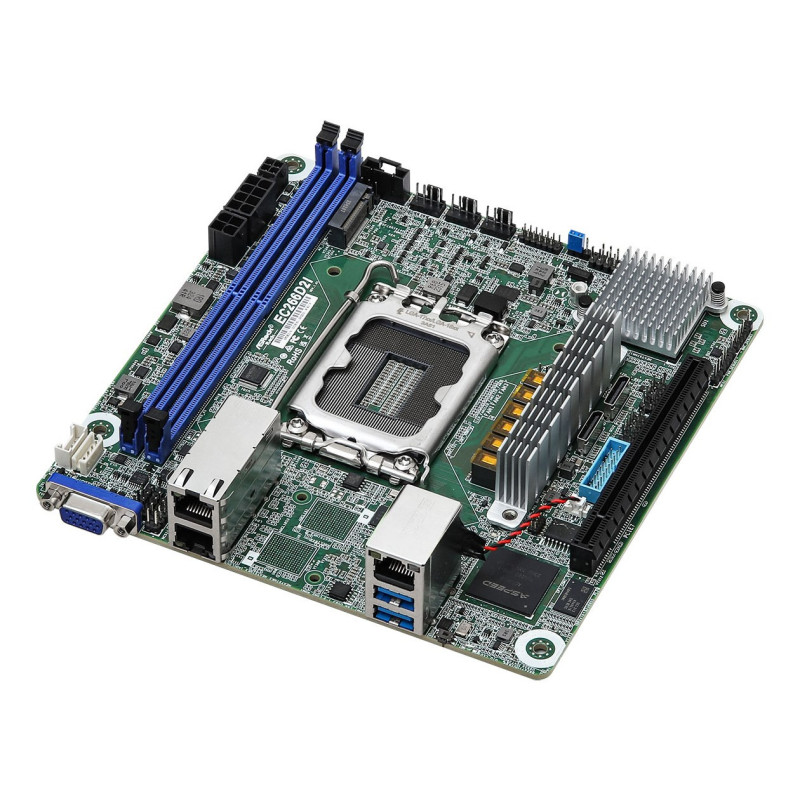

Asrock EC266D2I Motherboard Intel C266 LGA 1700 Mini ITX
The Asrock EC266D2I motherboard supports Intel LGA 1700 processors and has a mini ITX form factor. It has 2 memory slots DDR5 RAM, 8 SATA III connectors, and multiple USB 3.2 ports for connectivity options.
- Supports Intel Xeon E and Pentium Gold processors with LGA 1700 socket to improve performance.
- Compact mini ITX format, suitable for saving space in servers or workstations.
- Supports up to 32 GB of internal memory and DDR5-SDRAM support for fast data processing.
- A wealth of connectivity options, including dual Ethernet LAN ports and extensive SATA III connections for a variety of storage solutions.
Features | |
|---|---|
| Product Type | Motherboard |
| Product Brand | Asrock |
| Model | EC266D2I |
Specifications | |
| Processor Socket | LGA 1700 |
| Compatible Processor Series | Intel Xeon E, Intel Pentium Gold |
| Chipset | Intel C266 |
| Format | Mini-ITX |
| Maximum Internal Memory | 32GB |
| Supported Memory Type | DDR5-SDRAM |
| Number of Memory Slots | 2 |
| Supported Memory Frequency (Max) | 4800MHz |
| Number of SATA III Connectors | 8 |
| USB 3.2 Gen 1 Ports | 3 |
| Ethernet LAN Ports | 2 |
| Integrated Graphics Card Model | Aspeed AST2600 |
| Operating Temperature | 10 - 35 °C |
| Storage Temperature | -40 - 70 °C |
| Dimensions | 170.2mm x 170.2mm |
| Weight | Nenurodyta |
| RAID Support | Yes |
| BIOS Type | AMI |
| Height | 50mm |
| Length | 200mm |
| Weight | 800g |
| Width | 200mm |
