Motherboard - Asrock B860M-X GEN5 (Intel, DDR5, HDMI, DisplayPort)
Product reference:
14-4711581490727
The Asrock B860M-X GEN5 is a micro ATX motherboard compatible with Intel Core Ultra processors and supports up to 128GB of DDR5 memory. It has multiple USB ports, HDMI and DisplayPort outputs, and also offers RAID support for storage configurations.
Motherboard - Asrock B860M-X GEN5 (Intel, DDR5, HDMI, DisplayPort)
Product reference:
14-4711581490727
The Asrock B860M-X GEN5 is a micro ATX motherboard compatible with Intel Core Ultra processors and supports up to 128GB of DDR5 memory. It has multiple USB ports, HDMI and DisplayPort outputs, and also offers RAID support for storage configurations.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

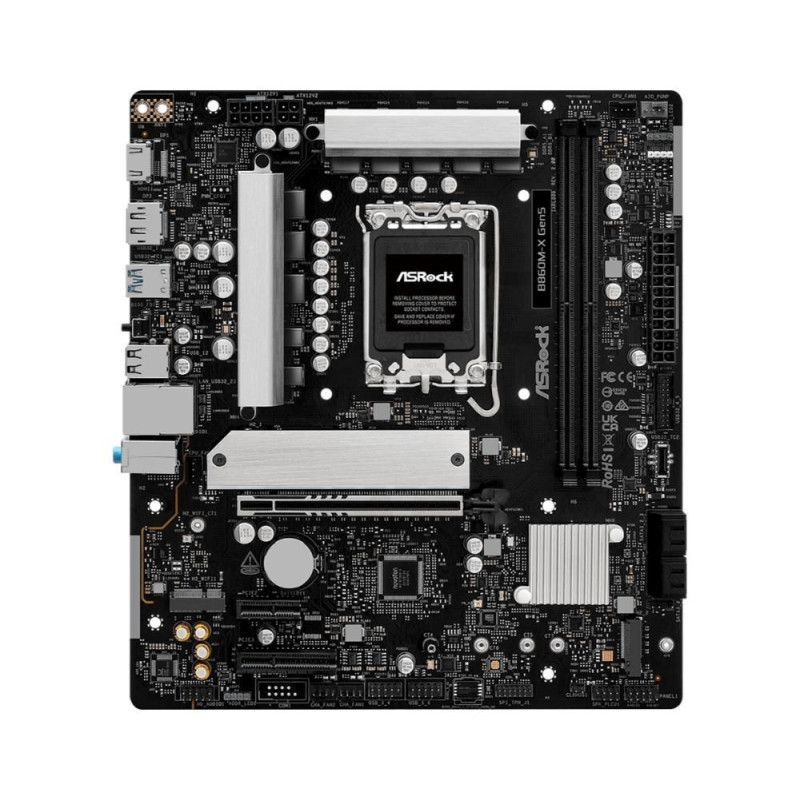

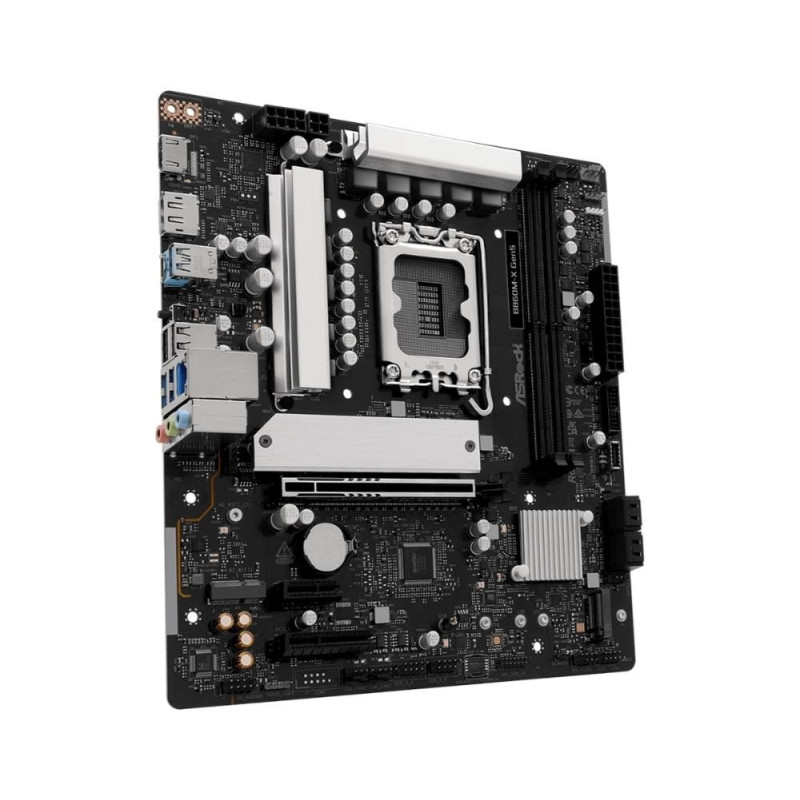

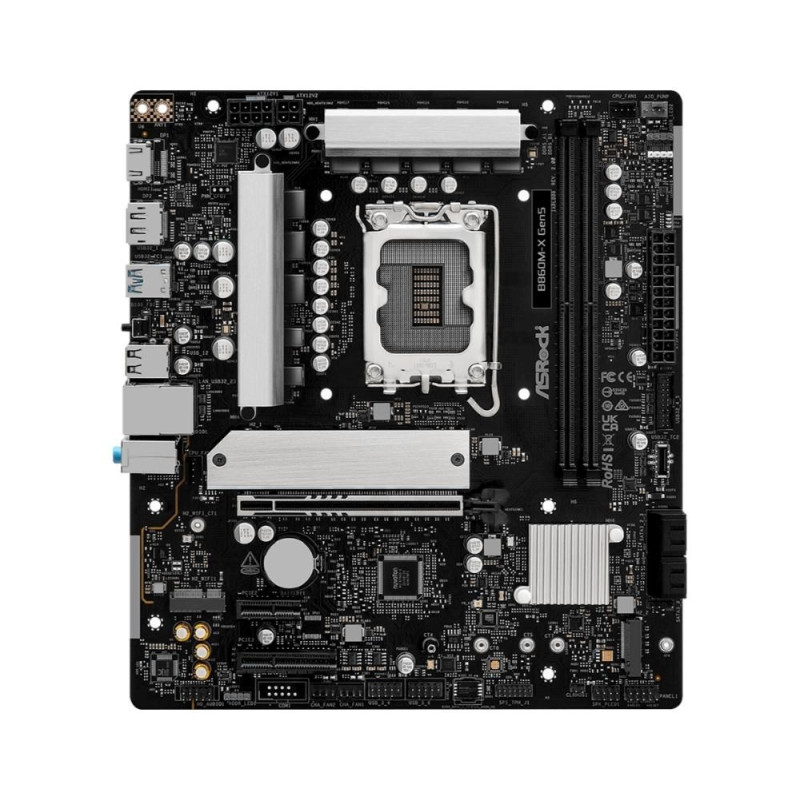

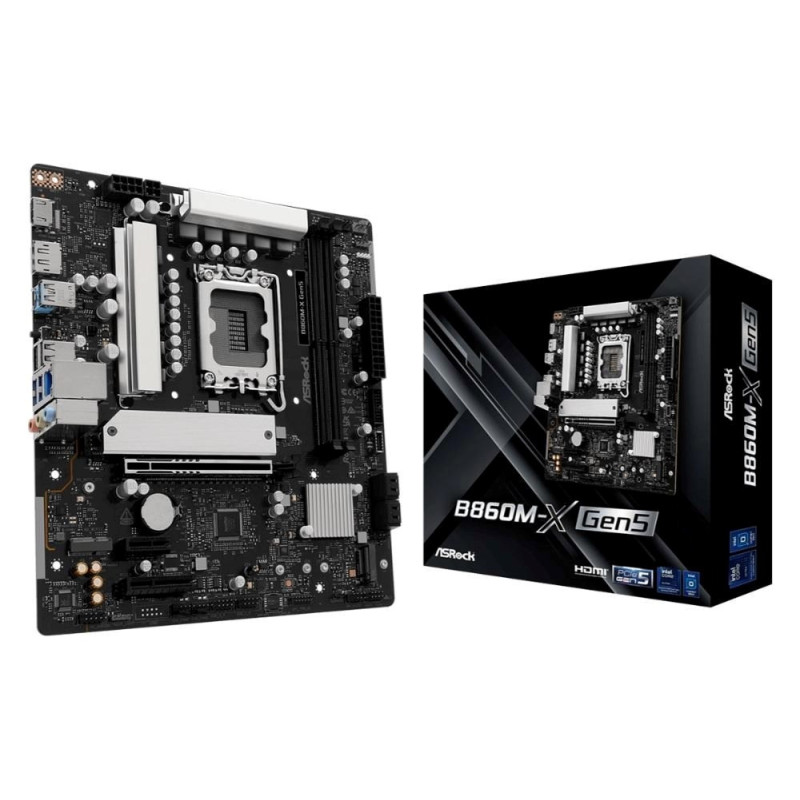

Motherboard Asrock B860M-X GEN5
The Asrock B860M-X GEN5 is a micro ATX motherboard compatible with Intel Core Ultra processors and supports up to 128GB of DDR5 memory. It has multiple USB ports, HDMI and DisplayPort outputs, and also offers RAID support for storage configurations.
- Supports Intel Core Ultra processors with LGA 1851 socket for high-performance computing.
- It features dual-channel DDR5 memory support, allowing for up to 128GB for improved multitasking.

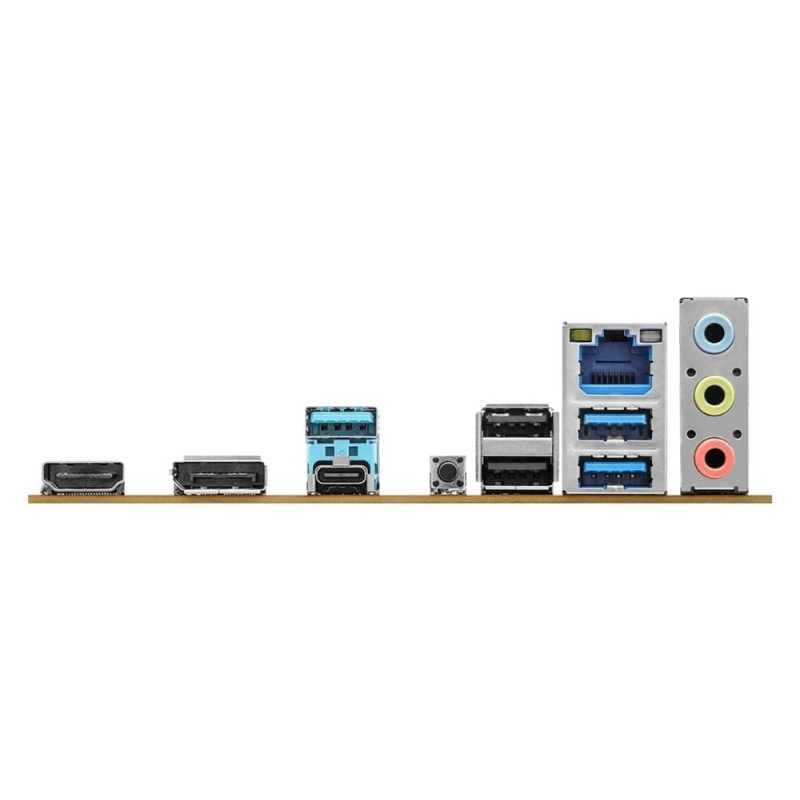

- There are multiple USB ports, including USB 3.2 Gen 2x2 Type-C for fast data transfers and connectivity.
- Offers advanced audio capabilities with 7.1 channel output for an immersive audio experience.
Processor | |
|---|---|
| Processor manufacturer | Intel |
| Compatible processor models | Intel Core Ultra (2 series) |
| Processor socket | LGA 1851 (Socket V1) |
Features | |
| Motherboard chip family | Intel |
| Audio output channels | 7.1 channels |
| Motherboard format type | micro ATX |
| Motherboard chip | Intel B860 |
| Supported Windows operating systems | Windows 11 x64 |
| Product color | Black |
| Sound chip | Realtek ALC897 |
Memory | |
| Memory channels | Dual channel |
| Maximum internal memory | 128GB |
| Number of memory slots | 2 |
| Supported memory types | DDR5 DIMMs |
| Supported memory frequency (max) | 9066 MHz |
Design | |
| Number of USB 3.2 Gen 1 ports | 5 |
| BIOS update button | Yes |
| Number of M.2 (M) slots | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPort quantity | 1 |
| TPM connector | Yes |
| Number of HDMI ports | 1 |
| USB 2.0 ports | 6 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| RGB LED pin connector | Yes |
| Number of M.2 (E) slots | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Weight and dimensions | |
| Width | 244 mm |
| Depth | 218 mm |
Network | |
| Wi-Fi | No |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Storage controls | |
| RAID levels | 10, 1, 0, 5 |
| RAID support | Yes |
| Supported storage device interfaces | M.2, SATA III |
Expansion slots | |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
