Motherboard - ASRock B860M Pro RS WiFi LGA 1851 DDR5 256GB Wi-Fi Bluetooth
Product reference:
14-4711581490284
The ASRock B860M Pro RS WiFi motherboard supports Intel LGA 1851 processors and up to 256 GB of DDR5 memory. It features Wi-Fi, Bluetooth, and a variety of connections, including USB 3.2 and HDMI 2.1.
Motherboard - ASRock B860M Pro RS WiFi LGA 1851 DDR5 256GB Wi-Fi Bluetooth
Product reference:
14-4711581490284
The ASRock B860M Pro RS WiFi motherboard supports Intel LGA 1851 processors and up to 256 GB of DDR5 memory. It features Wi-Fi, Bluetooth, and a variety of connections, including USB 3.2 and HDMI 2.1.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

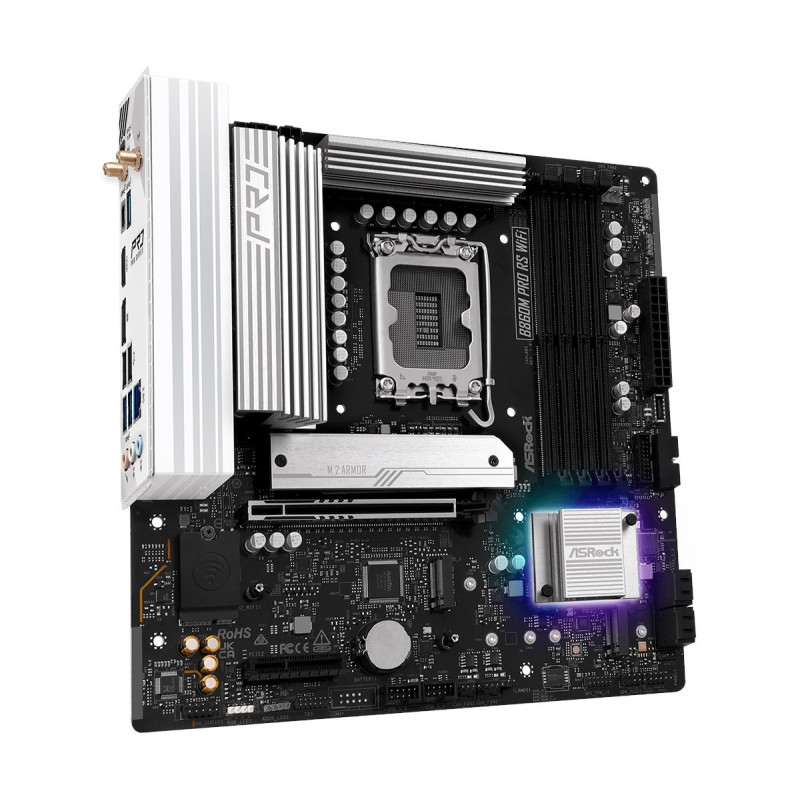

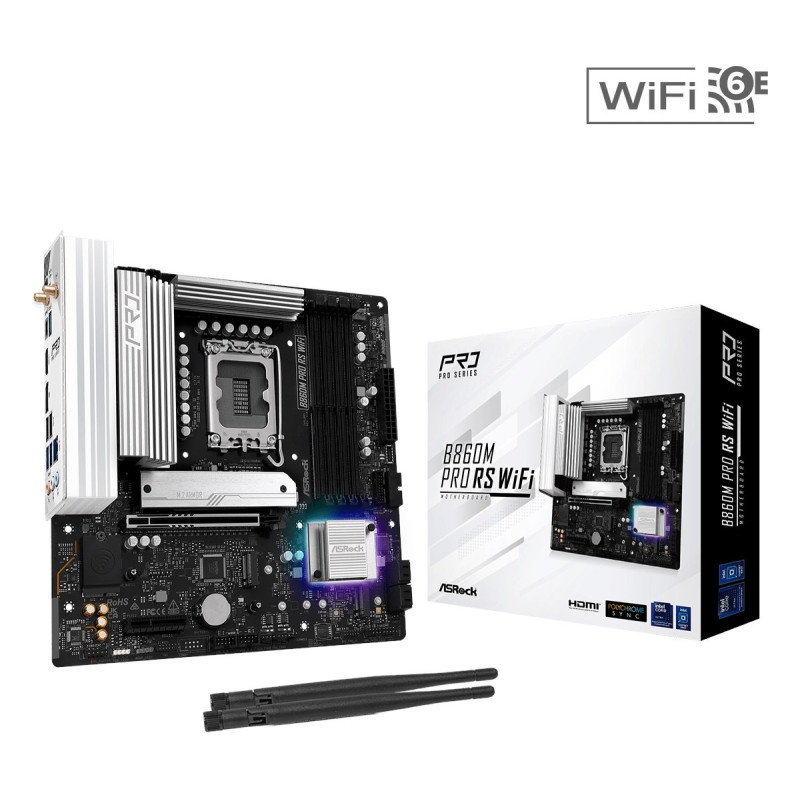

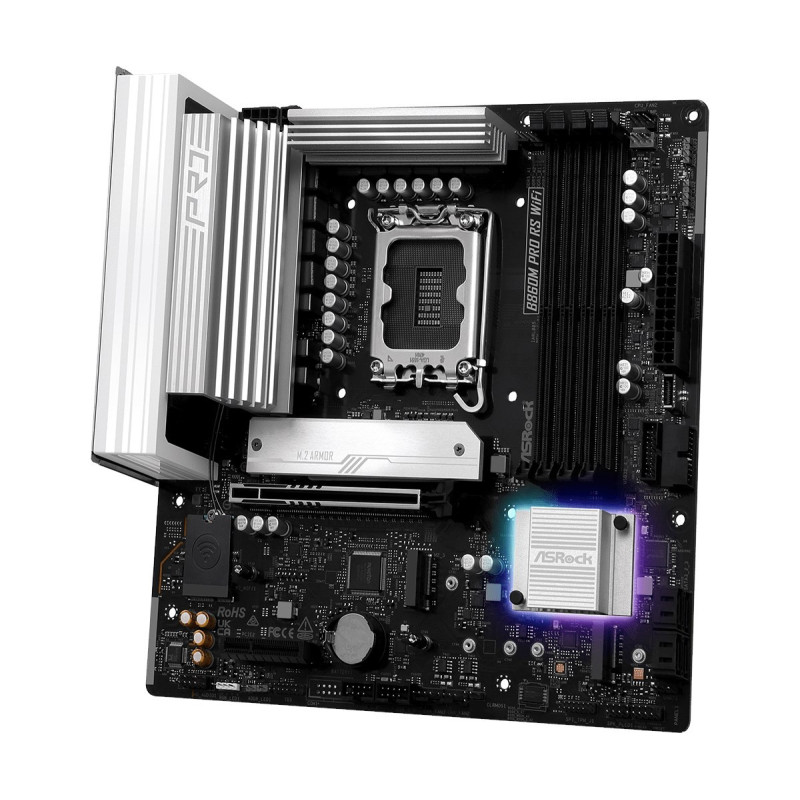

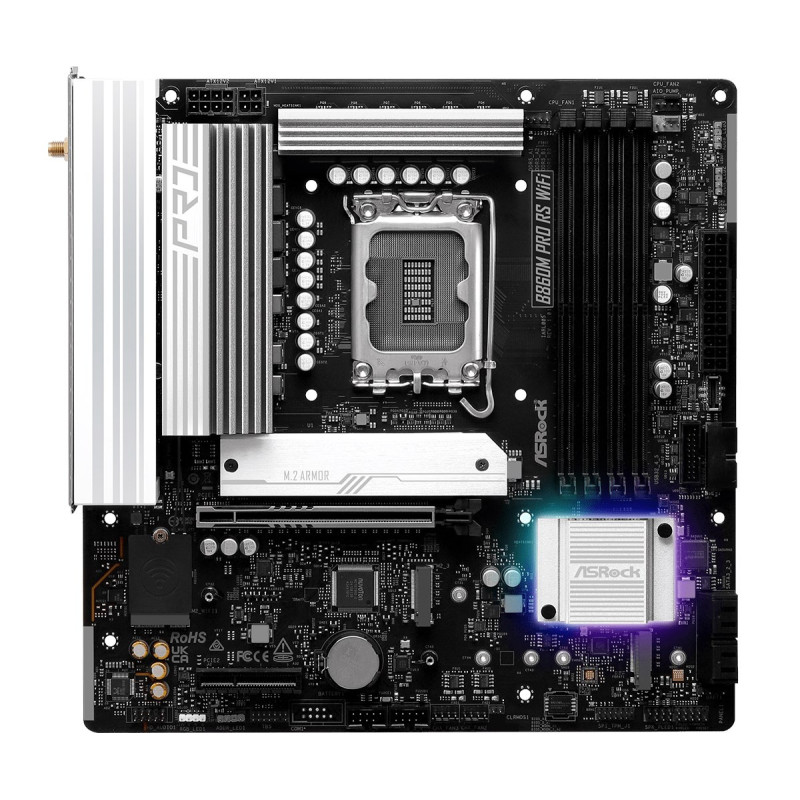

ASRock B860M Pro RS WiFi motherboard
Compatible with Intel LGA 1851 processors and up to 256 GB DDR5 memory. Equipped with Wi-Fi, Bluetooth and a wide range of connections, including USB 3.2 and HDMI 2.1.
- Enables the use of Intel LGA 1851 processors with a maximum of 256 GB of internal memory.
- Equipped with dual-channel DDR5-SDRAM and 4 DIMM slots for increased performance.
- Built-in Wi-Fi and Bluetooth are included for seamless connectivity.
- Rich in USB ports, including USB Type-C, and 2.5 Gigabit Ethernet to ensure fast data transfers.
Processor | |
|---|---|
| Processor socket | LGA 1851 (Socket V1) |
| Processor manufacturer | Intel |
| Multiple processor sockets | LGA 1851 |
Features | |
| Audio output channels | 7.1 channels |
| Composite Windows operating systems | Windows 11 x64 |
| Motherboard format type | micro ATX |
| Audio chip | Realtek ALC897 |
| Motherboard chip | Intel B860 |
| Motherboard chipset family | Intel |
Memory | |
| Memory channels | Dual channel |
| Unbuffered memory | Yes |
| ECC compatibility | Non-ECC |
| Memory slot type | DIMMs |
| Types of compound memory | DDR5-SDRAM |
| Number of memory slots | 4 |
Weight and dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
Network | |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet LAN data transfer rates | 10, 100, 1000, 2500 Mbps |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Internal I/O | |
| USB 3.2 Gen 1 connectors | 2 |
| ATX power connector (24-pin) | Yes |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| USB 2.0 ports | 2 |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of RGB LED pin connectors | 1 |
| Number of water pump connections | 1 |
| 12V power connector | Yes |
| RGB LED pin connector | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Memory controllers | |
| RAID levels | 1, 5, 0, 10 |
| Composite memory device interfaces | M.2, PCI Express 4.0, SATA III |
| RAID support | Yes |
| Types of mass storage devices | HDD SSD |
Rear panel I/O ports | |
| USB connection type | USB Type-C, USB Type-A |
| Number of USB 2.0 ports | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of antennas | 2 |
| Number of HDMI ports | 2 |
| HDMI version | 2.1 |
| Number of USB 3.2 Gen 1 ports | 3 |
| Flashback BIOS button | Yes |
| Number of USB 3.2 Gen 1 Type-C ports | 1 |
Expansion slots | |
| M.2 (M) number of sockets | 3 |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1-o M.2 maximum key size | 2280 |
| 1-o M.2 highest PCI Express generation | 4.0 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Safety warning | |
| Warnings | Do not open or modify the motherboard to avoid damage. When disposing of the product, please follow local electronics recycling regulations. If you have any problems with the installation, please contact a qualified technician. |
| Height | 100mm |
| Length | 350mm |
| Weight | 1500g |
| Width | 350mm |
